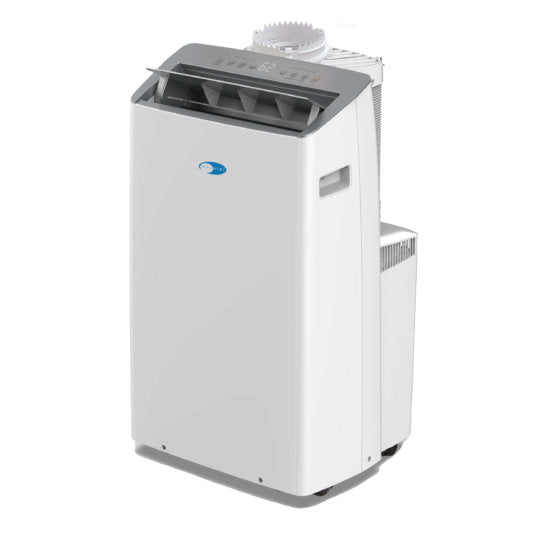

Whynter - ARC-1230WNH 14,000 BTU (12,000 BTU SACC) NEX Inverter Dual Hose Cooling Portable Air Conditioner, Heater, Dehumidifier, and Fan with Smart Wi-Fi, up to 600 sq ft in White | ARC-1230WNH

The Whynter ARC-1230WNH Inverter Dual Hose Portable Air Conditioner and Heater has the highest cooling and heating BTU (14,000 ASHRAE / 12,000 SACC) in the market. The cooling power you need to cool, dehumidify or circulate the air in up to 600 sq. ft of space. Smart functionalities include the NetHome Plus app to control your portable air conditioner through Wi-Fi from virtually anywhere. You can also control it with Amazon Alexa or Google Home voice assistant.

Intelligent features such as the 24-hour Timer, Sleep Mode, Auto restart, Self-Diagnosis, Express Run Settings, Schedules, and Filter Check Reminder Light.

Features

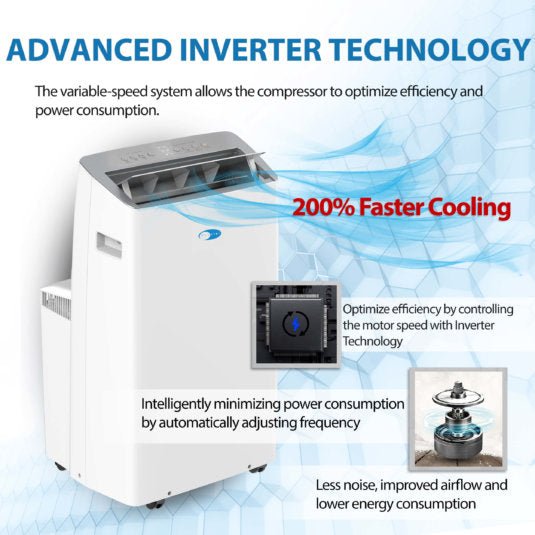

• As pioneers in the air comfort industry, we are introducing the next-generation Inverter Technology currently only being used in high-efficiency ductless mini-split air conditioners to our NEX line of portable air conditioners. The variable-speed system allows the compressor to optimize efficiency and power consumption together while maintaining a specified output.
• Below are the advantages of inverter technology:
• Estimated 40% – 50% in energy savings
• 2 times quicker to achieve desired temperature
• Quieter operation
• Minimized temperature fluctuations
• No voltage peaks from the compressor

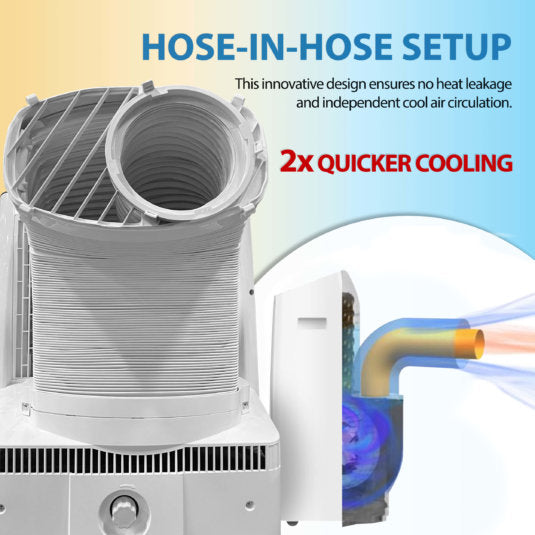

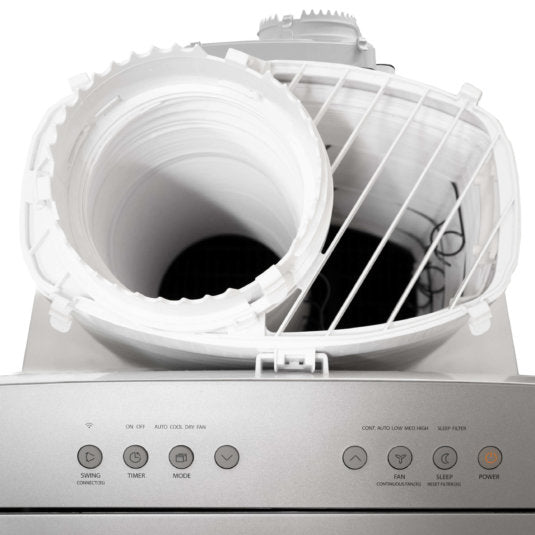

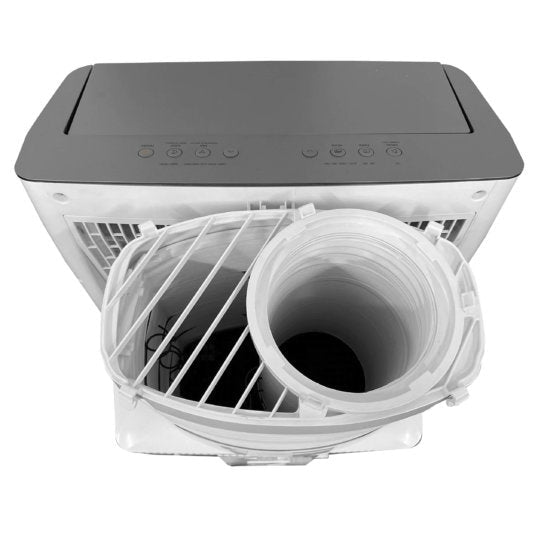

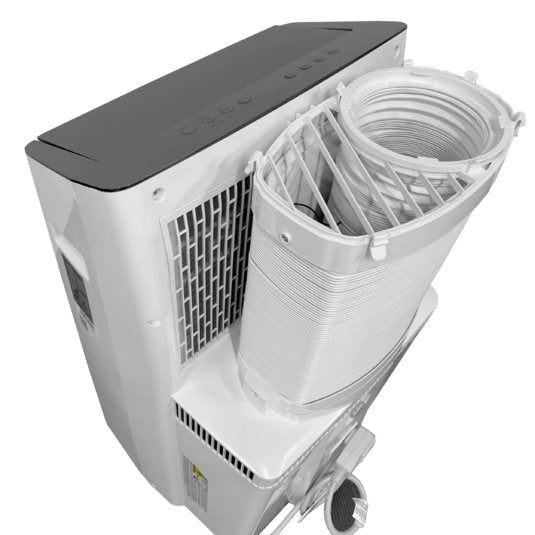

• Hose-in-hose Setup: The innovative two-hose-in-one design and the sealed bottom structure ensure no heat leakage. This cooling setup extracts and exhausts air from the outside, so the indoor space reaches an independent and balanced cool air circulation. As a result, the entire room can be cooled down quickly and effectively.
• Smart Control (WiFi-enabled & Voice-connected: You can control your portable air conditioner anywhere with the NetHome Plus app for Android and iOS and make your home comfortable even before you arrive. Also, you can use Amazon Alexa or Google Home voice assistant to operate the air conditioner.
• Full Coverage Airflow: The fully automatic 80-degree vent louver optimizes the air distribution in the room with a 52% better coverage.
• Hassle-free operation: The patented self-evaporative technology frees you from needing to drain your unit in most environments. Alternatively, the included gravity drain hose can be utilized for continuous drainage in humid climates. The display includes a handy filter and tank full notifications to take the guesswork out of maintaining your unit.

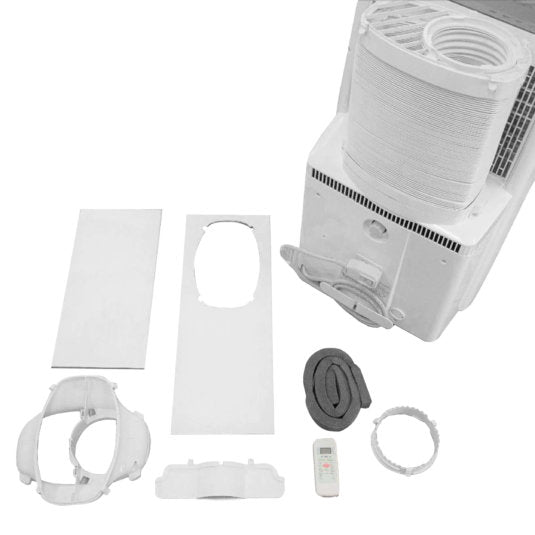

• Portability: Move it anywhere with the 4-wheel design and handles. Easy to setup in most vertical or horizontal windows with the convenient snap-together window kit (included).
• White color
• Cooling and Heating: 14,000 BTU (ASHRAE) / 12000 BTU (SACC)
• Dehumidifying Capacity: 87 pints
• Refrigerant: R32
• Patented auto drain function fully exhausts all condensate automatically in most environments in cooling and dehumidifying modes
• Advanced Inverter technology achieves 20% more cooling capacity and over 40% energy saving
• Optimize air distribution with a fully automatic 80-degree flexible airflow louver
• Five operational modes: Auto, Cool, Dehumidify, Fan, and Heat
• Digital display and remote control
• Smart Control (WiFi-enabled & Voice-connected)
• Control from anywhere using the NetHome Plus app through Wi-Fi
• Voice control works with Amazon Alexa or Google Home voice assistant
• Intelligent features such as the 24-hour Timer, Sleep Curve, Self-Diagnosis, Express Run Settings, and Schedules
• Innovative Hose-in-hose” design with a sealed bottom structure ensures no heat leakage
• LCDI (Leakage-Current Detection and Interruption) plug
• Upper and lower drain ports for continuous operation
• Continuous Gravity and Manual drain ports for continuous operation (cooling and dehumidifying modes)
• Heat Mode AutoPump for continuous operation (required in heating mode)
• Designed to provide quiet and efficient cooling to any room, with no permanent installation
• Fan Speed: Low |Medium | High
• Washable air filter
• Full thermostatic control range from 60°F – 86°F (ambient conditions above 41° F in heating mode)
• Casters for easy mobility
• 24 hour programmable time

Specifications

• ASHRAE BTU: ASHRAE BTU 14,000 BTU / 12000 BTU Cooling/Heating
• SACC BTU: 12,000 BTU
• Color: White
• Coverage Sq. Ft.: 600 sq. ft
• Dehumidifying Capacity: 87 pints/day
• Exhaust Hose Length: Max. 47"
• Fan Speed: 3 speed
• Filter Type: Washable filter
• Heat Mode: Yes
• Hose System: Dual Hose (Hose-in-hose)
• Louver Type: Fully automatic 80-degree flexible airflow louver
• Maximum Power Consumption: 1298W / 12.0A
• Pump Feature: Yes – Heat Mode Only
• Refrigerant: R-32
• Temperature Range: Cooling: 60-86°F | Heating: 60-86°F
• Upper Gravity Drain Port: Yes

• Window Kit Length: Max. 49"
• Noise level (fan speed): <47.2 dB low / 52.6 dB medium / 56.8 dB high
• Auto restart after power outage
• Extendable Hose: Length up to 47″
• Window Kit : Length up to 49”
• Air Flow (low/medium/high speed): 384 m3h, 225 CFM / 415 m3h, 244 CFM / 661 m3h, 388 CFM
• Maximum cooling power consumption: 1298W / 12.0A
• Power supply: 115 V / 60Hz / 1 Phase
• UL listed
• UPC 850014459192
• Warranty: 1 year

Dimensions & Weight

• Unit dimensions: 19.5” W x 16.7” D x 32.5” H
• Packaging dimensions: 22” W x 18” D x 34.5” H
• Net weight: 77.25 lbs
• Gross weight: 88.5 lbs
