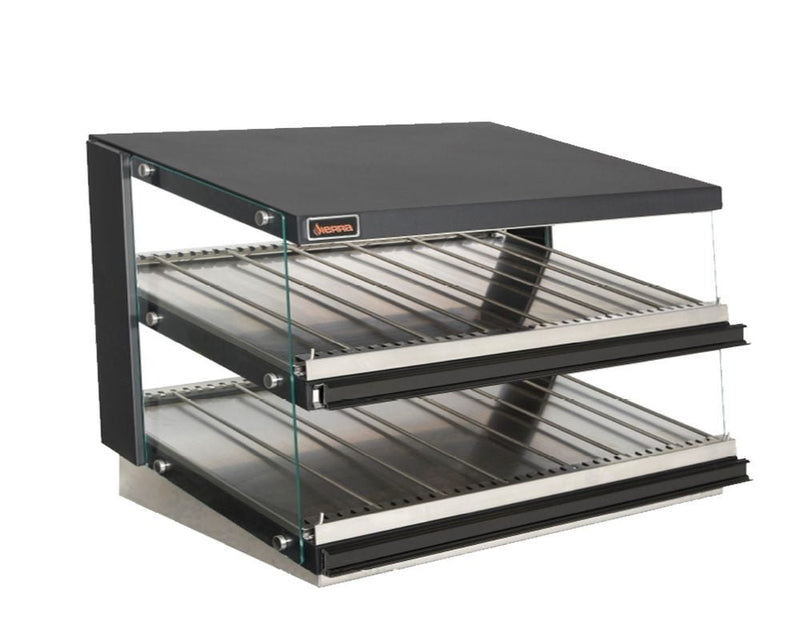

Sierra SHDM‑50PT 50″ Heated Display Merchandiser – Pass‑Through, Dual Heated Shelves
Showcase more product, move more product. The Sierra SHDM‑50PT Heated Display Merchandiser is the largest model in Sierra’s best‑selling SHDM‑PT series, stretching 50 inches to handle your busiest rushes. Perfect for convenience stores, stadium kiosks, cafés, and school cafeterias, it keeps hot wraps, pizzas, burgers, and boxed entrées at the ideal serving temperature while putting them front‑and‑center for impulse appeal.
Two wide, slanted shelves feature independent heat and light controls plus separate upper and lower thermostats, so you can dial‑in perfect holding conditions for multiple menu items at once. Infrared heaters bathe each shelf in gentle, even warmth, while tempered‑glass sides and brilliant illumination deliver a 360° view that sells.
The pass‑through design lets staff load from the back and customers grab from the front—slashing restock time and eliminating congestion. Adjustable divider rods adapt instantly to everything from pizza boxes to sandwich clamshells, and the tough black powder‑coated exterior looks great in any décor.
Heat it. Show it. Sell it—Sierra keeps profits piping hot.
Key Features:
- Extra‑Wide 50″ Footprint – Maximizes merchandising space for high‑traffic venues.
- Dual Heated Shelves – Independent heat & light rocker switches on every shelf for precision control.
- Adjustable Thermostats – Separate upper & lower thermostats hold foods safely at 140–185 °F (60–85 °C).
- Pass‑Through Convenience – Open front & rear access speeds operator restocking and customer self‑service.
- High‑Visibility Design – Slanted shelves, bright lighting, and tempered‑glass sides boost impulse sales.
- Flexible Dividers – Removable rods organize pizza boxes, grab‑n‑go meals, or wrapped sandwiches in seconds.
- Rugged Construction – Scratch‑resistant black powder‑coated steel and tempered‑glass panels.
- Plug‑and‑Play Setup – Standard 120 V connection (NEMA 5‑15P). Unbox, plug in, start selling.
Product Specifications:
| Model |
SHDM‑50PT |
| Unit Type |
Heated Display Merchandiser (Pass‑Through) |
| Overall Length |
50″ (1,270 mm) |
| Shelves |
2, slanted, independently heated & lit |
| Shelf Controls |
Separate heat & light rocker switches (per shelf) |
| Temperature Range |
140 °F – 185 °F (60 °C – 85 °C) |
| Thermostats |
2 (upper & lower shelves, adjustable) |
| Exterior Finish |
Black powder‑coated steel |
| Side Panels |
Tempered safety glass |
| Divider Rods |
Adjustable / removable |
| Electrical |
120 V / 60 Hz / 1 Ph |
| Plug Type |
NEMA 5‑15P, 6 ft cord |
| Amperage / Wattage |
10.0 A / 1,200 W (approx.)
|
| Dimensions (W × D × H) |
50″ × 18.5″ × 27″ (1,270 × 470 × 686 mm) |
| Ship Weight |
135 lb (61 kg) |
| Agency Approvals |
ETL, NSF |
| Series Length Options |
24″ / 32″ / 38″ / 44″ / 50″ |
