MRCOOL® DIY® 5th Gen Multi-Zone 3-Zone 36,000 BTU 23 SEER2 (6K + 6K + 24K)- 3x 25ft line sets- Ductless Mini-Split Air Conditioner & Heat Pump- DIYM336HPW02D37

Product Description

Model: DIYM336HPW02D37

The MRCOOL® DIYM336HPW02D37 is a high-efficiency 3-zone ductless mini-split system designed for homeowners who want professional-grade performance with the freedom of true DIY installation. Built around the MRCOOL® DIY® 5th Generation 36,000 BTU multi-zone condenser, this system delivers powerful, reliable heating and cooling while dramatically reducing installation cost and complexity.

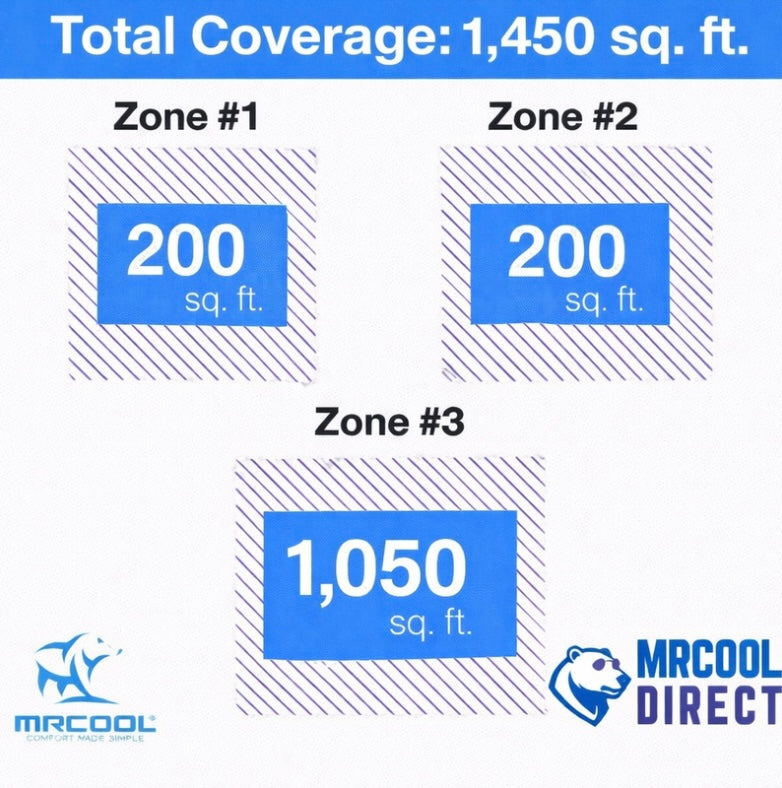

This configuration pairs two 6,000 BTU wall-mounted air handlers—perfect for bedrooms, offices, or small living spaces—with one 24,000 BTU air handler designed for larger areas such as open-concept living rooms, garages, basements, or bonus rooms. Each zone operates independently, allowing precise temperature control while maximizing energy efficiency.

Installation is streamlined using MRCOOL® DIY® QuickConnect® technology. The included 25-ft pre-charged QuickConnect® line sets arrive factory-sealed with R-454B refrigerant, eliminating the need for vacuum pumps, gauges, or licensed HVAC labor. The included DIYPRO® cable removes the need for electrical conduit, further reducing installation time.

With DC inverter technology, Gold Fin® corrosion protection, Follow Me® temperature sensing, and full MRCOOL® Smart HVAC Controller® App integration, this system delivers quiet operation, lower utility bills, and long-term reliability, making it one of the most complete DIY multi-zone systems on the market today.

KEY FEATURES & PERFORMANCE HIGHLIGHTS

• 36,000 BTU total system capacity
• 3 independently controlled zones

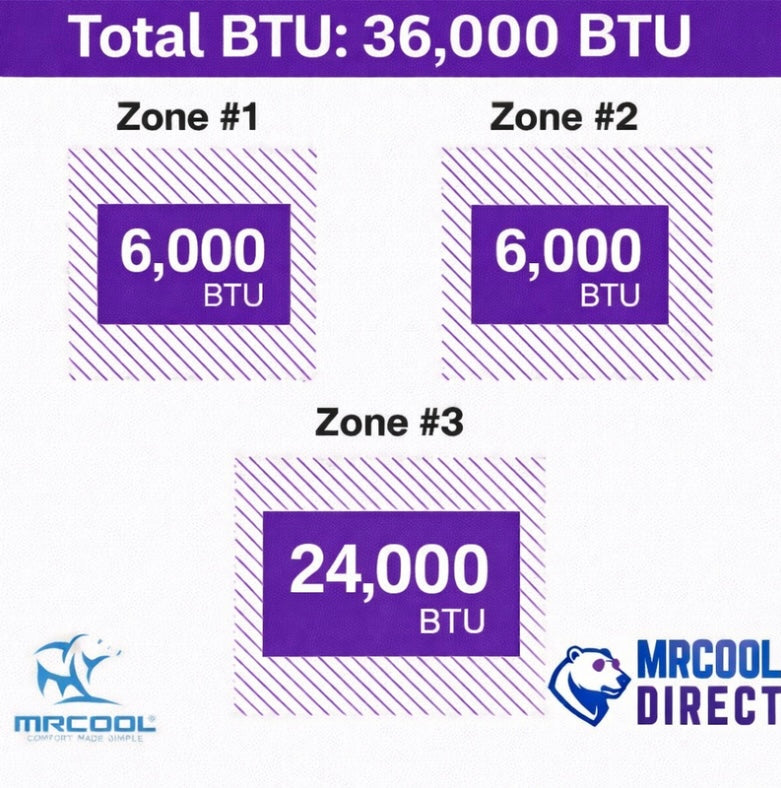

• (2) 6K + (1) 24K BTU wall-mounted air handlers
• 23 SEER2 high-efficiency rating
• DC inverter variable-speed compressor
• DIY® QuickConnect® pre-charged line sets
• 25-ft line-set reach included
• DIYPRO® cable (no conduit required)
• Gold Fin® anti-corrosion coating
• Follow Me® remote-based temperature control
• MRCOOL® Smart HVAC Controller® App
• Alexa® & Google Home® compatibility
• ENERGY STAR® & AHRI certified

ELECTRICAL REQUIREMENTS & BREAKER INFORMATION

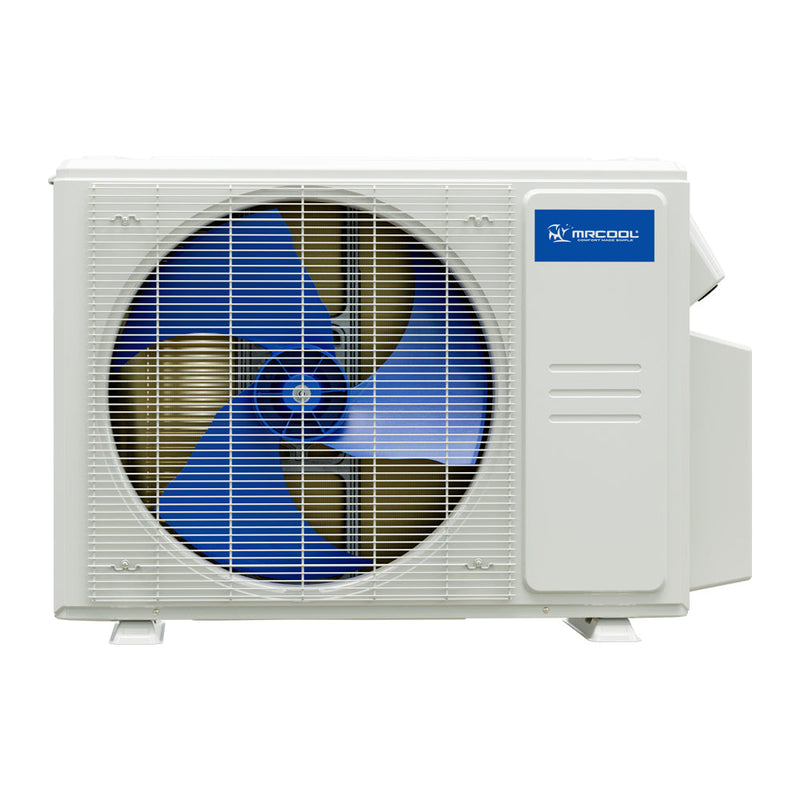

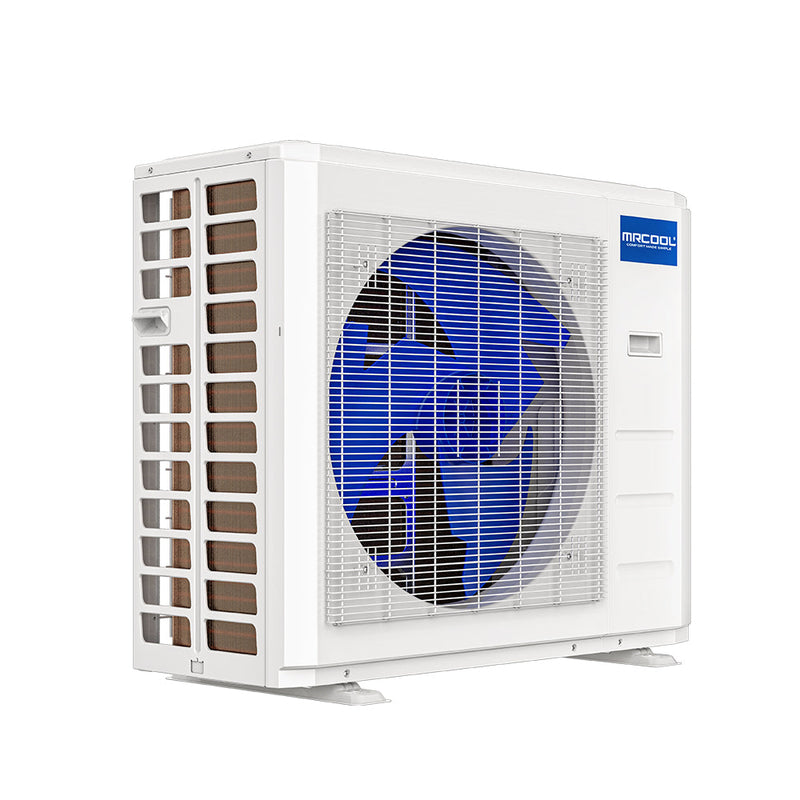

Outdoor Condenser — DIY-MULTI5-36HP230D-O

• Voltage: 208 / 230V
• Phase: Single-Phase
• Frequency: 60 Hz
• Minimum Circuit Ampacity (MCA): 30.5 Amps
• Maximum Breaker Size: 35 Amps
• Dedicated Circuit Required: Yes

DIMENSIONS & WEIGHT

Outdoor Condenser

• Width: 37.24 in
• Height: 31.89 in
• Depth: 16.14 in
• Net Weight: ~169 lbs

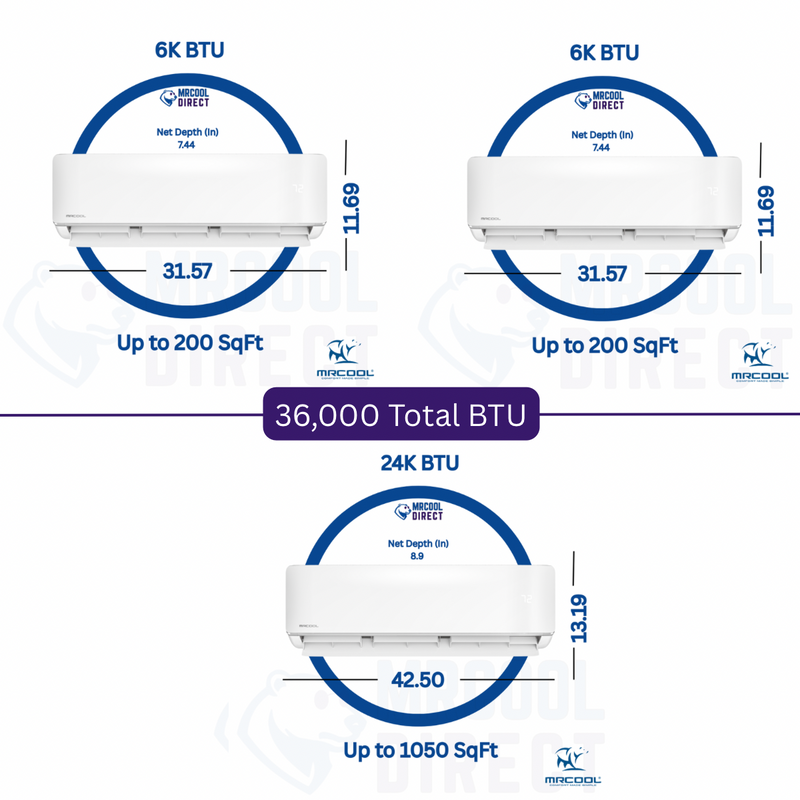

6K Indoor Air Handlers (each)

• Width: 31.57 in
• Height: 11.69 in
• Depth: 7.44 in
• Net Weight: ~24.5 lbs

24K Indoor Air Handler

• Width: 42.52 in
• Height: 13.19 in
• Depth: 8.9 in
• Net Weight: ~35.9 lbs

WARRANTY COVERAGE

• 5-Year Parts Warranty
• 7-Year Compressor Warranty
• Eligible for the MRCOOL® Care Program kit program

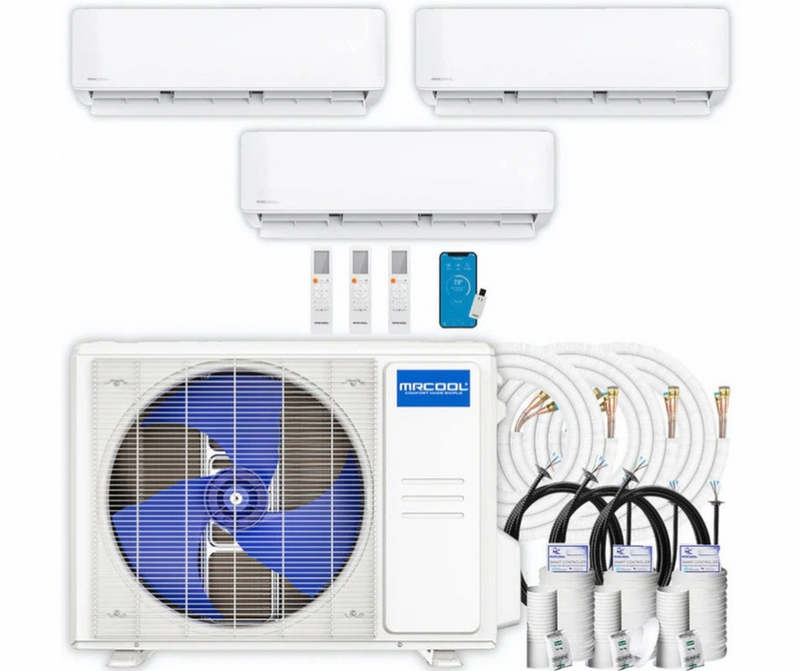

WHAT’S INCLUDED IN THIS BUNDLE

• ✔ MRCOOL® DIY® 36,000 BTU Multi-Zone Outdoor Condenser
• ✔ (2) 6,000 BTU Wall-Mounted Indoor Air Handlers
• ✔ (1) 24,000 BTU Wall-Mounted Indoor Air Handler
• ✔ (2) 25-ft DIY® QuickConnect® Line Sets (1/4 × 3/8)
• ✔ (1) 25-ft DIY® QuickConnect® Line Set (3/8 × 5/8)
• ✔ DIYPRO® communication cable
• ✔ Wireless remotes for each indoor unit
• ✔ Mounting hardware & installation manuals

Smart phone not included.

FREQUENTLY ASKED QUESTIONS (FAQ)

Can I control each room separately?

Yes. Each indoor unit has independent temperature control.

Does this require professional HVAC installation?

No. This is a true DIY system—no vacuuming or refrigerant handling required.

Can I use Wi-Fi and voice control?

Yes. Compatible with the MRCOOL® Smart HVAC Controller® App, Alexa®, and Google Home®.

Are longer line sets available?

Yes. Longer DIY® QuickConnect® line sets are available separately if needed.
