Omcan USA 46798 Undercounter Dishwashers

Omcan USA 46798 Undercounter Dishwashers

by OMCAN
SKU 46798
$3,880.23 - $3,880.23
$3,880.23
$3,880.23 - $3,880.23
$3,880.23
  • Authorized Online Dealer
  • Free Shipping & No Sales Tax*
  • Fast delivery, typically 4–7 business days*
  • Price Match Guarantee — we beat verified prices
  • 30-day returns on eligible items
  • Manufacturer warranty included

Questions? Text us or call (914) 278-1007

*Exclusions may apply. See Shipping and Returns for details.

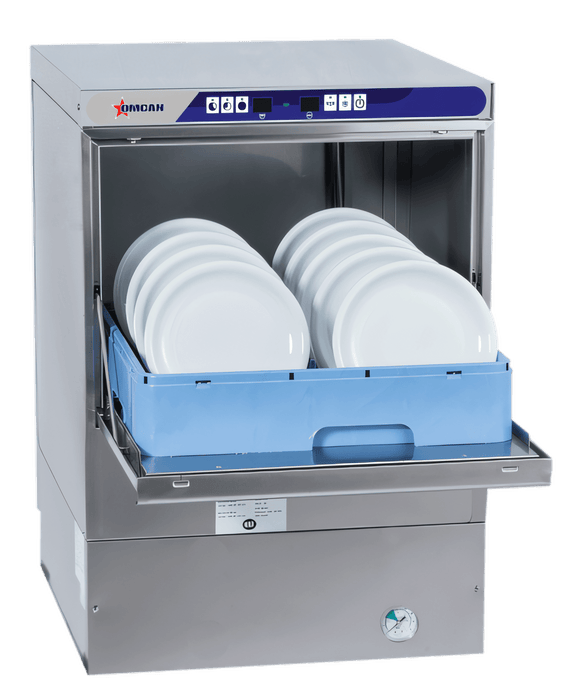

Omcan CD-GR-0500 High-Temperature Undercounter Dishwasher

20" x 20" rack • up to 1,080 dishes/hr • built-in digital controls

Engineered for busy cafés, bars, and restaurants, the Omcan CD-GR-0500 packs heavy-duty cleaning power into a compact 23"-wide footprint. A 3.0 kW booster heater delivers 161 °F sanitizing rinse temperatures every cycle—no external booster or chemical sanitizers needed—while the double-skinned stainless-steel door keeps noise and heat where they belong: inside the machine.

Why you’ll love it

  • Three configurable wash programs (103 s, 163 s, 223 s) for light, standard, or heavy loads.
  • High-temperature sanitizing rinse with built-in 3 kW booster—NSF proof rinse feature guarantees ≥161 °F.
  • Built-in chemical pumps, automatic fill, and self-cleaning mode streamline daily operation.
  • Thermal protection on wash & booster tanks extends component life.
  • 304 stainless-steel cabinet, wash arms, and handle resist corrosion in the harshest kitchens.
  • IP44-rated ¾ HP wash pump provides powerful, reliable water flow.
  • Digital interface with tank & boiler thermometers plus self-diagnostics.
  • Includes (1) peg rack, (1) flat rack, and (1) cutlery tray—ready to work right out of the box.
  • cETLus & NSF certified; ships on a pallet for damage-free delivery.

Technical specifications

Model / Item CD-GR-0500  /  46798
Rack size 20" × 20" (500 × 500 mm)
Production Up to 28 racks / hr  |  approx. 1,080 dishes / hr*
Wash pump ¾ HP (0.75 HP) – IP44 rated
Heating elements Booster 3.0 kW  |  Wash tank 2.8 kW
Total power / amps 3.6 kW  |  16 A
Electrical 208-240 V, 60 Hz, 1-phase (hard-wired)
Water consumption 0.58 gal per rack (2nd program)  |  11 gal / hr
Water connection ¾" inlet, 20 psi ± 5 (min 55 °C supply)
Drain connection 1" with automatic drain pump
Tank capacities Booster – 6 L  |  Wash – 35 L
Clearance 14" dish clearance  |  12.8" useful door opening
Net dimensions (W × D × H) 22.5" × 24" × 33" (573 × 617 × 836 mm)
Height w/ door open 38" (966 mm)
Shipping (gross) 23" × 27" × 38.5"  |  132 lb (60 kg) – ships on pallet

*Dish per hour estimate based on 36 plates per rack.

Installation requirements

  • Dedicated 208-240 V / 1-phase circuit, hard-wired by a licensed electrician.
  • ¾" hot water supply (≥131 °F / 55 °C) at 20 psi ± 5.
  • 1" drain connection to floor or wall standpipe.
  • Allow steam ventilation; stainless-steel surrounding surfaces recommended.
Important: This equipment is intended for commercial use only. Professional installation is required to maintain warranty and NSF sanitation compliance.

What’s in the box

  • (1) 20" × 20" peg rack
  • (1) 20" × 20" flat rack
  • (1) Cutlery tray
  • User & installation manual
  • One-year parts & labor warranty documentation

Upgrade your dish room with the Omcan CD-GR-0500 and enjoy spotless, fully sanitized wares every time—no compromises, no chemicals, no hassle.
