MRCOOL® DIY® 5th Gen Multi-Zone 4-Zone 27,000 BTU 23 SEER2 (6k + 6k + 12k) Air Handlers & three 16ft QuickConnect® Line Sets- R-454B- Ductless Mini-Split Air Conditioner and Heat Pump- DIYM336HPW00D00
Product Description
Model: DIYM336HPW00D00
The MRCOOL® DIYM336HPW00D00 5-Zone Mini Split System is engineered for homeowners who want maximum flexibility, balanced zone sizing, and true DIY® installation without sacrificing efficiency or long-term reliability. Built around the MRCOOL® DIY® 5th Generation 36,000 BTU multi-zone condenser, this system delivers quiet, energy-efficient heating and cooling to three independently controlled indoor zones, with expansion capability up to five zones.

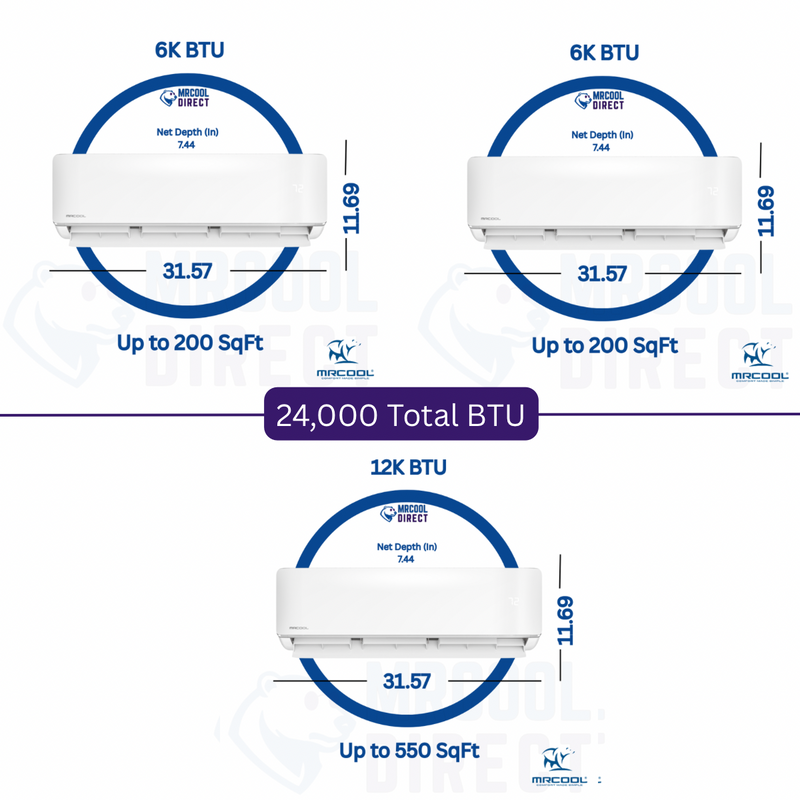

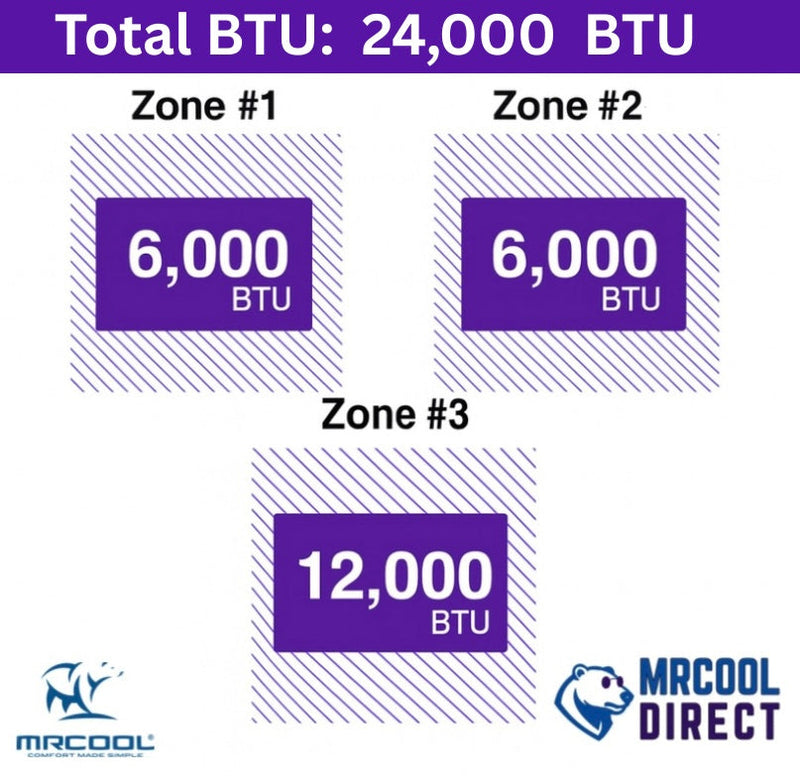

This configuration includes two 6,000 BTU wall-mounted air handlers—ideal for smaller bedrooms, offices, or nurseries—and one 12,000 BTU air handler for a larger living space, bonus room, or master bedroom. Each zone operates independently, giving you precise temperature control exactly where it’s needed.
Installation is fast and homeowner-friendly thanks to MRCOOL® DIY® QuickConnect® technology, which eliminates the need for vacuum pumps, refrigerant charging, or licensed HVAC labor. All line sets arrive factory-sealed and pre-charged with R-454B refrigerant, making this system compliant with current and future environmental standards.
Advanced comfort features like Gold Fin® corrosion protection, Follow Me® temperature sensing, and full smart control through the MRCOOL® Smart HVAC Controller® ensure this system performs reliably in real-world conditions. Control everything from your phone or via Amazon Alexa and Google Assistant.
If you want multi-room comfort, flexible sizing, and a clean DIY® install, the MRCOOL® DIYM336HPW00D00 is a proven, professional-grade solution.
📦 WHAT’S INCLUDED IN THIS COMPLETE DIY® BUNDLE

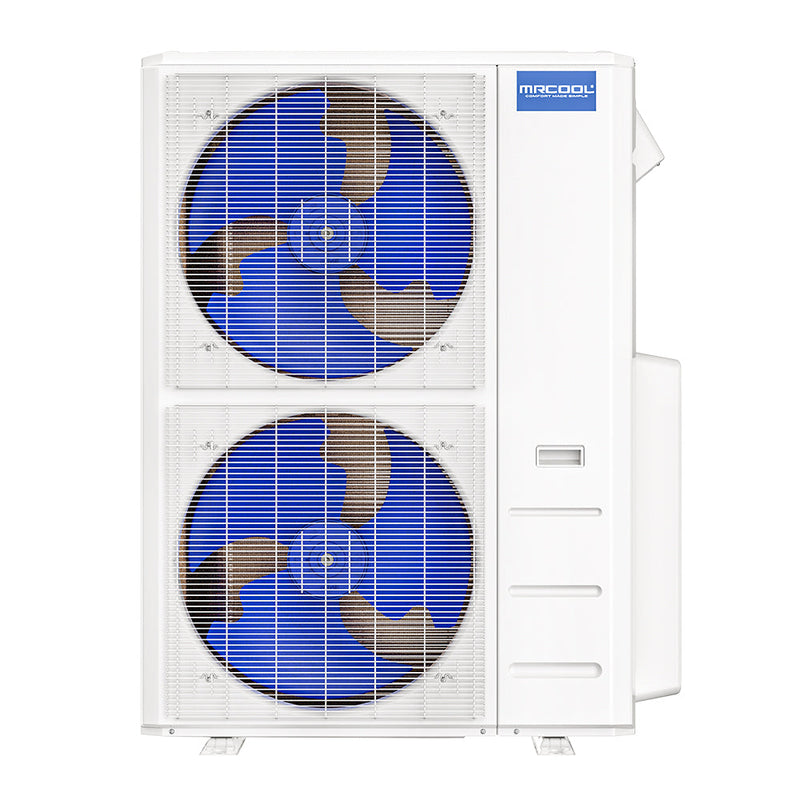

✔ MRCOOL® DIY® 5-Zone Outdoor Condenser
• Model: DIY-MULTI5-36HP230D-O
• 36,000 BTU | 208/230V | DC Inverter Heat Pump
• Max Breaker: 35A | Min Circuit Ampacity: 30.5A
✔ (2) MRCOOL® DIY® 6K BTU Wall-Mounted Air Handlers
• Model: DIY-06-HP-WMAH-230D25-O

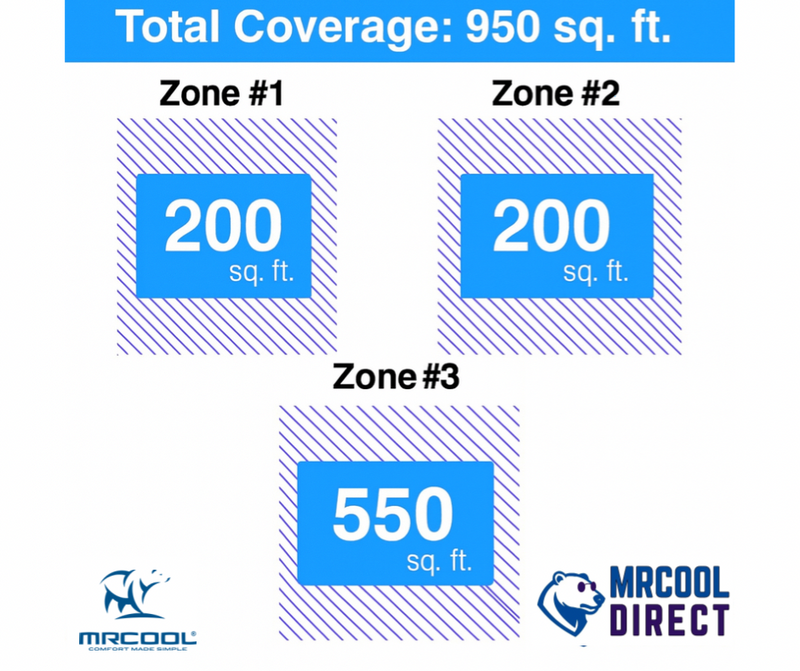

• Ideal for rooms up to ~200 sq. ft.
✔ (1) MRCOOL® DIY® 12K BTU Wall-Mounted Air Handler
• Model: DIY-12-HP-WMAH-230D25-O
• Ideal for rooms up to ~550 sq. ft.
✔ (3) MRCOOL® DIY® 16 ft QuickConnect® Line Sets
• Model: DIY16-1438-O
• Pre-charged with R-454B refrigerant
✔ Wireless remotes for each zone

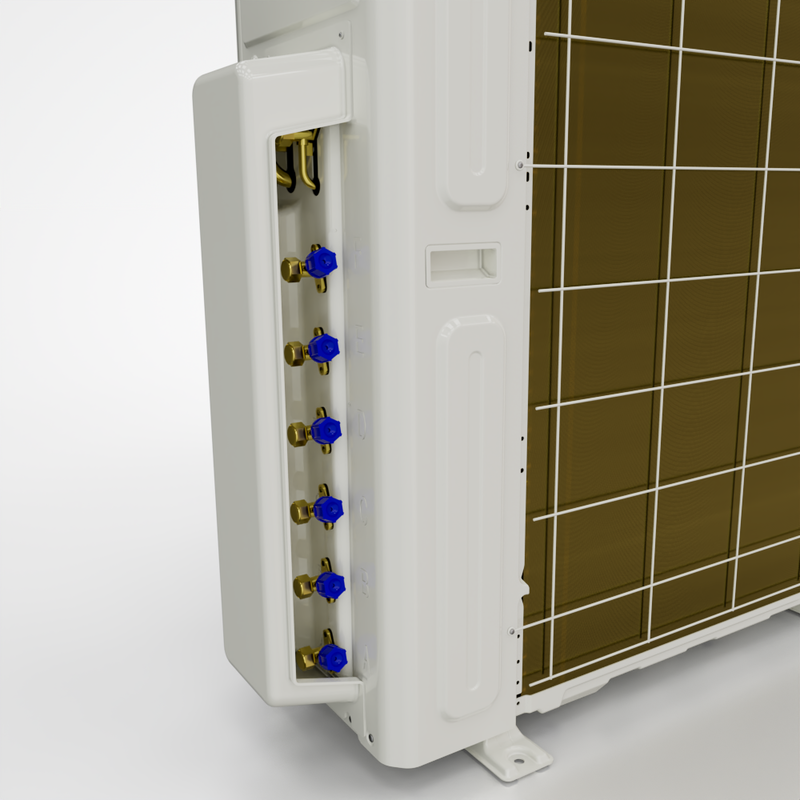

✔ DIY® QuickConnect® fittings
✔ Factory-sealed refrigerant system
📱 Smart phone not included
⚙️ ELECTRICAL & SYSTEM SPECIFICATIONS
- Voltage: 208/230V
- Phase: Single Phase
- Zones Supported: Up to 5
- Refrigerant: R-454B
- Condenser Max Breaker: 35 Amps
- Condenser Minimum Circuit Ampacity: 30.5 Amps
- Installation: True DIY® — No HVAC license required
FREQUENTLY ASKED QUESTIONS
Can I add more zones later?
Yes. This condenser supports up to five total indoor units if additional zones are needed later.
Is this system really DIY® friendly?
Absolutely. DIY® QuickConnect® eliminates vacuuming, gauges, and refrigerant handling.
Can each room be controlled separately?
Yes. Each air handler has independent temperature control and scheduling.
Does this work with smart home systems?
Yes. Compatible with MRCOOL® Smart HVAC Controller®, Amazon Alexa, and Google Assistant.
Is R-454B refrigerant future-proof?
Yes. R-454B meets modern efficiency and environmental regulations.
