MRCOOL® DIY® 5th Gen Multi-Zone 6-Zone 55,000 BTU 22 SEER2 (9K + 9K + 36K) 3 x 25ft line sets- Ductless Mini-Split Air Conditioner & Heat Pump — DIYM355HPW09D37
Product Description
Model: DIYM355HPW09D37
The MRCOOL® DIYM355HPW09D37 is a high-performance, large-capacity 5th Generation DIY® multi-zone system designed for homeowners who need serious cooling and heating power across multiple rooms and large open areas—without paying professional installation costs.

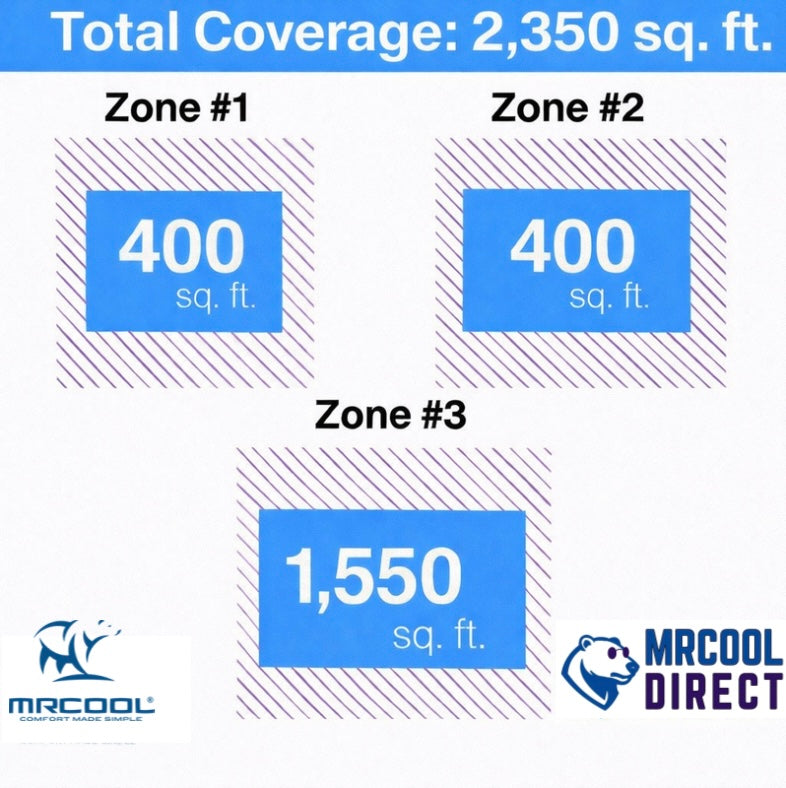

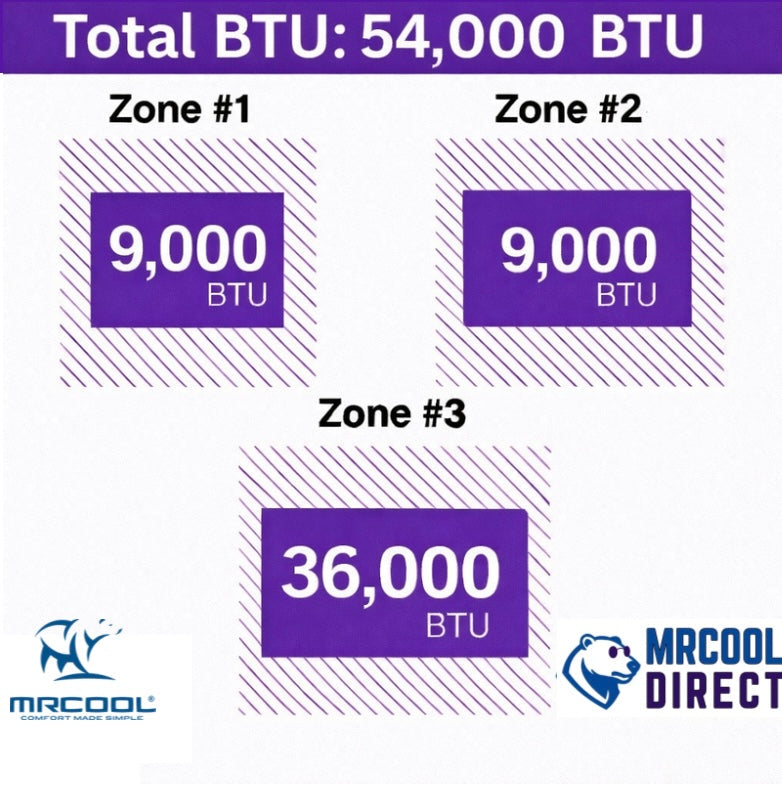

This bundle is built around the MRCOOL® DIY® 55,000 BTU 6-Zone condenser and pairs two 9K BTU air handlers for bedrooms, offices, or smaller living spaces with a massive 36K BTU wall-mounted unit for great rooms, basements, workshops, or open-concept main floors. The result is balanced zoning, independent comfort control, and maximum efficiency where it matters most.
Thanks to DIY® QuickConnect® pre-charged line sets, DIYPRO® cable, and MRCOOL’s no-vacuum installation design, homeowners can install this system themselves—saving thousands while still getting contractor-grade performance. With R-454B refrigerant, DC inverter technology, and full smart app control, this system is built to deliver quiet, efficient, year-round comfort for large homes and demanding layouts.
KEY FEATURES & PERFORMANCE HIGHLIGHTS
- 55,000 BTU total system capacity
- Supports up to 6 indoor zones
- 22 SEER2 efficiency / 10.6 HSPF2-4
- DC inverter compressor for precise load control

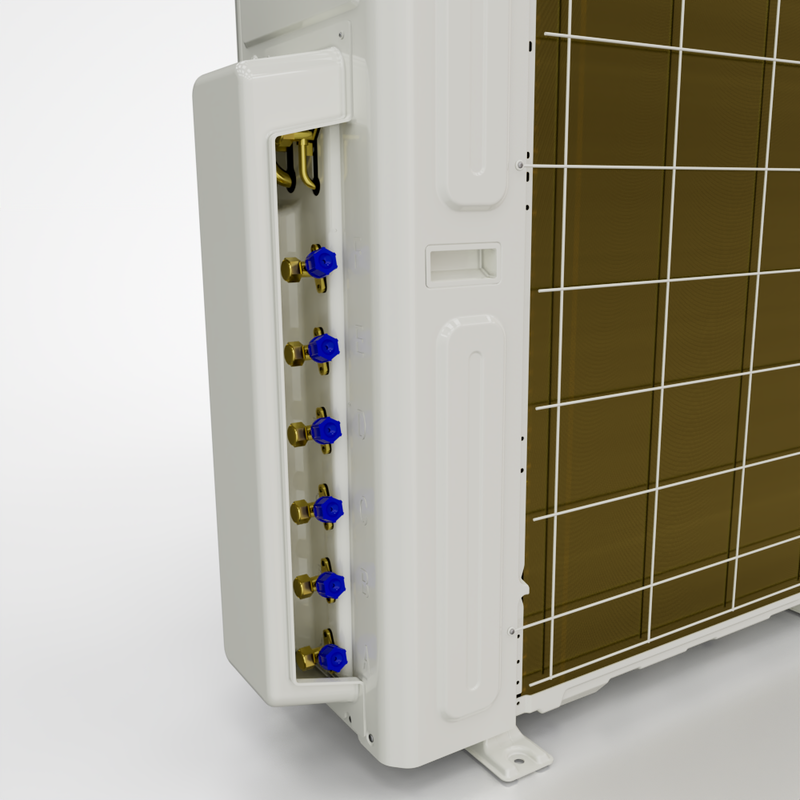

- DIY® QuickConnect® pre-charged line sets
- Extended-reach 25-ft line sets included
- DIYPRO® cable — no conduit required
- Gold Fin® corrosion-resistant coating
- Follow Me® temperature sensing
- MRCOOL® Smart HVAC Controller® App
- Amazon Alexa® & Google Home® compatible
- Ultra-quiet indoor operation
- Independent temperature control by zone
ELECTRICAL REQUIREMENTS & BREAKER INFO

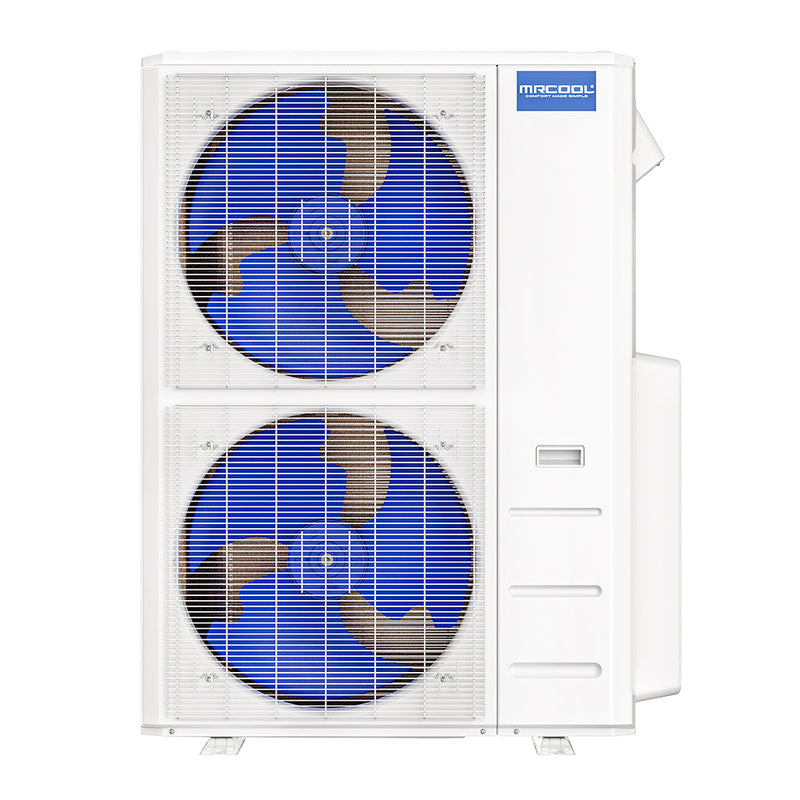

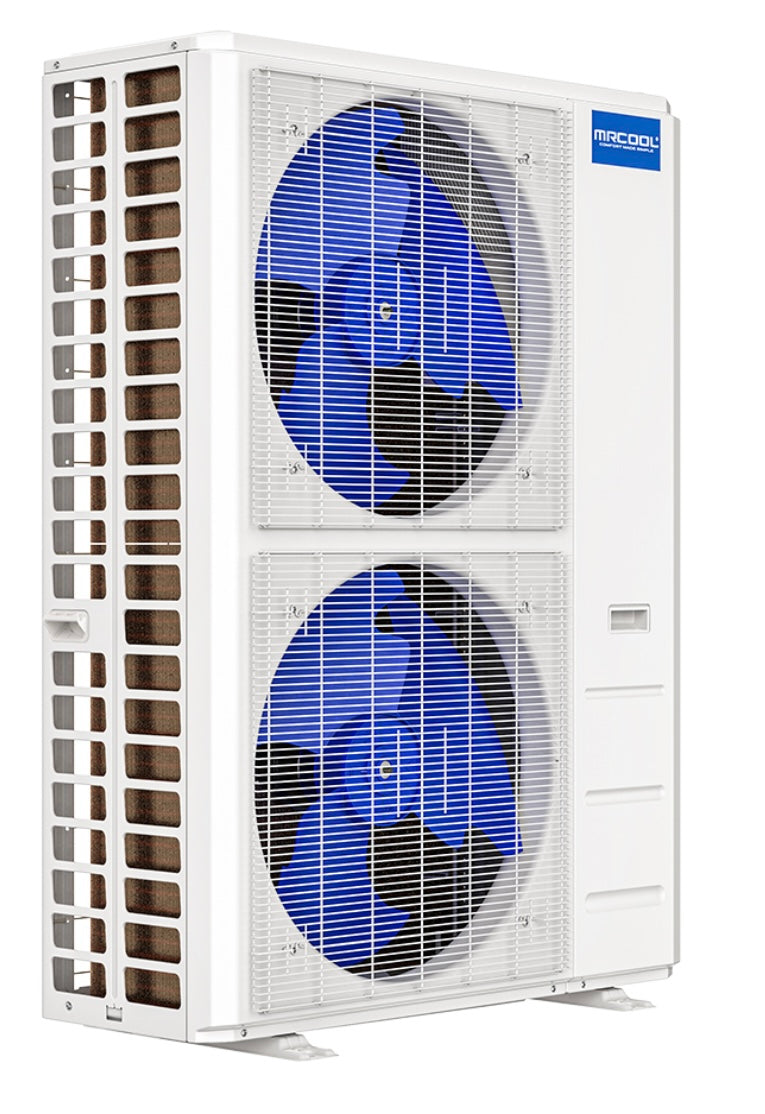

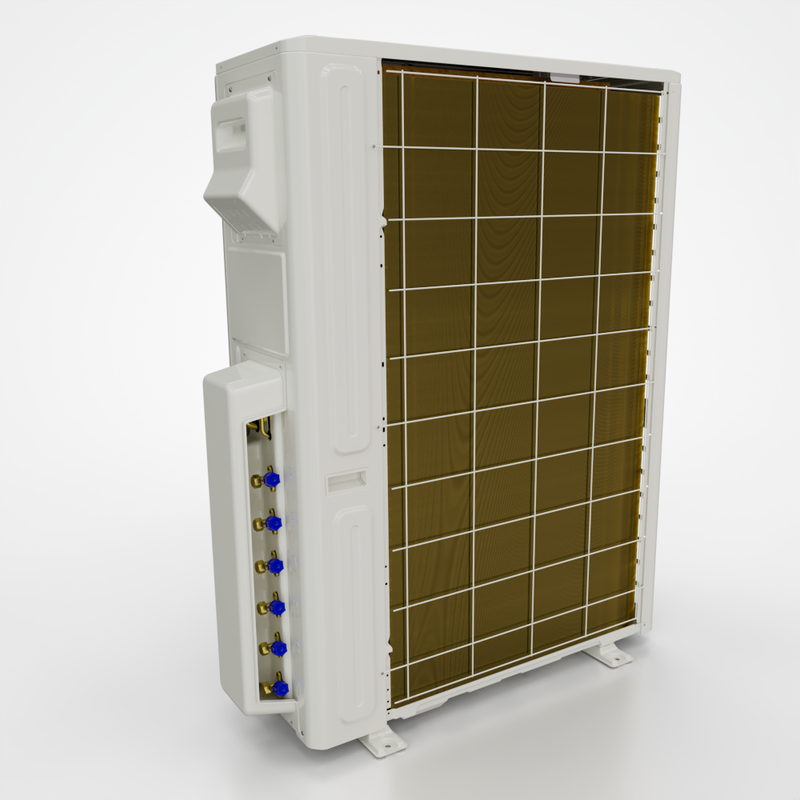

Outdoor Condenser – DIY-MULTI6-55HP230D-O
- Voltage: 208 / 230V
- Phase: Single-phase
- Frequency: 60 Hz
- Minimum Circuit Ampacity (MCA): 43 amps
- Maximum Breaker Size: 45 amps
- Dedicated Circuit Required: Yes
DIMENSIONS & WEIGHT
Outdoor Condenser
- Width: 37.48 in
- Height: 52.48 in
- Depth: 16.34 in
- Weight: 245.8 lbs

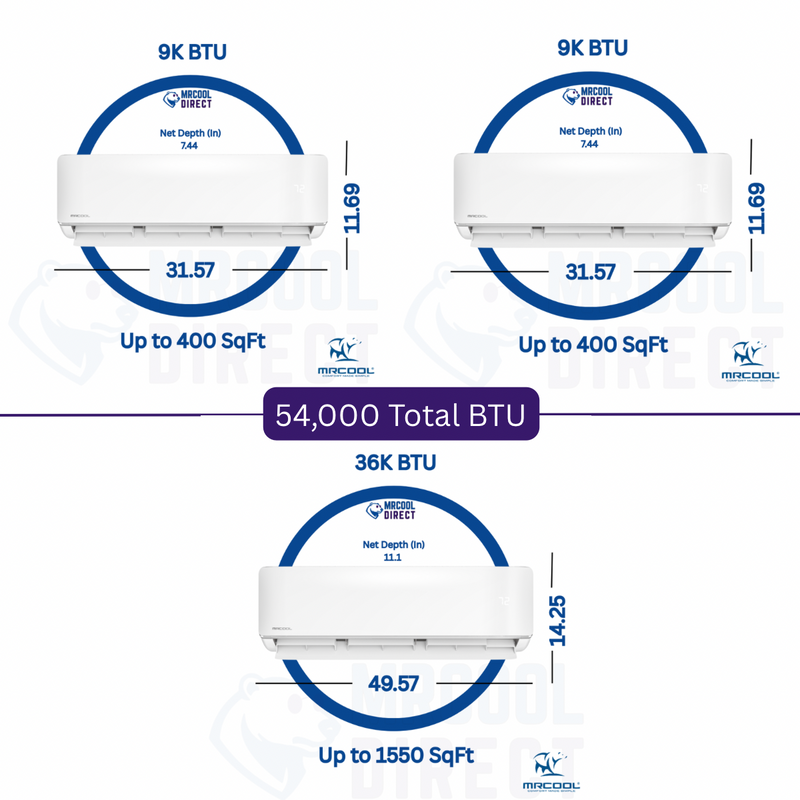

9K Indoor Air Handler (each)
- Width: 31.57 in
- Height: 11.69 in
- Depth: 7.44 in
- Weight: ~25 lbs
36K Indoor Air Handler
- Width: 49.57 in
- Height: 14.25 in
- Depth: 11.10 in
- Weight: ~49 lbs
WARRANTY COVERAGE
- 5-Year Parts Warranty
- 7-Year Compressor Warranty
- Eligible for the MRCOOL® Care Kit Program
WHAT’S INCLUDED IN THIS BUNDLE
- ✔ MRCOOL® DIY® 55K BTU 6-Zone Outdoor Condenser
- ✔ (2) 9K BTU Wall-Mounted Indoor Air Handlers
- ✔ (1) 36K BTU Wall-Mounted Indoor Air Handler

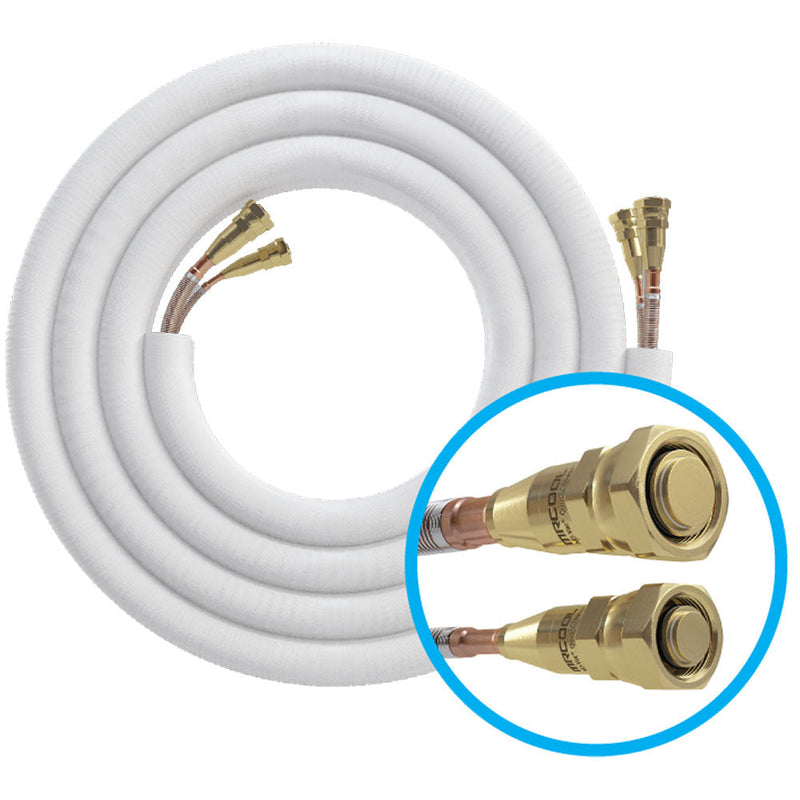

- ✔ (2) 25-ft DIY® QuickConnect® Line Sets (1/4 × 3/8)
- ✔ (1) 25-ft DIY® QuickConnect® Line Set (3/8 × 5/8)
- ✔ DIYPRO® communication cable

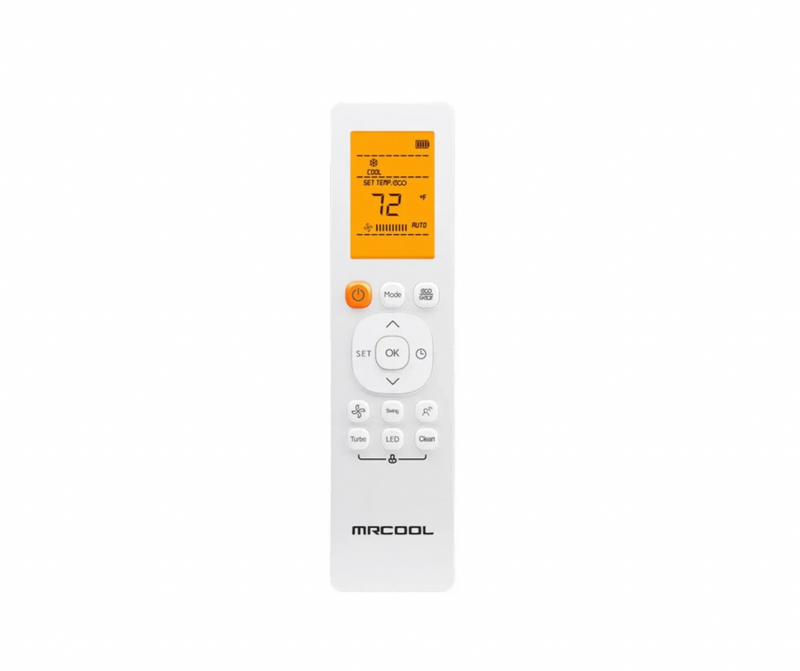

- ✔ Wireless remotes for each indoor unit
- ✔ Installation manuals & mounting hardware
Smart phone not included.
FREQUENTLY ASKED QUESTIONS
Is this system truly DIY?
Yes. No vacuum pump, gauges, or refrigerant handling is required.
Can I add more zones later?
Yes. This condenser supports up to six indoor units total.
Will it heat efficiently in winter?
Yes. The inverter heat pump delivers strong low-temperature heating performance.
Is this system certified?
Yes. ENERGY STAR® and AHRI certified.
