MRCOOL® DIY® 5th Gen Multi-Zone 6-Zone 55,000 BTU 22 SEER2 (6K + 9K + 36K) + 3- 25ft line sets- Ductless Mini-Split Air Conditioner & Heat Pump — DIYM355HPW02D37
Product Description
Model: DIYM355HPW02D37
The MRCOOL® DIYM355HPW02D37 is a high-output, large-space 5th Generation DIY® multi-zone system engineered for homeowners who need maximum coverage, high efficiency, and total installation freedom without paying HVAC labor costs. Built around the powerful MRCOOL® DIY® 55,000 BTU 6-Zone outdoor condenser, this system is ideal for large homes, workshops, garages, additions, and mixed-size living spaces.

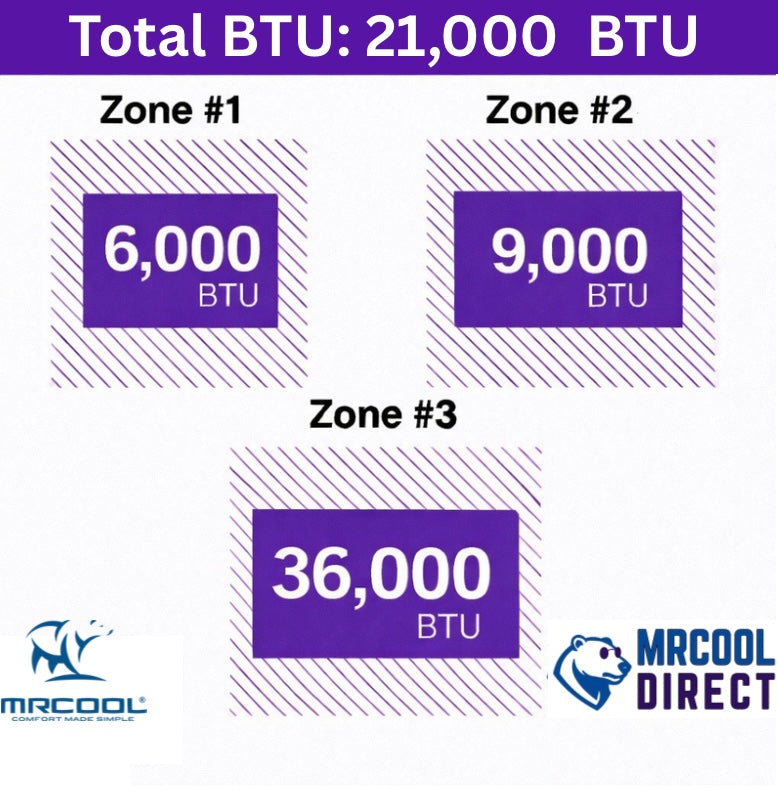

This configuration combines three indoor air handlers (6K, 9K, and a high-capacity 36K BTU unit)—perfect for pairing smaller bedrooms or offices with expansive open-concept areas. The included 25-foot DIY® QuickConnect® line sets allow extended reach while maintaining MRCOOL’s patented pre-charged, vacuum-free installation process.
Powered by DC inverter technology, eco-friendly R-454B refrigerant, and controlled through the MRCOOL® Smart HVAC Controller®, this system delivers quiet, precise comfort with exceptional energy savings year-round.
KEY FEATURES & PERFORMANCE HIGHLIGHTS
- 55,000 BTU total system capacity
- Supports up to 6 indoor zones
- 22 SEER2 efficiency / 10.6 HSPF2-4
- DC inverter compressor for load-based output
- DIY® QuickConnect® pre-charged line sets
- Extended-length 25-ft line sets included
- DIYPRO® cable (no electrical conduit required)
- Gold Fin® corrosion-resistant coating
- Follow Me® temperature sensing
- MRCOOL® Smart HVAC Controller® App
- Alexa® & Google Home® compatible
- Ultra-quiet indoor operation
- Independent temperature control by zone
ELECTRICAL REQUIREMENTS & BREAKER INFO

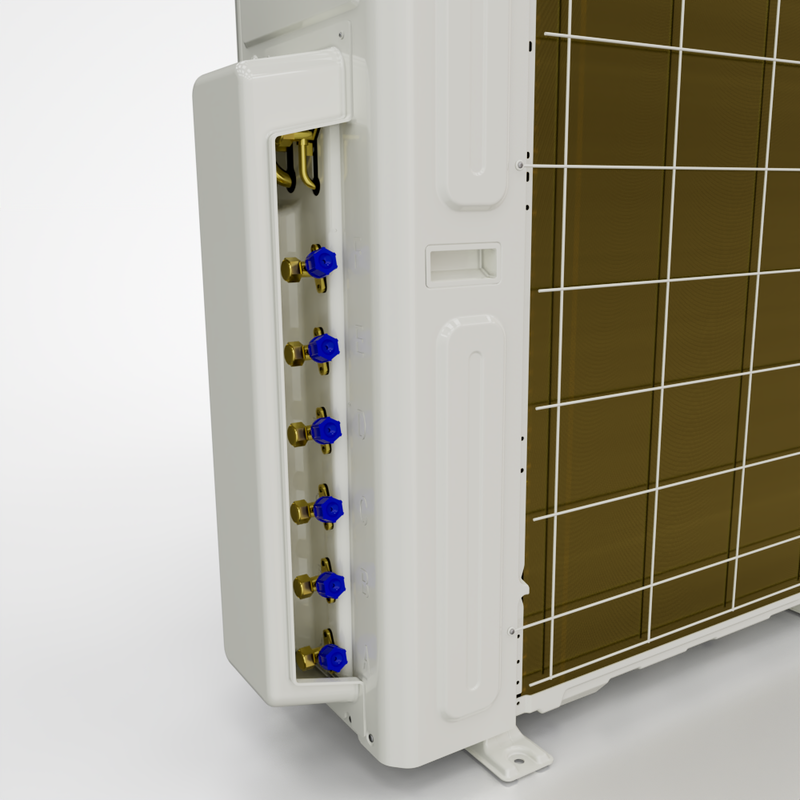

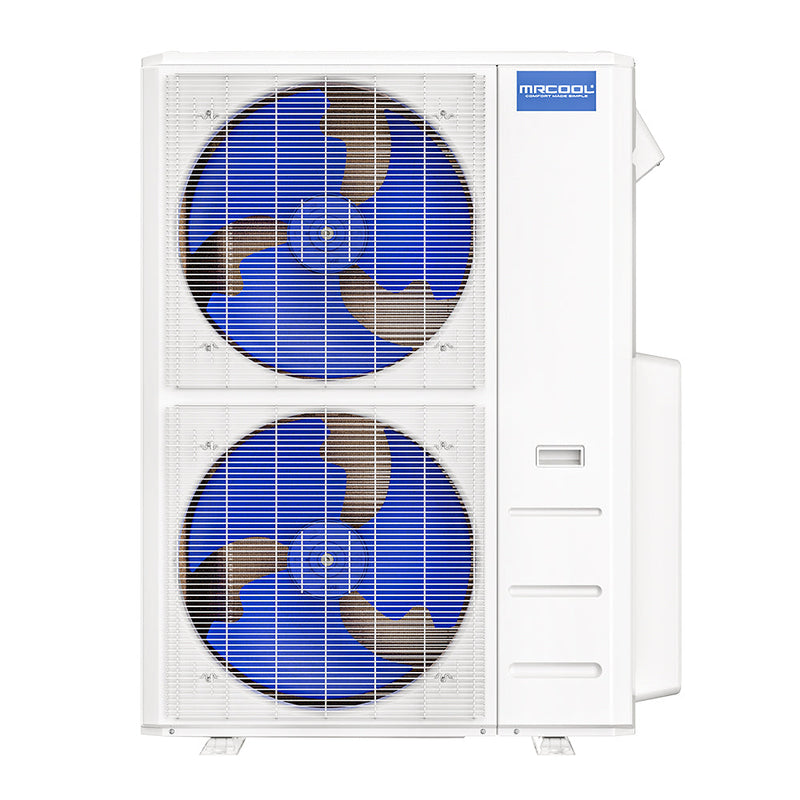

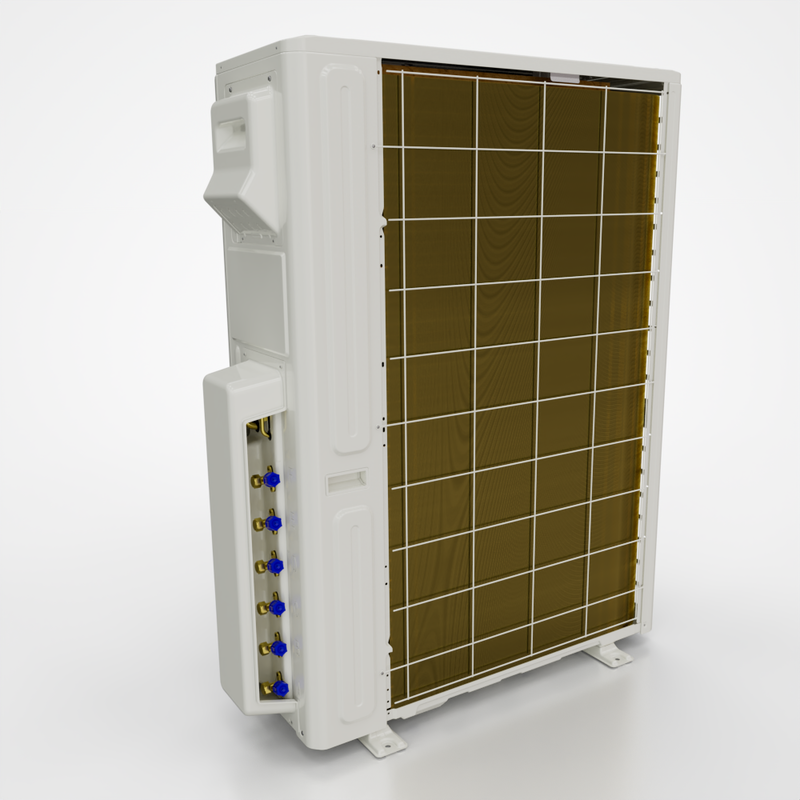

Outdoor Condenser – DIY-MULTI6-55HP230D-O
- Voltage: 208 / 230V
- Phase: Single-phase
- Frequency: 60 Hz
- Minimum Circuit Ampacity (MCA): 43 amps
- Maximum Breaker Size: 45 amps
- Dedicated Circuit Required: Yes
DIMENSIONS & WEIGHT

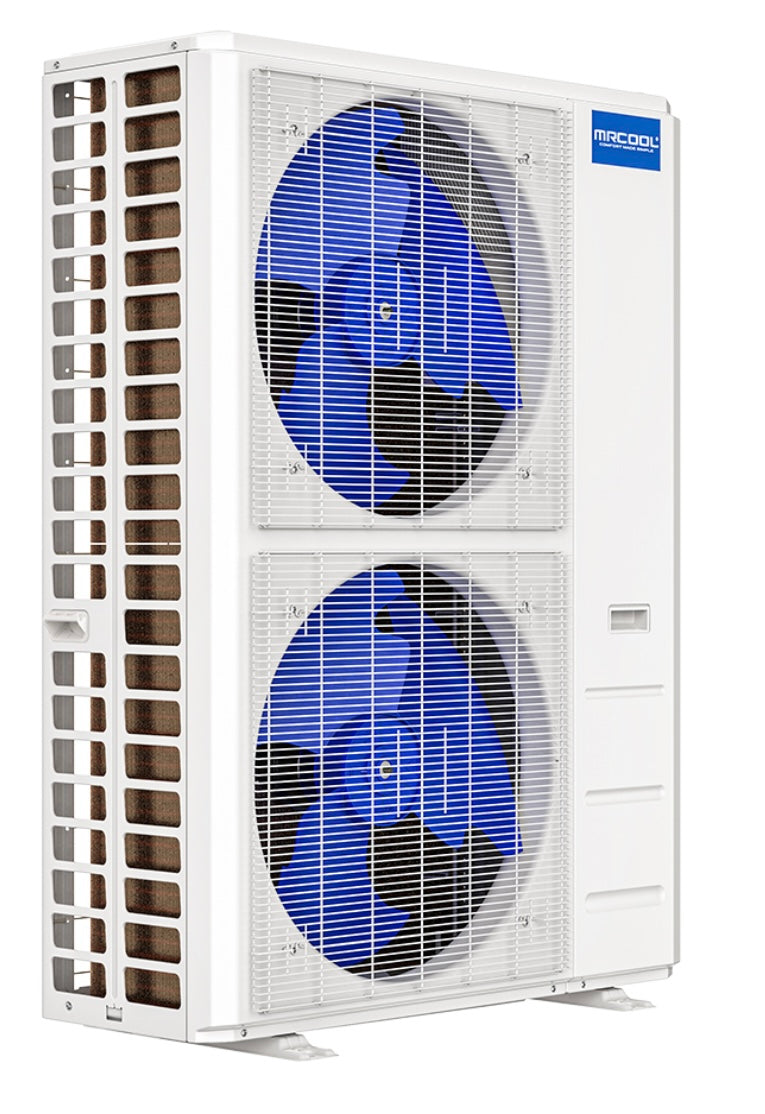

Outdoor Condenser
- Width: 37.48 in
- Height: 52.48 in
- Depth: 16.34 in
- Weight: 245.8 lbs

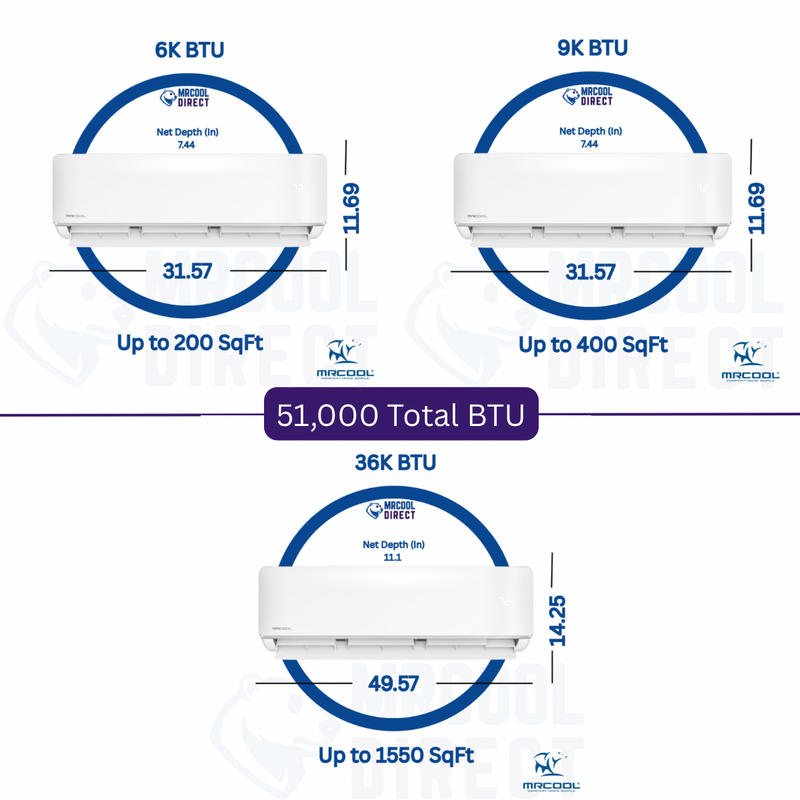

6K Indoor Air Handler
- Width: 31.57 in
- Height: 11.69 in
- Depth: 7.44 in
- Weight: 24.5 lbs
9K Indoor Air Handler
- Width: 31.57 in
- Height: 11.69 in
- Depth: 7.44 in
- Weight: ~25 lbs
36K Indoor Air Handler
- Width: 49.57 in
- Height: 14.25 in
- Depth: 11.10 in
- Weight: ~49 lbs
WARRANTY COVERAGE
- 5-Year Parts Warranty
- 7-Year Compressor Warranty
- Eligible for the MRCOOL® Care Kit Program

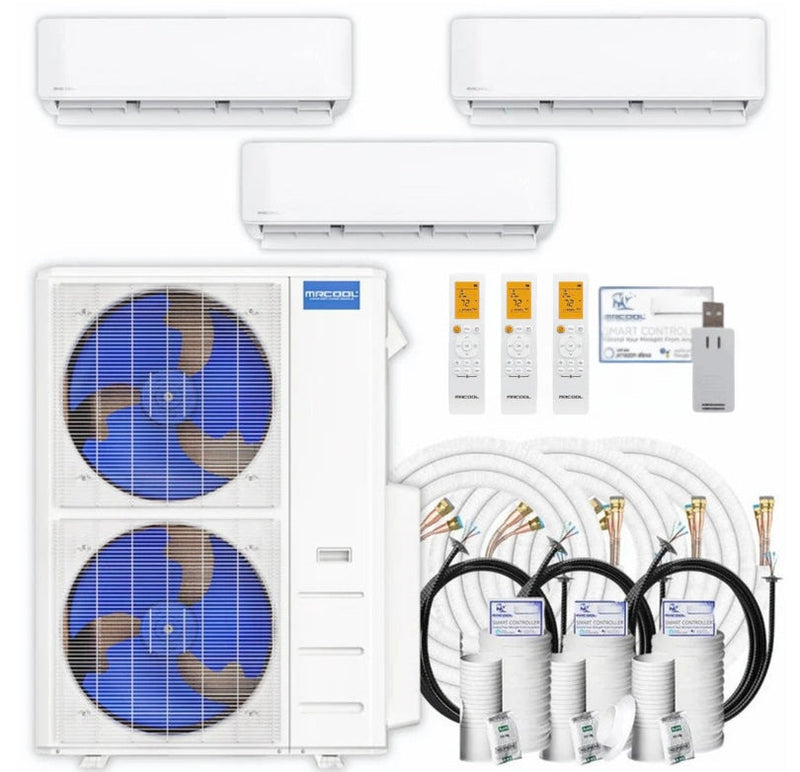

WHAT’S INCLUDED IN THIS BUNDLE
- ✔ MRCOOL® DIY® 55K BTU 6-Zone Outdoor Condenser
- ✔ 6K BTU Wall-Mounted Indoor Air Handler
- ✔ 9K BTU Wall-Mounted Indoor Air Handler
- ✔ 36K BTU Wall-Mounted Indoor Air Handler

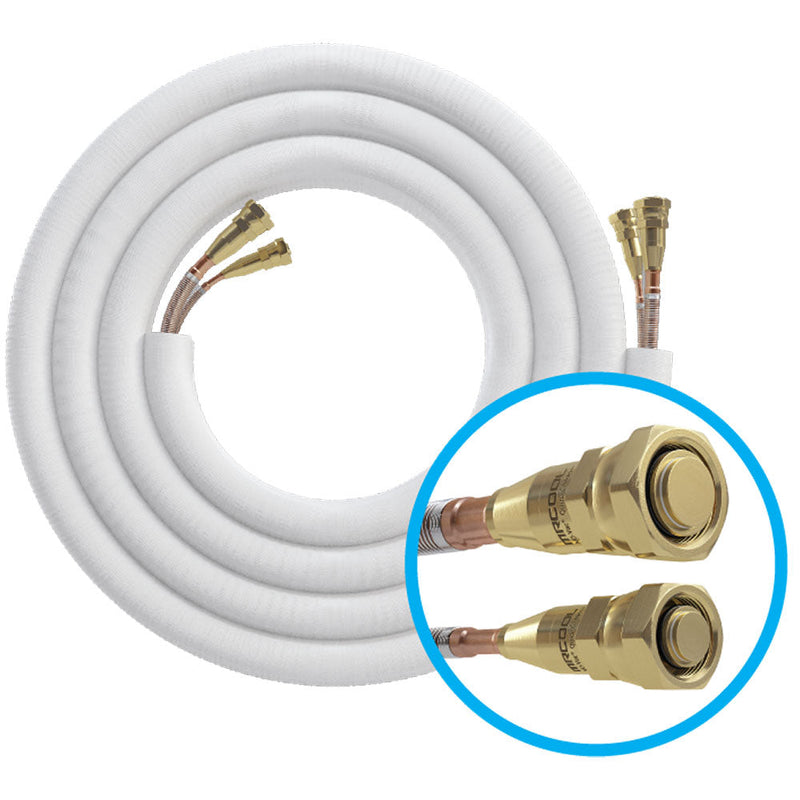

- ✔ (2) 25-ft DIY® QuickConnect® Line Sets (1/4 × 3/8)
- ✔ (1) 25-ft DIY® QuickConnect® Line Set (3/8 × 5/8)
- ✔ DIYPRO® communication cable

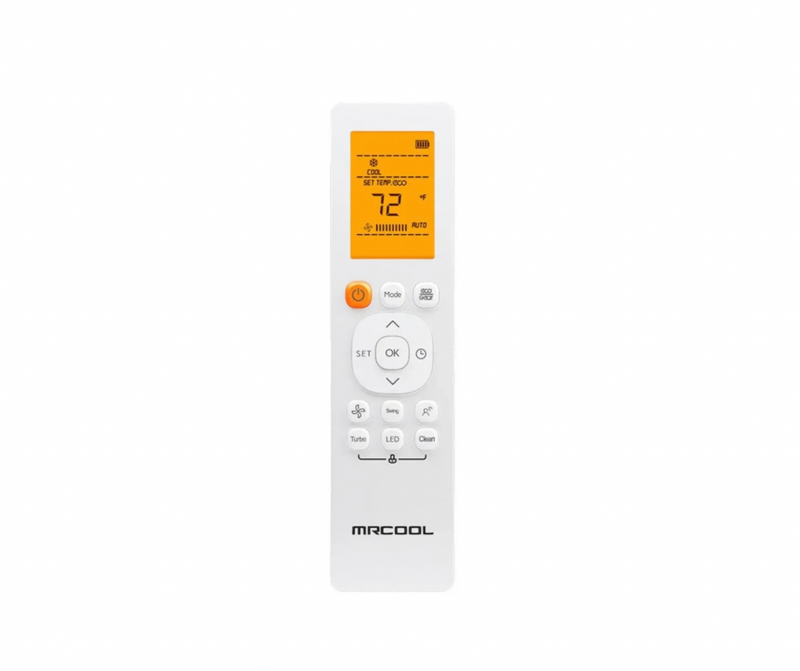

- ✔ Wireless remotes for each indoor unit
- ✔ Installation manuals & mounting hardware
Smart phone not included.
FREQUENTLY ASKED QUESTIONS
Is this a true DIY system?
Yes. No vacuum pump, gauges, or refrigerant handling required.
Can I add more indoor units later?
Yes. This condenser supports up to six total zones.
Does it heat in cold weather?
Yes. The inverter heat pump provides reliable low-temperature heating.
Is this system certified?
Yes. ENERGY STAR® and AHRI certified.
