MRCOOL DIY® 5th Gen Multi-Zone 6-Zone 55,000 BTU 22 SEER2 (6K + 9K + 24K) & three 16ft line sets Ductless Mini-Split Air Conditioner & Heat Pump — DIYM355HPW01D00
Product Description
Model: DIYM355HPW01D00
The MRCOOL DIY® 5th Generation 55,000 BTU 6-Zone Multi-Zone Mini-Split System is designed for homeowners who want whole-home comfort, professional-level efficiency, and a true DIY installation—without paying contractor labor.
This complete system pairs the powerful MRCOOL® DIY-MULTI6-55HP230D-O condenser with a carefully matched combination of 6K, 9K, and 24K indoor air handlers, making it ideal for homes with mixed room sizes such as bedrooms, offices, living areas, and open-concept spaces.
Thanks to MRCOOL’s patented DIY® QuickConnect® line sets, this system arrives factory-charged with R-454B refrigerant, eliminating vacuum pumps, gauges, or EPA licensing. The included DIYPRO® cable removes the need for conduit, speeding up installation while improving durability.
Each zone operates independently, allowing you to fine-tune comfort room-by-room while reducing wasted energy—something traditional central HVAC systems simply can’t match.
KEY FEATURES & PERFORMANCE HIGHLIGHTS
- True DIY® Installation – No HVAC license required thanks to factory-sealed DIY® QuickConnect® technology
- 22 SEER2 High-Efficiency Performance – Advanced inverter compressor adapts output to real-time demand
- 6-Zone Multi-Room Control – Independently manage comfort in up to six spaces
- R-454B Refrigerant – Next-generation, lower-GWP refrigerant that meets future regulations
- Gold Fin® Coil Protection – Enhanced corrosion resistance for coastal or humid environments
- Follow Me® Technology – The remote senses temperature where you are, not just at the wall unit
- DIYPRO® Cable Included – No conduit required; added protection from weather and pests
- Smart HVAC Control Built-In – Control your system from anywhere using the MRCOOL® Smart HVAC Controller® App, Amazon Alexa®, or Google Home®
- Ultra-Quiet Operation – Designed for bedrooms and living spaces where noise matters
EFFICIENCY, WARRANTY & LONG-TERM VALUE
This MRCOOL DIY® system isn’t just powerful—it’s engineered for long-term savings and reliability.
Efficiency Ratings
- SEER2: 22
- HSPF2-4: 10.6
- Compressor Type: DC Inverter
- ENERGY STAR® Certified: Yes
ELECTRICAL REQUIREMENTS & BREAKER INFORMATION

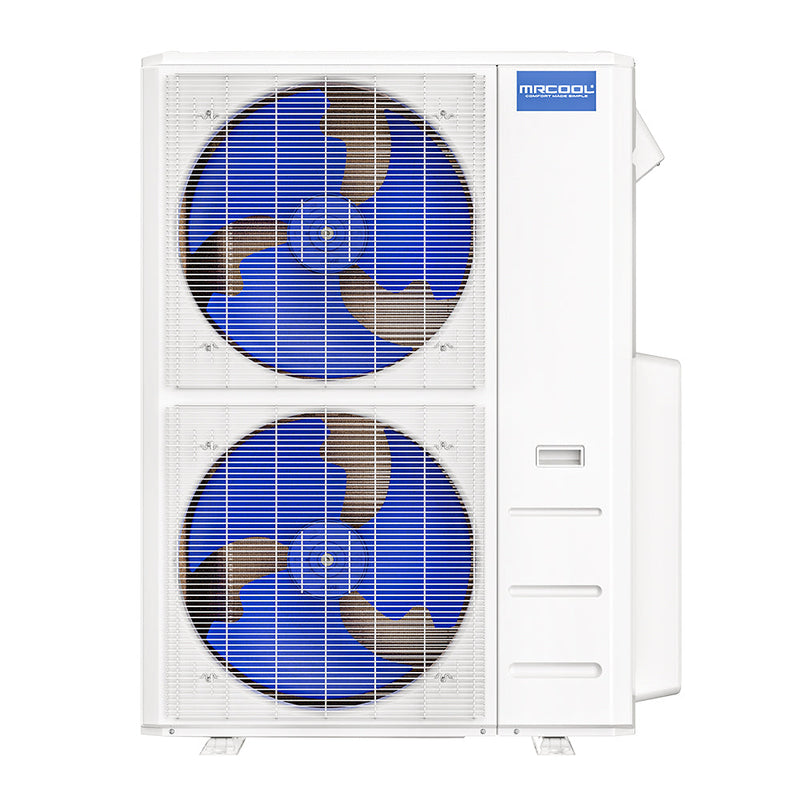

Outdoor Condenser – DIY-MULTI6-55HP230D-O
• Voltage: 208 / 230V
• Phase: 1
• Frequency: 60 Hz
• Minimum Circuit Ampacity (MCA): 43A
• Maximum Fuse / Breaker Size: 45A
• Dedicated Circuit Required: Yes
Always follow local electrical codes and manufacturer installation guidelines.
Industry-Leading Warranty
When installed according to manufacturer guidelines:
- 5-Year Parts Warranty
- 7-Year Compressor Warranty
- Eligible for the MRCOOL® Care Kit Program
This warranty coverage is one of the strongest available in any DIY or professional HVAC system.

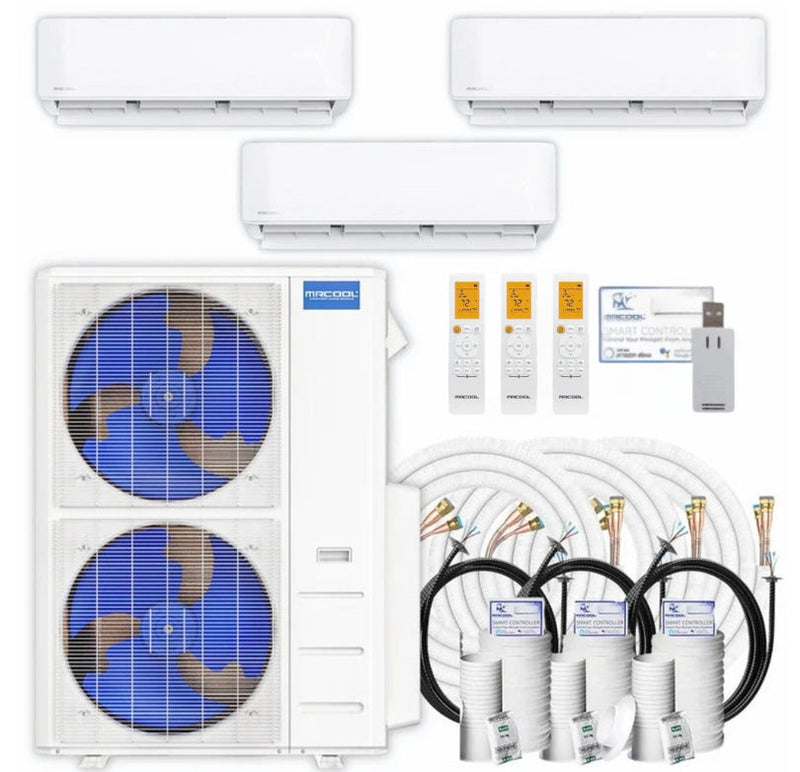

WHAT’S INCLUDED IN THIS COMPLETE DIY BUNDLE

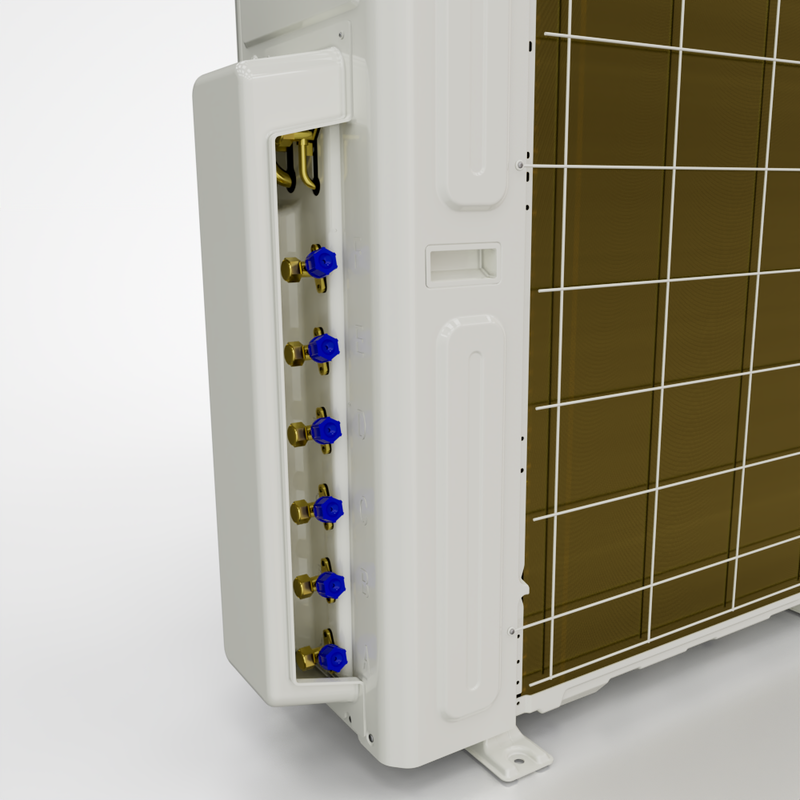

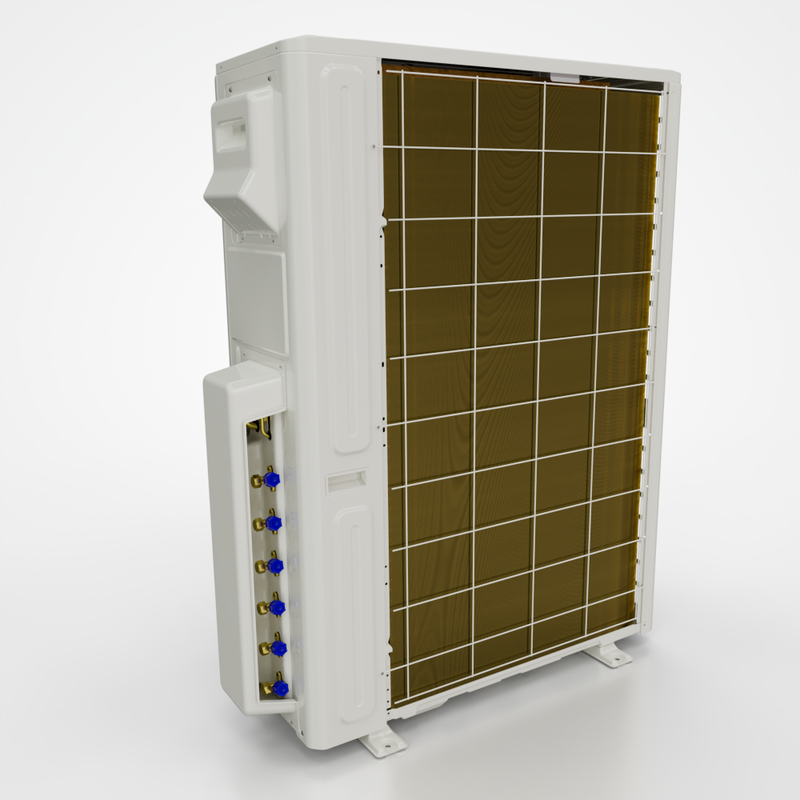

✔ 1× MRCOOL® DIY-MULTI6-55HP230D-O
55,000 BTU 6-Zone Outdoor Condenser (230V)
✔ 1× MRCOOL® DIY-06-HP-WMAH-230D25-O
6,000 BTU Wall-Mounted Air Handler (up to ~200 sq ft)
✔ 1× MRCOOL® DIY-09-HP-WMAH-230D25-O
9,000 BTU Wall-Mounted Air Handler (up to ~400 sq ft)
✔ 1× MRCOOL® DIY-24-HP-WMAH-230D25-O
24,000 BTU Wall-Mounted Air Handler (up to ~1,050 sq ft)
✔ 2× MRCOOL® DIY16-1438-O
16 ft 1/4” × 3/8” Pre-Charged DIY® QuickConnect® Line Sets
✔ 1× MRCOOL® DIY16-3858-O
16 ft 3/8” × 5/8” Pre-Charged DIY® QuickConnect® Line Set
✔ Mounting hardware & wireless remotes included
Smartphone not included
IDEAL APPLICATIONS
- Whole-home multi-zone comfort
- Homes with mixed room sizes
- Remodels and additions
- Basements, garages, offices, and bonus rooms
- Replacing inefficient central HVAC systems
PHYSICAL DIMENSIONS & WEIGHT
Outdoor Condenser
- Width: 37.48 in
- Height: 52.48 in
- Depth: 16.34 in
- Net Weight: 245.8 lbs

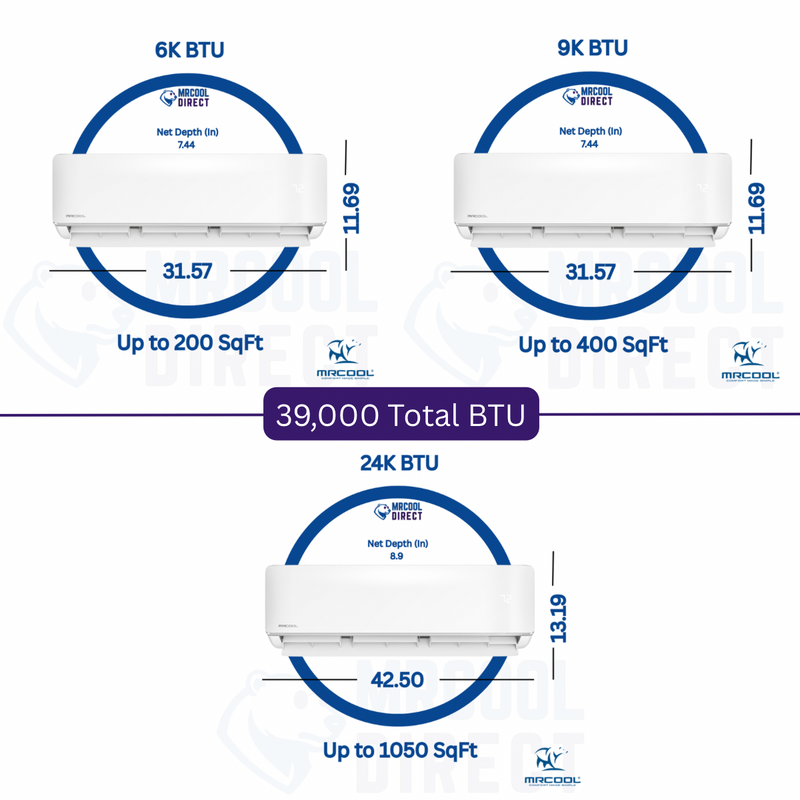

6K Indoor Air Handler
- Width: 31.57 in
- Height: 11.69 in
- Depth: 7.44 in
- Weight: 24.5 lbs
9K Indoor Air Handler
- Width: 31.57 in
- Height: 11.69 in
- Depth: 7.44 in
- Weight: ~25 lbs
24K Indoor Air Handler
- Width: 42.52 in
- Height: 13.19 in
- Depth: 8.90 in
- Weight: ~36 lbs
FREQUENTLY ASKED QUESTIONS
Q: Do I need an HVAC license to install this system?
A: No. MRCOOL DIY® systems are specifically designed for homeowner installation.
Q: Can I control each room separately?
A: Yes. Each indoor air handler operates independently.
Q: Does this system work with Alexa or Google Home?
A: Yes. Smart control is built in.
Q: Is refrigerant included?
A: Yes. All DIY® QuickConnect® line sets are factory-charged.
