MRCOOL® DIY® 5th Gen Multi-Zone 4-Zone 48,000 BTU 21.8 SEER2 (6K + 6K + 6K + 24K)- 4x 25ft line sets-Ductless Mini-Split Air Conditioner & Heat Pump- DIYM448HPW01D216
Product Description
Model: DIYM448HPW01D216
The MRCOOL® DIYM448HPW01D216 is a professionally engineered 4-zone ductless mini-split system designed for homeowners who need longer line-set reach, precise zoning, and industry-leading DIY installation technology.
This system pairs the MRCOOL® DIY® 5th Generation 48,000 BTU multi-zone condenser with three 6,000 BTU wall-mounted air handlers—perfect for bedrooms, offices, and smaller living spaces—plus one 24,000 BTU air handler engineered for high-load areas such as living rooms, open layouts, or large master suites.
Unlike standard bundles, this configuration includes 25-foot DIY® QuickConnect® line sets, allowing greater installation flexibility for homes where the outdoor condenser must be placed farther from indoor zones. Each line set arrives factory-sealed, pre-charged with R-454B refrigerant, eliminating vacuuming, refrigerant handling, or licensed HVAC labor.
Powered by DC inverter technology, protected by Gold Fin® corrosion-resistant coating, and controlled through the MRCOOL® Smart HVAC Controller®, this system delivers quiet operation, lower utility bills, and long-term reliability—all with true DIY simplicity.
KEY FEATURES & PERFORMANCE HIGHLIGHTS
- 48,000 BTU total system capacity
- 4 independently controlled zones
- Three 6,000 BTU zones + one 24,000 BTU zone
- 21.8 SEER2 high-efficiency rating
- DC inverter variable-speed compressor

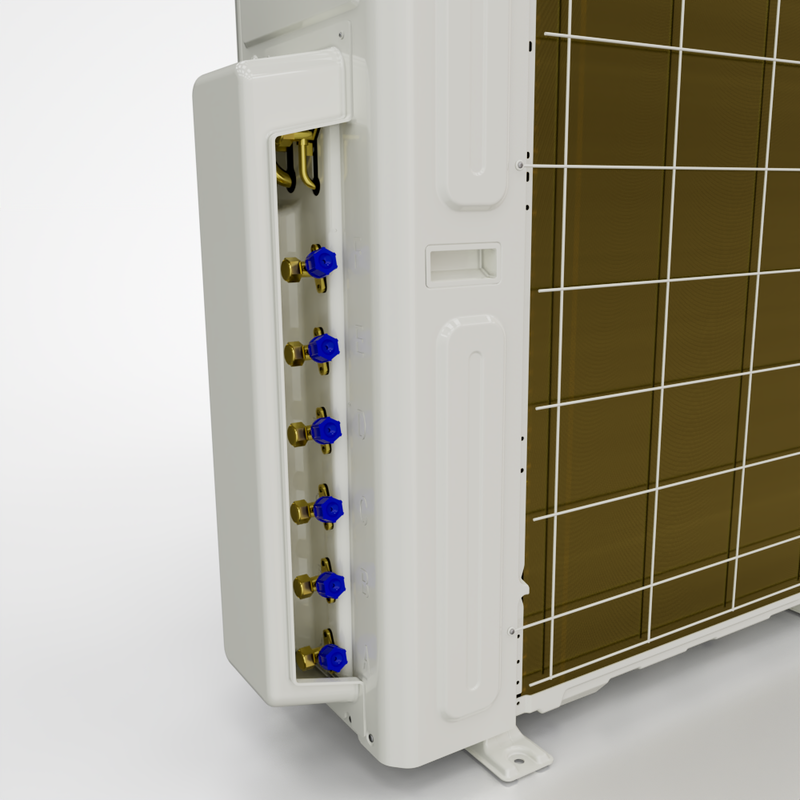

- DIY® QuickConnect® pre-charged line sets
- Extended 25-ft line-set reach
- DIYPRO® cable (no conduit required)
- Gold Fin® anti-corrosion protection
- Follow Me® temperature sensing
- MRCOOL® Smart HVAC Controller® App
- Amazon Alexa® & Google Home® compatible
- ENERGY STAR® & AHRI certified
ELECTRICAL REQUIREMENTS & BREAKER INFORMATION

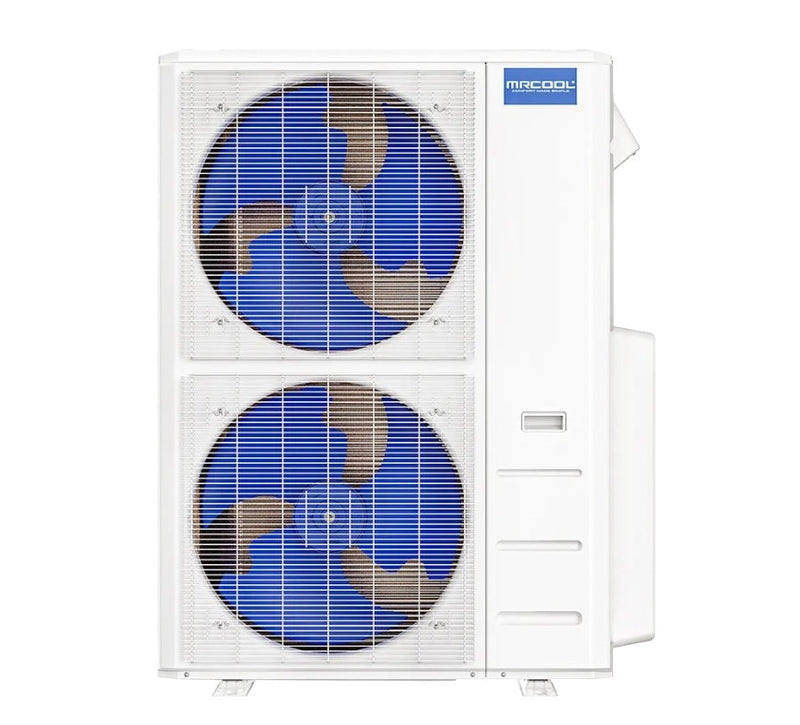

Outdoor Condenser — DIY-MULTI6-48HP230D-O
- Voltage: 208 / 230V
- Phase: Single-Phase
- Frequency: 60 Hz
- Minimum Circuit Ampacity (MCA): 40 Amps
- Maximum Breaker Size: 45 Amps
- Dedicated Circuit Required: Yes
DIMENSIONS & WEIGHT

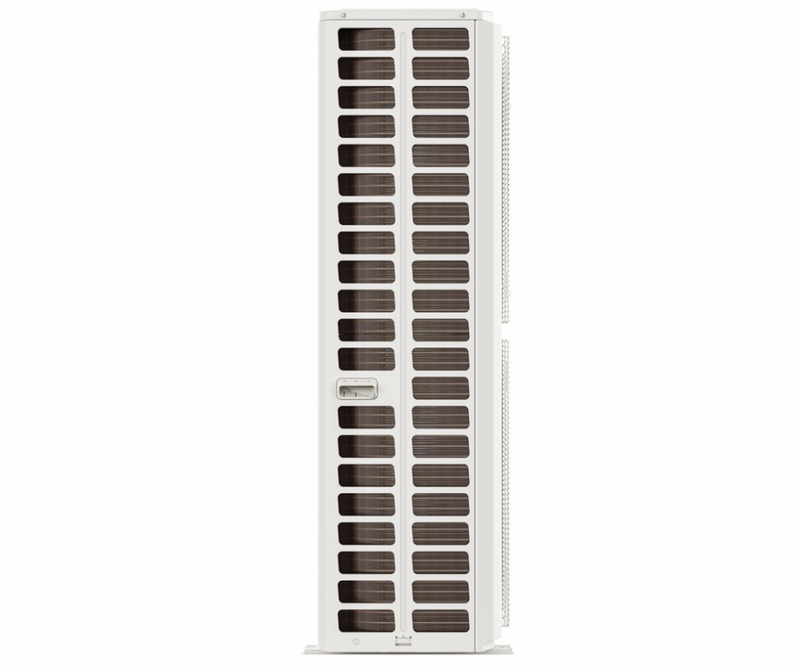

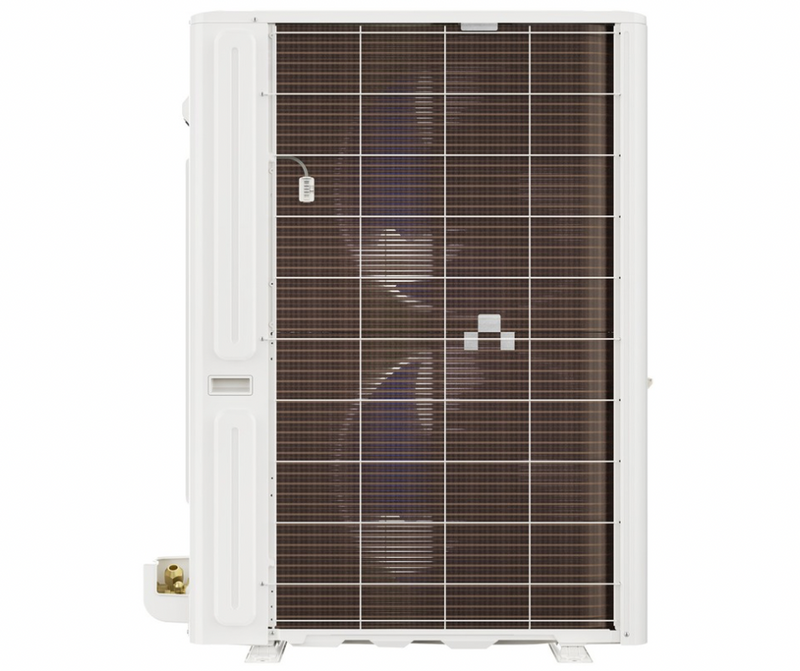

Outdoor Condenser
- Width: 37.48 in
- Height: 52.48 in
- Depth: 16.34 in
- Net Weight: ~224 lbs

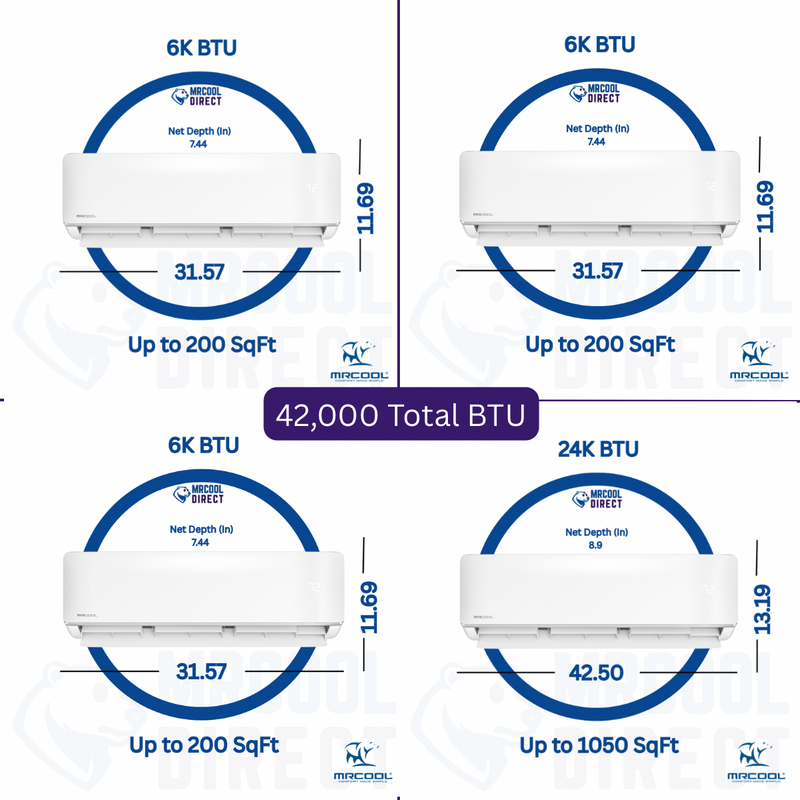

6K Indoor Air Handlers (each)
- Width: 31.57 in
- Height: 11.69 in
- Depth: 7.44 in
- Weight: ~24.5 lbs
24K Indoor Air Handler
- Width: 42.52 in
- Height: 13.19 in
- Depth: 8.9 in
- Weight: ~35.9 lbs
WARRANTY COVERAGE
- 5-Year Parts Warranty
- 7-Year Compressor Warranty
- Eligible for the MRCOOL® Care Kit Program

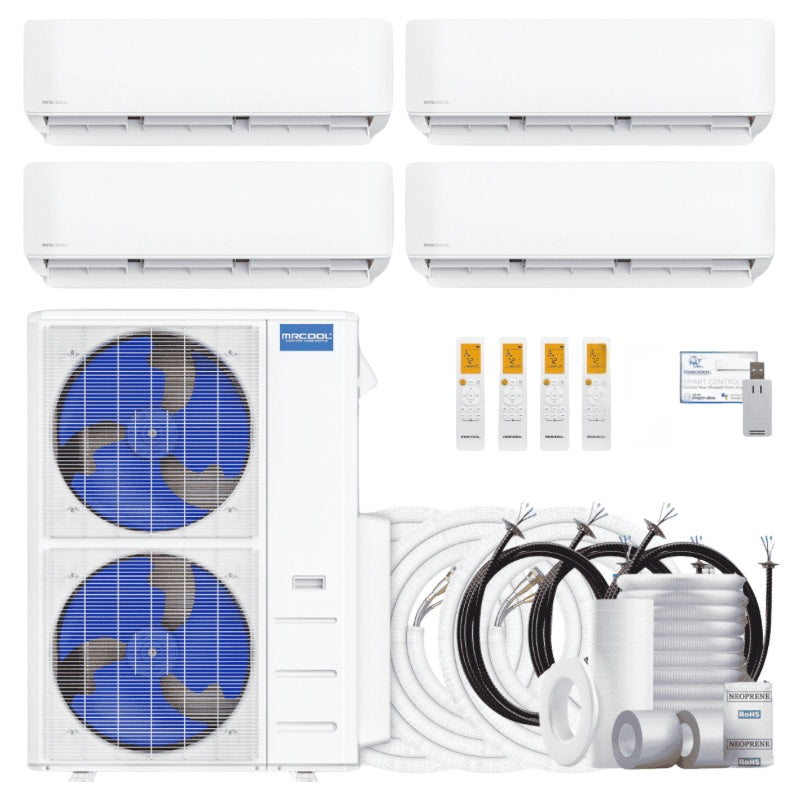

WHAT’S INCLUDED IN THIS BUNDLE
- ✔ MRCOOL® DIY® 48,000 BTU Multi-Zone Outdoor Condenser
- ✔ (3) 6,000 BTU Wall-Mounted Indoor Air Handlers
- ✔ (1) 24,000 BTU Wall-Mounted Indoor Air Handler
- ✔ (3) 25-ft DIY® QuickConnect® Line Sets (1/4 × 3/8) — for 6K air handlers
- ✔ (1) 25-ft DIY® QuickConnect® Line Set (1/4 × 1/2) — for 24K air handler
- ✔ DIYPRO® communication cable
- ✔ Wireless remotes for each zone
- ✔ Installation manuals & mounting hardware
Smart phone not included.
FREQUENTLY ASKED QUESTIONS (FAQ)
Why choose 25-ft line sets instead of 16-ft?
This allows more flexible condenser placement for larger homes or longer routing paths.
Is this system truly DIY?
Yes. MRCOOL® DIY® QuickConnect® technology eliminates vacuuming and refrigerant handling.
Can each zone be controlled separately?
Absolutely. Each air handler operates independently with its own thermostat and remote.
Does this system support smart control?
Yes. Control via the MRCOOL® Smart HVAC Controller® App, Alexa®, or Google Home®.
