MRCOOL® DIY 5th Gen Multi-Zone 4-Zone 48,000 BTU 21.8 SEER2 (6K + 6K + 9K + 18K) 3x 16ft + 1x 25ft line sets, Ductless Mini-Split Heat Pump System – Model DIYM448HPW03D216

Product Description

Model: DIYM448HPW03D216

MRCOOL DIY 5th Gen Multi-Zone 4-Zone 48,000 BTU Ductless Mini-Split System — Model DIYM448HPW03D216

The MRCOOL® DIYM448HPW03D216 is a high-capacity, professionally balanced 4-zone ductless mini-split system designed for homeowners who want true zone control, long-term efficiency, and DIY installation convenience—without sacrificing performance or warranty protection.

This system is powered by the MRCOOL® DIY® 5th Generation 48,000 BTU multi-zone condenser and paired with a smart indoor configuration of two 6,000 BTU air handlers, one 9,000 BTU air handler, and one 18,000 BTU air handler. This layout allows you to properly size each room based on real heat load, making it ideal for bedrooms, offices, nurseries, guest rooms, bonus rooms, and larger living spaces—all operating independently from one outdoor unit.

Installation is simplified using MRCOOL®’s patented DIY® QuickConnect® technology. This bundle includes long-reach 25-ft pre-charged DIY® QuickConnect® line sets, factory sealed with R-454B refrigerant, eliminating the need for vacuum pumps, gauges, or licensed refrigerant handling. The included DIYPRO® communication cable removes the need for electrical conduit, reducing labor time while improving durability and reliability.

With DC inverter technology, Gold Fin® corrosion-resistant coils, Follow Me® temperature sensing, and full MRCOOL® Smart HVAC Controller® App integration, this system delivers quiet operation, lower energy bills, and dependable year-round comfort—all with true DIY convenience.

KEY FEATURES & PERFORMANCE HIGHLIGHTS

• 48,000 BTU total system capacity
• 4 independently controlled comfort zones

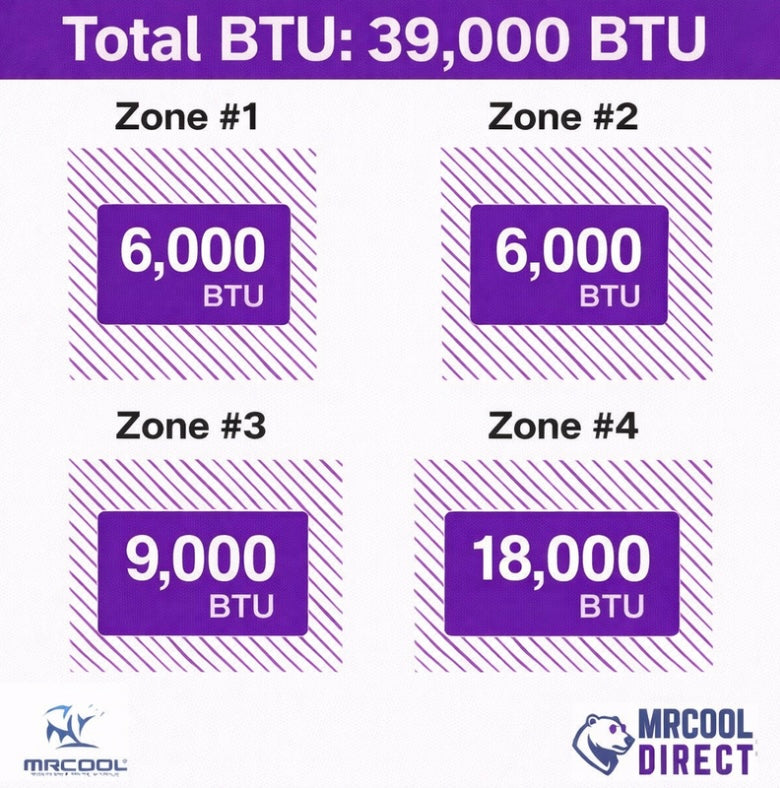

• (2) 6K + (1) 9K + (1) 18K BTU indoor air handlers
• Up to 21.8 SEER2 high-efficiency rating
• DC inverter variable-speed compressor

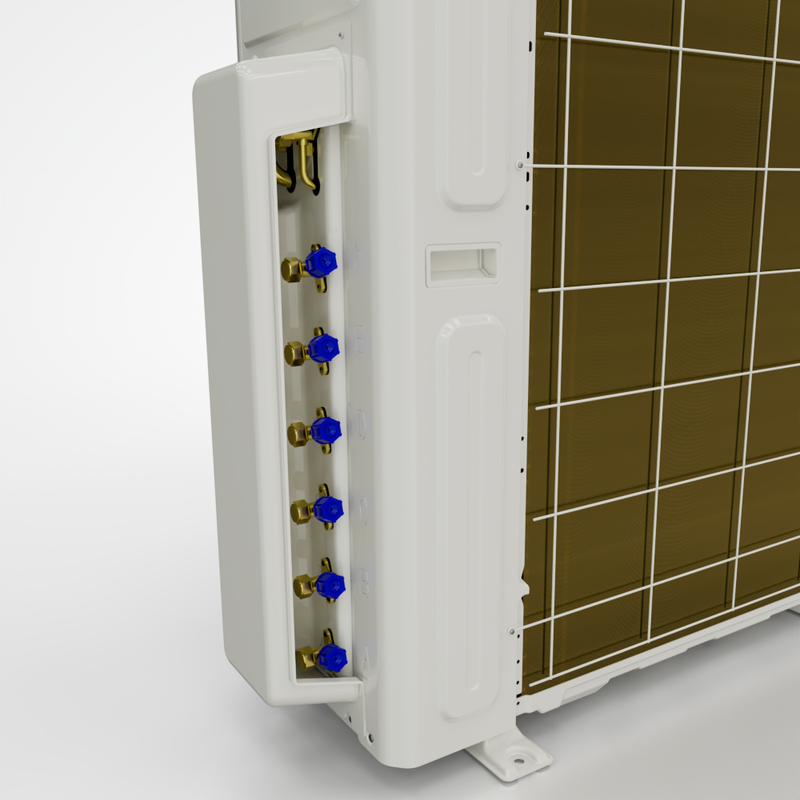

• DIY® QuickConnect® pre-charged line sets
• Extended 25-ft line-set reach for flexible layouts
• DIYPRO® cable (no conduit required)
• Gold Fin® anti-corrosion protection
• Follow Me® temperature sensing
• MRCOOL® Smart HVAC Controller® App
• Amazon Alexa® & Google Home® compatibility
• AHRI certified

ELECTRICAL REQUIREMENTS & BREAKER INFORMATION

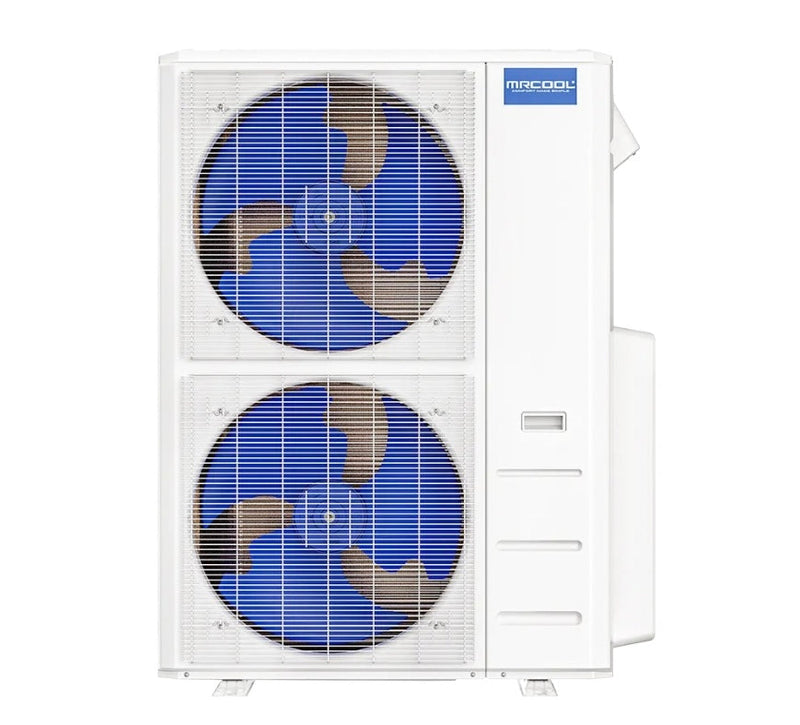

Outdoor Condenser — DIY-MULTI6-48HP230D-O

• Voltage: 208 / 230V
• Phase: Single-Phase
• Frequency: 60 Hz
• Minimum Circuit Ampacity (MCA): 40 Amps
• Maximum Breaker Size: 45 Amps
• Dedicated Circuit Required: Yes

DIMENSIONS & WEIGHT

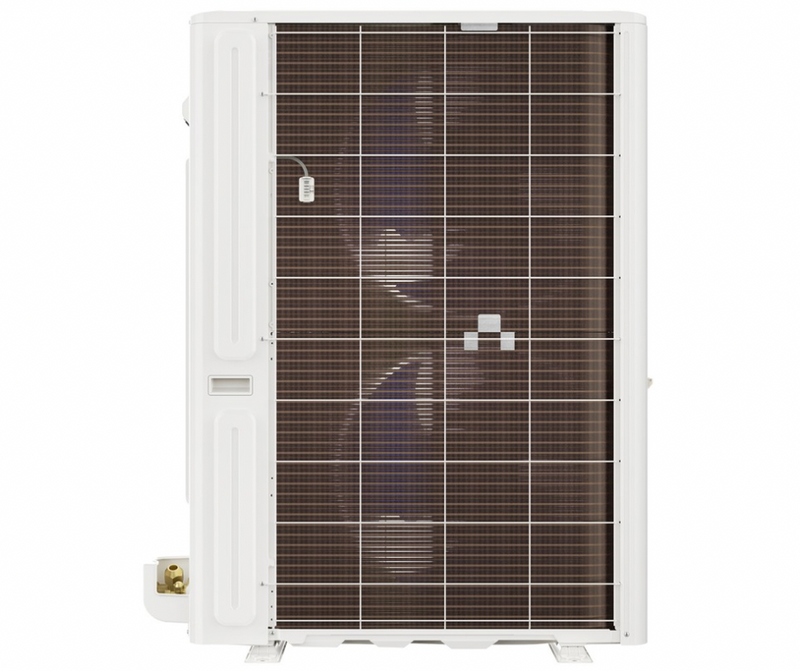

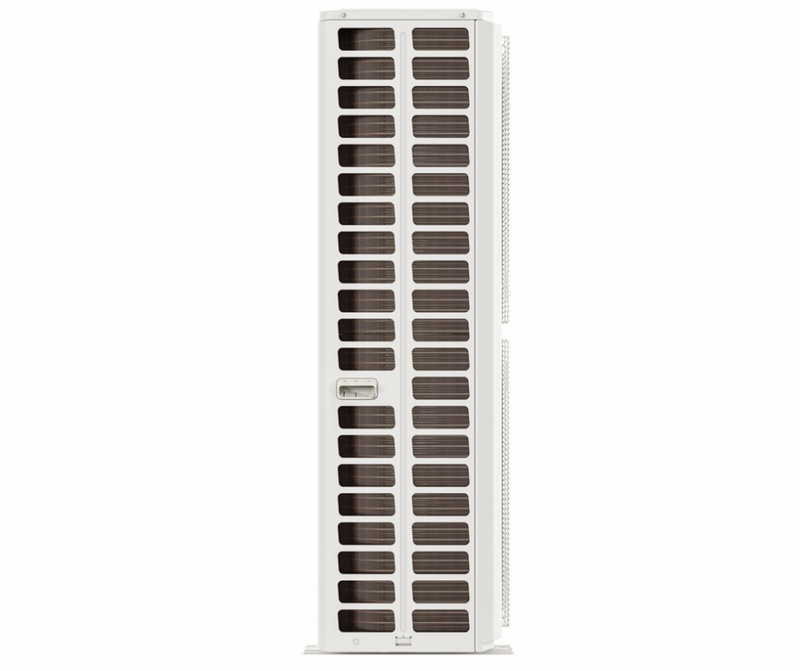

 Outdoor Condenser

• Width: 37.48 in
• Height: 52.48 in
• Depth: 16.34 in
• Net Weight: ~224 lbs

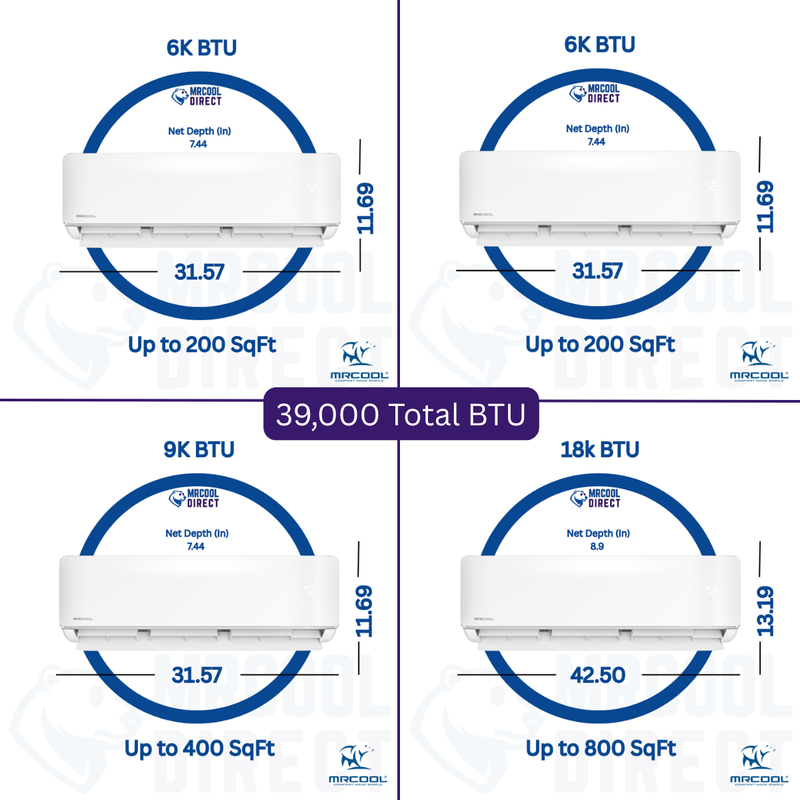

6K Indoor Air Handlers (each)

• Width: 31.57 in
• Height: 11.69 in
• Depth: 7.44 in
• Weight: ~24.5 lbs

9K Indoor Air Handler

• Width: 31.57 in
• Height: 11.69 in
• Depth: 7.44 in
• Weight: ~25 lbs

18K Indoor Air Handler

• Width: 39.37 in
• Height: 12.99 in
• Depth: 8.90 in
• Weight: ~32 lbs

WARRANTY COVERAGE

• 5-Year Parts Warranty
• 7-Year Compressor Warranty
• Eligible for the MRCOOL® Care Kit Program

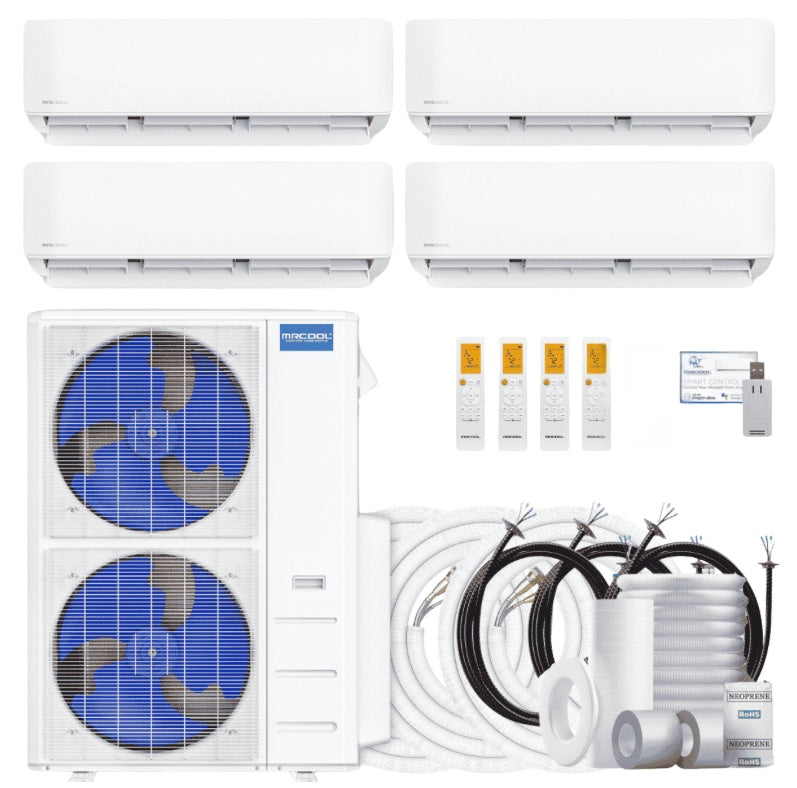

WHAT’S INCLUDED IN THIS BUNDLE

• ✔ MRCOOL® DIY® 48,000 BTU Multi-Zone Outdoor Condenser
• ✔ (2) 6,000 BTU Wall-Mounted Indoor Air Handlers
• ✔ (1) 9,000 BTU Wall-Mounted Indoor Air Handler
• ✔ (1) 18,000 BTU Wall-Mounted Indoor Air Handler
• ✔ (3) 25-ft DIY® QuickConnect® Line Sets (¼″ × ⅜″)
• ✔ (1) 25-ft DIY® QuickConnect® Line Set (¼″ × ½″)
• ✔ DIYPRO® communication cable
• ✔ Wireless remotes for each indoor unit
• ✔ Installation manuals & mounting hardware

Smart phone not included.

FREQUENTLY ASKED QUESTIONS (FAQ)

Why choose 25-ft line sets instead of 16-ft?

They allow greater condenser placement flexibility for larger homes, garages, basements, or multi-story layouts.

Can each zone be controlled independently?

Yes. Each indoor unit operates with its own temperature, fan speed, and mode settings.

Is professional HVAC installation required?

No. This system is designed for true DIY installation—no refrigerant handling required.

Does this system support smart home control?

Yes. Fully compatible with Alexa®, Google Home®, and the MRCOOL® Smart HVAC Controller® App.

Is this system suitable for long-term daily use?

Absolutely. The DC inverter compressor adjusts output automatically to reduce energy usage and wear.
