MRCOOL® DIY® 5th Gen Multi-Zone 4-Zone 36,000 BTU 23 SEER2 (6K + 6K + 6K + 9K)- 4x 25ft line sets-Ductless Mini-Split Air Conditioner & Heat Pump — DIYM436HPW01D122

Product Description

Model: DIYM436HPW01D122

The MRCOOL® DIYM436HPW01D122 is a premium 4-zone ductless mini-split system engineered for homeowners who want true room-by-room comfort, higher efficiency, and a professional-grade system they can install themselves.

This configuration pairs the MRCOOL® DIY® 5th Generation 36,000 BTU multi-zone condenser with three 6,000 BTU air handlers and one 9,000 BTU air handler, making it an ideal solution for bedrooms, offices, nurseries, guest rooms, or mixed-use spaces where loads vary slightly from room to room.

What sets this bundle apart is the inclusion of 25-ft DIY® QuickConnect® line sets for every zone, giving installers added flexibility for longer runs without sacrificing performance or warranty coverage. Each line set arrives factory-sealed and pre-charged with R-454B refrigerant, eliminating vacuum pumps, gauges, and refrigerant handling.

Paired with DIYPRO® cable, Gold Fin® corrosion protection, and full MRCOOL® Smart HVAC Controller® support, this system delivers quiet operation, lower energy costs, and long-term reliability—without contractor labor.

KEY FEATURES & PERFORMANCE HIGHLIGHTS

• 36,000 BTU total system capacity
• 4 independently controlled comfort zones
• Three 6K zones + one 9K zone
• 23 SEER2 high-efficiency performance
• DC inverter variable-speed compressor
• DIY® QuickConnect® pre-charged line sets
• 25-ft line sets included for every zone
• No vacuum pump or HVAC license required
• DIYPRO® cable (no conduit needed)
• Gold Fin® anti-corrosion coating
• Follow Me® temperature sensing
• MRCOOL® Smart HVAC Controller® app
• Amazon Alexa® & Google Home® compatible
• ENERGY STAR® & AHRI certified

ELECTRICAL REQUIREMENTS & BREAKER INFORMATION

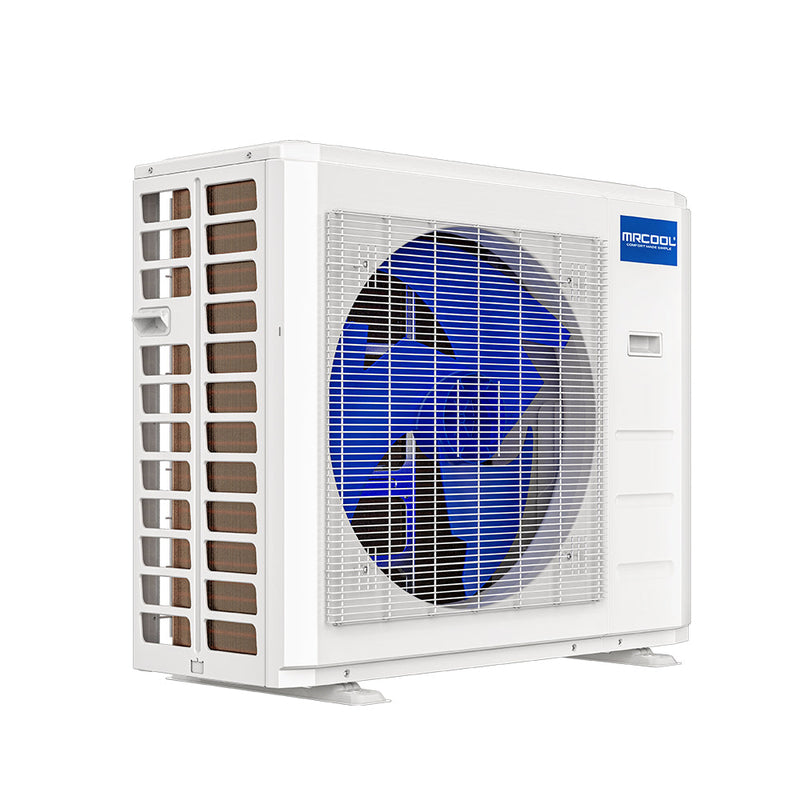

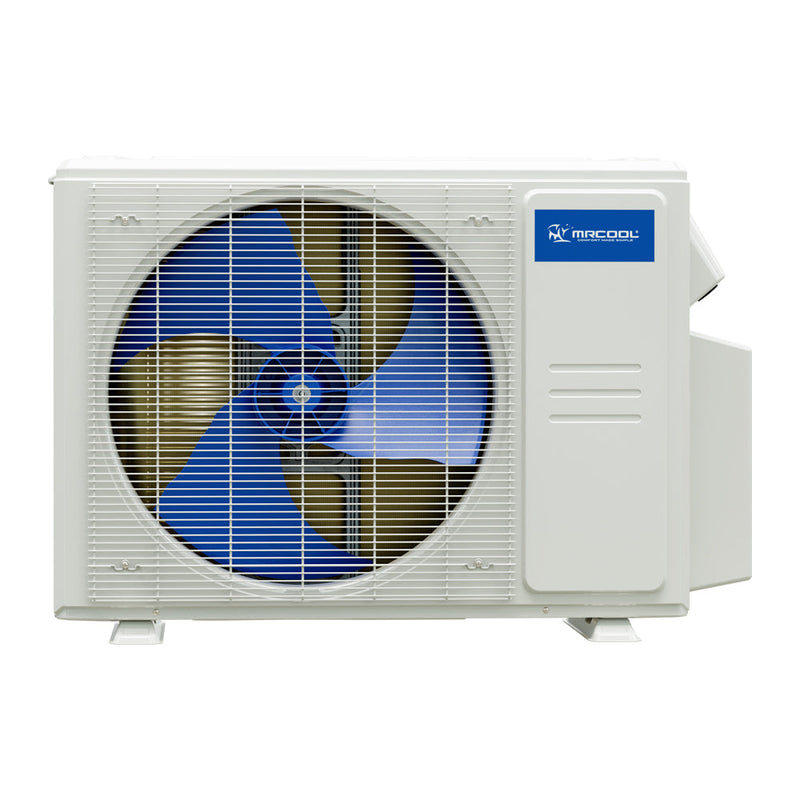

Outdoor Condenser — DIY-MULTI5-36HP230D-O

• Voltage: 208 / 230V
• Phase: Single-Phase
• Frequency: 60 Hz
• Minimum Circuit Ampacity (MCA): 30.5 Amps
• Maximum Breaker Size: 35 Amps
• Dedicated Circuit Required: Yes

DIMENSIONS & WEIGHT

Outdoor Condenser

• Width: 37.24 in
• Height: 31.89 in
• Depth: 16.14 in
• Net Weight: ~169 lbs

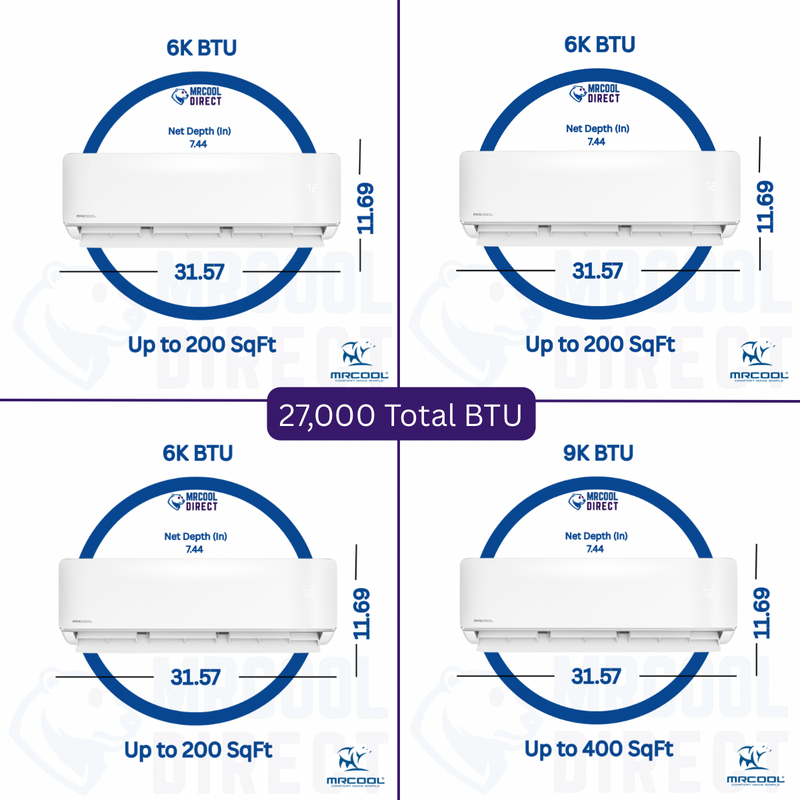

6K Indoor Air Handlers (each)

• Width: 31.57 in
• Height: 11.69 in
• Depth: 7.44 in
• Weight: ~24.5 lbs

9K Indoor Air Handler

• Width: 31.57 in
• Height: 11.69 in
• Depth: 7.44 in
• Weight: ~25 lbs

WARRANTY COVERAGE

• 5-Year Parts Warranty
• 7-Year Compressor Warranty
• Eligible for the MRCOOL® Care Kit Program

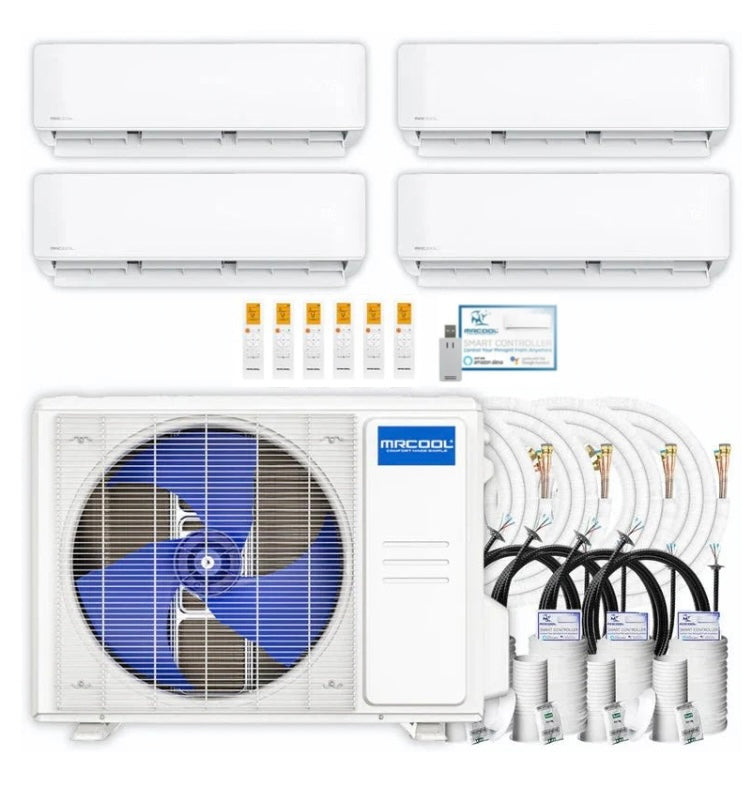

WHAT’S INCLUDED IN THIS BUNDLE

• ✔ MRCOOL® DIY® 36,000 BTU Multi-Zone Outdoor Condenser
• ✔ (3) 6,000 BTU Wall-Mounted Indoor Air Handlers
• ✔ (1) 9,000 BTU Wall-Mounted Indoor Air Handler
• ✔ (4) 25-ft DIY® QuickConnect® Line Sets (1/4 × 3/8)
• ✔ DIYPRO® communication cable
• ✔ Wireless remotes for each zone
• ✔ Mounting hardware & installation manuals

Smart phone not included.

FREQUENTLY ASKED QUESTIONS

Is this a true DIY system?

Yes. The QuickConnect® system eliminates vacuuming and refrigerant handling.

Why choose 25-ft line sets instead of 16-ft?

25-ft line sets provide more routing flexibility for larger homes or longer outdoor unit placement.

Can each room be controlled independently?

Yes. Each indoor unit operates as its own zone.

Does it work with smart home systems?

Yes. Compatible with Alexa®, Google Home®, and the MRCOOL® Smart HVAC Controller® app.
