MRCOOL® DIY® 5th Gen Multi-Zone 4-Zone 36,000 BTU 23 SEER2 (6K + 6K + 6K + 6K)- 4x 25ft line sets- Ductless Mini-Split Air Conditioner & Heat Pump —DIYM436HPW00D122
Product Description
Model: DIYM436HPW00D122
The MRCOOL® DIYM436HPW00D122 is a high-efficiency 4-zone ductless mini-split system engineered for homeowners who want precise comfort control in multiple rooms without the cost, complexity, or delays of professional HVAC installation.
This bundle pairs the MRCOOL® DIY® 5th Generation 36,000 BTU multi-zone condenser with four 6,000 BTU wall-mounted air handlers, making it an ideal solution for bedrooms, offices, bonus rooms, finished basements, or home additions where balanced comfort matters.
What sets this system apart is MRCOOL®’s patented DIY® QuickConnect® technology. Each 25-ft pre-charged line set arrives factory-sealed with R-454B refrigerant, eliminating vacuum pumps, gauges, and refrigerant handling. Combined with the DIYPRO® cable, installation is faster, cleaner, and dramatically more affordable than traditional multi-zone systems.
With 23 SEER2 efficiency, DC inverter performance, and full MRCOOL® Smart HVAC Controller® support, this system delivers lower operating costs, whisper-quiet operation, and smart control from anywhere — exactly what today’s homeowners expect.
KEY FEATURES & PERFORMANCE HIGHLIGHTS
- 36,000 BTU total system capacity
- Four independently controlled comfort zones
- 23 SEER2 high-efficiency rating
- DC inverter variable-speed compressor
- DIY® QuickConnect® pre-charged line sets
- 25-ft line sets included (long-run flexibility)
- No vacuum pump or HVAC license required
- DIYPRO® cable — no electrical conduit needed
- Gold Fin® corrosion-resistant protection
- Follow Me® temperature sensing
- MRCOOL® Smart HVAC Controller® App
- Amazon Alexa® & Google Home® compatible
- ENERGY STAR® & AHRI certified
ELECTRICAL REQUIREMENTS & BREAKER INFORMATION

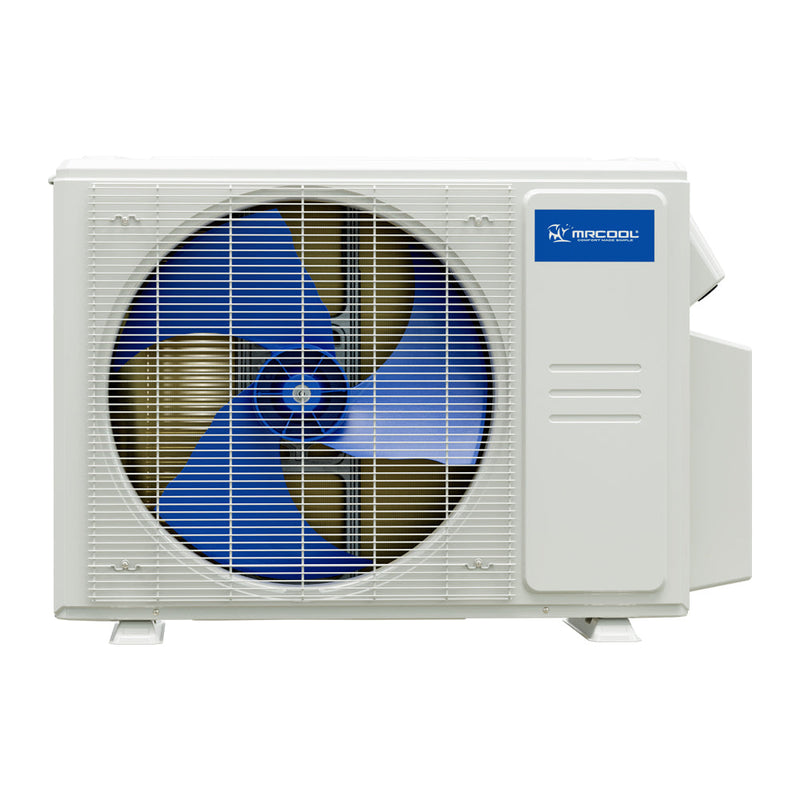

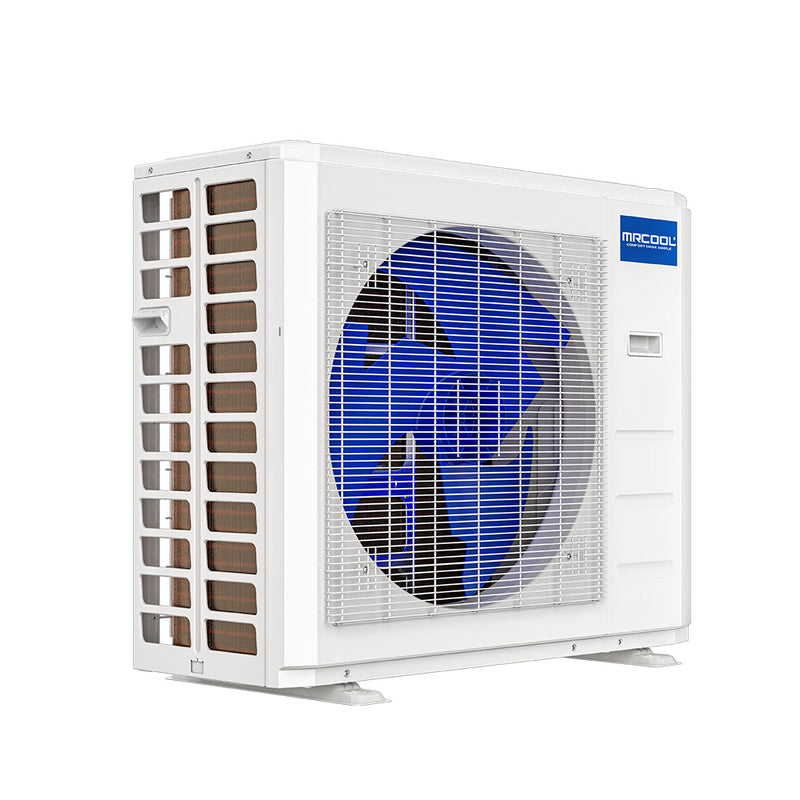

Outdoor Condenser — DIY-MULTI5-36HP230D-O
- Voltage: 208 / 230V
- Phase: Single-phase
- Frequency: 60 Hz
- Minimum Circuit Ampacity (MCA): 30.5 amps
- Maximum Breaker Size: 35 amps
- Dedicated Circuit Required: Yes
DIMENSIONS & WEIGHT
Outdoor Condenser
- Width: 37.24 in
- Height: 31.89 in
- Depth: 16.14 in
- Net Weight: ~169 lbs

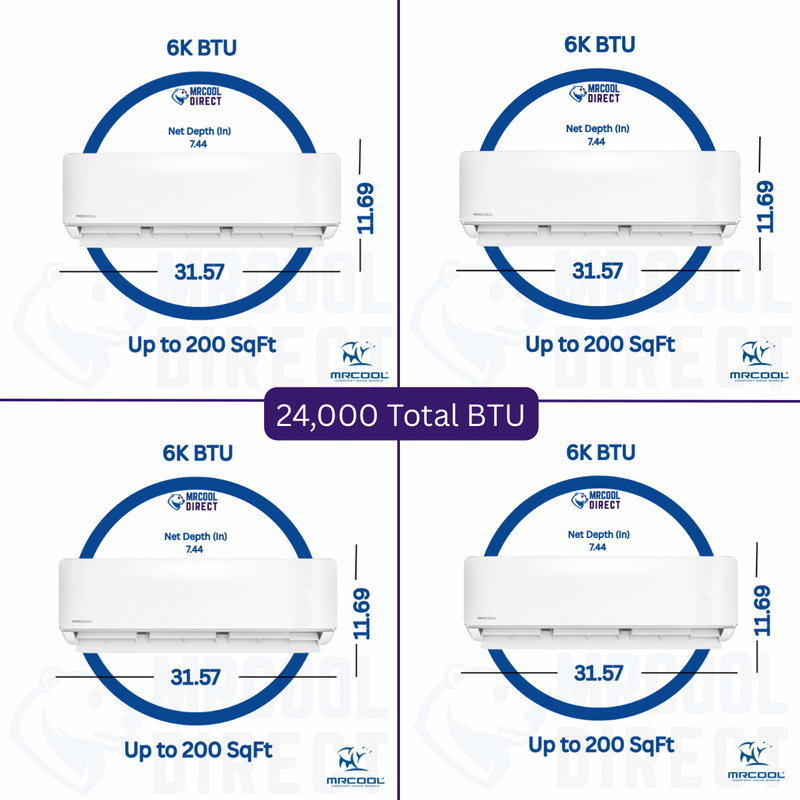

6K Indoor Air Handlers (each)
- Width: 31.57 in
- Height: 11.69 in
- Depth: 7.44 in
- Net Weight: ~24.5 lbs
WARRANTY COVERAGE
- 5-Year Parts Warranty
- 7-Year Compressor Warranty
- Eligible for the MRCOOL® Care Kit Program
This is one of the strongest warranties in the DIY HVAC industry.

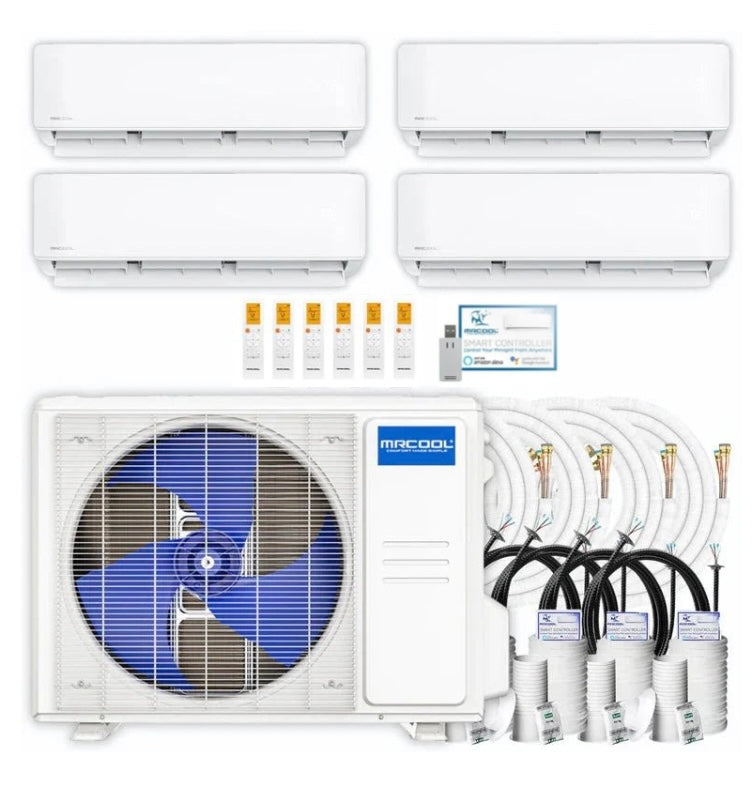

WHAT’S INCLUDED IN THIS BUNDLE
- ✔ MRCOOL® DIY® 36K BTU Multi-Zone Outdoor Condenser
- ✔ (4) 6K BTU Wall-Mounted Indoor Air Handlers
- ✔ (4) 25-ft DIY® QuickConnect® Line Sets (1/4 × 3/8)
- ✔ DIYPRO® communication cable
- ✔ Wireless remotes for each indoor unit
- ✔ Installation manuals & mounting hardware
Smart phone not included.
FREQUENTLY ASKED QUESTIONS
Is this system truly DIY?
Yes. The QuickConnect® line sets eliminate vacuuming and refrigerant handling.
Can each room be set to a different temperature?
Absolutely. Each zone operates independently.
Why choose 25-ft line sets?
They provide greater installation flexibility for longer wall runs or difficult layouts.
Does this system work with smart home devices?
Yes. Compatible with Alexa®, Google Home®, and the MRCOOL® Smart HVAC Controller® App.
