MRCOOL® DIY® 5th Gen Multi-Zone 4-Zone 27,000 BTU 23 SEER2 (6K + 6K + 6K + 9K) 4x 16ft line sets Ductless Mini-Split Air Conditioner & Heat Pump — DIYM427HPW01D00
Product Description
Model: DIYM427HPW01D00
The MRCOOL® DIYM427HPW01D00 is a professionally balanced 4-zone ductless mini-split system engineered for homeowners who want true room-by-room comfort, high efficiency, and a legit DIY installation without sacrificing performance.
This bundle pairs the MRCOOL® DIY® 27,000 BTU 5th Generation multi-zone condenser with three 6,000 BTU air handlers and one 9,000 BTU air handler, making it ideal for homes where most rooms are smaller but one space—such as a master bedroom, office, or larger living area—needs extra capacity.
Thanks to DIY® QuickConnect® pre-charged line sets, the system arrives sealed with R-454B refrigerant, eliminating vacuuming, refrigerant handling, and HVAC licensing. Combined with DIYPRO® cable, installation is faster, cleaner, and more affordable than traditional mini-split systems.
With 23 SEER2 efficiency, DC inverter technology, and full MRCOOL® Smart HVAC Controller® support, this system delivers whisper-quiet comfort, lower energy bills, and smart control from anywhere—exactly what today’s homeowners expect.
KEY FEATURES & PERFORMANCE HIGHLIGHTS
- 27,000 BTU total system capacity
- 4 independently controlled comfort zones
- 23 SEER2 high-efficiency performance
- DC inverter compressor technology
- DIY® QuickConnect® pre-charged line sets
- No vacuum pump or refrigerant tools required
- DIYPRO® cable (no conduit needed)
- Gold Fin® corrosion-resistant protection
- Follow Me® temperature sensing
- MRCOOL® Smart HVAC Controller® App
- Amazon Alexa® & Google Home® compatible
- Ultra-quiet indoor operation
- ENERGY STAR® & AHRI certified
ELECTRICAL REQUIREMENTS & BREAKER INFORMATION

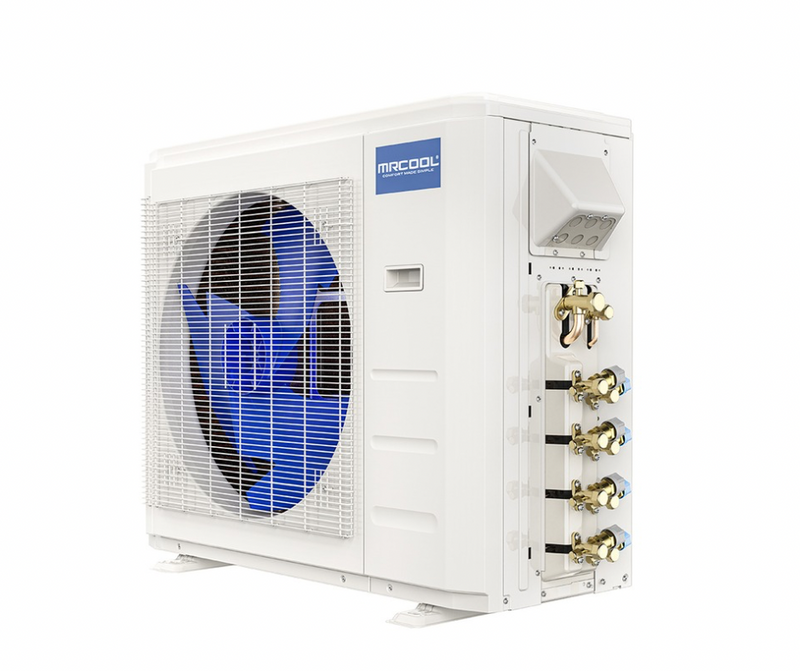

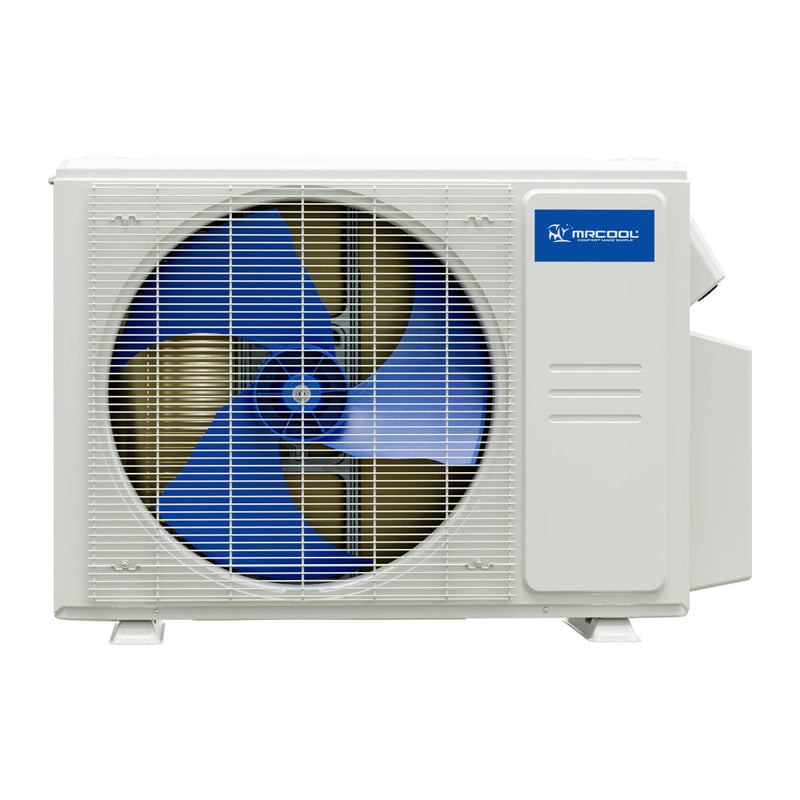

Outdoor Condenser — DIY-MULTI4-27HP230D-O
- Voltage: 208 / 230V
- Phase: Single-phase
- Frequency: 60 Hz
- Minimum Circuit Ampacity (MCA): 20 amps
- Maximum Breaker Size: 25 amps
- Dedicated Circuit Required: Yes
(Always verify local electrical code requirements.)
DIMENSIONS & WEIGHT
Outdoor Condenser
- Width: ~33 in
- Height: ~31 in
- Depth: ~16 in
- Weight: ~150 lbs

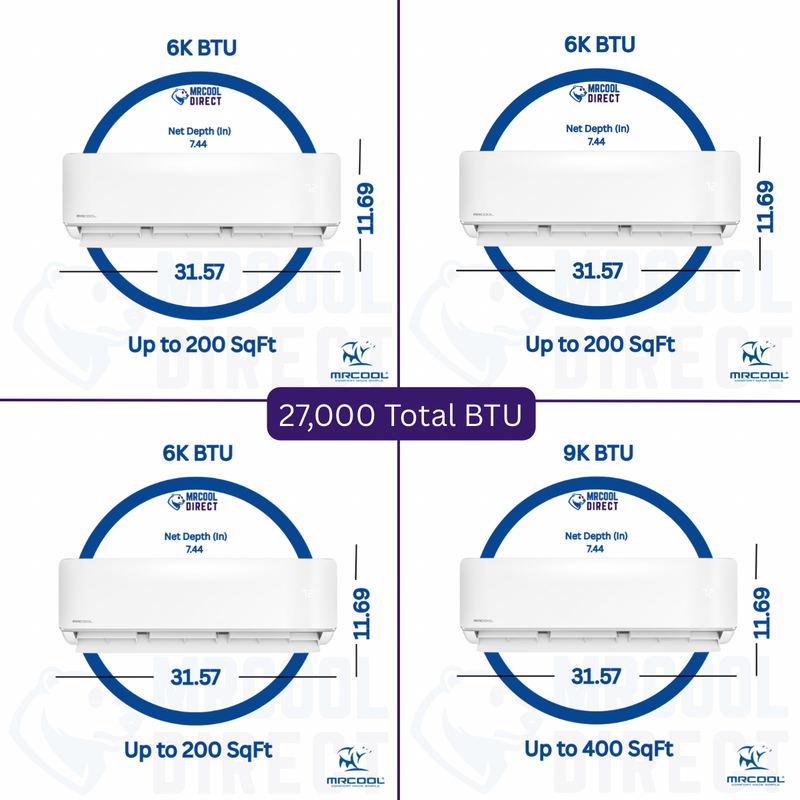

6K Indoor Air Handlers (each)
- Width: 31.57 in
- Height: 11.69 in
- Depth: 7.44 in
- Weight: ~25 lbs
9K Indoor Air Handler
- Width: ~33 in
- Height: ~12 in
- Depth: ~8 in
- Weight: ~27 lbs
WARRANTY COVERAGE
- 5-Year Parts Warranty
- 7-Year Compressor Warranty
- Eligible for the MRCOOL® Care Kit Program

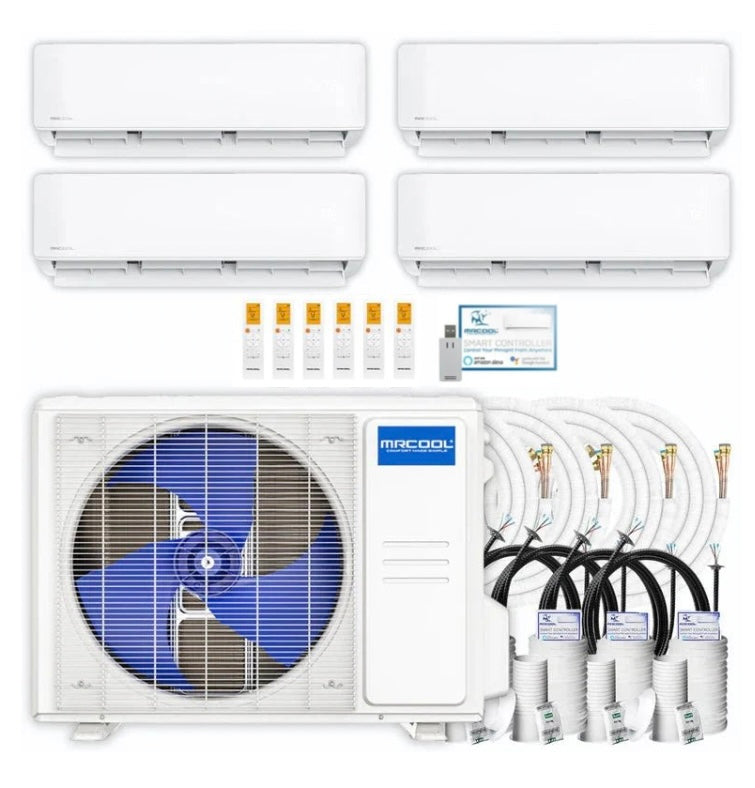

WHAT’S INCLUDED IN THIS BUNDLE
- ✔ MRCOOL® DIY® 27K BTU 4-Zone Outdoor Condenser
- ✔ (3) 6K BTU Wall-Mounted Indoor Air Handlers
- ✔ (1) 9K BTU Wall-Mounted Indoor Air Handler
- ✔ (4) 16-ft DIY® QuickConnect® Line Sets (1/4 × 3/8)
- ✔ DIYPRO® communication cable
- ✔ Wireless remotes for each indoor unit
- ✔ Installation manuals & mounting hardware
Smart phone not included.
FREQUENTLY ASKED QUESTIONS
Is this system truly DIY?
Yes. No vacuum pump, gauges, or refrigerant handling required.
Can each room be controlled separately?
Absolutely. Each indoor unit operates independently.
Is it quiet enough for bedrooms and offices?
Yes. Designed for ultra-low noise indoor operation.
Does it support smart home control?
Yes. Compatible with Alexa®, Google Home®, and the MRCOOL® Smart HVAC Controller® App.
