MRCOOL® DIY® 5th Gen Multi-Zone 4-Zone 27,000 BTU 23 SEER2 (6K + 6K + 6K + 6K) 4x 25ft line sets Ductless Mini-Split Air Conditioner & Heat Pump — DIYM427HPW00D88

Product Description

Model: DIYM427HPW00D88

The MRCOOL® DIYM427HPW00D88 is a perfectly configured 4-zone ductless mini-split system designed for homeowners who want maximum control, ultra-quiet comfort, and true DIY installation without cutting corners. This bundle pairs the proven MRCOOL® DIY® 27K BTU 5th Generation multi-zone condenser with four 6,000 BTU wall-mounted air handlers, making it ideal for bedrooms, offices, nurseries, guest rooms, and smaller living spaces.

Each zone operates independently, allowing you to fine-tune temperatures room by room while reducing wasted energy. Installation is streamlined using DIY® QuickConnect® pre-charged line sets, which arrive factory-sealed with R-454B refrigerant, eliminating the need for vacuum pumps, gauges, or HVAC certification. Combined with DIYPRO® cable, this system avoids conduit requirements and significantly reduces installation time and cost.

With DC inverter technology, 23 SEER2 efficiency, and full MRCOOL® Smart HVAC Controller® integration, this system delivers quiet, efficient, and reliable comfort year-round—while keeping operating costs low and control fully in your hands.

 KEY FEATURES & PERFORMANCE HIGHLIGHTS

• 27,000 BTU total system capacity

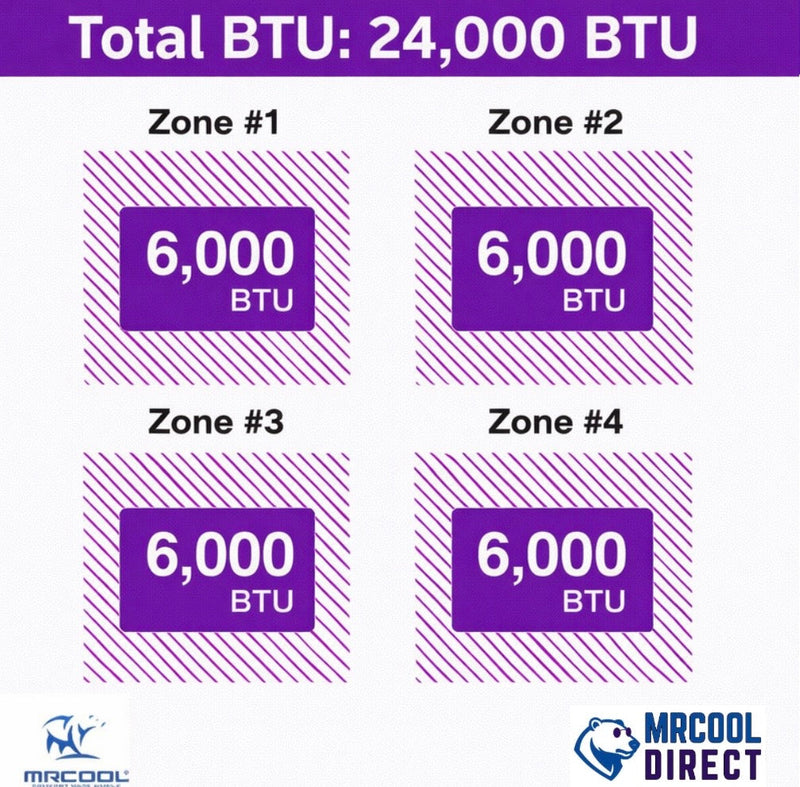

• 4 independently controlled zones
• 23 SEER2 high-efficiency rating
• DC inverter compressor technology

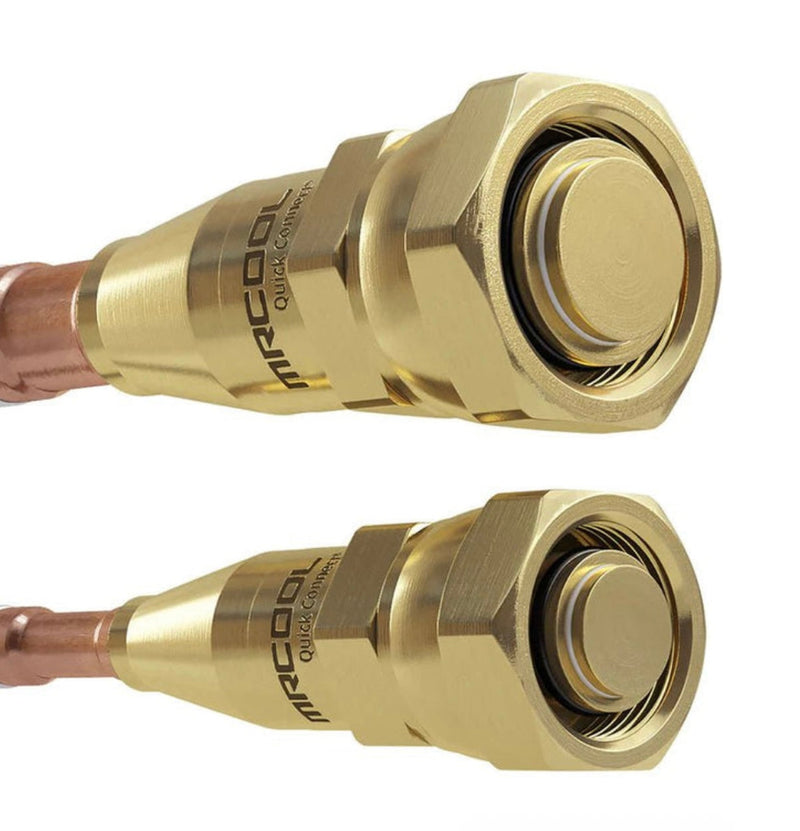

• DIY® QuickConnect® pre-charged line sets
• No vacuum pump or refrigerant handling required
• DIYPRO® cable (no electrical conduit needed)
• Gold Fin® corrosion-resistant coating
• Follow Me® temperature sensing
• MRCOOL® Smart HVAC Controller® App
• Amazon Alexa® & Google Home® compatibility
• Ultra-quiet indoor operation
• ENERGY STAR® & AHRI certified

ELECTRICAL REQUIREMENTS & BREAKER INFORMATION

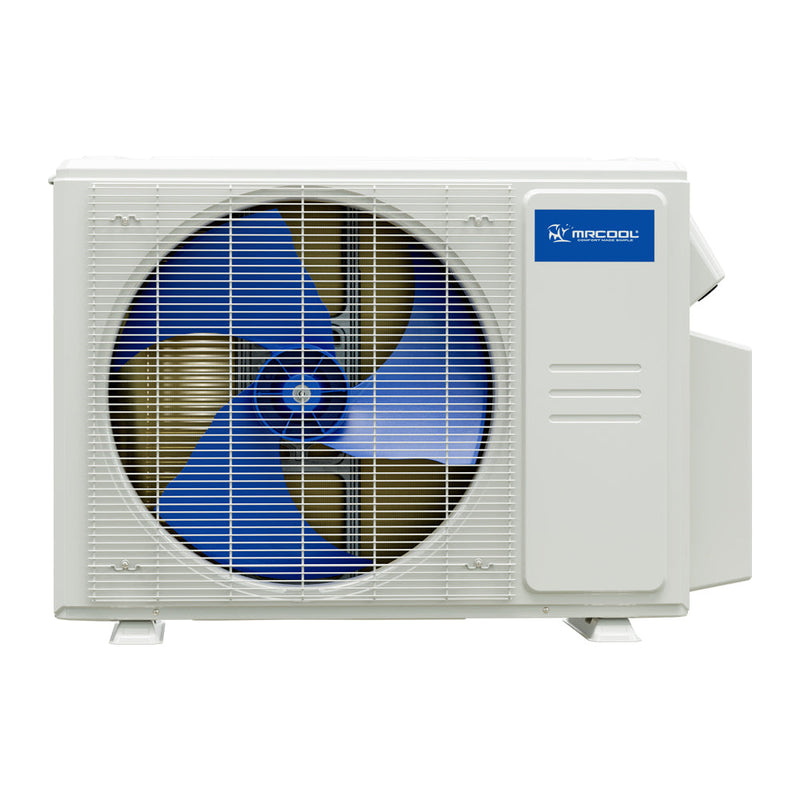

Outdoor Condenser – DIY-MULTI4-27HP230D-O

• Voltage: 208 / 230V
• Phase: Single-phase
• Frequency: 60 Hz
• Minimum Circuit Ampacity (MCA): 20 amps
• Maximum Breaker Size: 25 amps
• Dedicated Circuit Required: Yes

(Always confirm local code requirements before installation.)

 DIMENSIONS & WEIGHT

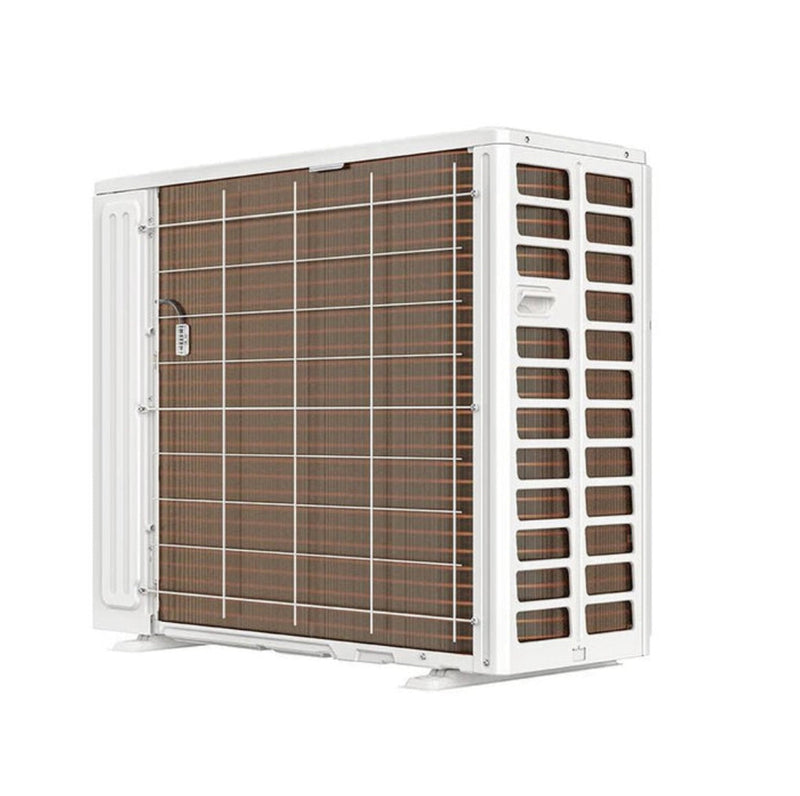

Outdoor Condenser

• Width: ~33 in
• Height: ~31 in
• Depth: ~16 in
• Weight: ~150 lbs

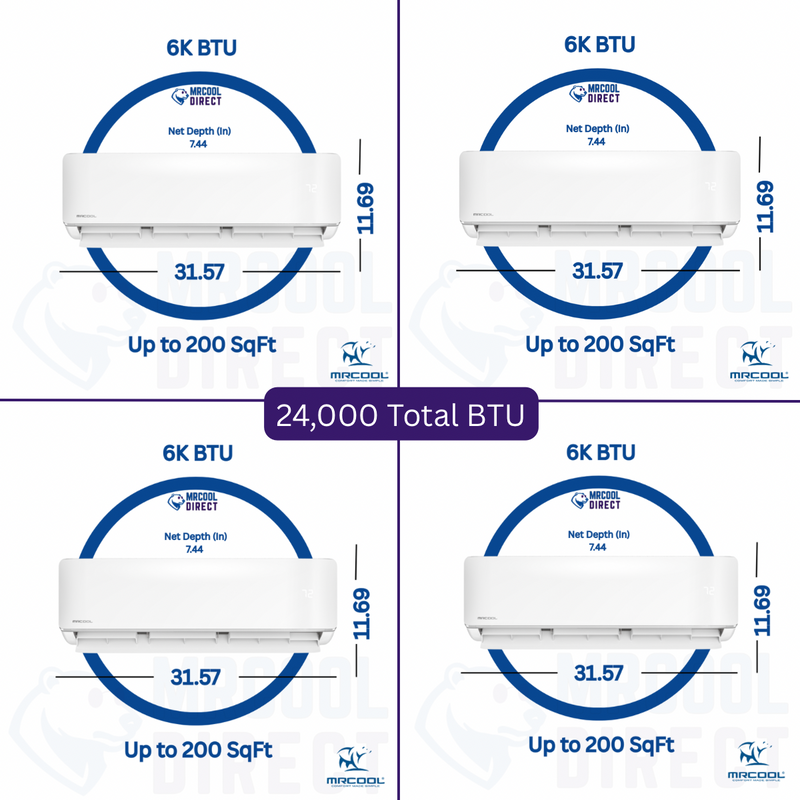

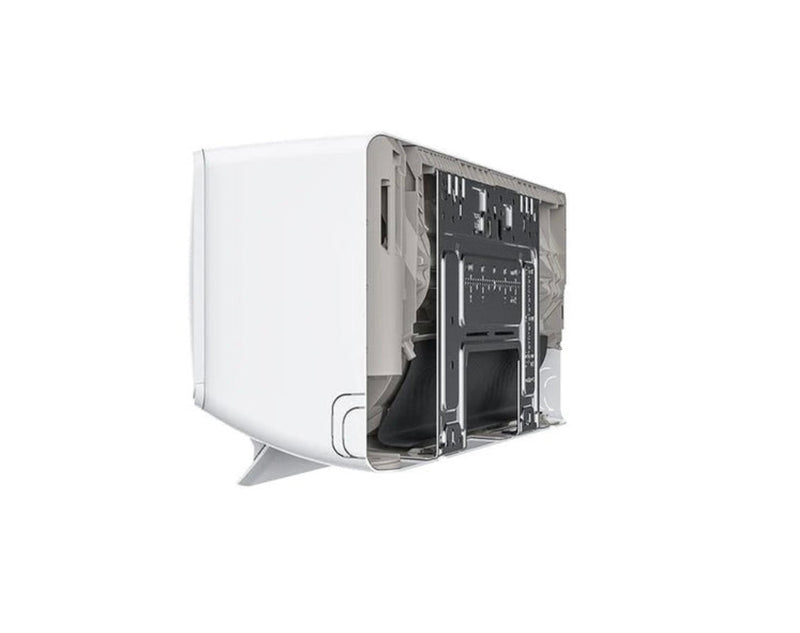

6K Indoor Air Handlers (each)

• Width: 31.57 in
• Height: 11.69 in
• Depth: 7.44 in
• Weight: ~25 lbs

 WARRANTY COVERAGE

• 5-Year Parts Warranty
• 7-Year Compressor Warranty
• Eligible for the MRCOOL® Care Kit Program

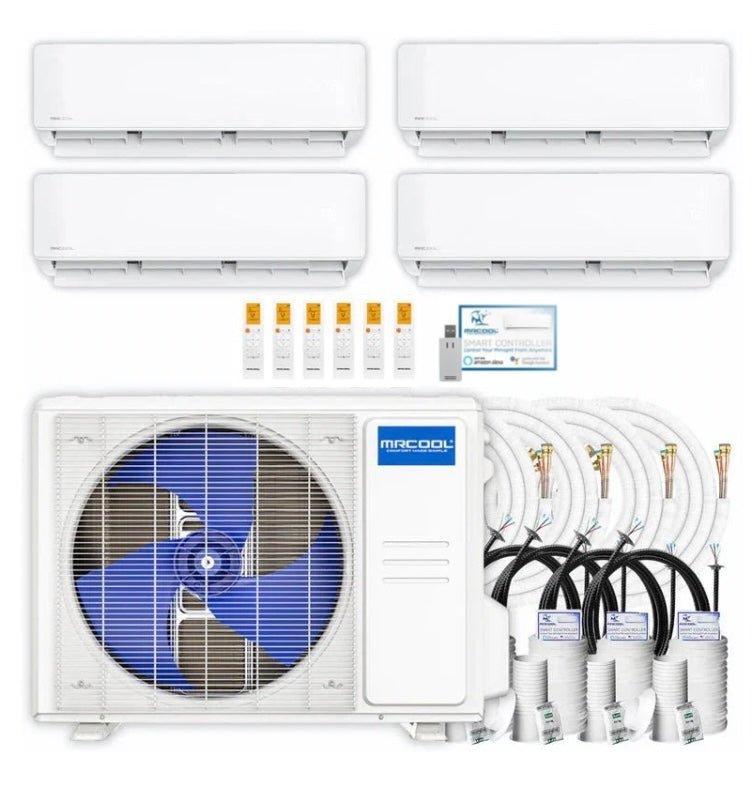

WHAT’S INCLUDED IN THIS BUNDLE

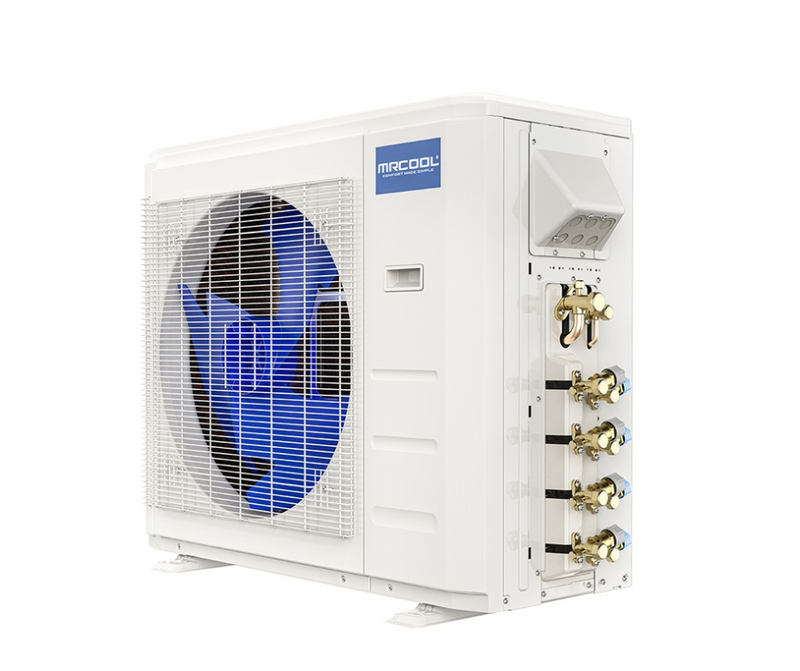

• ✔ MRCOOL® DIY® 27K BTU 4-Zone Outdoor Condenser

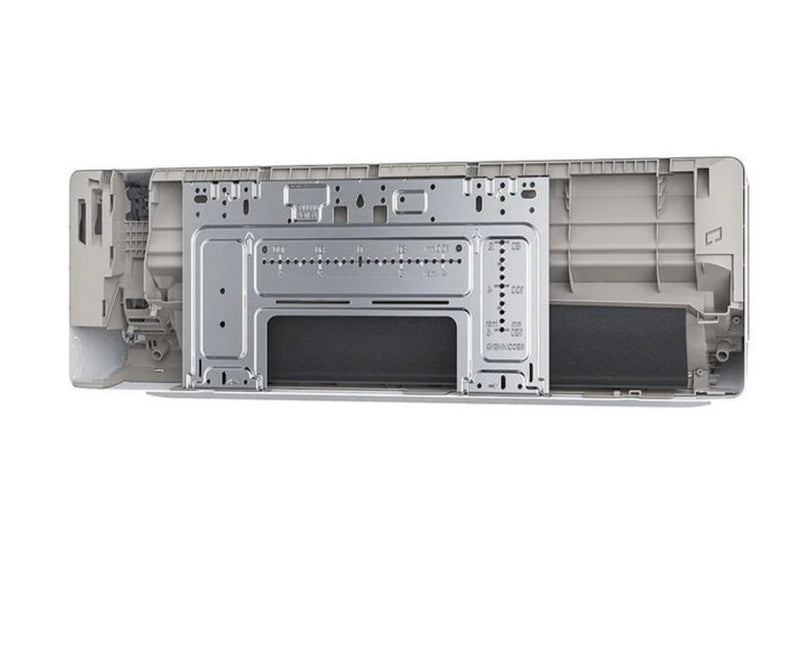

• ✔ (4) 6K BTU Wall-Mounted Indoor Air Handlers

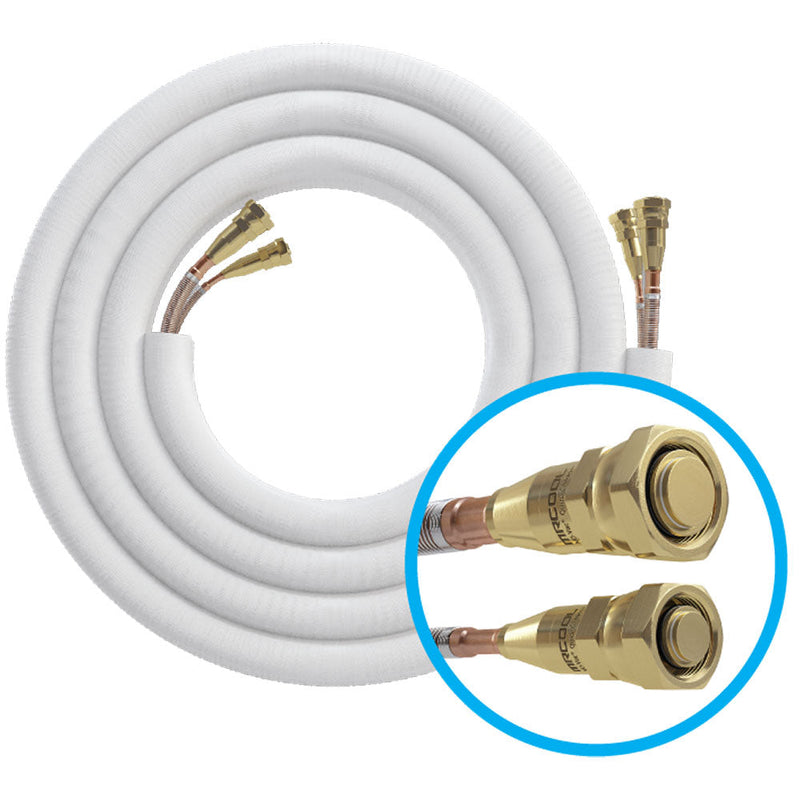

• ✔ (4) 25-ft DIY® QuickConnect® Line Sets (1/4 × 3/8)
• ✔ DIYPRO® communication cable

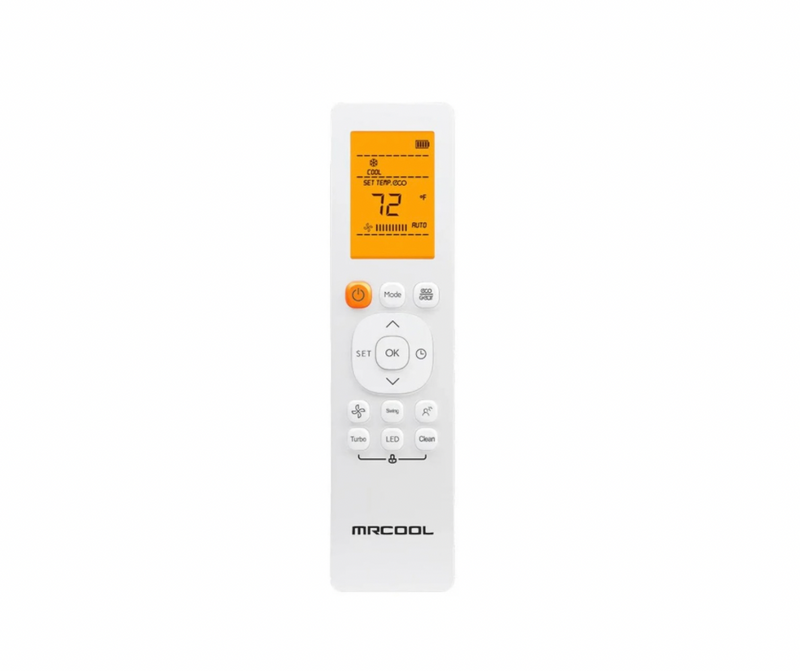

• ✔ Wireless remotes for each indoor unit
• ✔ Installation manuals & mounting hardware

Smart phone not included.

FREQUENTLY ASKED QUESTIONS

Is this system really DIY-friendly?

Yes. No vacuum pump, gauges, or refrigerant handling is required.

Can each room be set independently?

Yes. Every indoor unit has its own temperature and mode control.

Is this system quiet enough for bedrooms?

Absolutely. The 6K air handlers are designed for ultra-low noise operation.

Does it support smart home control?

Yes. Works with Alexa®, Google Home®, and the MRCOOL® Smart HVAC Controller® App.
