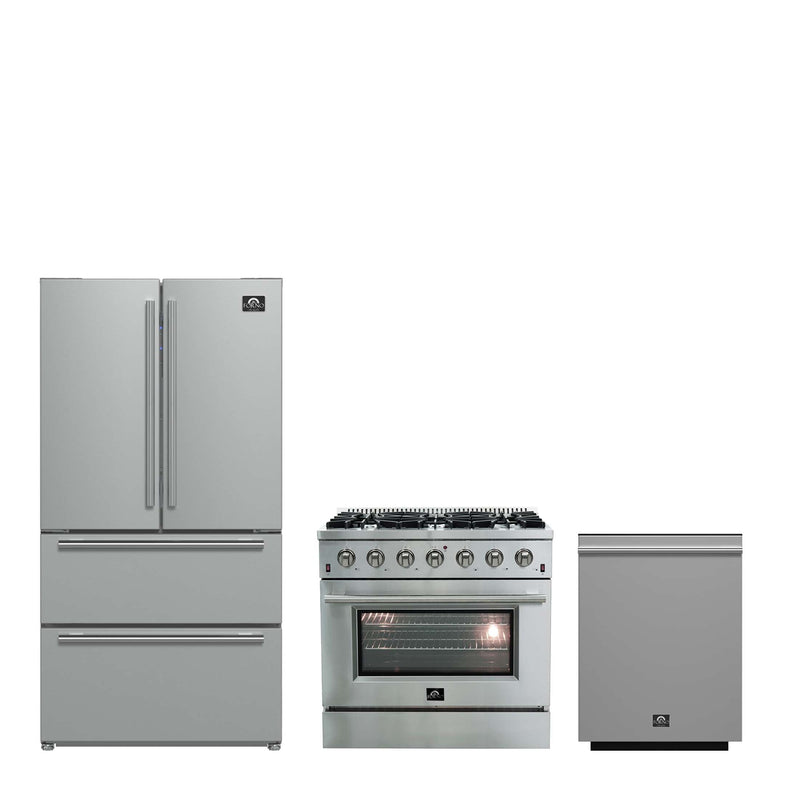

FORNO Premium 3-Piece Kitchen Bundle - Galiano 36" Gas Range, 36" Built-In Refrigerator, 24" Built-In Dishwasher, FBDL-004-01CAUS
Range
SKU: FFSGS6244-36
Description
The Forno Galiano 36 Inch Gas Range brings professional styling and performance into your kitchen with its durable stainless-steel design. The cooking surface has 6 sealed burners with a total output of 83,000 BTU, includes one precision 20,000 BTU dual-ring burner that can simmer at 1,000 BTU. The continuous cast iron grates allow maximum stability of cookware and allow the ease of sliding pan off a hot burner. The 5.26 cu. ft. convection oven has a total broil and bake output of 30,000 BTU, encased in a black enamel interior and tempered 3-layer glass oven door window. Included are 2 oven racks, and LP conversion kit. Additionally, zinc coated metal knobs with bezel rings will maintain their beauty for years.
Features:

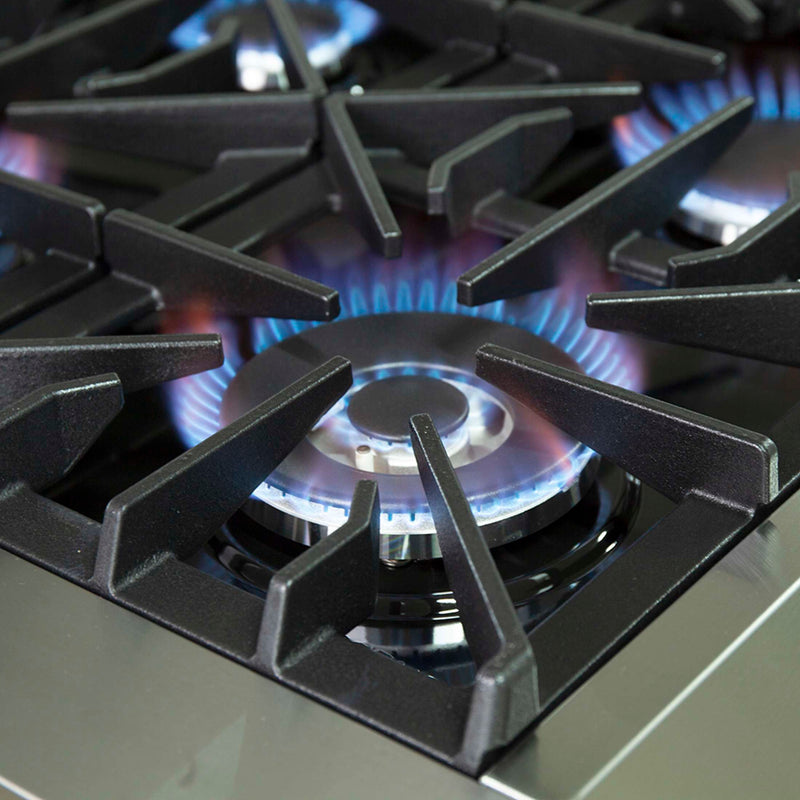

- High-Power Stove-Top. 6 Sealed Burners combine for a total stove-top output of 83,000 BTU for efficient cooking. Includes 1 Sealed Dual-Ring Burner, offering precise control for high-heat searing or delicate simmering
- Even Heat Distribution and Cookware Mobility. Continuous Cast Iron Grates ensure even heat distribution across the cooktop. Provides stable cookware mobility for hassle-free cooking
- Quick Clean-Ups. Recessed Black Enamel Cooktop Cavity contains spills, allowing for quick and easy clean-ups. Keeps the cooktop neat and easy to maintain

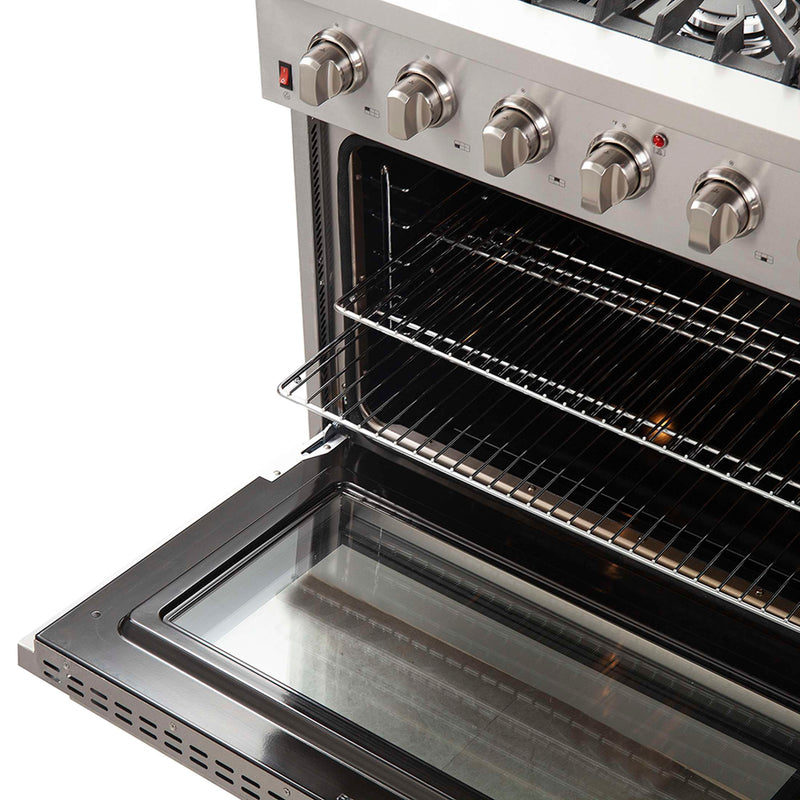

- Spacious Convection Fan Oven. 5.36 Cu.Ft Convection Fan Oven with a total output of 30,000 BTU for broil and bake functions. Provides efficient and consistent cooking results
- Insulated Oven Door with Glass Window. Equipped with an insulated oven door and a 3-layer glass window for better heat retention. Smooth friction hinges ensure easy and quiet door operation

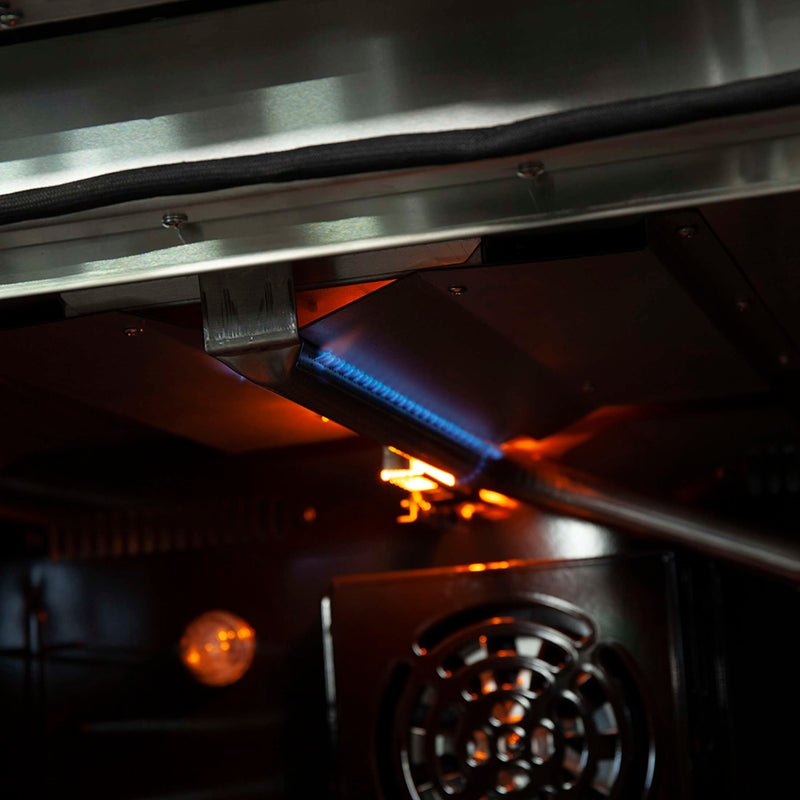

- Brightly Lit Oven Interior. Black Enamel Oven Interior with U Tube Auto-Ignition and 2 Halogen Lights offers improved visibility inside the oven. Makes cooking and checking on the food easier
- Durable Oven Racks. 2 Electro-Plated Oven Racks with a 7.5mm frame and 4mm grid construction for durability. Allows efficient utilization of oven space
- Pro-Style Handle and Zinc Coated Control Knobs. Features a pro-style handle and zinc-coated metal control knobs and bezel rings for a professional look
- Sleek Stainless-Steel Body. Boasts a sleek and durable stainless-steel body for long-lasting performance
- Adjustable Stainless Steel Legs. Accommodate different counter heights, ranging from 35.5” to 36.5”. Ensures a perfect fit in various kitchen setups
Specifications
| Overall Dimensions | 36" W x 28"D x 38"H |
|---|---|
| Oven Interior Dimensions | Left Oven - 12.6" W x 14" D x 18.5" H Right Oven - 26.8" W x 14" D x 18.5" H |
| Oven Capacity | 5.36 cu. ft. |
| Type | Freestanding |
| Weight | 389 lbs |
| Fuel Type | Natural Gas or Propane Gas This range is shipped for use with natural gas. It also has an LP conversion kit for propane use included. |
| LP Convertible Kit | Yes |
| Electrical Requirements | Requires a minimum of 120V/60HZ/15A |
| Number of Ovens | 1 |
| Number of Burners | 6 |
| Number of Racks | 2 |
| Control Type | Knob |
| Burner BTU | Front Left - 15000 BTU Back Left - 9000 BTU Back Right - 15000 BTU Front Right - 20000 BTU Middle Back - 9000 BTU Middle Front - 15000 BTU |
| Oven BTU | Broil Top - 10,000 BTU Bottom - 20,000 BTU |
| Convection Fan | Yes |
| Color/Finish | Stainless Steel |
| Cleaning Type | Manual |
| Air Fry Function | No |
| Certification | CSA Listed |
| Warranty | 1 year Parts and Service |
User Guide
Refrigerator
SKU: FFRBI1820-36SB
Description

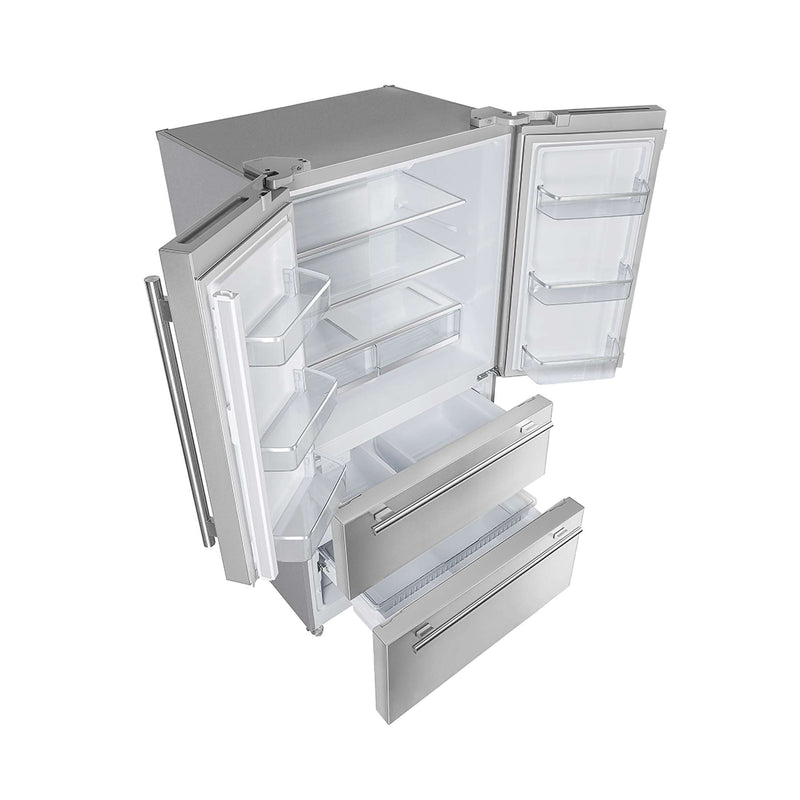

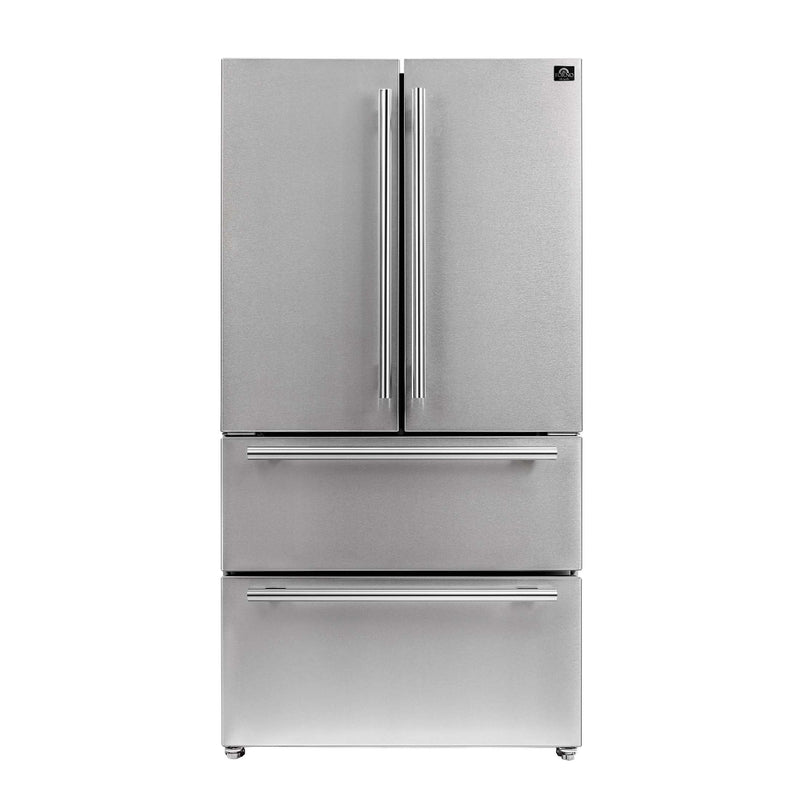

The Forno Moena 36 Inch Stainless-Steel French Door refrigerator elegantly combines style and functionality with its frost-free multi-air flow cooling system, offering a spacious 19.2 cu.ft. capacity. Adjustable shelving ensures versatile grocery storage, complemented by a compressor inverter for energy efficiency, quiet operation, and precise temperature control. The LED touch panel provides easy access and control. The fresh food section (12.1 cu.ft.) features three glass shelves (two adjustable), two crisper drawers, and ample door storage. The 7.2 cu.ft. freezer includes organized storage with two pull-out drawers, a slide-out tray, and a high-capacity automatic ice maker capable of producing up to 4 pounds of ice daily. ENERGY STAR certified, it incorporates high-efficiency LED lighting to minimize food spoilage.
Features:
- Ample Fresh Food Capacity. Offers 12.12 cu.ft of fresh food storage space for your groceries. Equipped with 2 adjustable glass shelves, 2 crisper drawers, 2 door basket bins, and 1 door gallon bin. Gallon door bins handle large containers, providing more fresh food space
- Spacious Freezer Capacity. Provides 7.14 cu.ft of freezer storage space to store frozen foods. Includes 2 exterior drawers in the freezer for easy access to frozen items. Built-in ice maker with a capacity of 4.3 L supplies a constant flow of crystal clear ice
- Frost-Free Operation. Operates as a frost-free refrigerator, eliminating the need for manual defrosting. Multi air flow cooling system ensures an even temperature throughout the fridge, keeping food fresh
- Simple LED Touch Temperature Control. Features easy-to-use LED touch temperature controls for precise regulation. Offers superior accuracy and intuitive operation
- LED Lighting. Bright white LED bulbs provide energy-efficient and elegant illumination throughout the interior
- Child Lock.The Child Lock function prevents the unit from being accidentally switched on, ensuring safety

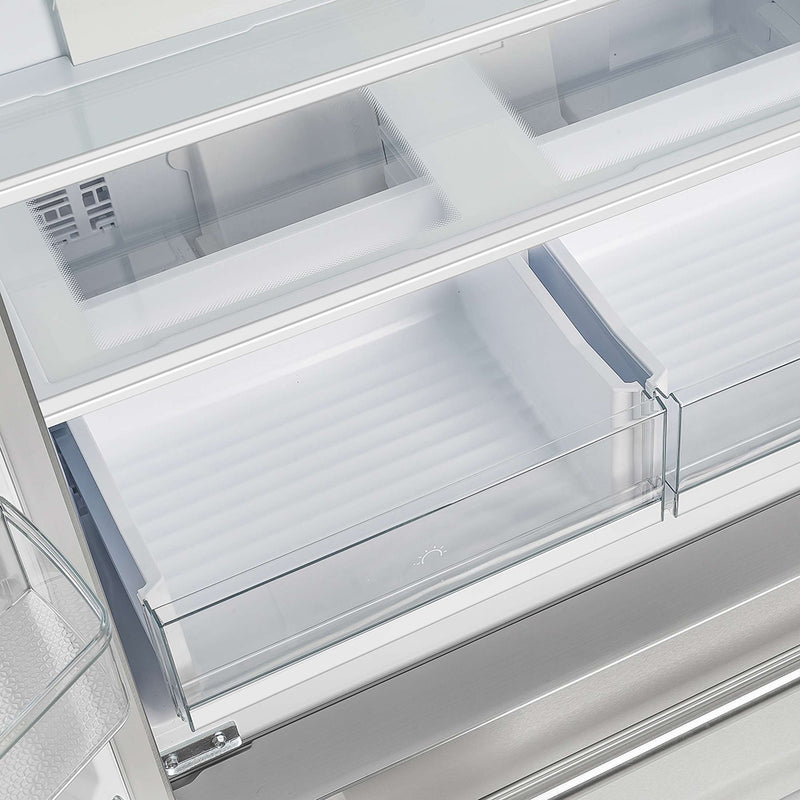

- Transparent Crisper Drawer. Transparent drawers make it quick and easy to find your favorite items
- Energy Star Qualified. The refrigerator is Energy Star approved, saving energy and reducing environmental impact
Specifications
| Dimensions | 35.9''W x 69.88"H x 27.8''D |
|---|---|
| Total Capacity | 19.26 cu. ft. |
| Refrigerator Capacity | 12.12 cu. ft. |
| Freezer Capacity | 7.14 cu. ft. |
| Ice Maker | Yes - In Freezer Drawer |
| Material | Stainless Steel |
| Type | Freestanding Counter-Depth |
| Style | French Door |
| Electrical Requirements | 115V / 60Hz / 15A |
| Weight | 233 lbs |
| Warranty | 2 Years Parts and Labor |
User Guide
Dishwasher
SKU: FDWBI8035-24S
Description

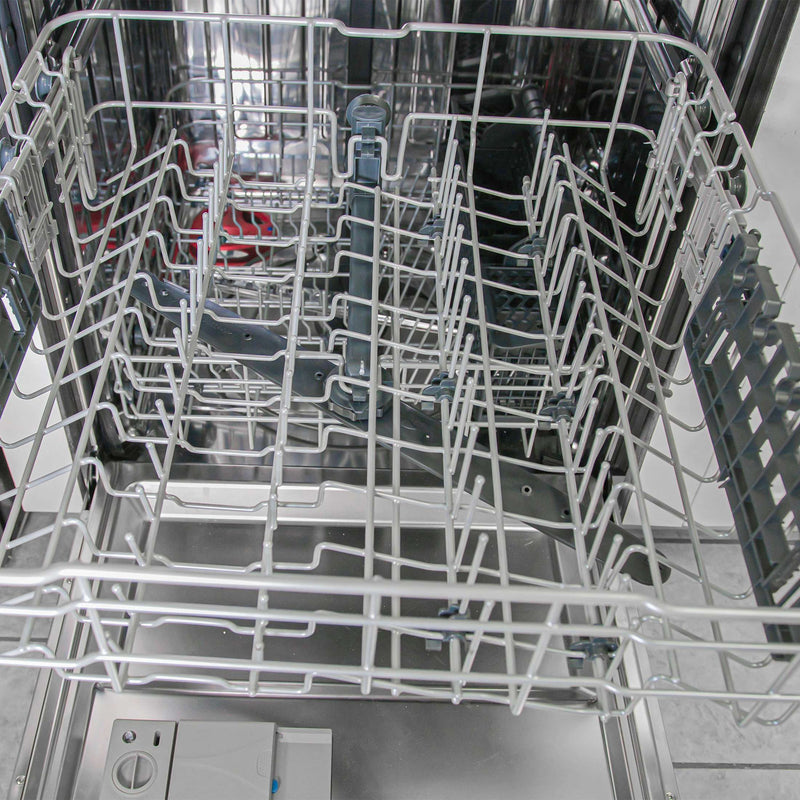

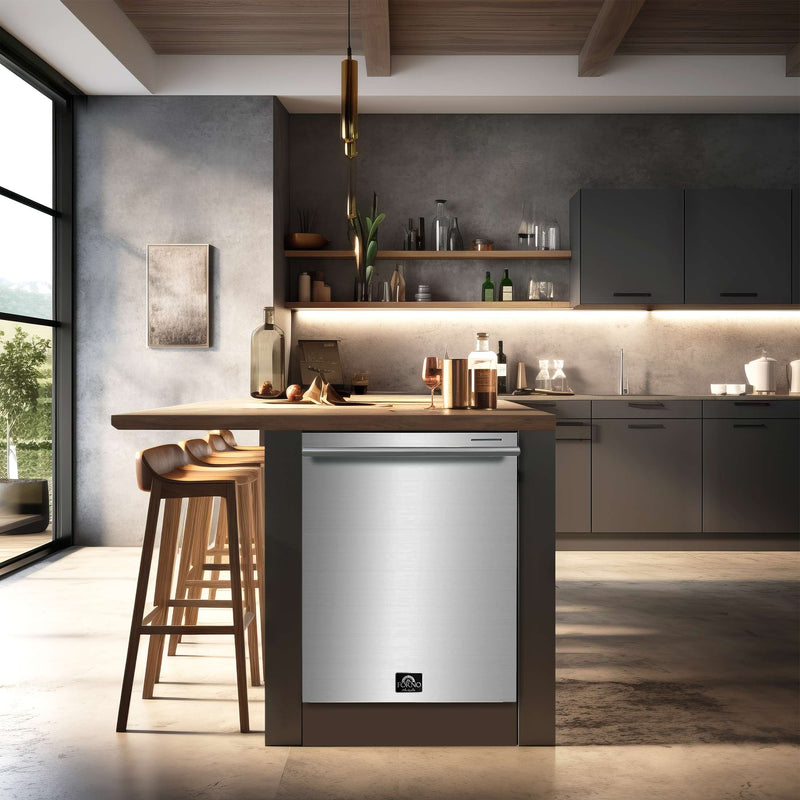

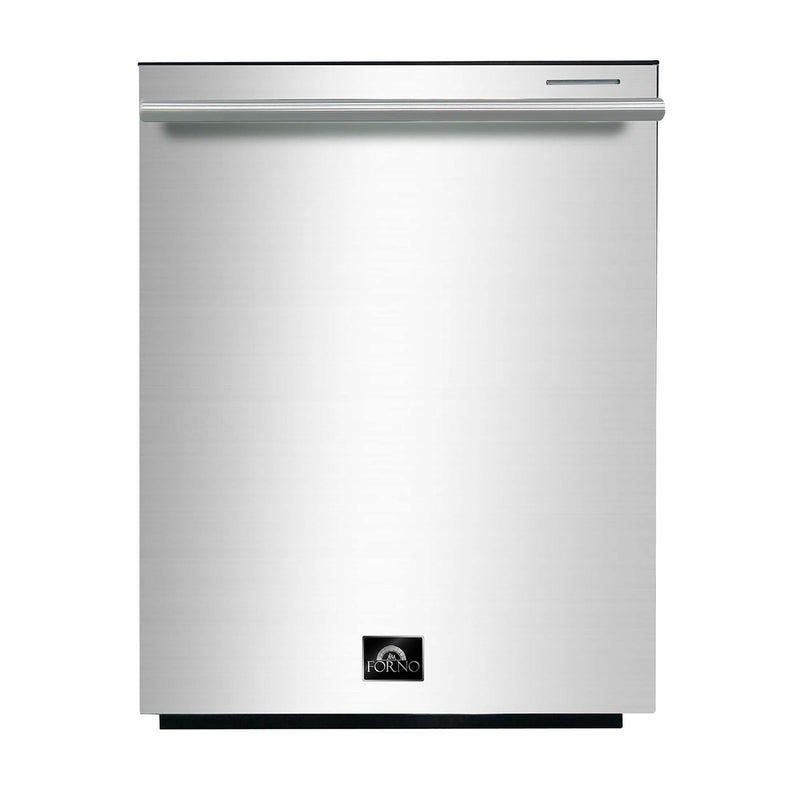

The Forno Romano (Espresso) 24-Inch Tall-Tub Dishwasher operates at a low noise level of 52 decibels, ensuring peaceful cleaning in your kitchen. Its stainless-steel front and pro-style handle provide both durability and a stylish appearance. The spacious stainless-steel tub features 3 racks and an additional silverware basket, offering ample loading flexibility for large dish capacity and various utensils. Equipped with seven wash programs and electronic controls with a sleek LED display, this dishwasher offers efficient and customizable cleaning options. The advanced 3 rack design includes foldable tines in the lower rack for accommodating large and irregularly shaped items. The 30 minutes wash feature provides a rapid cleaning cycle for lightly soiled dishes. The delay start option allows you to set the dishwasher to run at your convenience, with up to 24 hours of delay start choices. Additional features include a double drying system with both heating and fan drying for thoroughly dry dishes, interior illumination that turns on when the door opens, and an air exchange system that refreshes the interior every 2 hours to prevent odors. ENERGY STAR certified for eco-friendly operation, designed to save money and promote a greener planet.
Specifications
| Dimensions | 23.43" W x 24.21" D x 33.7" H |
|---|---|
| Cutout Dimensions | 23.6" W x 24" D x 34" H |
| Place Settings | 14 |
| Number of Racks | 3 |
| Number of Wash Cycles | 7 |
| Cycle Options | -90 Minutes -Normal Wash -Heavy Wash -30 Minutes -Delicate Wash -Machine Refresh -Half Load |
| Electrical Requirements | Requires a minimum of 120V/60Hz/15A |
| Noise Level | 52 dBA |
| Material | Stainless Steel |
| Warranty | 2 Years Labor & Parts |
| Certification | Energy Star |
