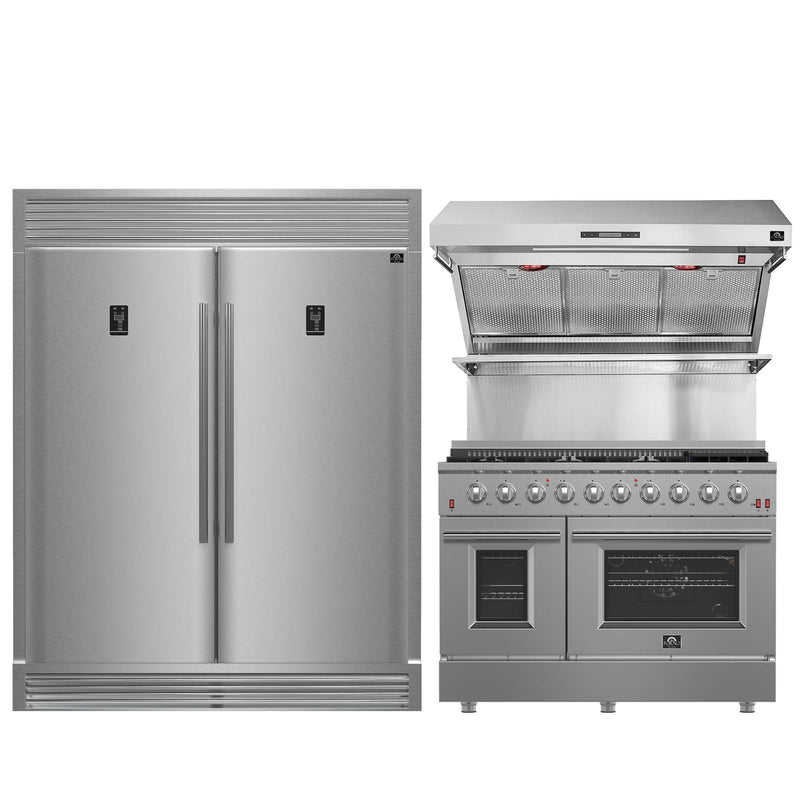

FORNO Premium 3-Piece Kitchen Bundle - 48 Inch Gas Range, Wall Mount Range Hood, 60 Inch Refrigerator, FBDL-018-02US

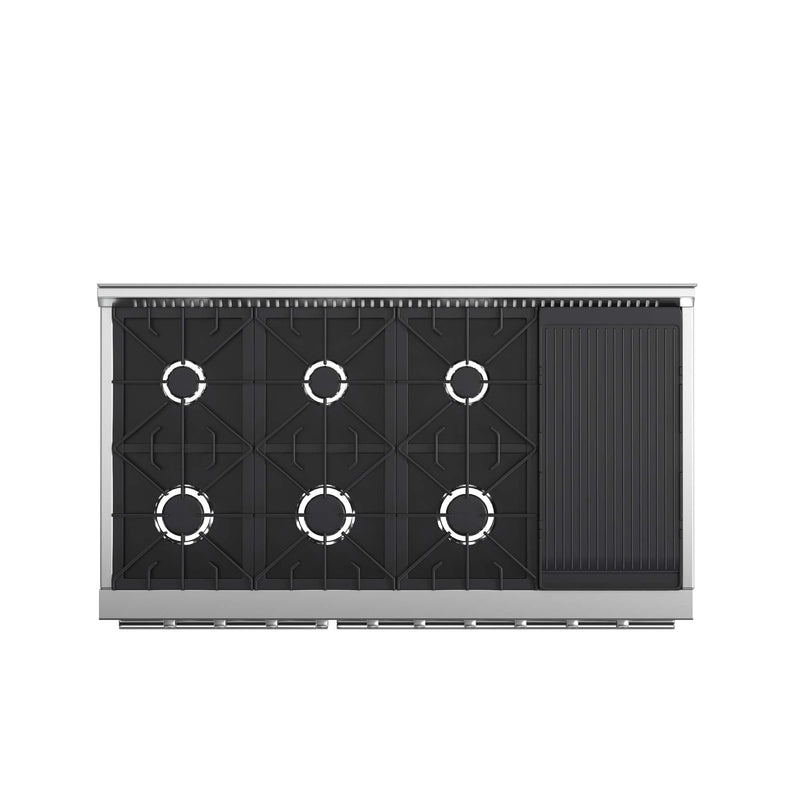

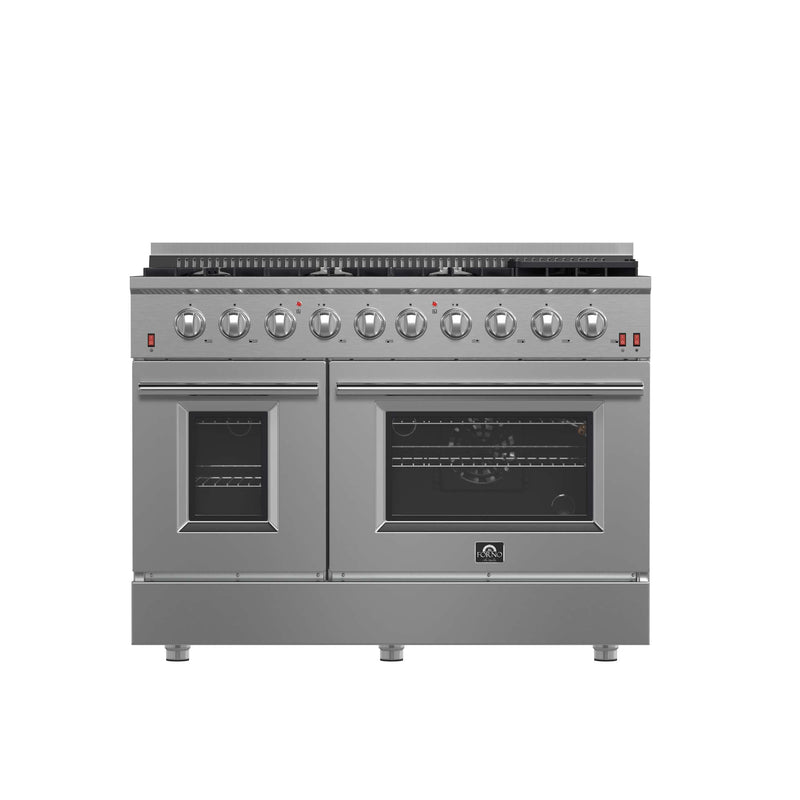

Range
SKU: FFSGS6244-48
Description
The 48 Inch Forno Galiano Gas Range brings professional styling and performance into your home kitchen with its durable stainless-steel design. The cooking surface has 8 sealed burners with a total output of 107,000 BTU, which one is a 20,000 BTU dual-ring burner that can simmer at 1,000 BTU. Continuous cast iron grates ensure stability on the enamel surface. The main oven of 4.32 Cu.Ft has a convection fan with 30,000 BTU Total Broil and Bake output. The secondary oven has a capacity of 2.26 Cu.Ft. with a 14,000 BTU Bake output. Both ovens have an impressive enamel interiors allowing for easy cleaning and 3-layer glass oven door window provides both heat retention and an unobstructed view. It features 2 racks per oven, reversible griddle, an LP conversion kit, and durable zinc-coated metal knobs. Elevate your kitchen with performance, convenience, and enduring elegance.
Features:
- 8 Sealed Burners with High Output. Combines a total stove-top output of 107,000 BTU for powerful cooking performance. 8 sealed burners ensure efficient and precise heat distribution
- Sealed Dual-Ring Burner for Versatile Cooking. Includes 1 Sealed Dual-Ring Burner for achieving high heat searing or delicate simmering control. Provides flexibility for various cooking needs
- Continuous Cast Iron Grates. Offers even heat distribution across the cooktop surface. Provides stable cookware mobility for hassle-free cooking
- Recessed Black Enamel Cooktop Cavity. Contains spills for easy and quick clean-ups. Keeps the cooktop looking clean and tidy
- Spacious Convection Fan Oven. 4.32 Cu.Ft Convection Fan Oven with a total output of 30,000 BTU for broil and bake functions. Ensures efficient and even cooking results
- Additional Oven with Bake Output. Includes an extra 2.26 Cu.Ft. Oven with a 14,000 BTU Bake output for versatile cooking needs
- Insulated Oven Doors with Glass Windows. Features 3-layer glass windows for better insulation and heat retention. Smooth friction hinges ensure easy and quiet door operation
- Black Enamel Oven Interiors with Auto-Ignition. Equipped with black enamel oven interiors with U Tube Auto-Ignition for user convenience. Includes 2 halogen lights for improved visibility inside the oven
- Electro-Plated Oven Racks. Comes with 4 oven racks featuring a 7.5mm frame and 4mm grid construction for durability. Allows for efficient oven space utilization
- Pro-Style Handle and Zinc Coated Control Knobs. Features a pro-style handle and zinc-coated metal control knobs and bezel rings for a professional look
- Sleek Stainless-Steel Body. Boasts a sleek and durable stainless-steel body for long-lasting performance
- Adjustable Stainless Steel Legs. Accommodates different counter heights, ranging from 35.5” to 36.5”. Ensures a perfect fit in various kitchen setups
Specifications
| Overall Dimensions | 48" W x 28"D x 38"H |
|---|---|
| Oven Interior Dimensions | Left Oven - 13.03”W x 18.7”D x 16″H Right Oven - 24.92”W x 18.7”D x 16″H |
| Oven Capacity | Left Oven - 2.26 cu. ft. Right Oven - 4.32 cu. ft. |
| Type | Freestanding |
| Weight | 389 lbs |
| Fuel Type | Natural Gas or Propane Gas This range is shipped for use with natural gas. It also has an LP conversion kit for propane use included. |
| LP Convertible Kit Included | Yes |
| Electrical Requirements | Requires a minimum of 120V/60HZ/15A |
| Number of Ovens | 2 |
| Number of Burners | 8 |
| Number of Racks | 4 |
| Control Type | Knob |
| Burner BTU | Front Left Output - 15,000 Back Left Output - 9,000 Back Right Output - 15,000 Front Right Output - 20,000 Middle Front Left Output - 15,000 Middle Back Left Output - 9,000 Middle Front Right Output - 15,000 Middle Back Right Output - 9,000 |
| Oven BTU | Bottom - 22,000 Top Broiler - 10,000 |
| Convection Fan | Yes |
| Color/Finish | Stainless Steel |
| Cleaning Type | Manual |
| Air Fry Function | No |
| Certification | ETL Listed |
| Warranty | 2 Years Limited |
User Guide

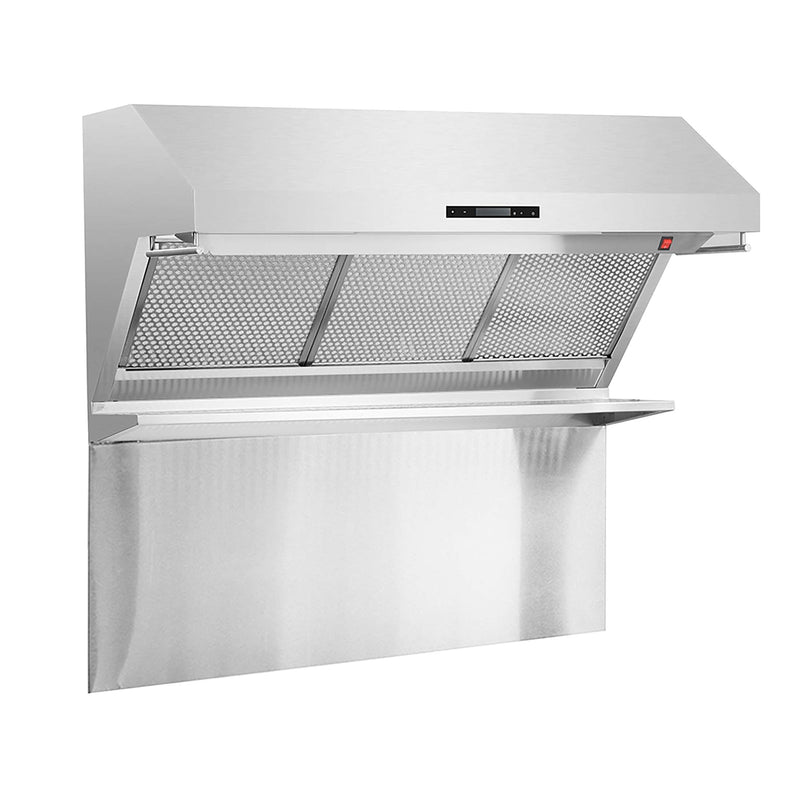

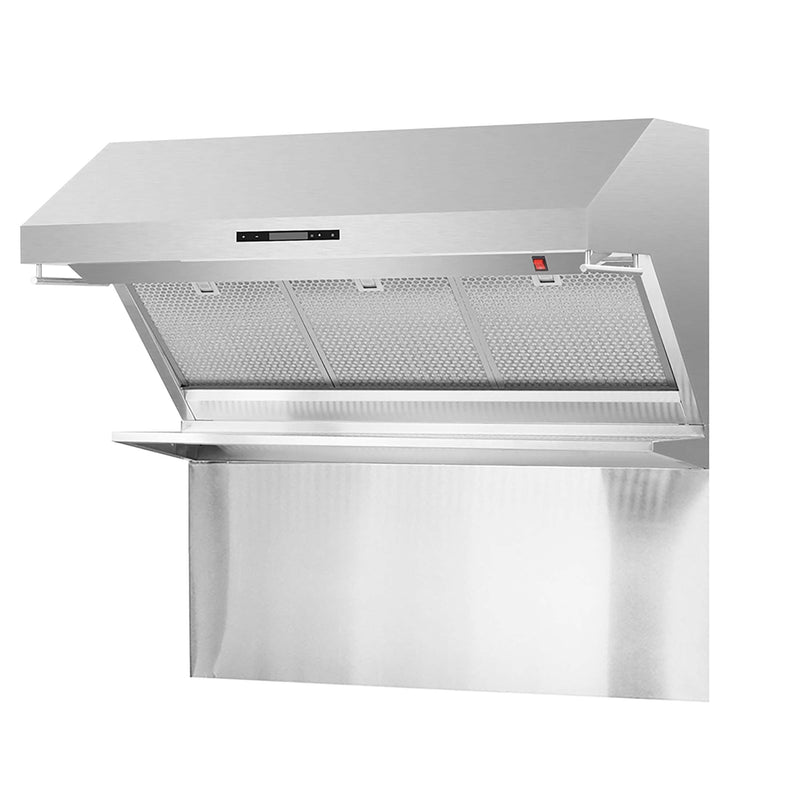

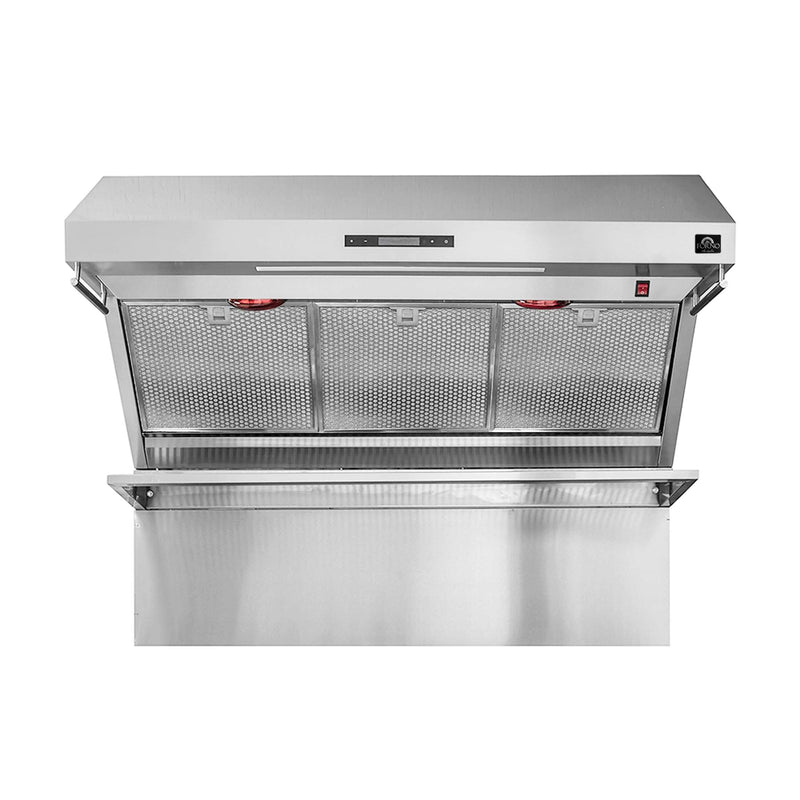

Range Hood
Description
This 48 Inch Savona wall mount range hood by Forno helps create a durable, all stainless steel design. A quiet high-efficiency 1200 CFM of ventilation power. The baffle filters reduces odors and maximizes filtration effectiveness. Designed to be user-friendly to remove, and totally submersible, these filters go right into the dishwasher for the ultimate in easy clean. With versatile fan settings, you can adjust the capture speed based on your cooking needs. Includes upper level warming rack, heated via an Infra-red bulb to keep your food and dishes warm. Dual utensil hangers are perfect for keeping your most frequently used tools at hand or to display your pans. All Forno products are backed by an iron clad 2-year warranty for your satisfaction. Skip the high price tags without sacrificing quality and performance. Lower the cost of living with Forno.
Features:
All Stainless Steel Construction - Made from durable and easy to clean stainless steel.
Electronic Display Control - Allows you to effortlessly adjust the lighting and fan speeds of your hood.
LED Stripe Light - Bright and energy-efficient LED lights to illuminate your cooktop.
2 Blower 600 CFM Total 1200 CFM - Powerful ventilation to clear smoke and grease from your kitchen.
Red Light Warmer - Red infrared lights keep your dishes warm.
Stainless Steel Hybrid Filters - Efficiently filters out grease from cooking and are dishwasher safe for easy cleaning.
Additional Features:
- 4 speeds
- Back Splash/Shelf
- 2 Utensils Hanger
- Back & Top Opening Duct
- Maximum run 6” or 3-1/4 x 10” duct
- 120 Volt/60Hz
2 Year Warranty
Specifications
|
Dimensions
|
47.24" W x 22.6" H x 25" D
|
|
Brand
|
Forno
|
| SKU |
FRHWM502948HB
|
|
Product Number
|
FRHWM502948HB
|
|
Warranty Info
|
2 Year Warranty
|
|
Type
|
Hood
|
|
Glass Canopy
|
No |
| Style |
Canopy Pro Style
|
|
Color
|
Stainless Steel
|
|
Duct Type
|
Both
|
|
Venting Type
|
Ducted
|
|
Blower Type
|
Internal
|
|
Mounting Type
|
Wall Mount
|
|
Commercial
|
No
|
|
Vent Location
|
Top or Rear
|
|
CFM
|
1200 CFM
|
|
Approved for Outdoor Use
|
No
|
|
Number of Light Bulbs
|
1
|
|
Light Bulb Type
|
LED |
| Number of Fan Speeds | 3 or More |
| Recirculating Kit | No |
| Filter Type | Mesh |
| Fan | Yes |
| Light | Yes |
| Volts | 120 Volts |
| Amps | 15 Amps |
| Frequency | 60 Hz. |
| Energy Star | No |
| Weight | 158.00 lbs |
User Guide

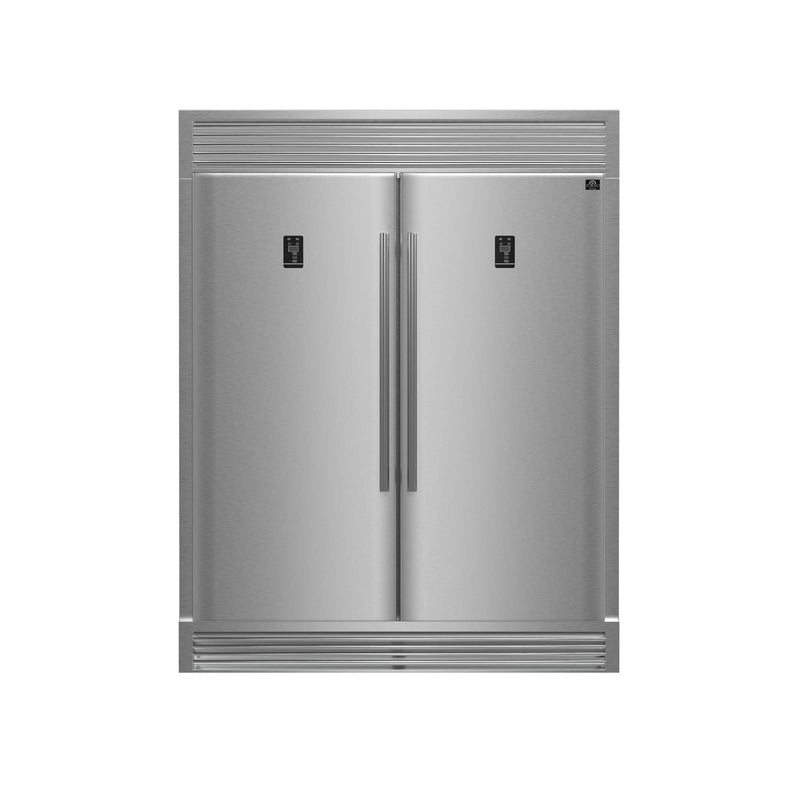

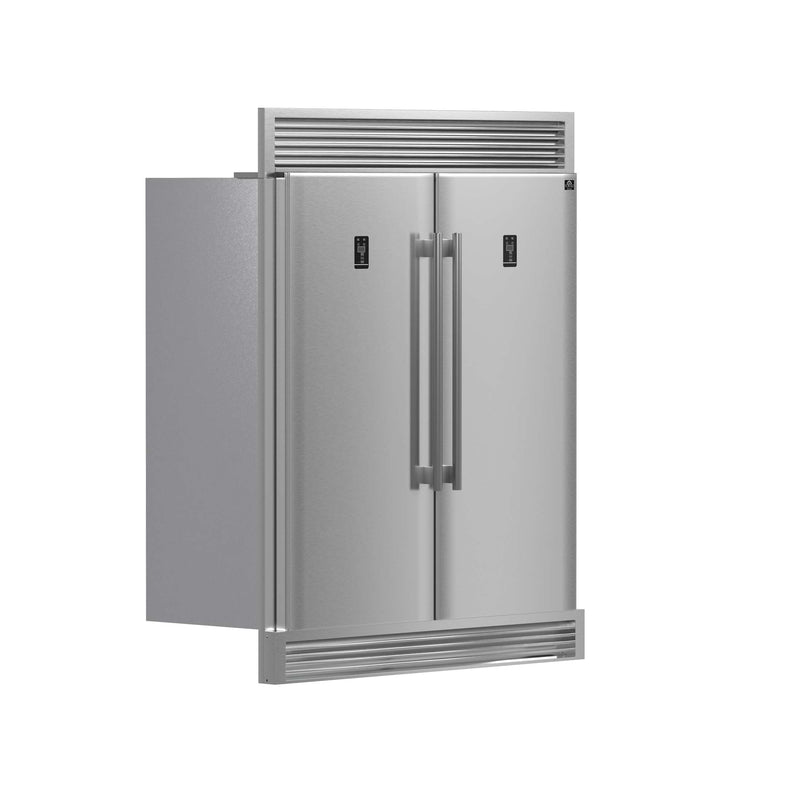

Refrigerator
SKU: FFFFD1933-60S
Description
This 27.6 cu.ft. Refrigerator/Freezer Combo Unit is the perfect size for any kitchen, allowing you to store all of your refrigerated and frozen items. It features interchangeable refrigerator/freezer zones that make it easy to customize the temperature settings according to your needs. The Electronic Control feature allows you to easily adjust the temperature settings on the refrigerator or freezer with just a few simple clicks. The control has F to C temp conversion with LED readout of current setting and actual temp. Adjustable levelling legs feature allows you to easily accommodate and adjust the legs to tailor the refrigerator's height to fit your needs. The Door Ajar Alarm feature of this refrigerator will alert you if one of the doors is accidentally left open, preventing energy waste and food spoilage. All Forno refrigerators are backed by an iron clad 2-year warranty for your satisfaction and an E-star energy rating. Skip the high price tags without sacrificing quality and performance. Lower the cost of living with Forno.
Features:
- Unique and Sophisticated Look. Adds a distinctive and sophisticated touch to any kitchen. Features a decorative design that enhances the kitchen's aesthetic appeal
- Sleek, Modern Style and Functionality. Designed with a sleek and modern appearance. Offers excellent functionality for efficient use
- Seamless Integration with Surrounding Cabinetry. Fully integrates into the surrounding cabinetry for a seamless look. Blends perfectly with the existing kitchen decor
- Convenient Easy Roll Wheels. Equipped with easy roll wheels for effortless mobility
- Allows you to move the Refrigerator/Freezer wherever needed. Ensures the appliance stays level no matter where it's placed
- Dual Zone Frost Free Refrigerator/Freezer Combo. Ideal for limited kitchen spaces and garages. Features two separate cooling zones that can be adjusted for fresh ingredients or frozen items. Provides optimal temperature control for both zones

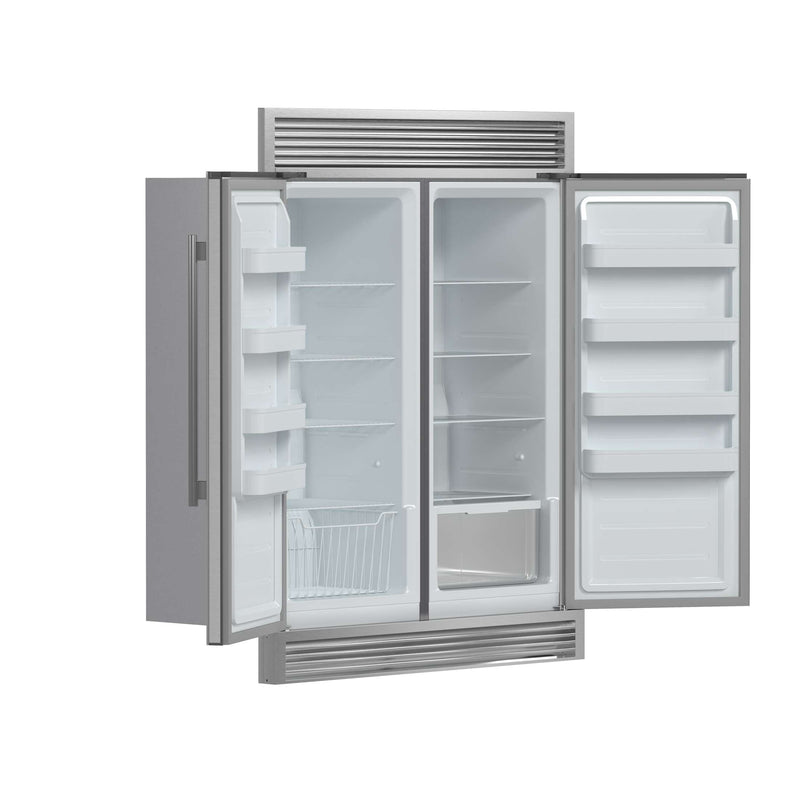

- Spacious and Organized Interiors. Offers a total of 4 adjustable shelves for versatile storage. Includes 2 crisper drawers for keeping fruits and vegetables fresh. Allows easy organization of food items based on your needs. Ample space to store a variety of food and beverages
Note: This refrigerator comes in three pieces:
1 x 28" Refrigerator/Freezer (Left Side)
1 x 28" Refrigerator/Freezer (Right Side)
1 x Grill Trim Kit
Specifications
| Product Dimensions | 56.6”W x 29.7”D x 62”H |
|---|---|
| With Grill Dimensions | 60.5"W x 29.7" D x 80"H |
| Cutout Dimensions | 56 9/1" W x 37" D x 63" H |
| Weight | 390 lbs. |
| Type | Built-In (base platform required) |
| Electrical Requirements | Requires a minimum of 120V/60HZ/15A |
| Capacity | Total Capacity - 27.6 cu. ft. Refrigerator Capacity - 13.8 cu. ft. Freezer Capacity - 13.8 cu. ft. |
| Number of Shelves | 4 Glass Shelves 4 Wire Shelves 8 Door Shelves 2 Drawers |
| Freezer | Yes |
| Freezer Type | N/A |
| Flex Drawer | No |
| Ice Maker | No |
| Ice Amount/Day | No |
| Ice Tray Storage | No |
| Noise Level | N/A |
| Color/Finish | Stainless Steel |
| Energy Efficient | E-star Energy Rating |
| Certification | CSA Certified UL Listed |
| Warranty | 2 Years Parts and Labor |
