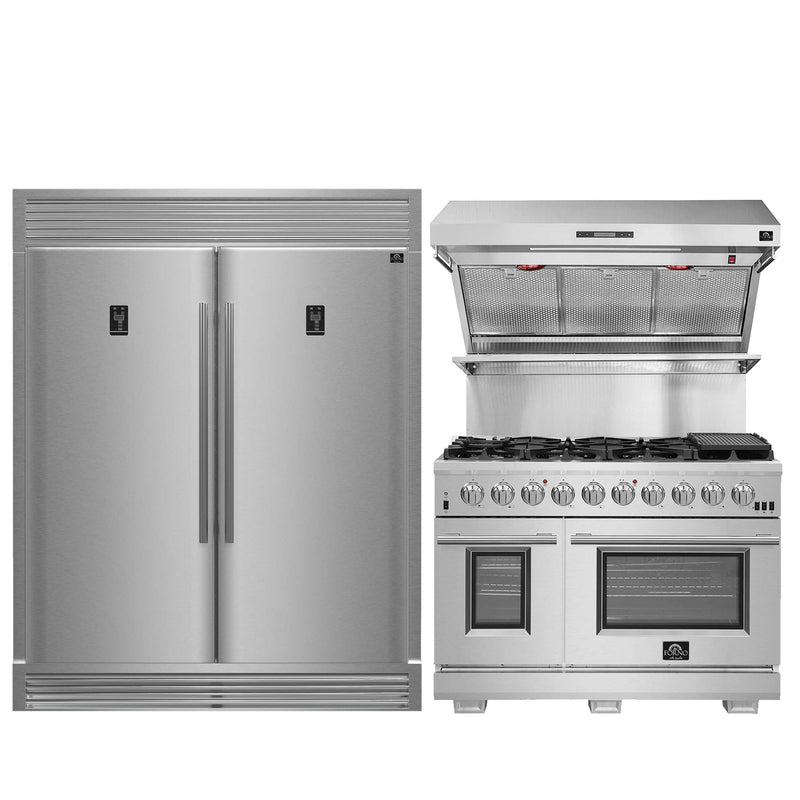

FORNO Premium 3-Piece Kitchen Bundle - 48 Inch Pro Gas Range, Wall Mount Range Hood, Refrigerator, FBDL-019-05US

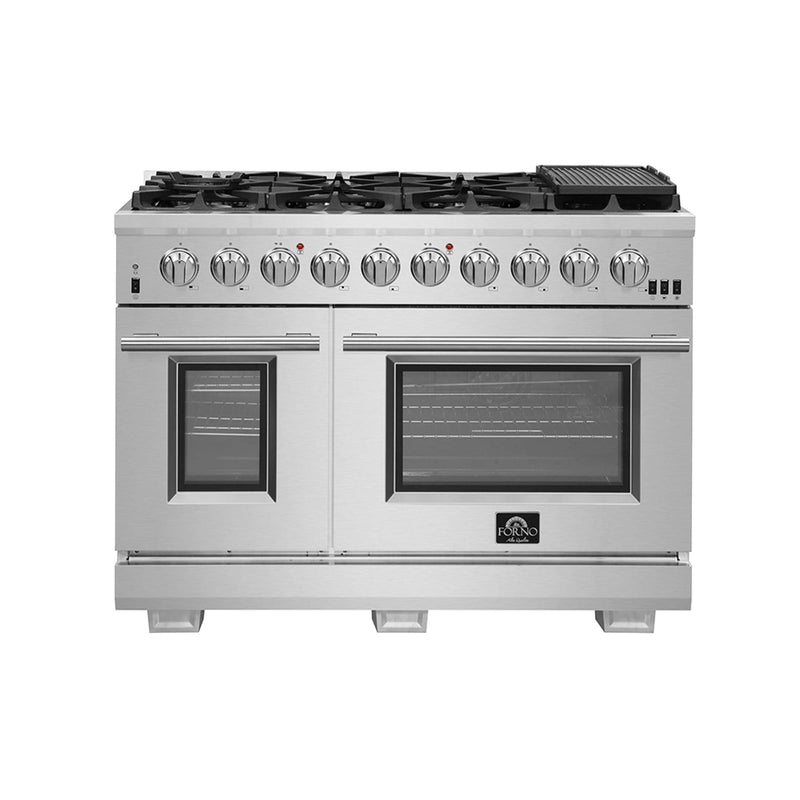

Range
SKU: FFSGS6260-48
Description
The Forno Capriasca 48 Inch Gas Range enhances your home kitchen with professional styling and performance through its durable and beautiful 304-grade stainless-steel design. The cooking surface features 8 sealed dual-ring brass burners, totaling 160,000 BTU. All burners, each at 20,000 BTU, can simmer precisely at 1,000 BTU. Continuous heavy-duty cast-iron grates facilitate easy sliding of pots or pans off heat over the enamel cooktop cavity, simplifying spill cleanup. The cumulative 6.58 cu. ft. double ovens, with a 44,000 BTU output, are enclosed in a blue enamel interior. The 4.32 cu.ft. main oven offers a powerful infrared mesh broiler, a rotisserie skewer and a convection fan for precise, and consistent cooking on multiple levels. The package includes 6 telescopic stainless-steel oven racks, 1 rotisserie kit, wok support, griddle and an LP conversion kit. Additionally, zinc-coated illuminated metal knobs with bezel rings ensure enduring beauty.
Features:

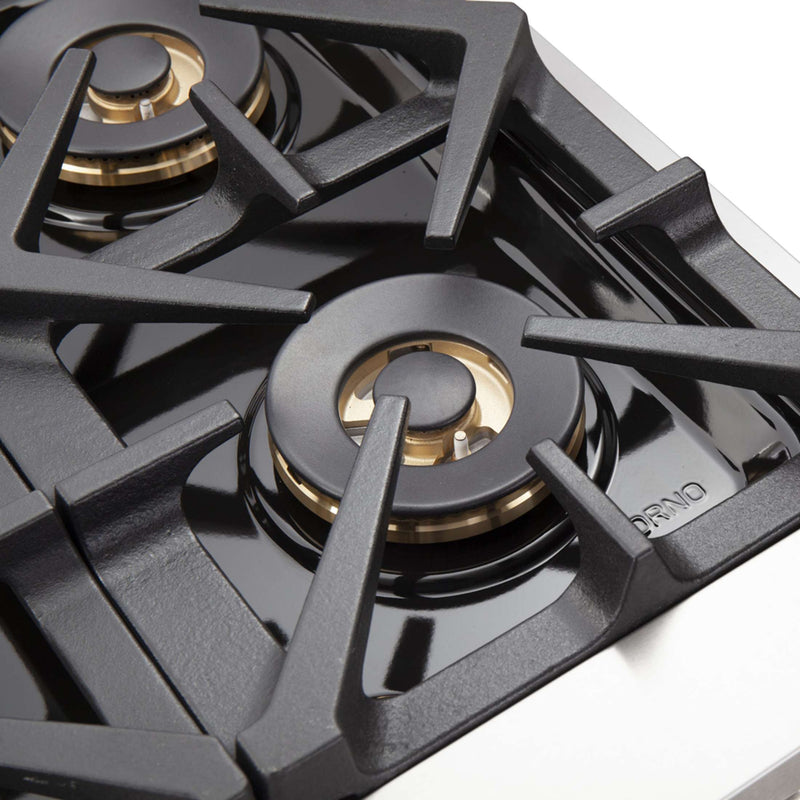

Brass Burners: Elegant brass burners effectively channel heat for desired cooking results.
Halogen Lighting: Makes the cooking process completely monitorable without the need to open the door.
Continuous Cast Iron Grates: Heavy duty cast iron grates make transferring heavy pots and pans over your burners easy.
Sealed Burners: Completely sealed burners Contain spills and allow for easy cleaning and maintenance.
cETLus: A cETLus certification which complies with the safety standards for the United States and Canada.
Convection Cooking: A convection oven circulates hot air with a fan. Unlike conventional radiant (also called thermal) ovens, convection ovens have a fan that continuously circulates air through the oven cavity. This allows food to cook faster and more evenly.
Additional Features:
- Stainless Steel 304
- Control Panel
- Oven Door
- Bottom Front Panel
- Cavity Top Plate
- Stainless Steel 430
- Back Splash
- Side Panel
- Cast Iron Grates Heavy Duty
- Wok Ring + BBQ Cook Plate Reversible Accessory
- Black Enameled Cooktop
- Night Light Red LED Automatic Magic Eyes
- Illuminated Zinc Knobs
- Pro-Style Handle
- Oven Door Glass 3 Layers
- Blue Enameled Oven Interior
- 3 Halogen Oven Lights
- Rotisserie kits
- 6 Telescopic Stainless Steel Racks (5mm & 7mm)
- Thermostat, Regulator and SafetyValves
- Adjustable Stainless Steel Legs ( from 37.4” to 38.4”)
- Leg Stainless Steel SquareCover
- LP Kit Included
- Fuel Type: Natural Gas/PL
- Automatic Ignition

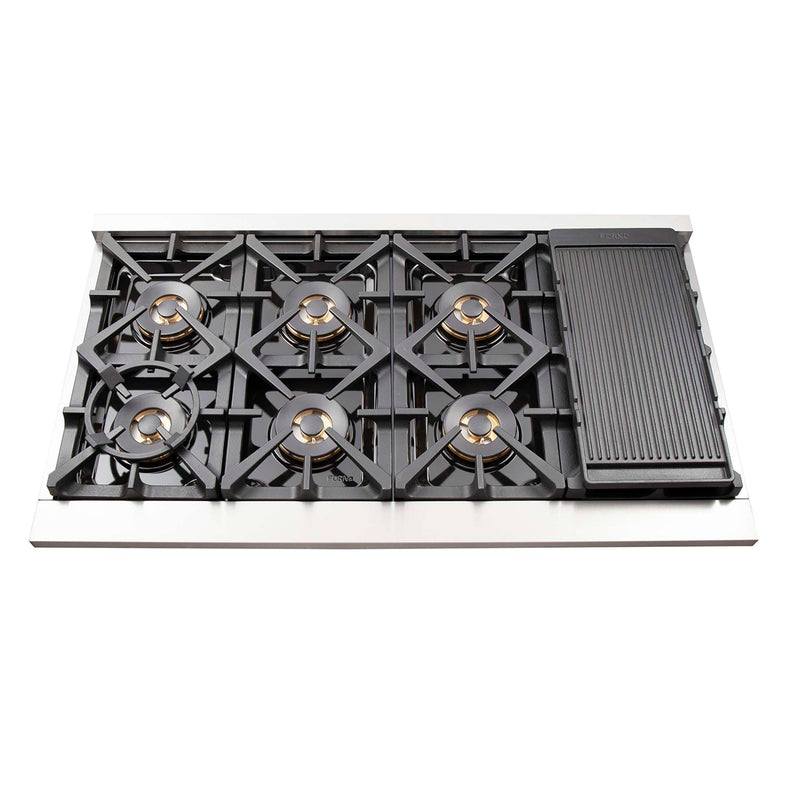

Cooktop Features:
- 8 Italian Defendi BrassBurner
- Sealed Dual Burner BTU: 20,000 /Sim 1,000BTU*8
Oven Features:
- Oven 30”Capacity: 4.32 cu. ft
- Broil Infrared Top 10,000 BTU
- Bottom 22,000 BTU U Tube Auto-Ignition
- Convection Fan
- Oven 18” Capacity : 2.26 cu.ft
- 120 Volt 60 Hz
- Circuit Breaker 15 Amps
- High end
2 Year Warranty
Specifications
| Dimensions | 48" W x 28"D x 37.4"H |
|---|---|
| Burner Fuel | Natural Gas |
| Oven Fuel | Natural Gas |
| Eletrical Requirement | 120 Volts / 15 amps |
| Oen Capacity (cu.ft) | 4.32 cu. ft. (large oven) 2.26 cu. ft. (small oven) |
| Number of Burners | 8 |
| Cooktop BTUs | Front Left Output: 20000 Back Left Output: 20000 Back Right Output: 20000 Front Right Output: 20000 Middle Front Left Output: 20000 Middle Back Left Output: 20000 Middle Front Right Ouput: 20000 Middle Back Right Output: 20000 |
| Oven BTUs | 22000 |
| Material | Stainless Steel |
| Convection Fan | Yes |
| Warranty | 2 Years |
| Weight | 413.36 lbs |
User Guide

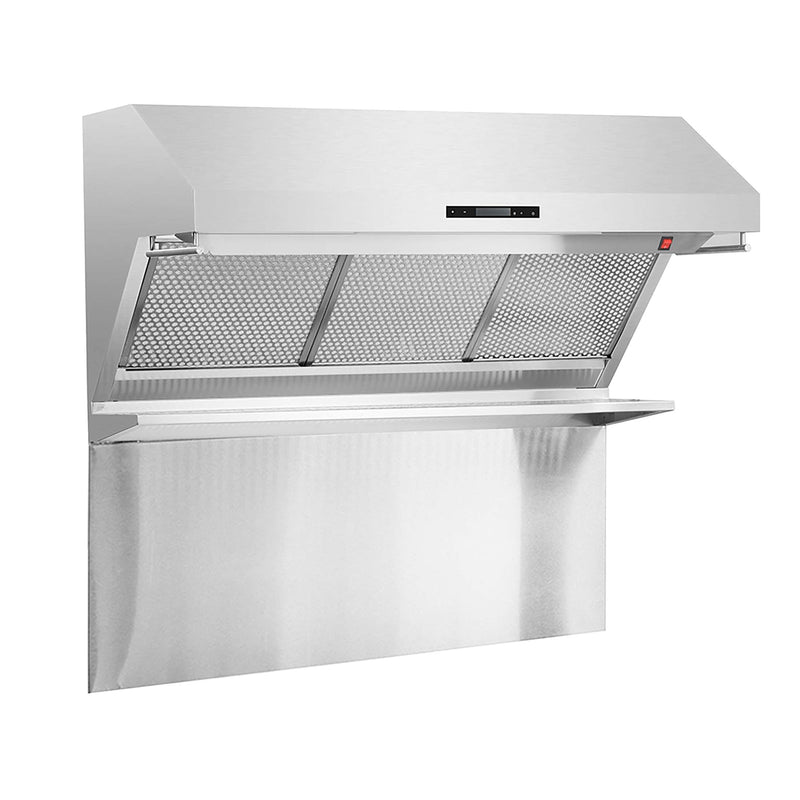

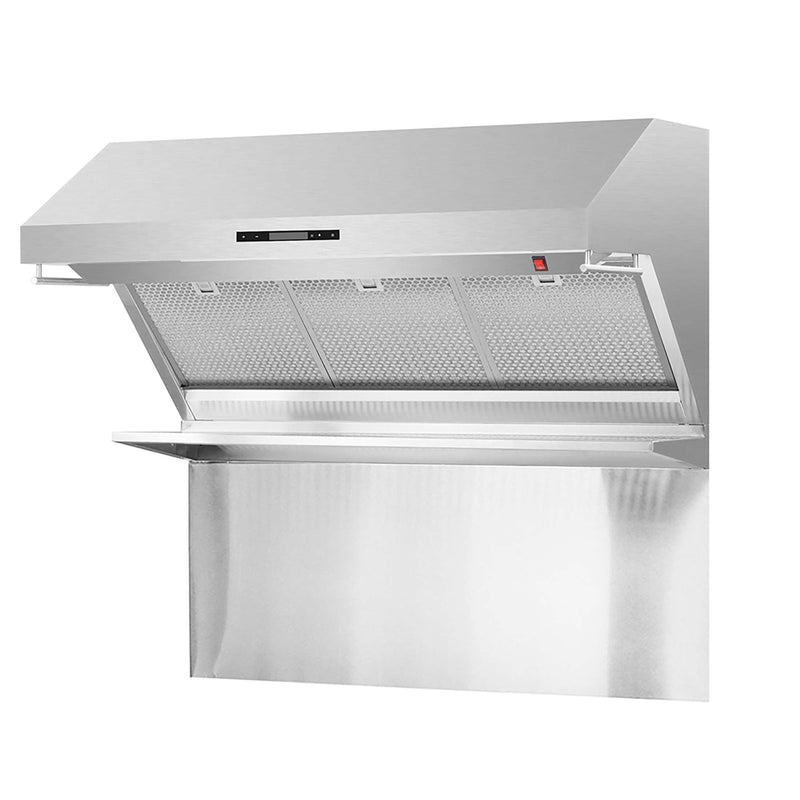

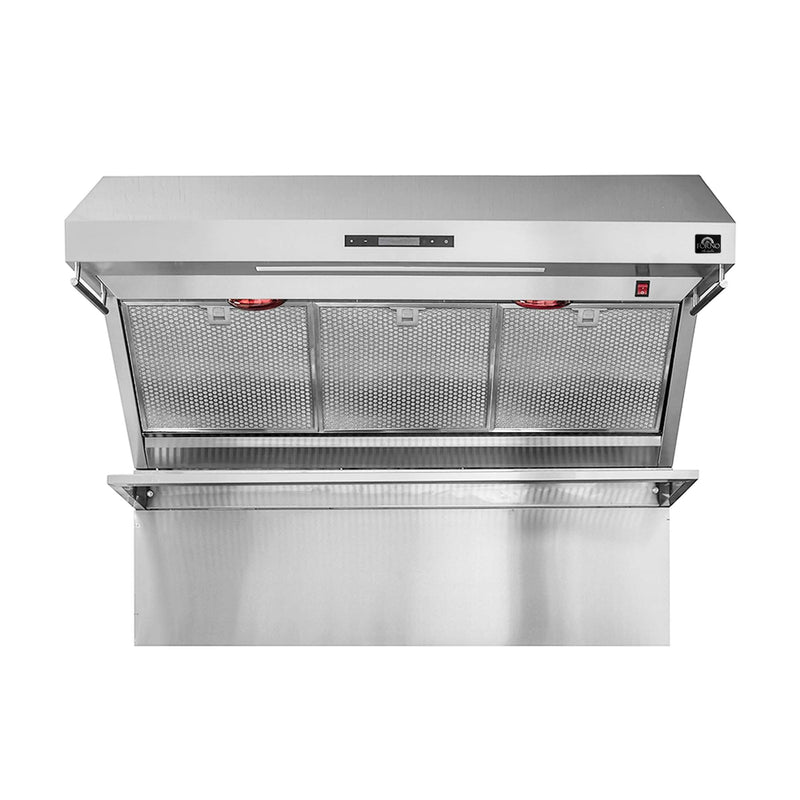

Range Hood
SKU: FRHWM5029-48HB
Description
This 48 Inch Savona wall mount range hood by Forno helps create a durable, all stainless steel design. A quiet high-efficiency 1200 CFM of ventilation power. The hybrid mesh filtration system reduces odors and maximizes filtration effectiveness. Designed to be user-friendly to remove, and totally submersible, these filters go right into the dishwasher for the ultimate in easy clean. With versatile fan settings, you can adjust the capture speed based on your cooking needs. Includes upper level warming rack, heated via an Infra-red bulb to keep your food and dishes warm. Dual utensil hangers are perfect for keeping your most frequently used tools at hand or to display your pans. Lower the cost of living with Forno.
Features:
- Powerful and Energy-Efficient Ventilation. The Savona commercial canopy range hood is equipped with a powerful 1200 CFM motor. Designed to efficiently capture smoke, gases, steam, and grease, keeping your cooking area free of unwanted odors
- Savona Hybrid Filters. Made of washable and reusable aluminum mesh for durability and easy maintenance. Designed to capture grease, smoke, and odors from the air effectively
- Convenient Utensil Hangers and Heat Light. Utensil hangers and heat light over the warmer shelf provide optimal convenience. Hang your utensils from the right and left underside of the hood, saving kitchen space
- Durable Stainless Steel Backsplash. Includes an extremely durable and heat-resistant stainless steel backsplash. Provides an easy-to-wipe-off surface to keep your backsplash grease and mess-free
- Quiet and Effective Ventilation. Maximum power ventilation operates at a low noise level of 65dB. Allows you to enjoy an effective ventilation system without disruptive noise. The low setting delivers a sound level of 25dB for even quieter operation
Specifications
| Dimensions | 47.24"W x 22.6"H x 25"D |
|---|---|
| Duct Type | Back & Top Opening Duct |
| Chimney Dimensions | N/A |
| Airflow | 1,200 CFM |
| Number of Fan Speeds | 4 |
| Noise Level | 0.5-1.0 sones |
| Ductless/Recirculate Option | No |
| Material | Stainless Steel |
| Venting Size | 6" Outlet (Round Outlet Adapter with Damper included) |
| Lighting | LED Stripe Light |
| Mount Type | Wall Mount |
| Mounting Height | 25" to 30" distance between Cooktop and Bottom of Range Hood |
| Filters | Stainless Steel Baffle Filters |
| Electrical Requirements | 120V / 3A / 60 Hz |
| Warranty | 2 Years Parts & Labor |
| Weight | 130.24 lb |
User Guide

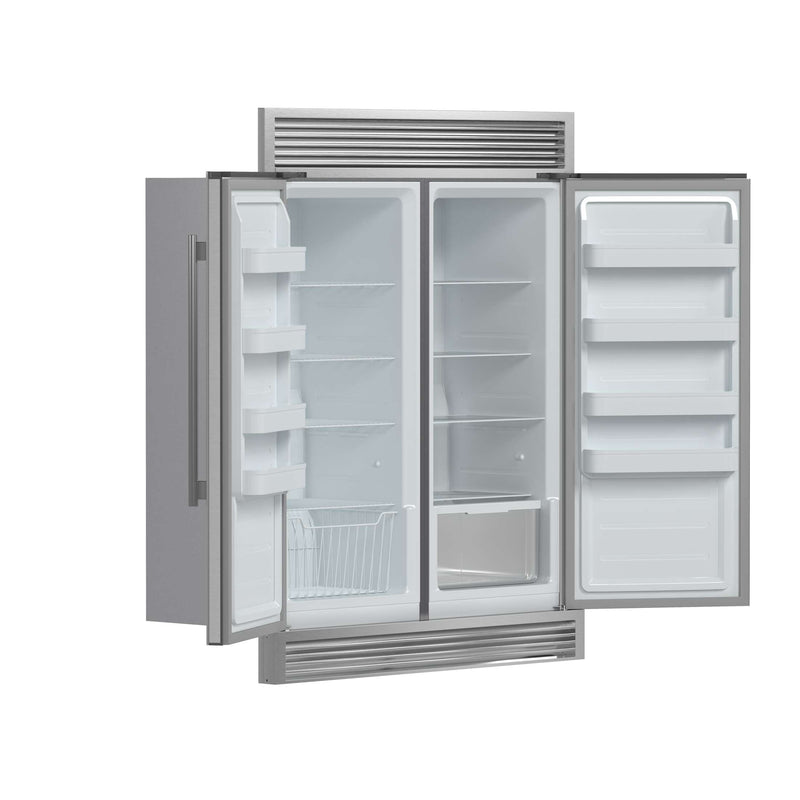

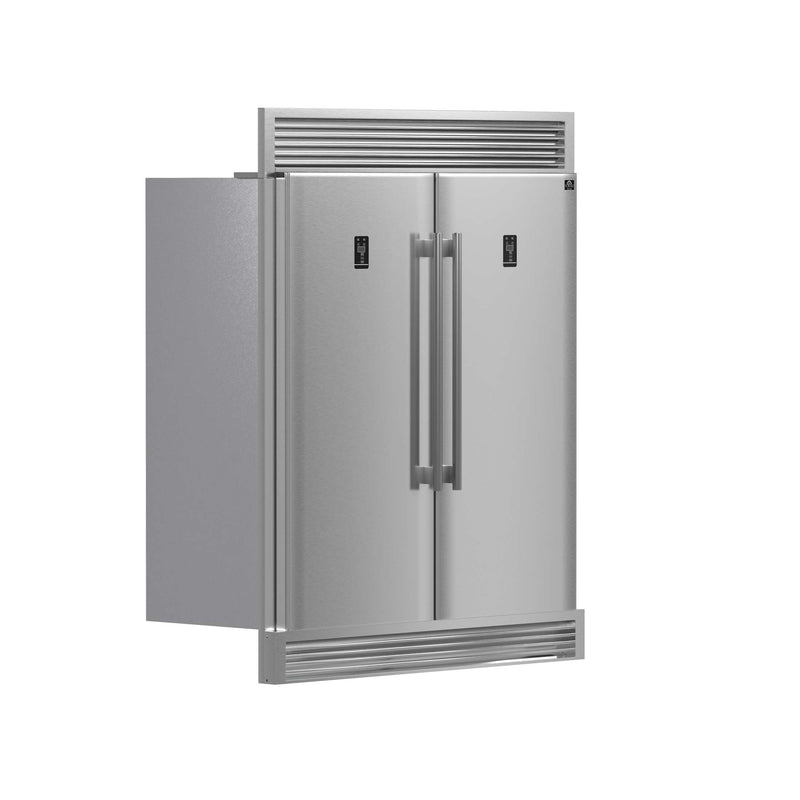

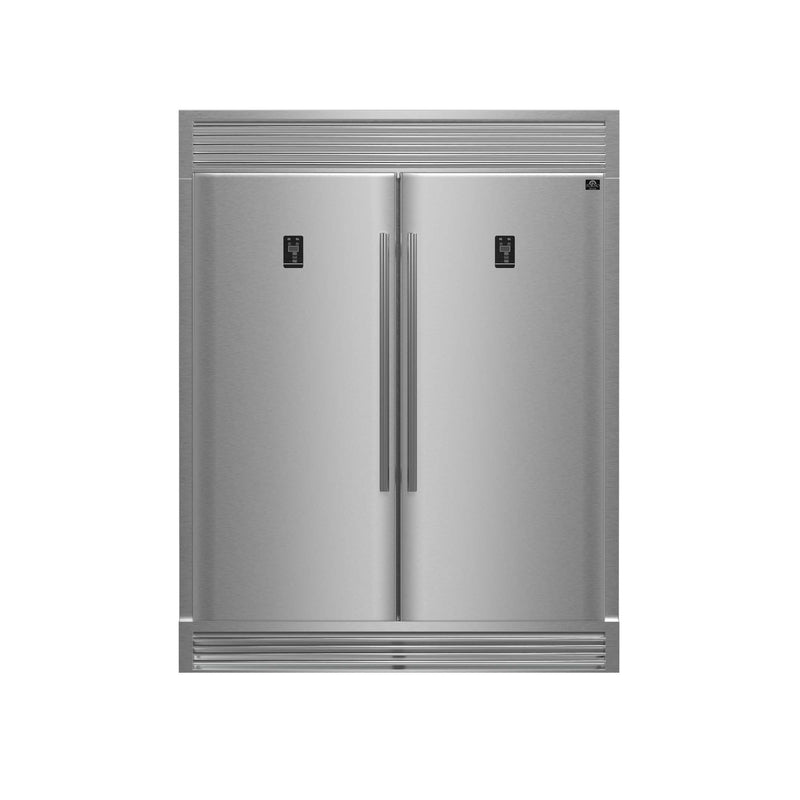

Refrigerator
SKU: FFFFD1933-60S
Description
This 27.6 cu.ft. Refrigerator/Freezer Combo Unit is the perfect size for any kitchen, allowing you to store all of your refrigerated and frozen items. It features interchangeable refrigerator/freezer zones that make it easy to customize the temperature settings according to your needs. The Electronic Control feature allows you to easily adjust the temperature settings on the refrigerator or freezer with just a few simple clicks. The control has F to C temp conversion with LED readout of current setting and actual temp. Adjustable levelling legs feature allows you to easily accommodate and adjust the legs to tailor the refrigerator's height to fit your needs. The Door Ajar Alarm feature of this refrigerator will alert you if one of the doors is accidentally left open, preventing energy waste and food spoilage. All Forno refrigerators are backed by an iron clad 2-year warranty for your satisfaction and an E-star energy rating. Skip the high price tags without sacrificing quality and performance. Lower the cost of living with Forno.
Features:
- Unique and Sophisticated Look. Adds a distinctive and sophisticated touch to any kitchen. Features a decorative design that enhances the kitchen's aesthetic appeal
- Sleek, Modern Style and Functionality. Designed with a sleek and modern appearance. Offers excellent functionality for efficient use
- Seamless Integration with Surrounding Cabinetry. Fully integrates into the surrounding cabinetry for a seamless look. Blends perfectly with the existing kitchen decor
- Convenient Easy Roll Wheels. Equipped with easy roll wheels for effortless mobility
- Allows you to move the Refrigerator/Freezer wherever needed. Ensures the appliance stays level no matter where it's placed
- Dual Zone Frost Free Refrigerator/Freezer Combo. Ideal for limited kitchen spaces and garages. Features two separate cooling zones that can be adjusted for fresh ingredients or frozen items. Provides optimal temperature control for both zones
- Spacious and Organized Interiors. Offers a total of 4 adjustable shelves for versatile storage. Includes 2 crisper drawers for keeping fruits and vegetables fresh. Allows easy organization of food items based on your needs. Ample space to store a variety of food and beverages
Note: This refrigerator comes in three pieces:
1 x 28" Refrigerator/Freezer (Left Side)
1 x 28" Refrigerator/Freezer (Right Side)
1 x Grill Trim Kit
Specifications
| Product Dimensions | 56.6”W x 29.7”D x 62”H |
|---|---|
| With Grill Dimensions | 60.5"W x 29.7" D x 80"H |
| Cutout Dimensions | 56 9/1" W x 37" D x 63" H |
| Weight | 390 lbs. |
| Type | Built-In (base platform required) |
| Electrical Requirements | Requires a minimum of 120V/60HZ/15A |
| Capacity | Total Capacity - 27.6 cu. ft. Refrigerator Capacity - 13.8 cu. ft. Freezer Capacity - 13.8 cu. ft. |
| Number of Shelves | 4 Glass Shelves 4 Wire Shelves 8 Door Shelves 2 Drawers |
| Freezer | Yes |
| Freezer Type | N/A |
| Flex Drawer | No |
| Ice Maker | No |
| Ice Amount/Day | No |
| Ice Tray Storage | No |
| Noise Level | N/A |
| Color/Finish | Stainless Steel |
| Energy Efficient | E-star Energy Rating |
| Certification | CSA Certified UL Listed |
| Warranty | 2 Years Parts and Labor |
