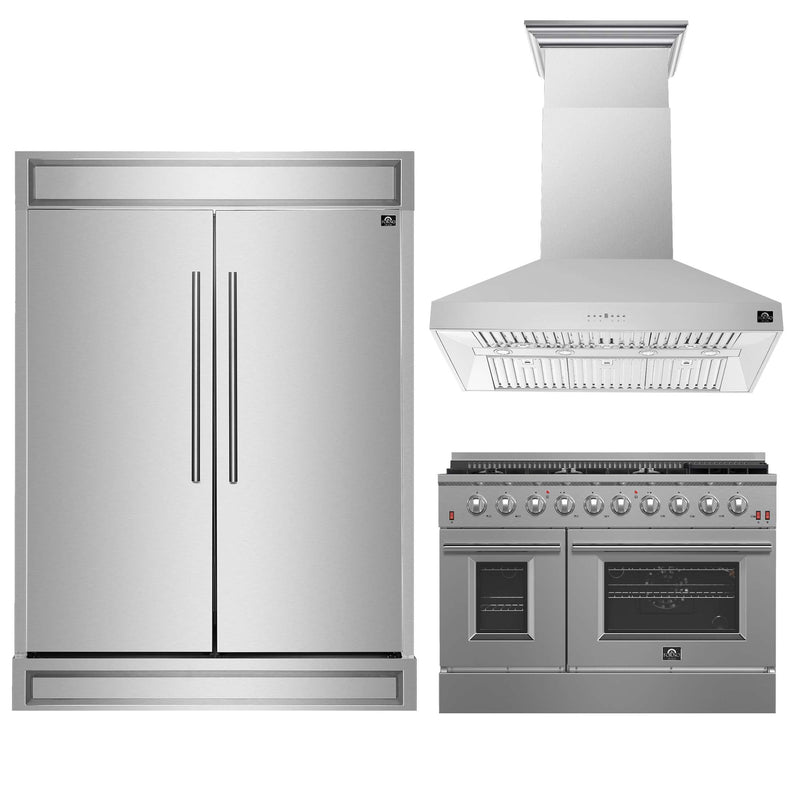

FORNO Premium 3-Piece Kitchen Bundle - 48" Gas Range, Wall Mount Range Hood and 60" Refrigerator with Modern Grill Trim, FBDL-018-04CAUS
Range
SKU: FFSGS6244-48
Description

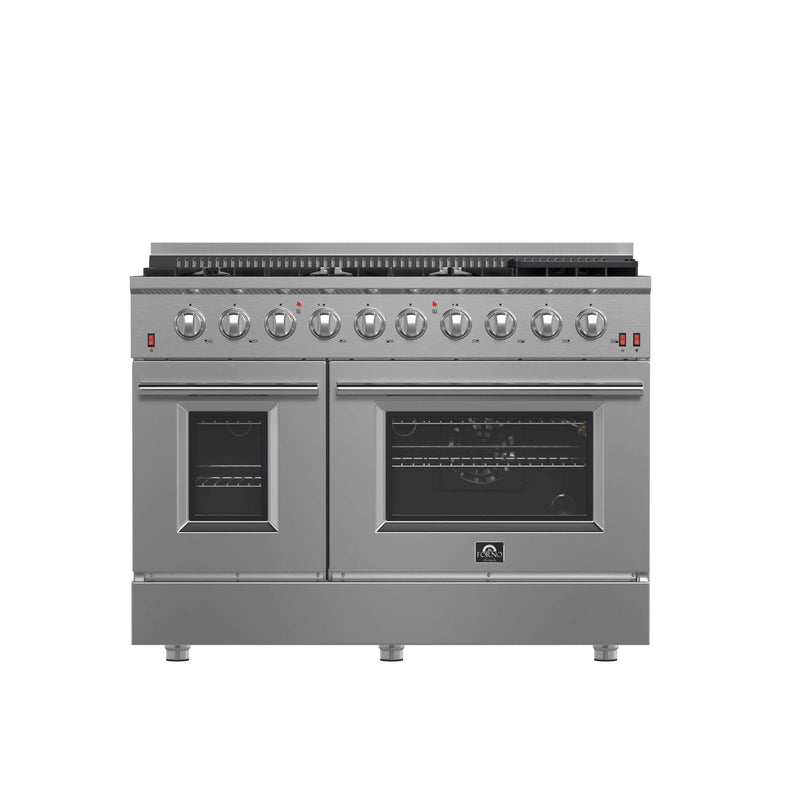

The 48 Inch Forno Galiano Gas Range brings professional styling and performance into your home kitchen with its durable stainless-steel design. The cooking surface has 8 sealed burners with a total output of 107,000 BTU, which one is a 20,000 BTU dual-ring burner that can simmer at 1,000 BTU. Continuous cast iron grates ensure stability on the enamel surface. The main oven of 4.32 Cu.Ft has a convection fan with 30,000 BTU Total Broil and Bake output. The secondary oven has a capacity of 2.26 Cu.Ft. with a 14,000 BTU Bake output. Both ovens have an impressive enamel interiors allowing for easy cleaning and 3-layer glass oven door window provides both heat retention and an unobstructed view. It features 2 racks per oven, reversible griddle, an LP conversion kit, and durable zinc-coated metal knobs. Elevate your kitchen with performance, convenience, and enduring elegance.
Features:

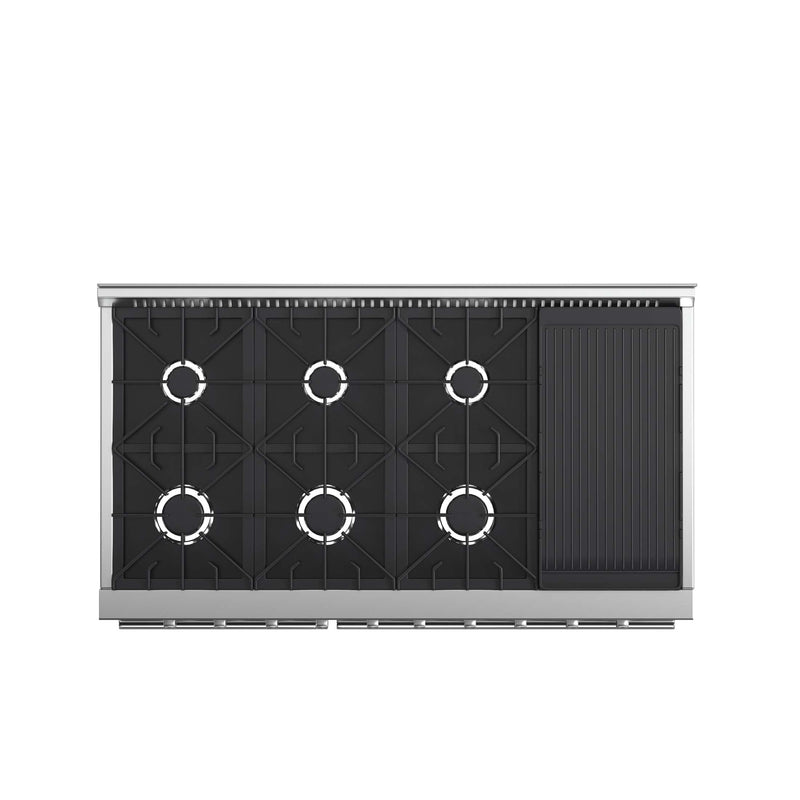

- 8 Sealed Burners with High Output. Combines a total stove-top output of 107,000 BTU for powerful cooking performance. 8 sealed burners ensure efficient and precise heat distribution
- Sealed Dual-Ring Burner for Versatile Cooking. Includes 1 Sealed Dual-Ring Burner for achieving high heat searing or delicate simmering control. Provides flexibility for various cooking needs
- Continuous Cast Iron Grates. Offers even heat distribution across the cooktop surface. Provides stable cookware mobility for hassle-free cooking
- Recessed Black Enamel Cooktop Cavity. Contains spills for easy and quick clean-ups. Keeps the cooktop looking clean and tidy
- Spacious Convection Fan Oven. 4.32 Cu.Ft Convection Fan Oven with a total output of 30,000 BTU for broil and bake functions. Ensures efficient and even cooking results
- Additional Oven with Bake Output. Includes an extra 2.26 Cu.Ft. Oven with a 14,000 BTU Bake output for versatile cooking needs
- Insulated Oven Doors with Glass Windows. Features 3-layer glass windows for better insulation and heat retention. Smooth friction hinges ensure easy and quiet door operation
- Black Enamel Oven Interiors with Auto-Ignition. Equipped with black enamel oven interiors with U Tube Auto-Ignition for user convenience. Includes 2 halogen lights for improved visibility inside the oven
- Electro-Plated Oven Racks. Comes with 4 oven racks featuring a 7.5mm frame and 4mm grid construction for durability. Allows for efficient oven space utilization
- Pro-Style Handle and Zinc Coated Control Knobs. Features a pro-style handle and zinc-coated metal control knobs and bezel rings for a professional look
- Sleek Stainless-Steel Body. Boasts a sleek and durable stainless-steel body for long-lasting performance
- Adjustable Stainless Steel Legs. Accommodates different counter heights, ranging from 35.5” to 36.5”. Ensures a perfect fit in various kitchen setups
Specifications
| Overall Dimensions | 48" W x 28"D x 38"H |
|---|---|
| Oven Interior Dimensions | Left Oven - 13.03”W x 18.7”D x 16″H Right Oven - 24.92”W x 18.7”D x 16″H |
| Oven Capacity | Left Oven - 2.26 cu. ft. Right Oven - 4.32 cu. ft. |
| Type | Freestanding |
| Weight | 389 lbs |
| Fuel Type | Natural Gas or Propane Gas This range is shipped for use with natural gas. It also has an LP conversion kit for propane use included. |
| LP Convertible Kit Included | Yes |
| Electrical Requirements | Requires a minimum of 120V/60HZ/15A |
| Number of Ovens | 2 |
| Number of Burners | 8 |
| Number of Racks | 4 |
| Control Type | Knob |
| Burner BTU | Front Left Output - 15,000 Back Left Output - 9,000 Back Right Output - 15,000 Front Right Output - 20,000 Middle Front Left Output - 15,000 Middle Back Left Output - 9,000 Middle Front Right Output - 15,000 Middle Back Right Output - 9,000 |
| Oven BTU | Bottom - 22,000 Top Broiler - 10,000 |
| Convection Fan | Yes |
| Color/Finish | Stainless Steel |
| Cleaning Type | Manual |
| Air Fry Function | No |
| Certification | ETL Listed |
| Warranty | 2 Years Limited |
User Guide
Range Hood
SKU: FRHWM5094-48
Description

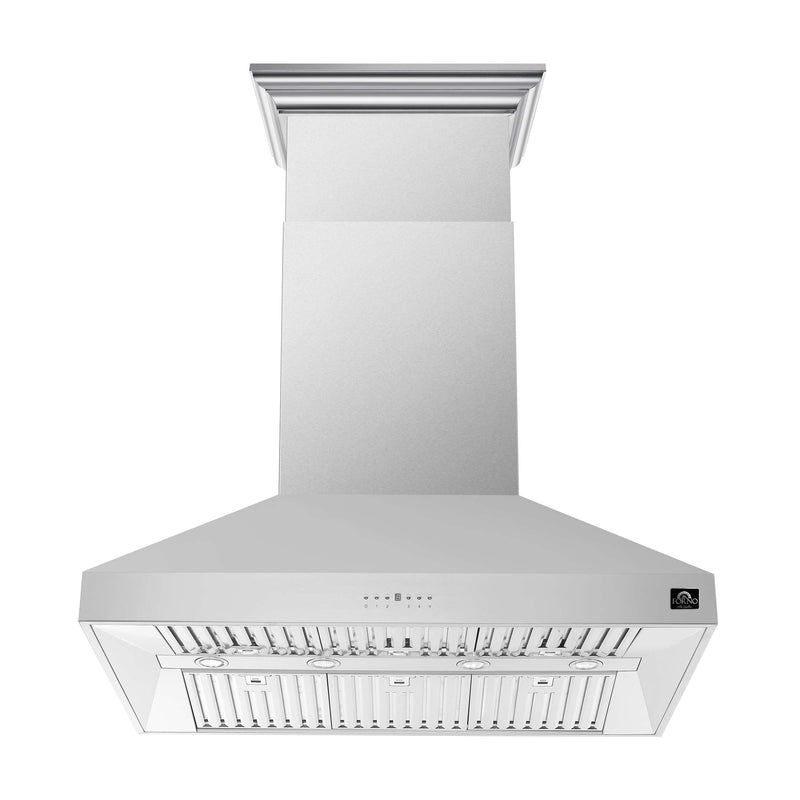

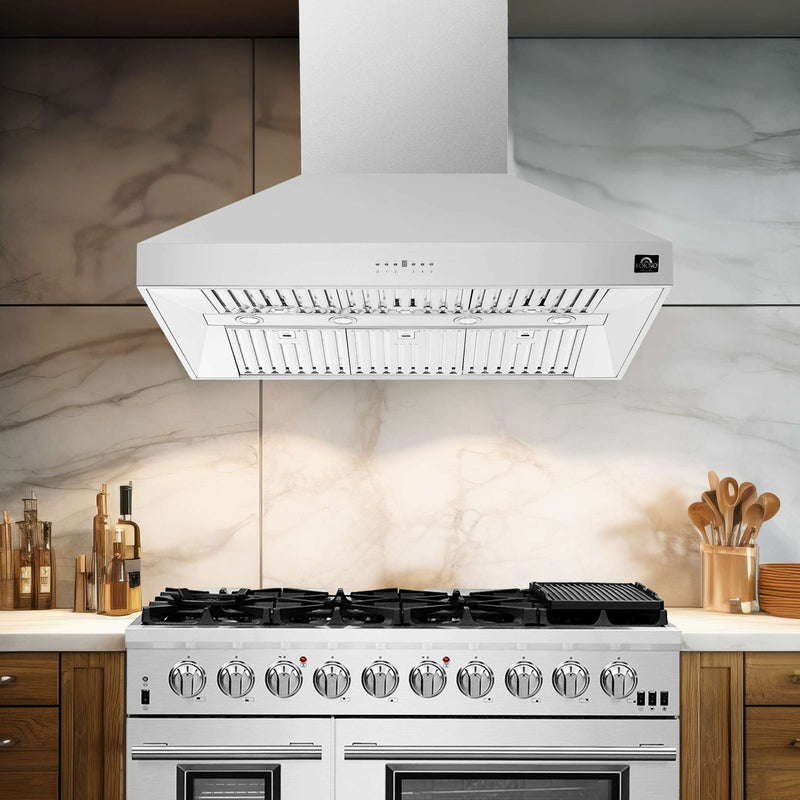

The Orvieto 48-Inch STAINLESS STEEL Wall Mount RANGE HOOD helps create superior air quality with its powerful 1200 CFM motor and four-speed push-button control. The decorative stainless-steel crown molding adds an attractive finish to your kitchen design. The hood is made from high-grade stainless steel for durability, and boasts noise reduction technology for a quieter sound while in use. The included surface lights provide superior illumination and energy efficiency. Baffle filters capture heat, odors, gases and are dishwasher-safe making cleanup a breeze. This range hood is sure to be an asset in any kitchen.
Features:
- Powerful and Efficient Ventilation. Equipped with a powerful and energy-efficient 1200 CFM motor designed to capture smoke, gases, steam, and grease, ensuring a clean and odor-free cooking area. Washable Stainless-Steel filters with a baffle design effectively capture grease, smoke, and odors from the air

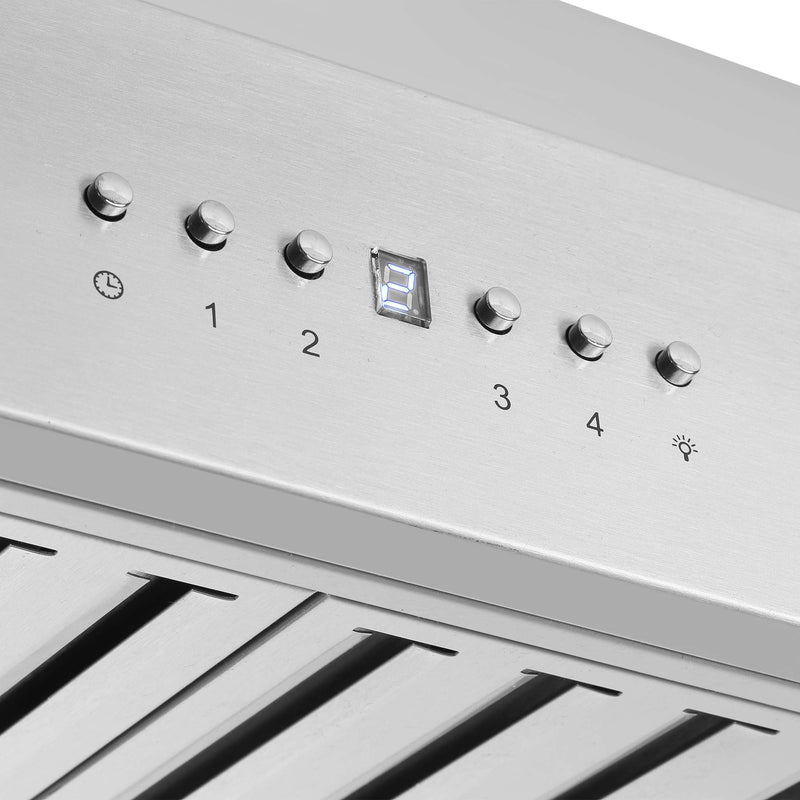

- Convenient Control and Illumination. 4-speed touch control provides easy operation, allowing you to adjust the fan speed settings for optimal air flow and ventilation levels according to your needs. Two surface lights offer bright illumination for the cooktop surface, enhancing visibility during cooking
- Elegant and Modern Design. The chimney includes a stainless steel decorative molding trim, adding an elegant and modern feel to your kitchen while providing a beautiful finishing touch
- Quiet and Effective Operation. Maximum power ventilation operates at a low noise level of 65dB, allowing you to enjoy an effective ventilation system without disruptive noise. The low setting delivers a sound level of only 25dB, providing an exceptionally quiet experience while maintaining efficient ventilation
Specifications
| Dimensions | 47.24”W x 29.14”H x 47.24”D |
|---|---|
| Hardware Included | Yes |
| Voltage | Requires a minimum of 120V/60Hz/15A |
| Airflow | 1200 CFM |
| Number of Fan Speeds | 4 Speed |
| Noise Level | 68dB |
| Range Hood Part Type | Venting Hardware |
| Filter Type | Baffle |
| Control Type | Touch control |
| Material | Stainless Steel |
| Warranty | 2 Years |
| Certification | ETL Listed |
User Guide
Refrigerator
SKU: FFFFD1722-60S
Description

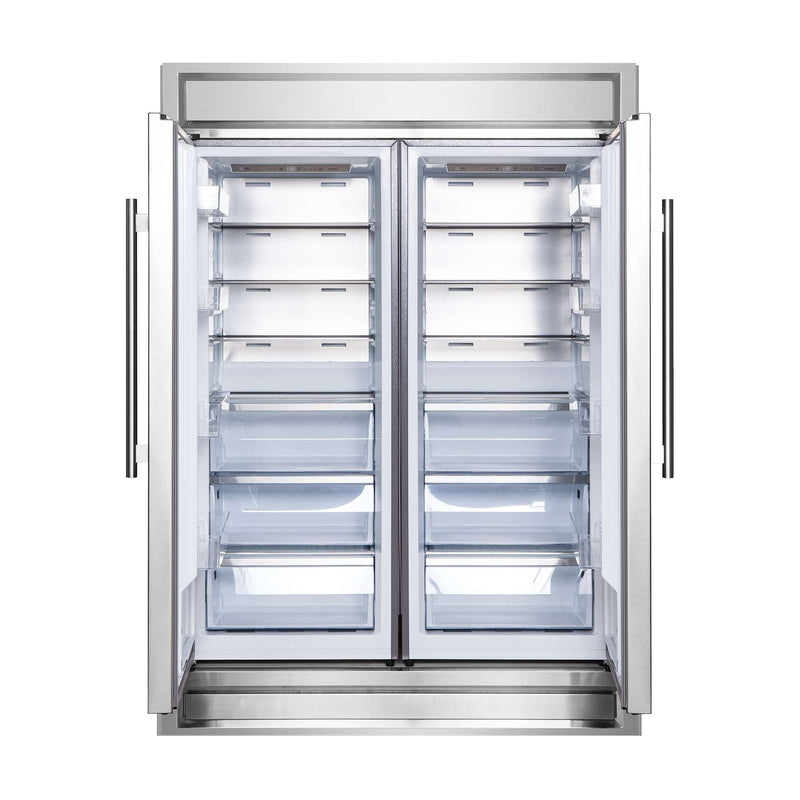

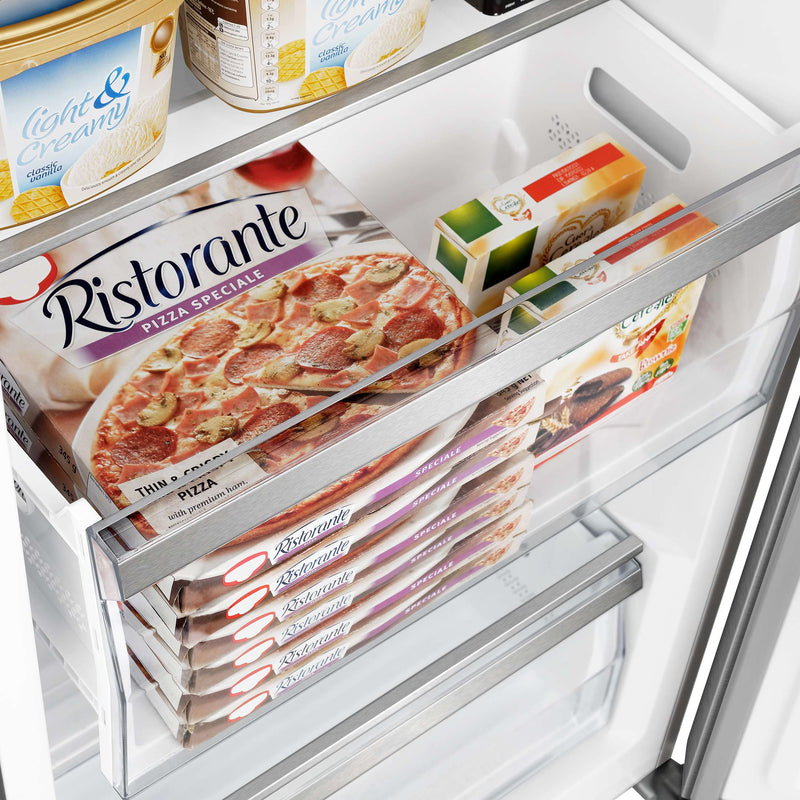

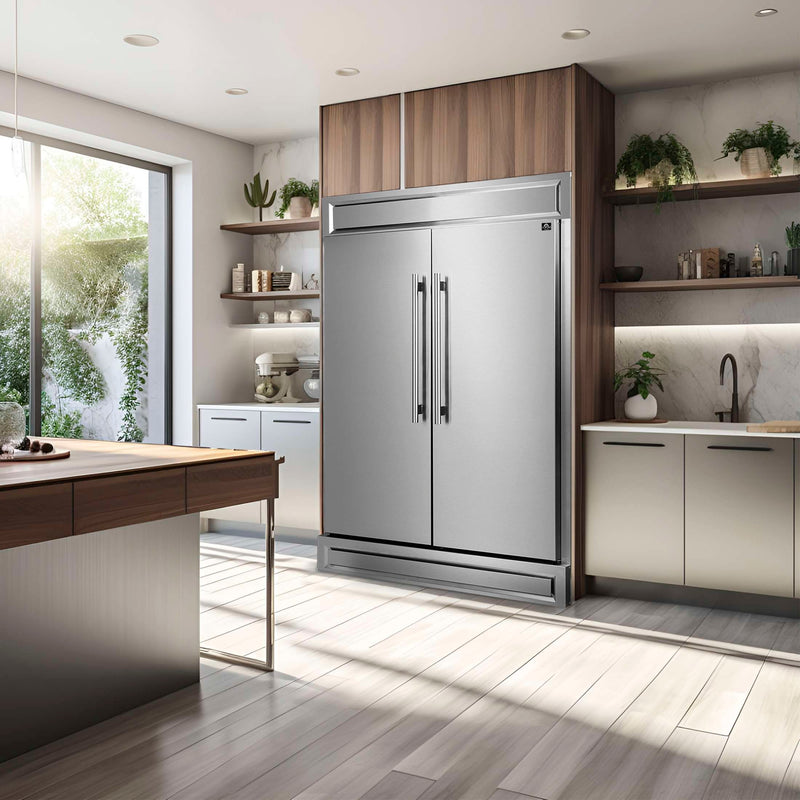

The Forno Maderno combines two 28 Inch refrigerators with decorative trim grill, extending to a 60 Inch width for a built-in appearance, harmoniously blending style with convenience. This combo offers ample storage space totaling 27.2 cu.ft. They feature customizable cooling with convertible function and total no frost technology, eliminating tedious defrosting. The side-by-side door design integrates seamlessly, while elegant glass shelves with silver trim and practical plastic door balconies enhance appeal and storage. Effortlessly switch between Fahrenheit and Celsius, aided by LED lighting for easy item location. Six glass shelves and six plastic drawers with silver trim provide flexible storage, and temperature settings are easily managed with the electronic touch control panel. The VCM door panel and metal back ensure durability, and the combo is T Climate Class certified with an E-star energy rating for sustainability.
Features:
- Convertible Function. Effortlessly transition between Refrigerator and Freezer modes
- Captivating Design. Seamless blend of sleek, modern aesthetics and top-notch functionality
- Organizational Options. 8 shelves, 8 door bins, and 6 storage drawers that can be easily removed
- Precise Temperature Control. Dual-zone frost-free refrigerator/freezer with two inverter compressors
- Durable and Low-Maintenance. VCM stainless-steel door is scratch, fingerprint, and stain-resistant
- Ideal for Limited Space. Provides safe storage for food and beverages within limited space
- Optimal Temperatures. Tailor two separate cooling zones to perfection for fresh ingredients and frozen items
- Super Cool and Super Freeze Functions. Swiftly reach the ideal storage temperature for groceries
- ENERGY STAR Certified. Save money on energy bills with an annual operating cost of $110
- High-Efficiency LED lightning. Even and consistent illumination throughout the refrigerator/freezer
Note: This refrigerator comes in three pieces:
1 x 28" Refrigerator/Freezer (Left Side)
1 x 28" Refrigerator/Freezer (Right Side)
1 x Grill Trim Kit
*The installation of this product requires a base to be built for the refrigerator.
Specifications
| Overall Dimensions | Without Grill Trim: 55.5" W x 29.7" D x 67.7" H With Grill Trim: 59.76" W X 29.7" D X 84" H |
|---|---|
| Cutout Dimensions | 55.9" W X 28.94" D X 69.06" H |
| Counter Depth | Yes |
| Overall Capacity | 27.2 cu. ft. |
| Material | Stainless Steel VCM |
| Weight | 330 lbs |
| Product Type | Side by Side |
| Installation Type | Built-In (base platform required) |
| Electrical Requirements | Requires a minimum of 120V/60HZ/15A |
| Estimated Annual Operating Cost | $110USD |
| Control Type | Touch Control |
| Control Location | Internal |
| Temperature Range Refrigerator (°F) | 36°F to 46°F |
| Temperature Range Freezer (°F) | - 11°F to 7°F |
| Cooling System | Multi Air Flow |
| Compressor Type | Inverter Compressor |
| Defrost Type | Automatic |
| Adjustable Shelves | 2 (1 per fridge) |
| Ice Maker | No |
| Water Dispenser | No |
| Power Cord Length (Plug Included) | 5.8 ft. |
| Plug Type | 3-Prong Grounded NEMA 5-15 |
| Energy Star | Yes |
| Certifications | UL Listed |
| Warranty | 2 Year Limited Warranty |
