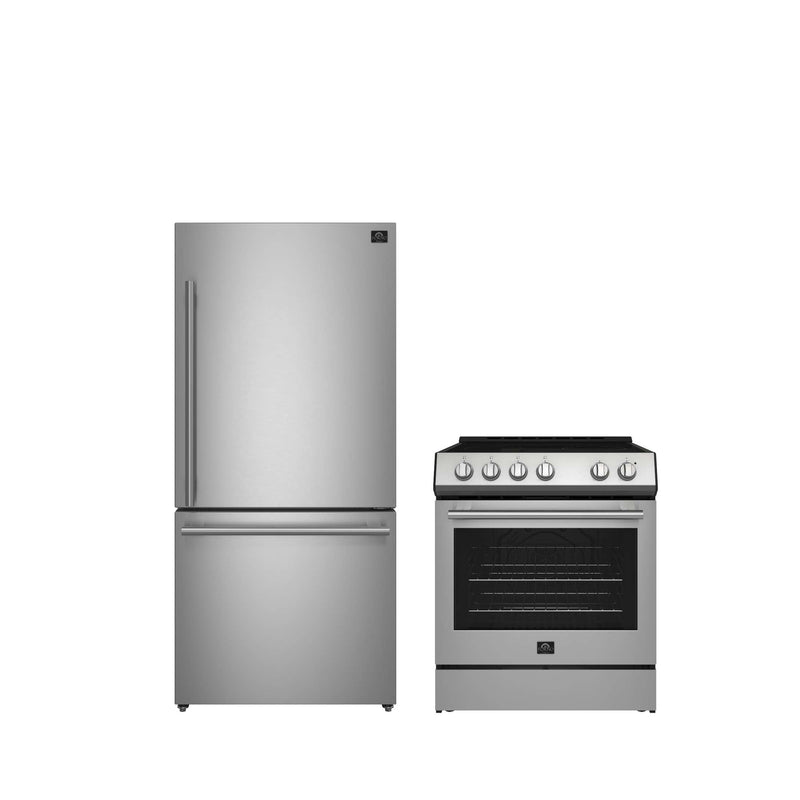

FORNO Premium 2-Piece Kitchen Bundle - Leonardo Espresso 30" Stainless Steel Range, 31" Stainless Steel Bottom Freezer Refrigerator, FBDL-003-01US

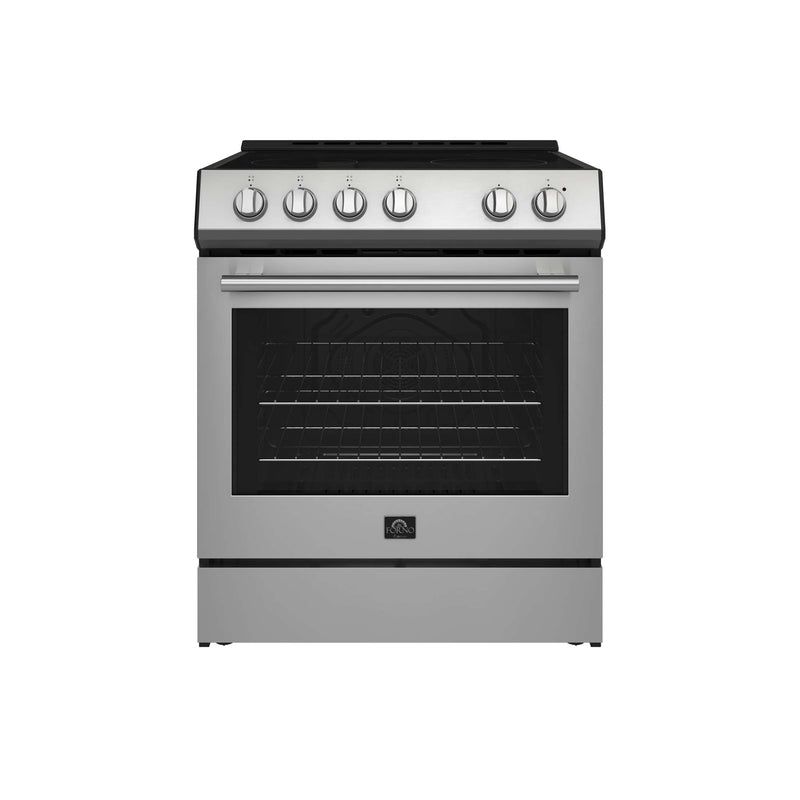

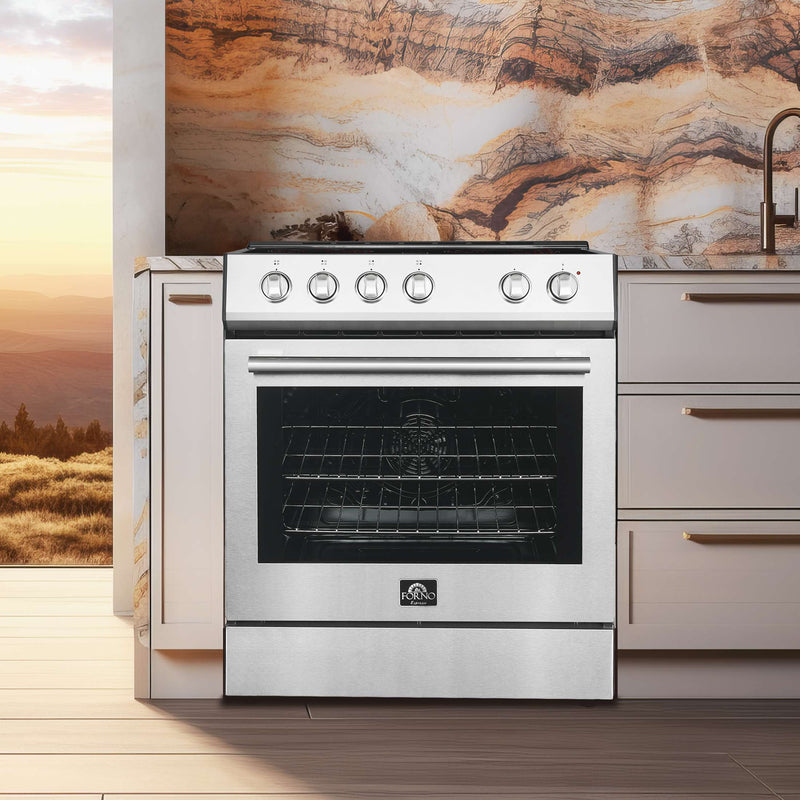

Range
SKU: FFSEL6012-30
Description
Introducing the Forno Leonardo Espresso 30 Inch 5.0 cu. Ft. Stainless-Steel Electric Range, a true kitchen game-changer. This stunning range combines style and top-notch performance with its stainless steel trim around the ceramic glass, ensuring even heat distribution across its 4 radiant elements. The powerful 5,500-watt convection oven elevates your cooking experience, providing faster and more even cooking results. The hidden bake element simplifies maintenance by preventing spills and odors, making cleanup effortless. Elevate your kitchen with this timeless, user-friendly range that marries durability with sophistication. Cook with confidence and embrace efficiency and style with every use.
Features:
- 5.0 cu. Ft.
- Ceramic Glass provides an even heat distribution
- 4 Radiant Elements
- Convection Oven
- Stainless-Steel Finish

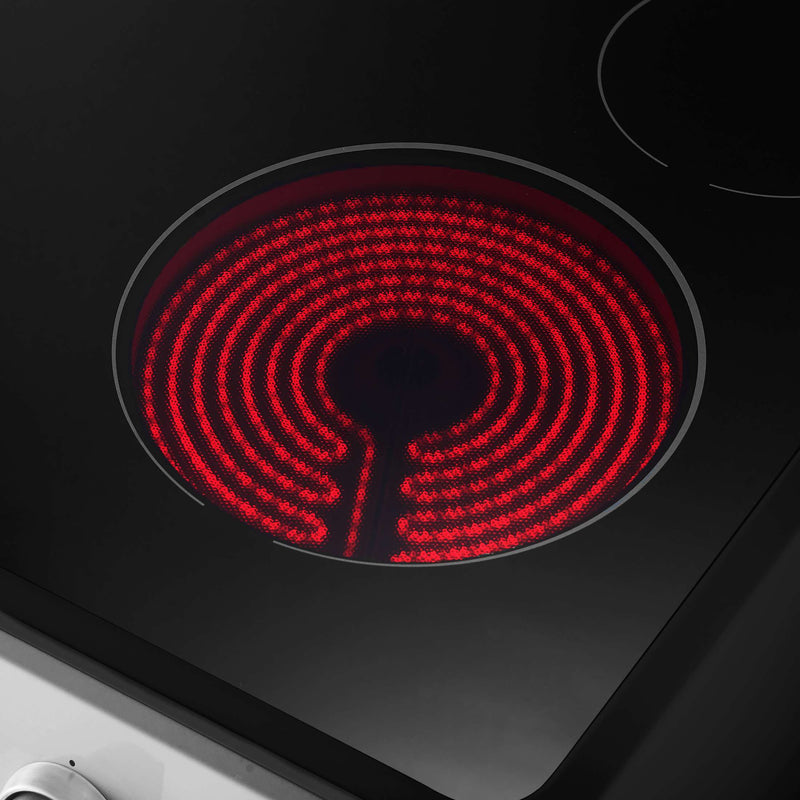

- Radiant Elements - 4 heating elements that combine a total cooking surface output of 7,100 Watts
- Ceramic Glass - Provides an even heat distribution and smooth cookware mobility
- Stainless Steel Finish - Durable, easy to clean, and has a classic look that won't go out of style. Stainless-Steel also resists heat and stains, ensuring a long-lasting and hygienic kitchen.
- 5 cu.ft Convection Oven - Experience superior cooking with a high-performance convection fan oven boasting a remarkable 5,500-watt total broil and bake output.
- 2 Oven Racks - Facilitate multi-level cooking, allowing you to prepare multiple dishes simultaneously.
-
Black Enameled Oven - Improves heat absorption and retention for consistent cooking.
- Friction-Resistant Hinges - Guarantee effortless opening and closing while securely holding the door in place at any desired position.
- Hidden Bake Element - Hiding below the oven floor, it stops spills, cuts down on odors and smoke by keeping food bits from burning onto the element, making oven upkeep an easy task.
Specifications
| Weight and Dimensions - Imperial Units | |
| Overall - Biggest Dims Possible (with Handle, Backsplash, etc) |
30" W X 27.95" D X 38" H |
| Minimum Counter Height | 36" |
| Maximum Counter Height | 38" |
| Depth with Oven Door Open 90º | 46.25" |
| Depth without Oven Door Handle | 27.8" |
| Overall Weight | 145.5 lbs |
| Details | |
| Product Type | Slide-In |
| Color/Finish |
Stainless Steel |
| Handle Finish |
Stainless Steel |
| Fuel Type |
Electric |
| Burner Fuel |
Electric |
| Oven Fuel |
Electric |
| Electric Heat Configuration (Cooktop) |
Radiant |
| Total cooktop Wattage output |
7100 |
| Number of Burners |
4 |
| Double Ring Burner |
No |
| Warmer Burner |
No |
| Bridge Element |
No |
| Cooktop Surface Color |
Black |
| Cooktop Surface Materiel |
Ceramic Glass |
| Cooktop Surface Structure |
Smoothtop |
| Number of Ovens |
1 |
| Overall Oven Capacity (cubic feet) |
5 |
| Oven Interior Finish |
Black Enamel |
| Oven Racks Type |
Standard |
| Number of Racks |
2 |
| Racks Material |
Chrome-Plated |
| Number of Rack Positions |
6 |
| Cooking Surface Control Type |
Push & Turn |
| Broiler |
Yes |
| Broiler Element Type |
Single Element |
| Overall Broiler Wattage |
2000 |
| Broiler Location |
Oven |
| Bake Element |
Yes |
| Overall Bake Wattage |
1500 |
| Hidden Bake Element |
Hidden |
| Convection Oven |
Yes |
| Convection Type |
Standard Convection |
| Cooking Process |
Bake Convection Bake Broil Convection Broil Convection Roast Defrost |
| Cleaning Type |
Standard |
| Rack position |
Yes |
| Control Type |
Knob |
| Number of Knobs |
6 |
| Knobs Color/Finish |
Stainless Steel |
| Control Location |
Front |
| Oven Preheating Indicator |
Yes |
| Cooktop Hot Surface Indicator |
Yes |
| Safety Lock |
No |
| Temperature Gauge |
No |
| Timer |
No |
| Clock |
No |
| Storage Drawer |
No |
| Plug-In |
No |
| Primary Material |
Steel |
| Door Panel Material |
Stainless Steel |
| Control Panel Material | Stainless Steel |
| Kick Plate Material | Stainless Steel |
| Side Panel Material | Stainless Steel |
| Supplier Intended and Approved Use | Residential Use |
| Country of Origin | China |
| Cooktop Specs |
|
| Front Right Burner Watts | 2500 |
| Front Left Burner Watts | 2200 |
| Rear Right Burner Watts | 1200 |
| Rear Left Burner Watts | 1200 |
| Main Oven Specs | |
| Main Oven Capacity (cubic feet) |
5 |
| Main Oven Interior | 24.6" W x 17.7" D x 19.6" H |
| Main Oven Rack Size W x D (in) |
24.6 x 15.9 |
| Main Oven Broil Wattage |
2000 |
| Main Oven Bake Wattage |
1500 |
| Main Convection Fan |
Yes |
| Main Oven Convection Fan Wattage |
50 |
|
Electrical Specs |
|
| Dedicated Circuit Breaker Amperage |
50 |
| Total Amps Use |
44.25 |
| Volts |
240 |
| Overall Max Power (W) |
10650 |
| Cooktop Max Power (W) |
7100 |
| Oven Max Power |
3550 |
| Power Cord Included | No |
| Certification | ETL Listed |
| Warranty | |
| Commercial Warranty |
No |
| Warranty Type | Limited |
| Warranty Length | 2 Years |
| Warranty on Parts | 2 Years |
| Warranty on Labor | 2 Years |
User Guide

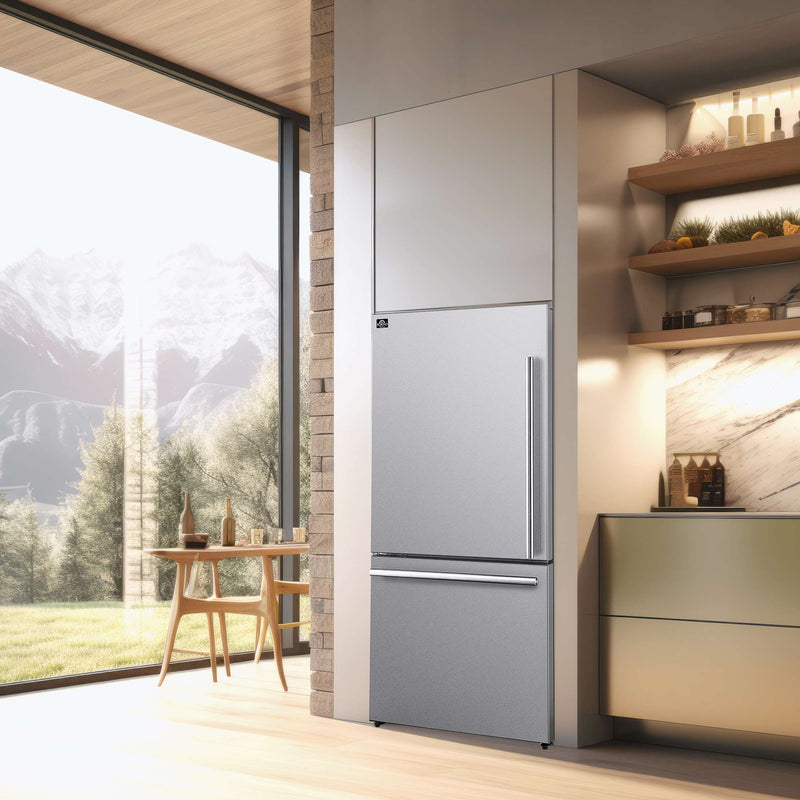

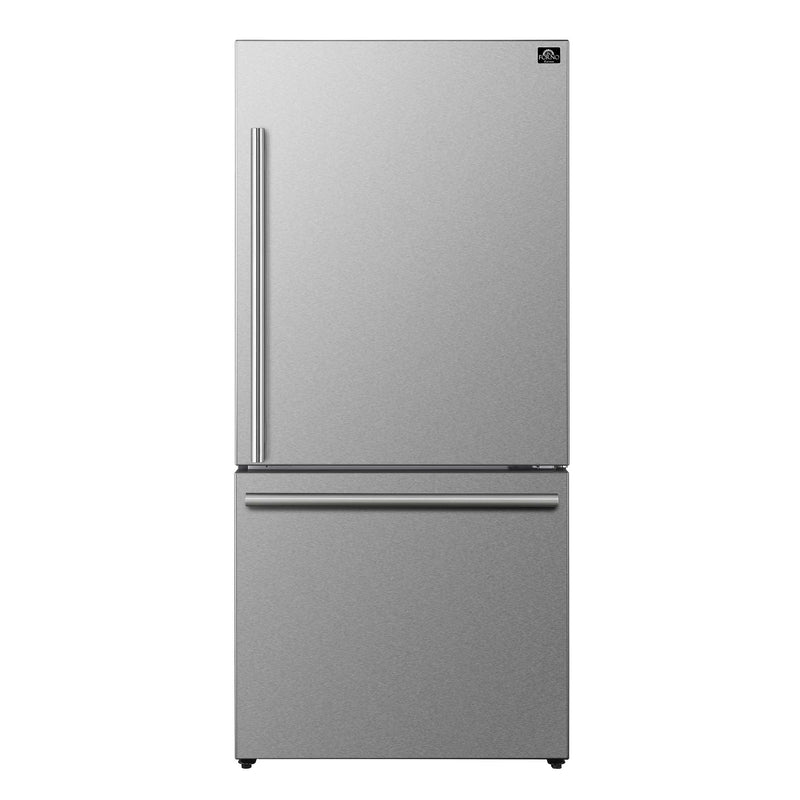

Refrigerator
SKU: FFFFD1974-31SB
Description
The Forno Gallipoli 31 Inch Stainless-Steel French Door refrigerator combines style and functionality with its frost-free multi-air flow cooling system, offering a spacious 17.5 cu.ft. capacity. Adjustable shelving ensures versatile grocery storage, complemented by a compressor inverter for energy efficiency, quiet operation, and precise temperature control. The LED touch panel provides convenient access and control. The fresh food storage (12.4 cu.ft.) features three glass shelves (two adjustable), two crisper drawers, and ample door storage. The 5.1 cu.ft. freezer boasts organized storage with one pull-out drawer that contains 2 drawer, a removable ice bucket and a high-capacity automatic ice maker producing up to 4 pounds of ice daily. This refrigerator is ENERGY STAR Certified for efficiency, and high-efficiency LED lighting minimizes food spoilage.
Features:

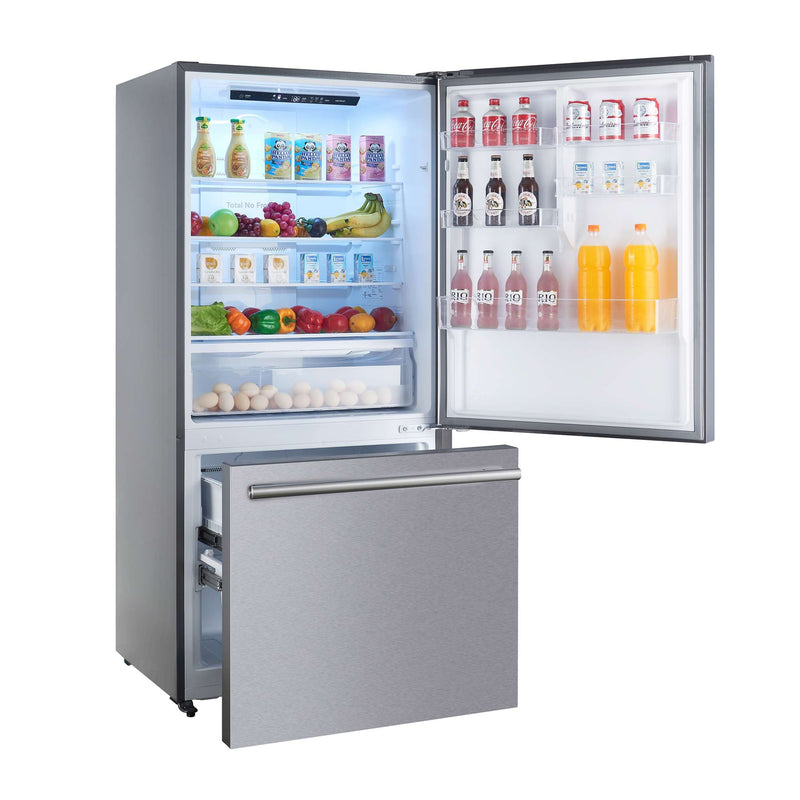

- The fresh food compartment offers ample storage space to store your fresh food with 3 adjustable glass shelves, a gallon bin, and easily accessible crisper drawers when doors are open at 90°. This french door refrigerator fresh food storage capacity of 12.35 cubic feet
- The no-frost air-cooling system for the refrigerator and freezer compartments provides optimal temperatures and humidity control to keep food fresher longer. Equipped with an ice maker, both solid ice and crushed ice can be made using the ice maker
- The electronic touch control and digital LED interface simplify the setting and monitoring of all vital functions. Rest assured that this unit will keep your food at perfect temperatures with its Intelligence chip temperature control feature and digital control
- Bright white LED lighting is energy-efficient and offers elegant illumination throughout the interior. The power cord and installation kit included with the package
Specifications
|
Dimensions
|
|
|
Overall Dimensions
|
29.88'' W x 31.18'' D x 70.08'' H
|
| Depth with door open 90° (in) | 46.5 |
| Electrical | |
| Plug-In | Yes |
| Voltage | 115 |
| Frequency | 60 |
| Estimated Yearly Electricity Use (kWh) | 238 |
| Eligible for Hardware Packs | Yes |
| Freezer Depth - Front to Back | 31.18 |
| Power Cord Included | Yes |
| Amperage | 15 |
| Estimated Yearly Electricity Use | 238 |
| Eligible for Replacement Parts | Yes |
| Freezer Height - Top to Bottom | 70.08 |
| Freezer Width - Side to Side | 29.88 |
| Details | |
| Product Type | French door refrigerator |
| Installation Type | Freestanding |
| Space Capacity | 5.09 |
| Fresh Food Capacity | 12.39 |
| Freezer Capacity | 5.09 |
| Panel Ready | No |
| Panel Included | No |
| Smudge-Resistant Finish | Yes |
| Handle Color/Finish | Silver |
| Freezer Door Style | Swing Door |
| Freezer Section Layout | Adjustable Racks |
| Ice Maker Included | Yes |
| Automatic Ice Level Control | Yes |
| Ice Maker Connector Included | No |
| Internal Water Dispenser | No |
| External Water and Ice Dispenser | No |
| Ice Maker Kit Included | No |
| Removable Ice Bucket | Yes |
| Supported Optional Ice Maker | Optional |
| Auto-fill Water | No |
| Counter Depth - Front to Back | Yes |
| Independent Drawer/Door | Yes |
| Sabbath Mode | Yes |
| Safety Lock | Yes |
| Automatic Door Closer | No |
| Door Storage | Yes |
| Number of Gallon Door Bins | 6 |
| Number of Fresh Food Shelves | 3 |
| Number of Drawers | 2 |
| Freezer Shelf Material | Wire |
| Display Screen | LED |
| Concealed Hinges | Yes |
| Freezer Maximum Temperature (°F) | 43 |
| Garage Ready | No |
| Leveling Legs | Yes |
| Compatible Bulb Type | LED |
| Non-flammable, Non-toxic gases | Yes |
