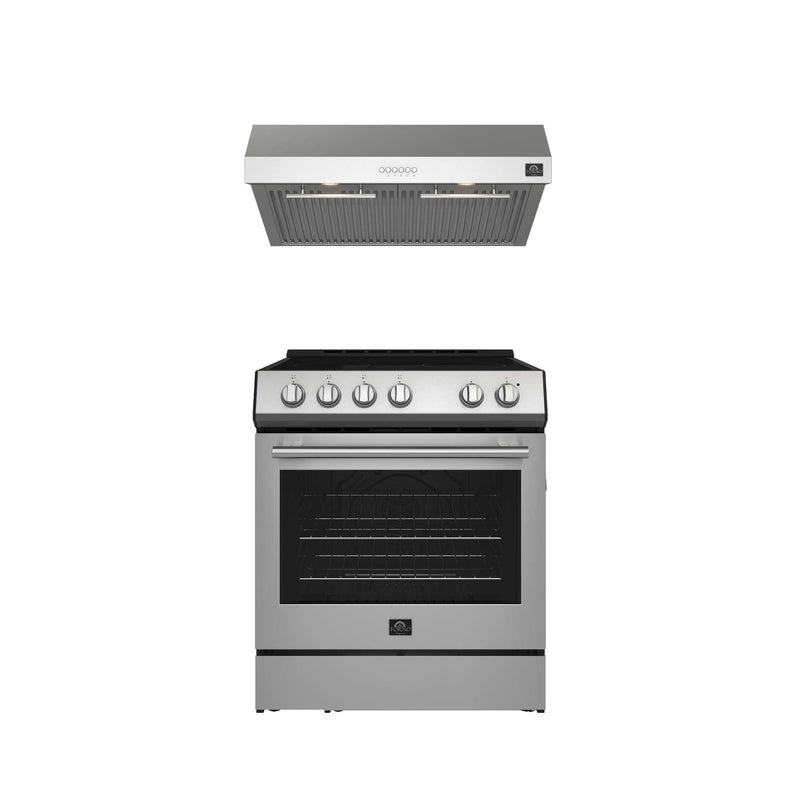

FORNO Premium 2-Piece Kitchen Bundle - Leonardo Espresso 30" Stainless Steel Range, 30" Stainless Steel Range Hood, FBDL-002-01US
Range
Description
Introducing the Forno Leonardo Espresso 30 Inch 5.0 cu. Ft. Stainless-Steel Electric Range, a true kitchen game-changer. This stunning range combines style and top-notch performance with its stainless steel trim around the ceramic glass, ensuring even heat distribution across its 4 radiant elements. The powerful 5,500-watt convection oven elevates your cooking experience, providing faster and more even cooking results. The hidden bake element simplifies maintenance by preventing spills and odors, making cleanup effortless. Elevate your kitchen with this timeless, user-friendly range that marries durability with sophistication. Cook with confidence and embrace efficiency and style with every use.
Features:
- 5.0 cu. Ft.
- Ceramic Glass provides an even heat distribution
- 4 Radiant Elements
- Convection Oven
- Stainless-Steel Finish

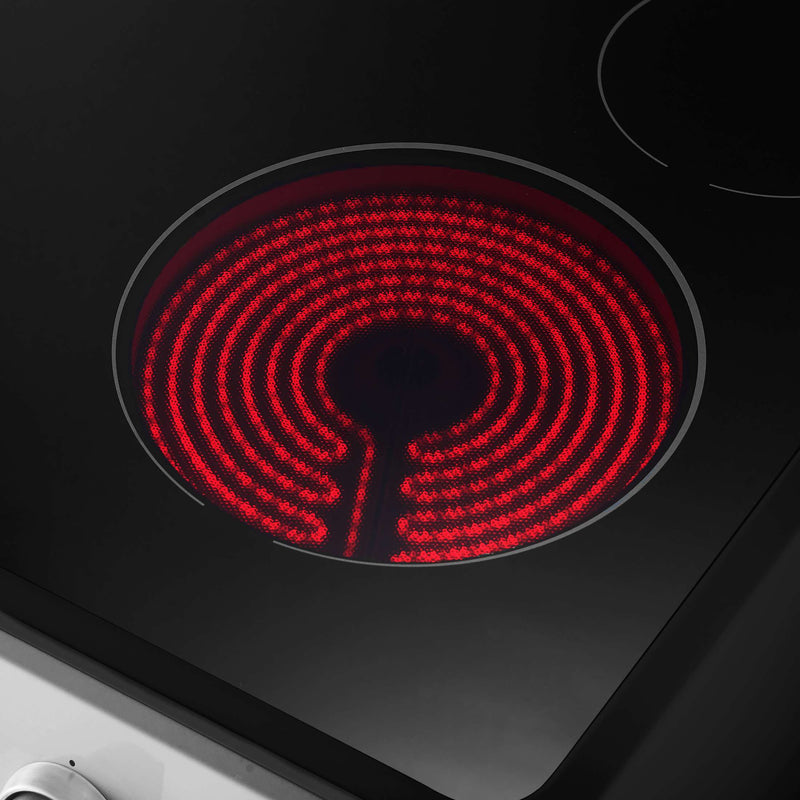

- Radiant Elements - 4 heating elements that combine a total cooking surface output of 7,100 Watts
- Ceramic Glass - Provides an even heat distribution and smooth cookware mobility
- Stainless Steel Finish - Durable, easy to clean, and has a classic look that won't go out of style. Stainless-Steel also resists heat and stains, ensuring a long-lasting and hygienic kitchen.
- 5 cu.ft Convection Oven - Experience superior cooking with a high-performance convection fan oven boasting a remarkable 5,500-watt total broil and bake output.
- 2 Oven Racks - Facilitate multi-level cooking, allowing you to prepare multiple dishes simultaneously.
-
Black Enameled Oven - Improves heat absorption and retention for consistent cooking.
- Friction-Resistant Hinges - Guarantee effortless opening and closing while securely holding the door in place at any desired position.
- Hidden Bake Element - Hiding below the oven floor, it stops spills, cuts down on odors and smoke by keeping food bits from burning onto the element, making oven upkeep an easy task.
Specifications
| Weight and Dimensions - Imperial Units | |
| Overall - Biggest Dims Possible (with Handle, Backsplash, etc) |
30" W X 27.95" D X 38" H |
| Minimum Counter Height | 36" |
| Maximum Counter Height | 38" |
| Depth with Oven Door Open 90º | 46.25" |
| Depth without Oven Door Handle | 27.8" |
| Overall Weight | 145.5 lbs |
| Details | |
| Product Type | Slide-In |
| Color/Finish |
Stainless Steel |
| Handle Finish |
Stainless Steel |
| Fuel Type |
Electric |
| Burner Fuel |
Electric |
| Oven Fuel |
Electric |
| Electric Heat Configuration (Cooktop) |
Radiant |
| Total cooktop Wattage output |
7100 |
| Number of Burners |
4 |
| Double Ring Burner |
No |
| Warmer Burner |
No |
| Bridge Element |
No |
| Cooktop Surface Color |
Black |
| Cooktop Surface Materiel |
Ceramic Glass |
| Cooktop Surface Structure |
Smoothtop |
| Number of Ovens |
1 |
| Overall Oven Capacity (cubic feet) |
5 |
| Oven Interior Finish |
Black Enamel |
| Oven Racks Type |
Standard |
| Number of Racks |
2 |
| Racks Material |
Chrome-Plated |
| Number of Rack Positions |
6 |
| Cooking Surface Control Type |
Push & Turn |
| Broiler |
Yes |
| Broiler Element Type |
Single Element |
| Overall Broiler Wattage |
2000 |
| Broiler Location |
Oven |
| Bake Element |
Yes |
| Overall Bake Wattage |
1500 |
| Hidden Bake Element |
Hidden |
| Convection Oven |
Yes |
| Convection Type |
Standard Convection |
| Cooking Process |
Bake Convection Bake Broil Convection Broil Convection Roast Defrost |
| Cleaning Type |
Standard |
| Rack position |
Yes |
| Control Type |
Knob |
| Number of Knobs |
6 |
| Knobs Color/Finish |
Stainless Steel |
| Control Location |
Front |
| Oven Preheating Indicator |
Yes |
| Cooktop Hot Surface Indicator |
Yes |
| Safety Lock |
No |
| Temperature Gauge |
No |
| Timer |
No |
| Clock |
No |
| Storage Drawer |
No |
| Plug-In |
No |
| Primary Material |
Steel |
| Door Panel Material |
Stainless Steel |
| Control Panel Material | Stainless Steel |
| Kick Plate Material | Stainless Steel |
| Side Panel Material | Stainless Steel |
| Supplier Intended and Approved Use | Residential Use |
| Country of Origin | China |
| Cooktop Specs |
|
| Front Right Burner Watts | 2500 |
| Front Left Burner Watts | 2200 |
| Rear Right Burner Watts | 1200 |
| Rear Left Burner Watts | 1200 |
| Main Oven Specs | |
| Main Oven Capacity (cubic feet) |
5 |
| Main Oven Interior | 24.6" W x 17.7" D x 19.6" H |
| Main Oven Rack Size W x D (in) |
24.6 x 15.9 |
| Main Oven Broil Wattage |
2000 |
| Main Oven Bake Wattage |
1500 |
| Main Convection Fan |
Yes |
| Main Oven Convection Fan Wattage |
50 |
|
Electrical Specs |
|
| Dedicated Circuit Breaker Amperage |
50 |
| Total Amps Use |
44.25 |
| Volts |
240 |
| Overall Max Power (W) |
10650 |
| Cooktop Max Power (W) |
7100 |
| Oven Max Power |
3550 |
| Power Cord Included | No |
| Certification | ETL Listed |
| Warranty | |
| Commercial Warranty |
No |
| Warranty Type | Limited |
| Warranty Length | 2 Years |
| Warranty on Parts | 2 Years |
| Warranty on Labor | 2 Years |
User Guide
Range Hood
SKU: FRHUC5255-30
Description

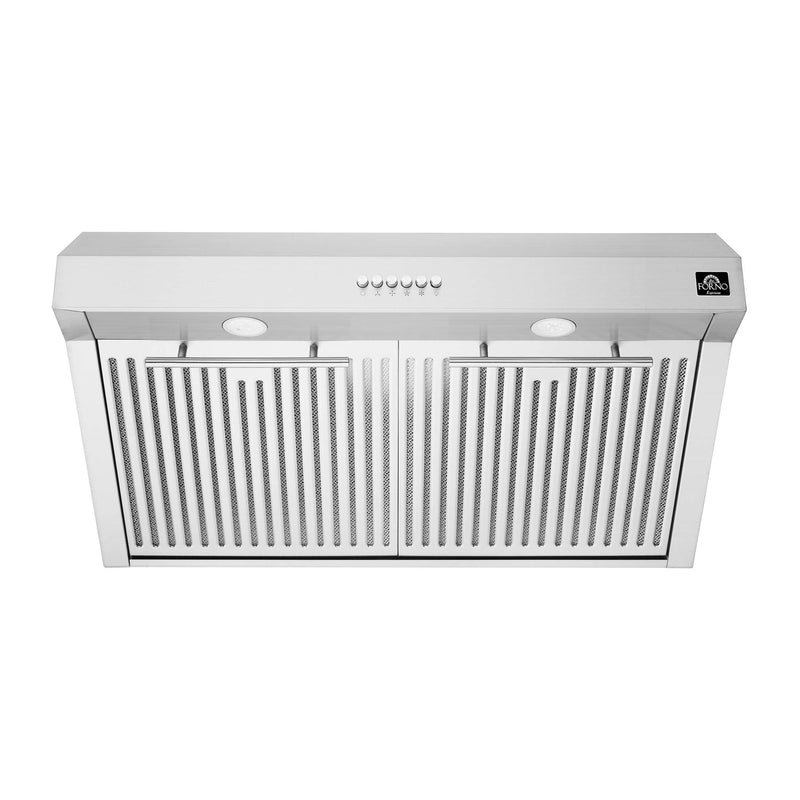

Forno presents the Bari 30 Inch Espresso Range Hood, an exceptional under-cabinet range hood that boasts an elegant stainless steel finish, adding a touch of sophistication to your kitchen space. With its powerful 400 CFM airflow, this range hood efficiently eliminates cooking odors, smoke, and airborne grease, ensuring a fresh and clean environment. The user-friendly 4-speed push button control allows you to adjust the ventilation settings effortlessly, providing optimal performance tailored to your needs. Illuminate your cooking area with two built-in LED surface lights, offering bright and even lighting for a delightful culinary experience. Equipped with durable hybrid filters, this range hood effectively traps grease and debris, ensuring easy maintenance and prolonging the lifespan of the appliance. Upgrade your kitchen with the versatile and high-performing under-cabinet range hood from Forno, where style meets functionality.
Features:
- Commercial Inclined Design, allowing it to capture more grease and odors efficiently
- Quiet, Powerful Squirrel Cage 4 Speed AC Motor. With 400CFM of Airflow
- Comes with 2 sets of handles allowing you to choose your look: Stainless Steel & Antique Brass
- 4 speed push button control makes it simple to adjust the fan speed according to your needs.
- Hybrid filters in range hoods work better by combining different filters, lasting longer, needing less maintenance, and handling various cooking smells and styles efficiently.
- Two LED surface lights offer long-lasting performance and energy efficiency with bright illumination of the cooking surface.
- Maximum power ventilation at a low noise level of 66dB allows you to enjoy an effective ventilation system without obtrusive noise disruption. Low setting delivers sound level of 55dB.
Specifications
| Weight & Dimensions | |
| Overall Dimensions W x D x H (In) |
30 X 16.5 X 12.75 |
| Minimum Height from Cooktop |
18 |
| Maximum Height from Cooktop |
25 |
| Cutout Dimensions W X D X H (In) |
29.8 X 12 x 12.75 |
| Overall Weight |
21.18 |
| Electrical Specs | |
| Amperage |
2.6 |
| Volts |
120 |
| Wattage |
310 |
| Power Source |
AC |
| Lighting Type |
LED |
| Bulb Type |
GU10 |
| Bulb Wattage |
5 |
| Lights Lumens |
600 |
| Power Cord Included |
No |
| Details | |
|
Mount Type
|
Under Cabinet
|
|
Color/Finish
|
Stainless Steel
|
|
Duct Shape
|
6" Round
|
| Blower Type |
PVC |
| Air Discharge Direction |
Vertically Upward |
| Exhaust Vent Location |
Roof / Wall |
|
CFM Specs |
|
| Maximum CFM |
400 |
| Minimum CFM |
220 |
| CFM speed 1 |
220 |
| CFM speed 2 |
305 |
| CFM speed 3 |
346 |
| CFM speed 4 |
400 |
|
Air Flow per Speed Level (m3/hour) |
|
| Air Flow Speed 1 (m3/hour) |
370 |
| Air Flow Speed 2 (m3/hour) |
518 |
| Air Flow Speed 3 (m3/hour) |
588 |
| Air Flow Speed 4 (m3/hour) |
672 |
|
RPM per Speed Level |
|
| RPM Speed 1 |
900 |
| RPM Speed 2 |
1310 |
| RPM Speed 3 |
1450 |
| RPM Speed 4 |
1650 |
|
Sones per Speed Level |
|
| Maximum Sones |
14.5 |
| Minimum Sones |
6.3 |
| Sones Speed 1 |
6.3 |
| Sones Speed 2 |
10.4 |
| Sones Speed 3 |
12.2 |
| Sones Speed 4 |
14.5 |
|
Decibels per Speed Level (dB) |
|
| Maximum Decibel (dB) |
66.6 |
| Minimum Decibel (dB) |
54.6 |
| Decibel Speed 1 (dB) |
54.6 |
| Decibel Speed 2 (dB) |
61.8 |
| Decibel Speed 3 (dB) |
64.1 |
| Decibel Speed 4 (dB) |
66.6 |
| Certifications | |
| ETL LIsted | Yes |
| Warranty | |
| Commercial Warranty |
No |
| Warranty Type |
Limited |
| Warranty Length |
2 Years |
| Warranty on Parts |
2 Years |
| Warranty on Labor |
2 Years |
