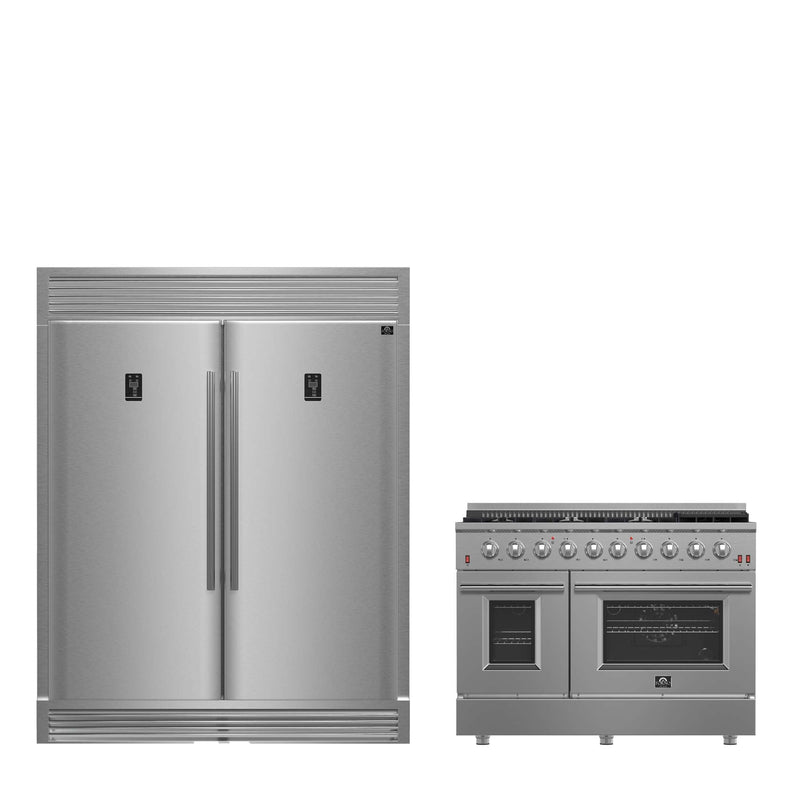

FORNO Premium 2-Piece Bundle - 48" Gas Burner, Electric Oven Range and 60" Refrigerator, FBDL-005-02CAUS
Range
SKU: FFSGS6156-48
Description

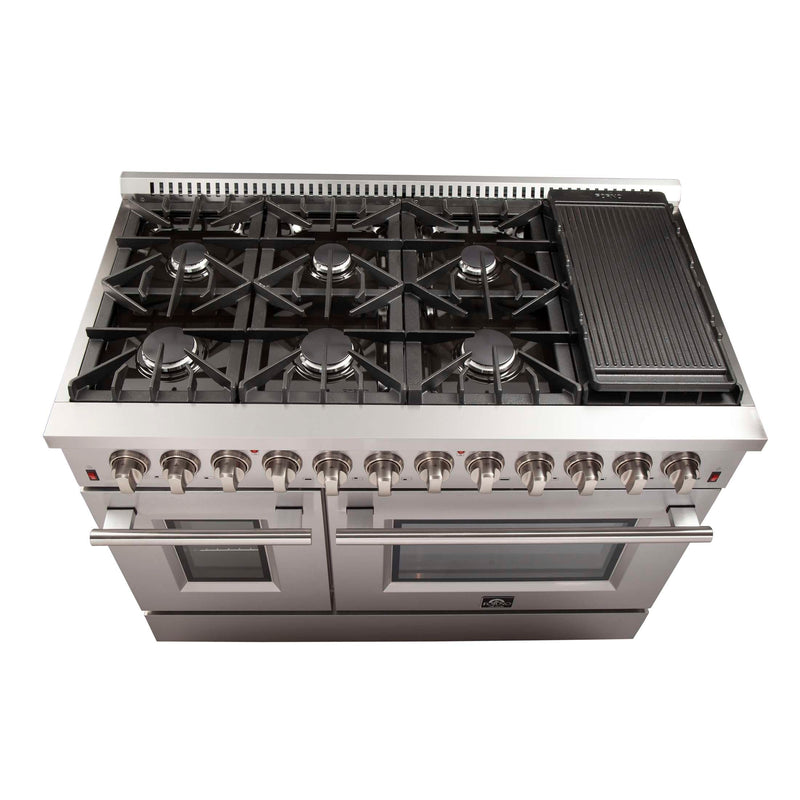

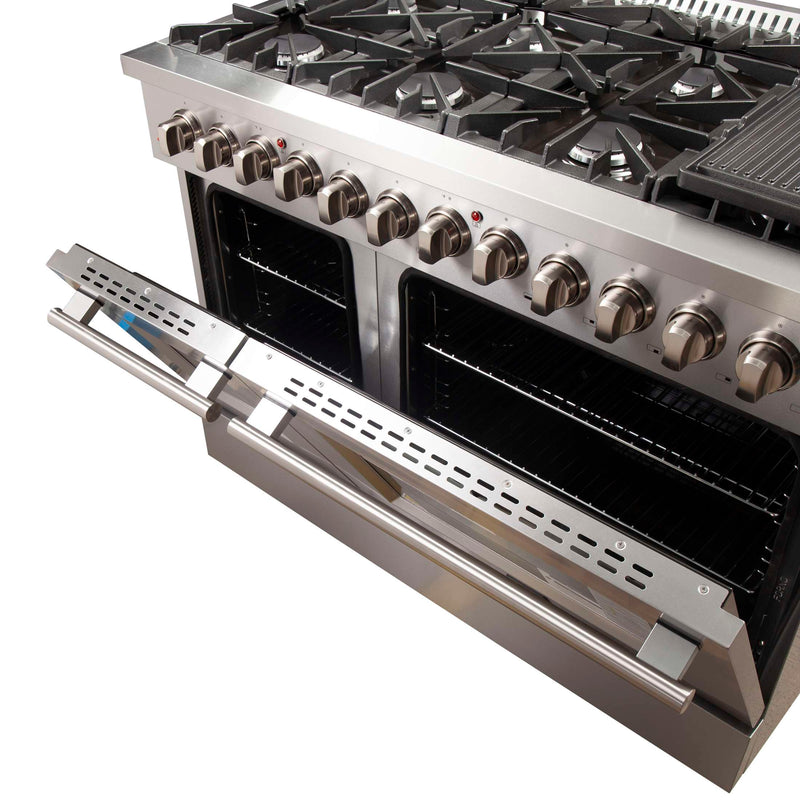

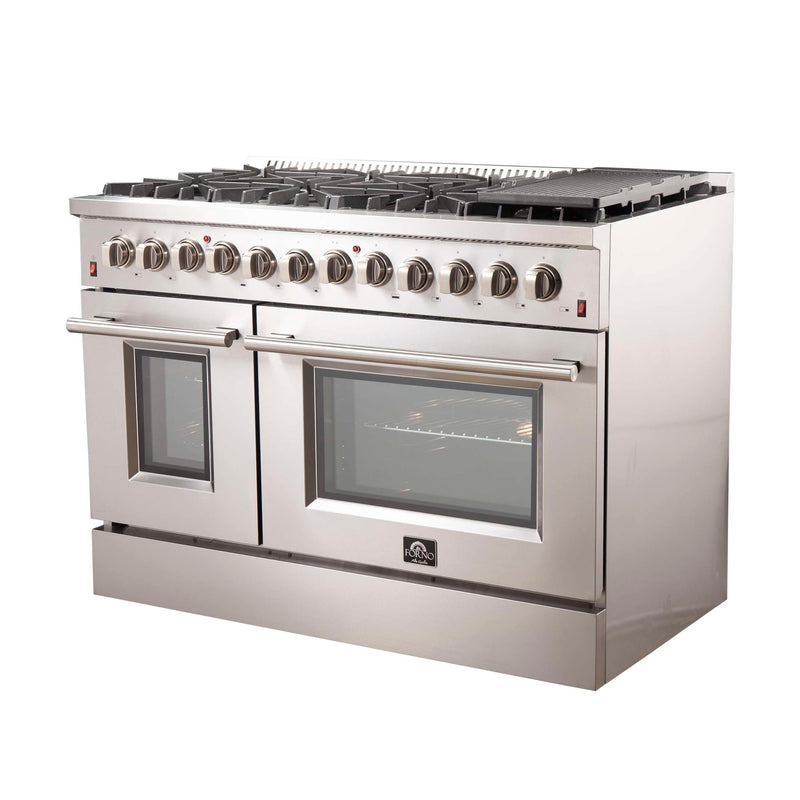

Introducing the Forno 48 Inch Galiano Dual Fuel Range, designed to bring professional style and quality to your kitchen with its robust stainless steel construction. This range features eight sealed burners, including a powerful 20,000 BTU double-ring burner, delivering a total of 107,000 BTU to meet all your cooking needs. Continuous cast-iron grates provide even heat distribution and stability for utensils. The enamel cooktop's recessed cavity ensures easy cleanup. It includes two electric ovens with a combined capacity of 6.58 cu.ft. and a total output of 9,700 Watts, housed in black enamel interiors with tempered three-layer glass doors. The right-side oven features a true convection system with a 1500 Watt fan heating element. Also included are an LP conversion kit, four electroplated oven racks, a griddle, and a NEMA 14-50P power cord. Zinc-coated metal knobs with bezel rings add a touch of lasting beauty.
Features:
Continuous Cast Iron Grates: Heavy duty cast iron grates make transferring heavy pots and pans over your burners easy.
Halogen Lighting: Makes the cooking process completely monitorable without the need to open the door.
Sealed Burners: Completely sealed burners Contain spills and allow for easy cleaning and maintenance.
cETLus: A cETLus certification which complies with the safety standards for the United States and Canada.
Convection Cooking: A convection oven circulates hot air with a fan. Unlike conventional radiant (also called thermal) ovens, convection ovens have a fan that continuously circulates air through the oven cavity. This allows food to cook faster and more evenly.
Specifications
| Dimensions | 48"W x 28"D x 38"H |
|---|---|
| Oven Interior Dimensions | Oven 1: 24.92”W x 16″H x 18.7”D Oven 2: 13.03”W x 16″H x 18.7”D |
| Burner Fuel | Natural or Propane Gas Shipped with a LP Conversion Kit |
| Oven Fuel | Electric |
| Electrical Requirement | 240 Volts / 40 amps |
| Oven Capacity (cu.ft) | 4.32 cu. ft. (large oven) 2.26 cu. ft. (small oven) |
| Number of Burners | 8 |
| Cooktop BTUs | Front Left Output: 15,000 Back Left Output: 9,000 Back Right Output: 15,000 Front Right Output: 20,000 Middle Front Left Output: 15,000 Middle Back Left Output: 9,000 Middle Front Right Output: 15,000 Middle Back Right Output: 9,000 |
| Material | Stainless Steel |
| Convection Fan | Yes |
| Warranty | 2 Years Parts and Labor |
| Weight | 366 lbs |
User Guide
Refrigerator
Description

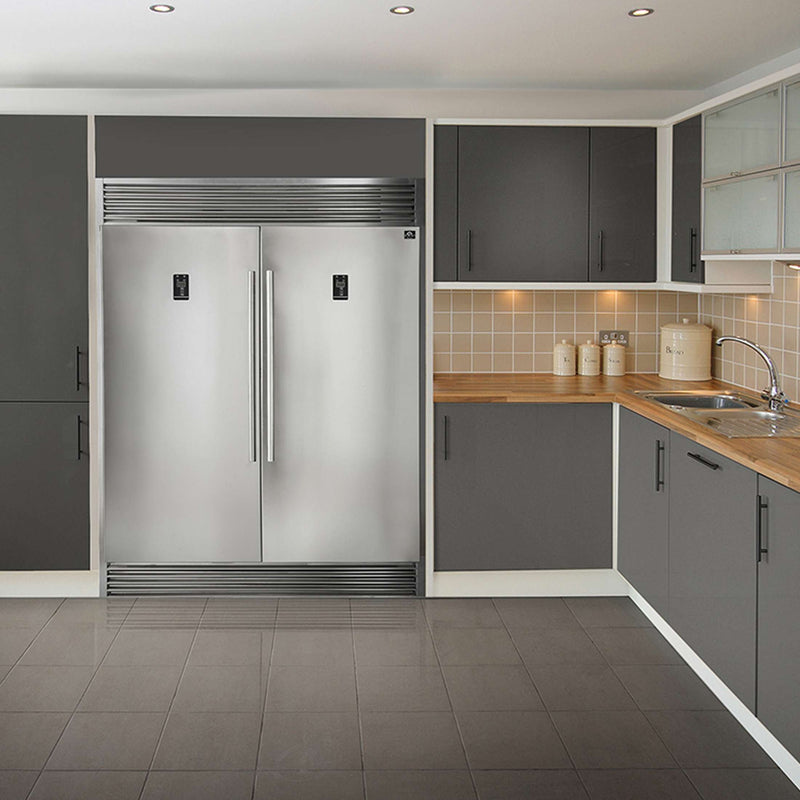

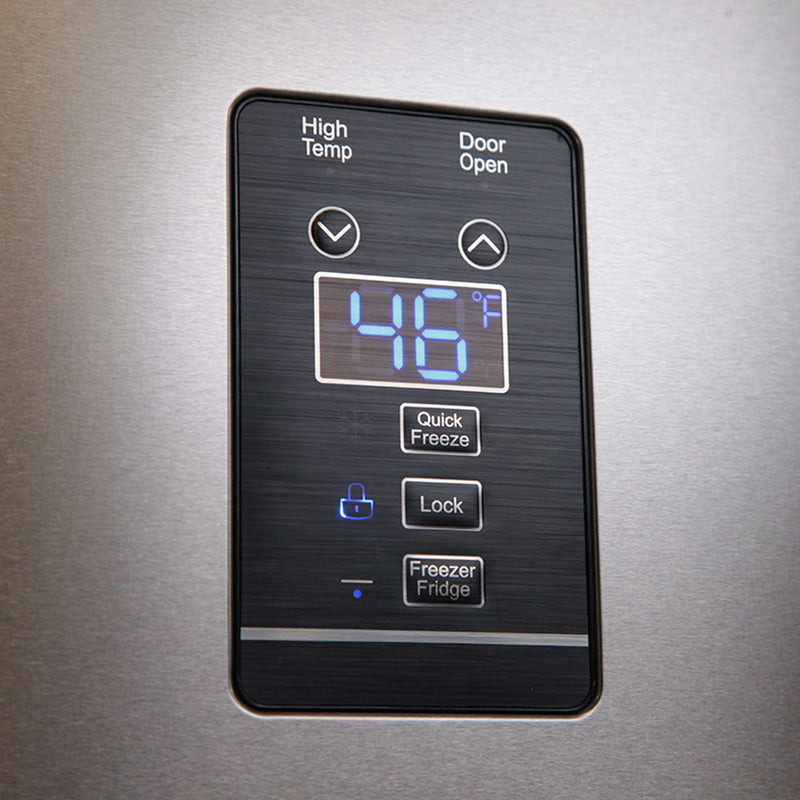

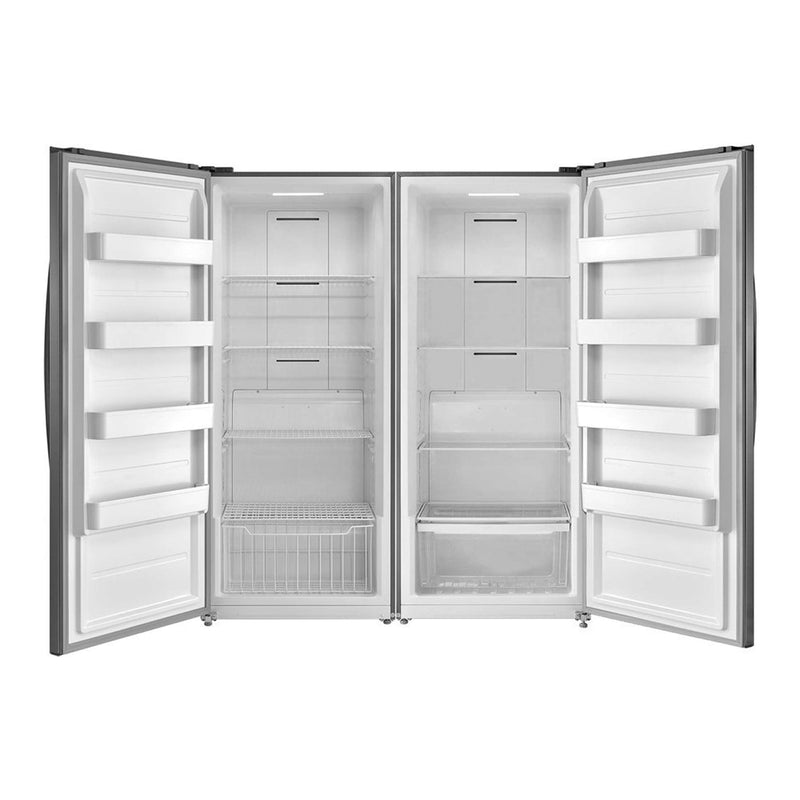

The Forno Maderno combines two 28 Inch refrigerators with decorative trim grill, extending to a 60 Inch width for a built-in appearance, harmoniously blending style with convenience. This combo offers ample storage space totaling 27.2 cu.ft. They feature customizable cooling with convertible function and total no frost technology, eliminating tedious defrosting. The side-by-side door design integrates seamlessly, while elegant glass shelves with silver trim and practical plastic door balconies enhance appeal and storage. Effortlessly switch between Fahrenheit and Celsius, aided by LED lighting for easy item location. Six glass shelves and six plastic drawers with silver trim provide flexible storage, and temperature settings are easily managed with the electronic touch control panel. The VCM door panel and metal back ensure durability, and the combo is T Climate Class certified with an E-star energy rating for sustainability.
Features:
- Convertible Function. Effortlessly transition between Refrigerator and Freezer modes
- Captivating Design. Seamless blend of sleek, modern aesthetics and top-notch functionality
- Organizational Options. 8 shelves, 8 door bins, and 6 storage drawers that can be easily removed
- Precise Temperature Control. Dual-zone frost-free refrigerator/freezer with two inverter compressors
- Durable and Low-Maintenance. VCM stainless-steel door is scratch, fingerprint, and stain-resistant
- Ideal for Limited Space. Provides safe storage for food and beverages within limited space
- Optimal Temperatures. Tailor two separate cooling zones to perfection for fresh ingredients and frozen items
- Super Cool and Super Freeze Functions. Swiftly reach the ideal storage temperature for groceries
- ENERGY STAR Certified. Save money on energy bills with an annual operating cost of $110
- High-Efficiency LED lightning. Even and consistent illumination throughout the refrigerator/freezer
Specifications
| Overall Dimensions | Without Grill Trim: 55.5" W x 29.7" D x 67.7" H With Grill Trim: 59.76" W X 29.7" D X 84" H |
|---|---|
| Cutout Dimensions | 55.9" W X 28.94" D X 69.06" H |
| Counter Depth | Yes |
| Overall Capacity | 27.2 cu. ft. |
| Material | Stainless Steel VCM |
| Weight | 330 lbs |
| Product Type | Side by Side |
| Installation Type | Built-In (base platform required) |
| Electrical Requirements | Requires a minimum of 120V/60HZ/15A |
| Estimated Annual Operating Cost | $110USD |
| Control Type | Touch Control |
| Control Location | Internal |
| Temperature Range Refrigerator (°F) | 36°F to 46°F |
| Temperature Range Freezer (°F) | - 11°F to 7°F |
| Cooling System | Multi Air Flow |
| Compressor Type | Inverter Compressor |
| Defrost Type | Automatic |
| Adjustable Shelves | 2 (1 per fridge) |
| Ice Maker | No |
| Water Dispenser | No |
| Power Cord Length (Plug Included) | 5.8 ft. |
| Plug Type | 3-Prong Grounded NEMA 5-15 |
| Energy Star | Yes |
| Certifications | UL Listed |
| Warranty | 2 Year Limited Warranty |
