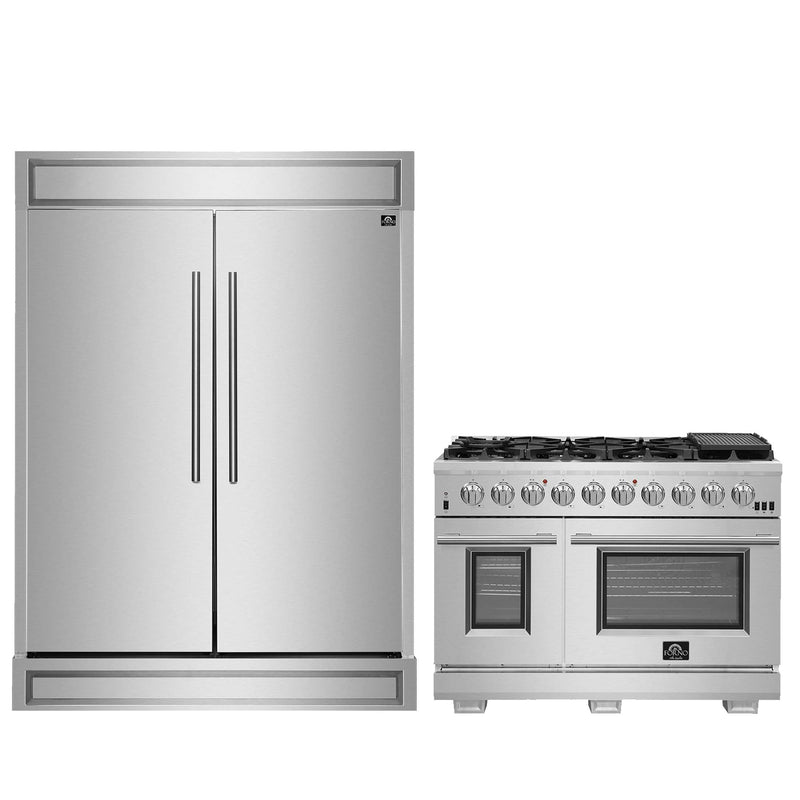

FORNO Premium 2-Piece Kitchen Bundle - Capriasca 48" Stainless Steel Range, Forno Maderno 2-28 " Wide Units with Decorative Trim, FBDL-019-06CAUS
Range
SKU: FFSGS6260-48
Description

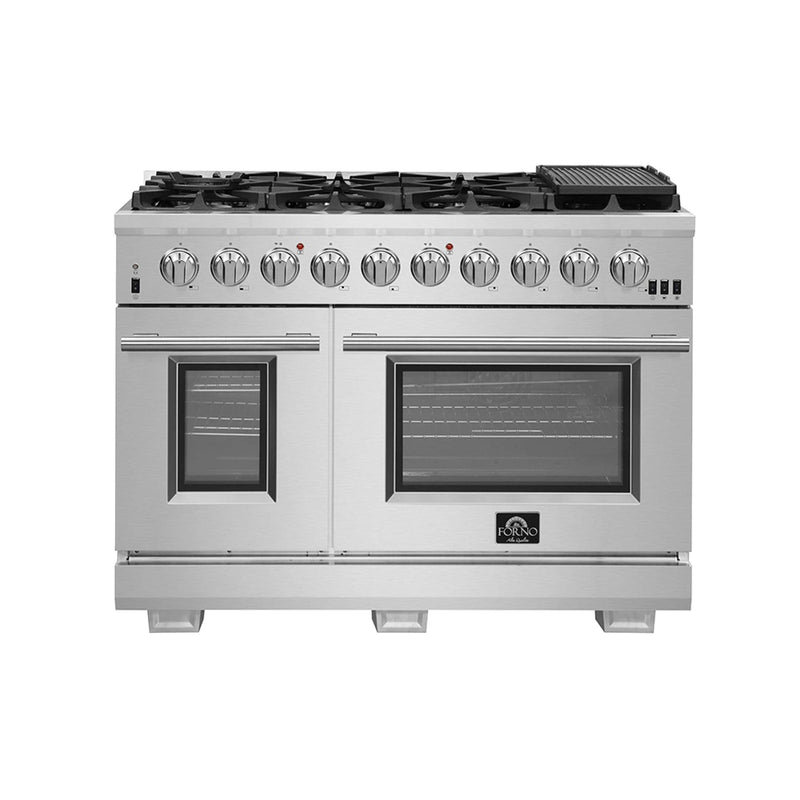

The Forno Capriasca 48 Inch Gas Range enhances your home kitchen with professional styling and performance through its durable and beautiful 304-grade stainless-steel design. The cooking surface features 8 sealed dual-ring brass burners, totaling 160,000 BTU. All burners, each at 20,000 BTU, can simmer precisely at 1,000 BTU. Continuous heavy-duty cast-iron grates facilitate easy sliding of pots or pans off heat over the enamel cooktop cavity, simplifying spill cleanup. The cumulative 6.58 cu. ft. double ovens, with a 44,000 BTU output, are enclosed in a blue enamel interior. The 4.32 cu.ft. main oven offers a powerful infrared mesh broiler, a rotisserie skewer and a convection fan for precise, and consistent cooking on multiple levels. The package includes 6 telescopic stainless-steel oven racks, 1 rotisserie kit, wok support, griddle and an LP conversion kit. Additionally, zinc-coated illuminated metal knobs with bezel rings ensure enduring beauty.
Features:

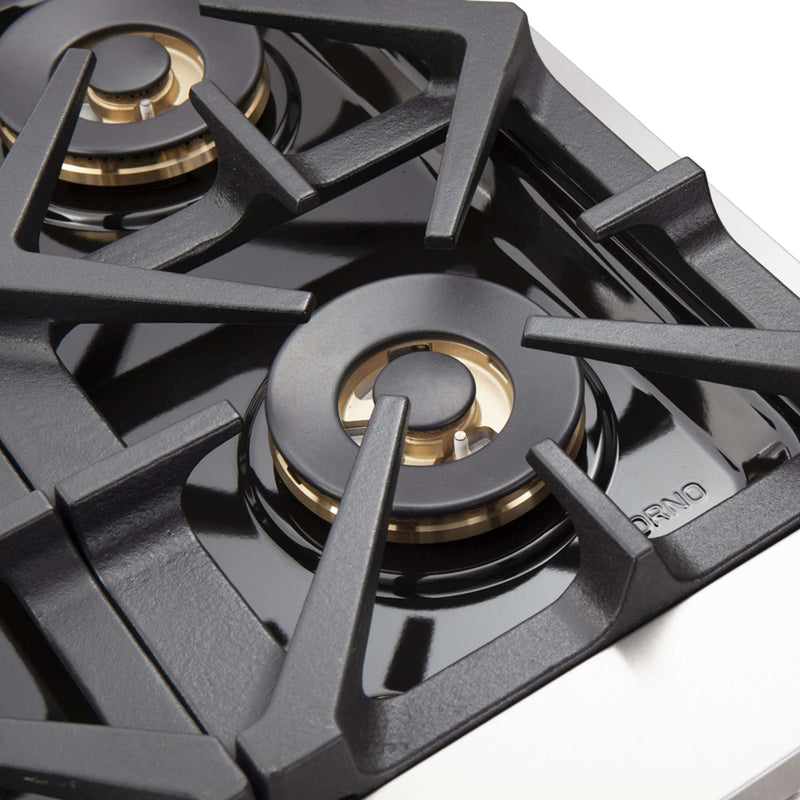

Brass Burners: Elegant brass burners effectively channel heat for desired cooking results.
Halogen Lighting: Makes the cooking process completely monitorable without the need to open the door.
Continuous Cast Iron Grates: Heavy duty cast iron grates make transferring heavy pots and pans over your burners easy.
Sealed Burners: Completely sealed burners Contain spills and allow for easy cleaning and maintenance.
cETLus: A cETLus certification which complies with the safety standards for the United States and Canada.
Convection Cooking: A convection oven circulates hot air with a fan. Unlike conventional radiant (also called thermal) ovens, convection ovens have a fan that continuously circulates air through the oven cavity. This allows food to cook faster and more evenly.
Additional Features:
- Stainless Steel 304
- Control Panel
- Oven Door
- Bottom Front Panel
- Cavity Top Plate
- Stainless Steel 430
- Back Splash
- Side Panel
- Cast Iron Grates Heavy Duty
- Wok Ring + BBQ Cook Plate Reversible Accessory
- Black Enameled Cooktop
- Night Light Red LED Automatic Magic Eyes
- Illuminated Zinc Knobs
- Pro-Style Handle
- Oven Door Glass 3 Layers
- Blue Enameled Oven Interior
- 3 Halogen Oven Lights
- Rotisserie kits
- 6 Telescopic Stainless Steel Racks (5mm & 7mm)
- Thermostat, Regulator and SafetyValves
- Adjustable Stainless Steel Legs ( from 37.4” to 38.4”)
- Leg Stainless Steel SquareCover
- LP Kit Included
- Fuel Type: Natural Gas/PL
- Automatic Ignition

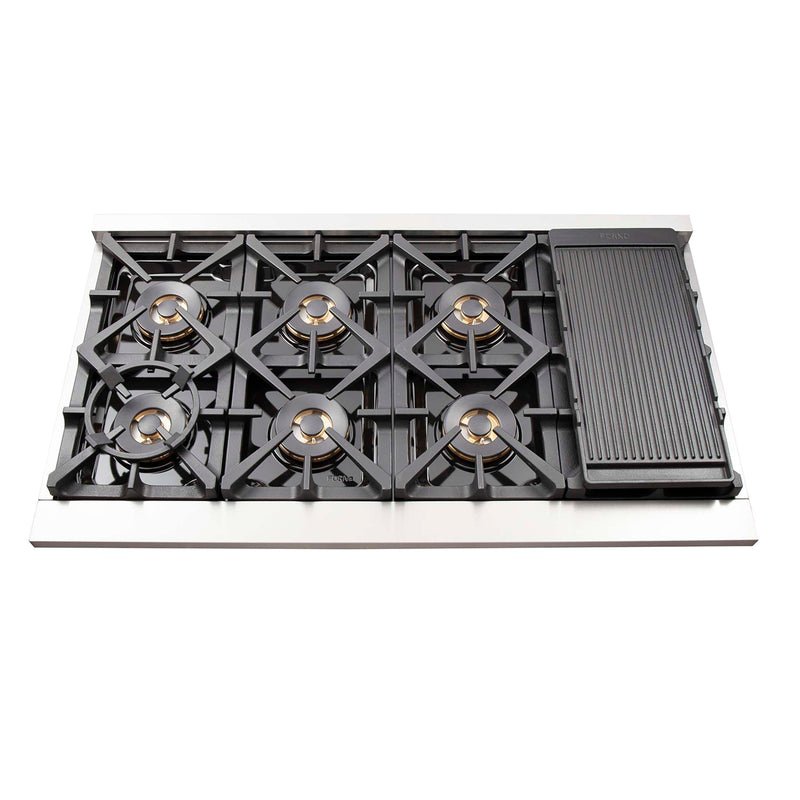

Cooktop Features:
- 8 Italian Defendi BrassBurner
- Sealed Dual Burner BTU: 20,000 /Sim 1,000BTU*8
Oven Features:
- Oven 30”Capacity: 4.32 cu. ft
- Broil Infrared Top 10,000 BTU
- Bottom 22,000 BTU U Tube Auto-Ignition
- Convection Fan
- Oven 18” Capacity : 2.26 cu.ft
- 120 Volt 60 Hz
- Circuit Breaker 15 Amps
- High end
Specifications
| Dimensions | 48" W x 28"D x 37.4"H |
|---|---|
| Burner Fuel | Natural Gas |
| Oven Fuel | Natural Gas |
| Eletrical Requirement | 120 Volts / 15 amps |
| Oen Capacity (cu.ft) | 4.32 cu. ft. (large oven) 2.26 cu. ft. (small oven) |
| Number of Burners | 8 |
| Cooktop BTUs | Front Left Output: 20000 Back Left Output: 20000 Back Right Output: 20000 Front Right Output: 20000 Middle Front Left Output: 20000 Middle Back Left Output: 20000 Middle Front Right Ouput: 20000 Middle Back Right Output: 20000 |
| Oven BTUs | 22000 |
| Material | Stainless Steel |
| Convection Fan | Yes |
| Warranty | 2 Years |
| Weight | 413.36 lbs |
User Guide
Refrigerator
SKU: FFFFD1722-60S
Description

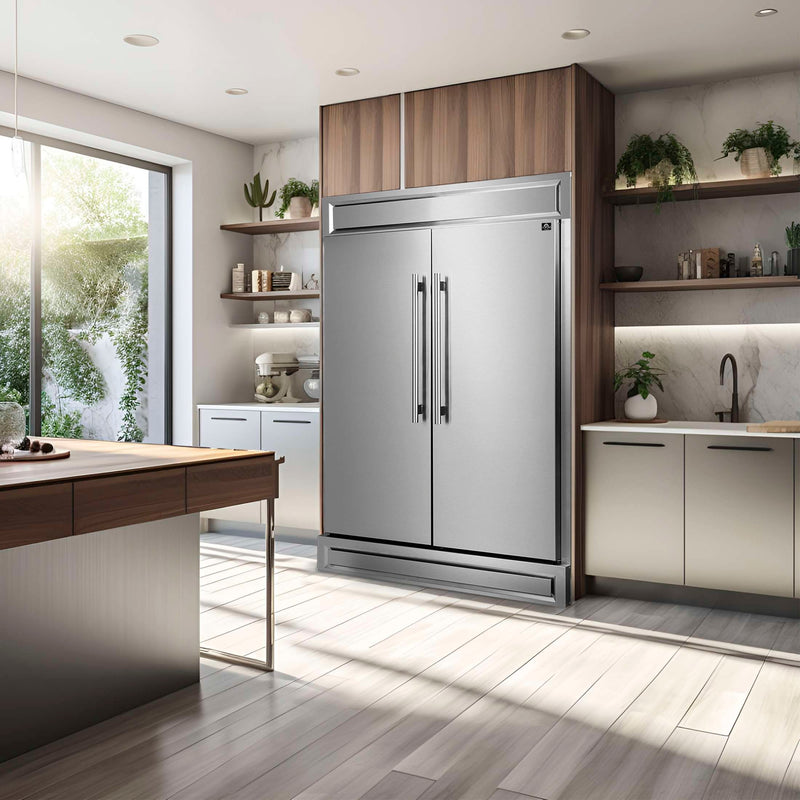

The Forno Maderno combines two 28 Inch refrigerators with decorative trim grill, extending to a 60 Inch width for a built-in appearance, harmoniously blending style with convenience. This combo offers ample storage space totaling 27.2 cu.ft. They feature customizable cooling with convertible function and total no frost technology, eliminating tedious defrosting. The side-by-side door design integrates seamlessly, while elegant glass shelves with silver trim and practical plastic door balconies enhance appeal and storage. Effortlessly switch between Fahrenheit and Celsius, aided by LED lighting for easy item location. Six glass shelves and six plastic drawers with silver trim provide flexible storage, and temperature settings are easily managed with the electronic touch control panel. The VCM door panel and metal back ensure durability, and the combo is T Climate Class certified with an E-star energy rating for sustainability.
Features:
- Convertible Function. Effortlessly transition between Refrigerator and Freezer modes
- Captivating Design. Seamless blend of sleek, modern aesthetics and top-notch functionality

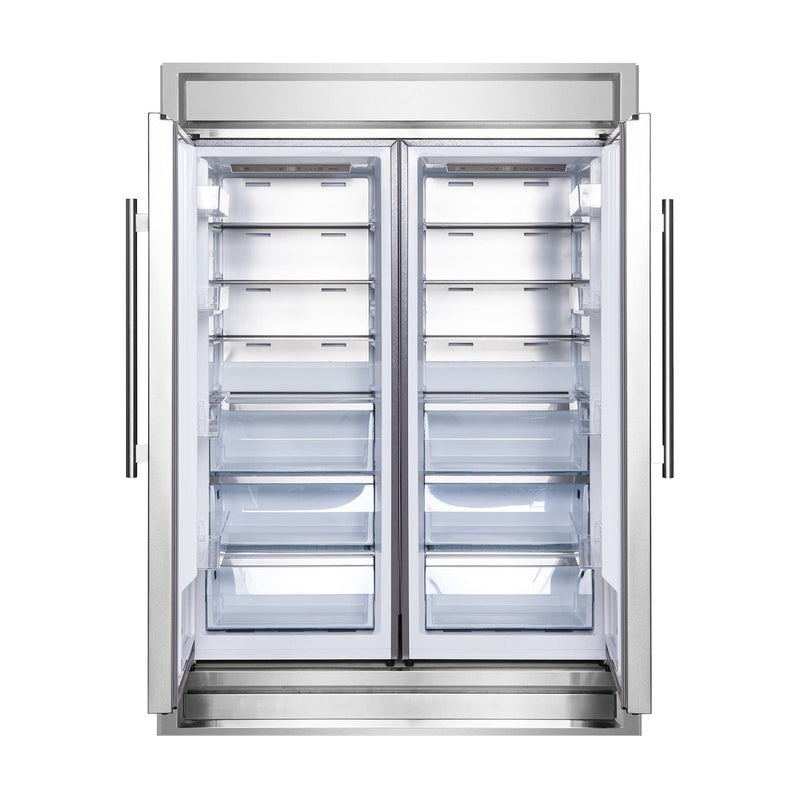

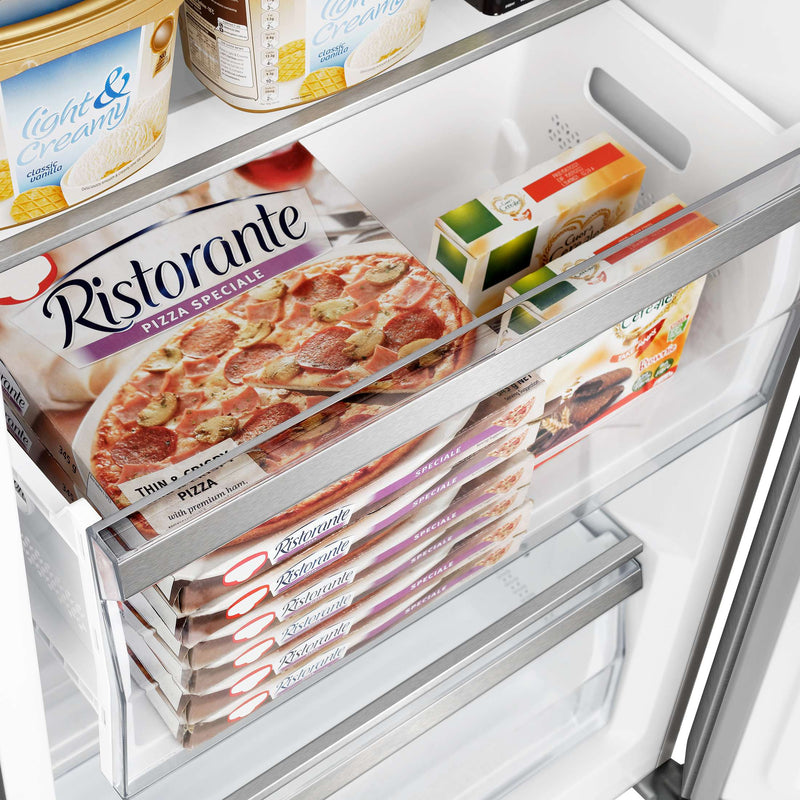

- Organizational Options. 8 shelves, 8 door bins, and 6 storage drawers that can be easily removed
- Precise Temperature Control. Dual-zone frost-free refrigerator/freezer with two inverter compressors
- Durable and Low-Maintenance. VCM stainless-steel door is scratch, fingerprint, and stain-resistant
- Ideal for Limited Space. Provides safe storage for food and beverages within limited space
- Optimal Temperatures. Tailor two separate cooling zones to perfection for fresh ingredients and frozen items
- Super Cool and Super Freeze Functions. Swiftly reach the ideal storage temperature for groceries
- ENERGY STAR Certified. Save money on energy bills with an annual operating cost of $110
- High-Efficiency LED lightning. Even and consistent illumination throughout the refrigerator/freezer
*The installation of this product requires a base to be built for the refrigerator.
Specifications
| Overall Dimensions | Without Grill Trim: 55.5" W x 29.7" D x 67.7" H With Grill Trim: 59.76" W X 29.7" D X 84" H |
|---|---|
| Cutout Dimensions | 55.9" W X 28.94" D X 69.06" H |
| Counter Depth | Yes |
| Overall Capacity | 27.2 cu. ft. |
| Material | Stainless Steel VCM |
| Weight | 330 lbs |
| Product Type | Side by Side |
| Installation Type | Built-In (base platform required) |
| Electrical Requirements | Requires a minimum of 120V/60HZ/15A |
| Estimated Annual Operating Cost | $110USD |
| Control Type | Touch Control |
| Control Location | Internal |
| Temperature Range Refrigerator (°F) | 36°F to 46°F |
| Temperature Range Freezer (°F) | - 11°F to 7°F |
| Cooling System | Multi Air Flow |
| Compressor Type | Inverter Compressor |
| Defrost Type | Automatic |
| Adjustable Shelves | 2 (1 per fridge) |
| Ice Maker | No |
| Water Dispenser | No |
| Power Cord Length (Plug Included) | 5.8 ft. |
| Plug Type | 3-Prong Grounded NEMA 5-15 |
| Energy Star | Yes |
| Certifications | UL Listed |
| Warranty | 2 Year Limited Warranty |
