FORNO Maderno 32" 13.6 cu.ft. Left Swing Convertible Refrigerator and Freezer with Modern Trim Kit in Stainless Steel- FFFFD1722-32LSG
Product Overview:
The Forno Maderno 28-inch refrigerator offers a built-in look with a decorative grill to upgrade it to 32-inch width for seamless kitchen integration. With 13.6 cu.ft. of capacity and a Convertible Cooling Zone, it delivers flexible storage and functionality. Total No-Frost Technology eliminates manual defrosting, while the Metal Multi-Airflow system maintains consistent freshness. Inside, 3 glass shelves and 3 drawers with silver trims maximize organization. The swing door design and intuitive electronic touch control panel enhance everyday convenience. VCM doors, a metal back panel, and Energy Star Certification ensure durability and efficiency.
- Decorative Trim Grill: Extends to a 32-inch refrigerator for a built-in appearance.

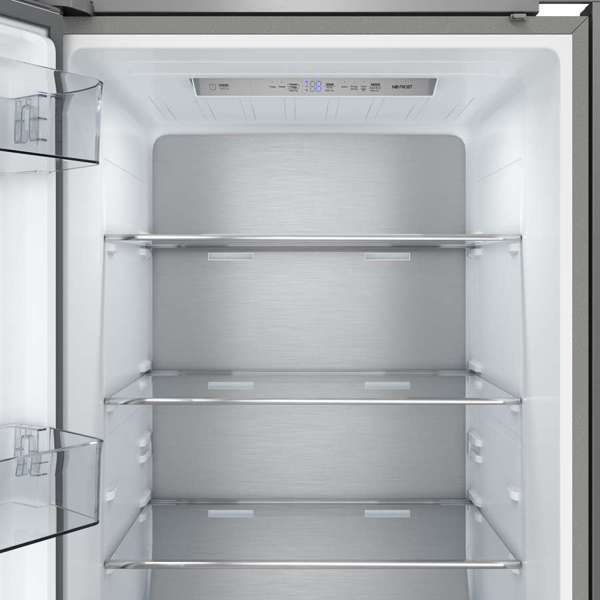

- Spacious Storage: 3 shelves, 4 door bins, and 3 removable drawers provide organized storage solutions.
- Advanced Cooling Functions: Super Freeze & Super Cool function for rapid temperature adjustments.
- Durable Finish: VCM stainless steel door resists scratches, dents, smudges, and stains.
- Energy Efficient: Energy Star Certification saves money and supports a greener environment.
Installation Disclaimer: This side-by-side refrigerator is a built-in system composed of two separate components, delivered as follows:
- FFFFD1722-28-LS – Left Swing Unit
- Grill Trim Kit
Electrical Requirements: The refrigeration unit must be connected to its own dedicated 15-amp circuit breaker. Please ensure the proper electrical infrastructure is in place prior to installation.
Platform Base Requirement: A built platform base is required to support proper installation. The platform must extend fully beyond the cabinet opening. If the platform does not extend out of the opening, the lower trim kit cannot be installed correctly.
Important: Failure to follow these installation requirements may result in:
- Improper setup or alignment
- Inability to install trim kit components
- Potential voiding of the product warranty
Specs
| DIMENSIONS | |
|---|---|

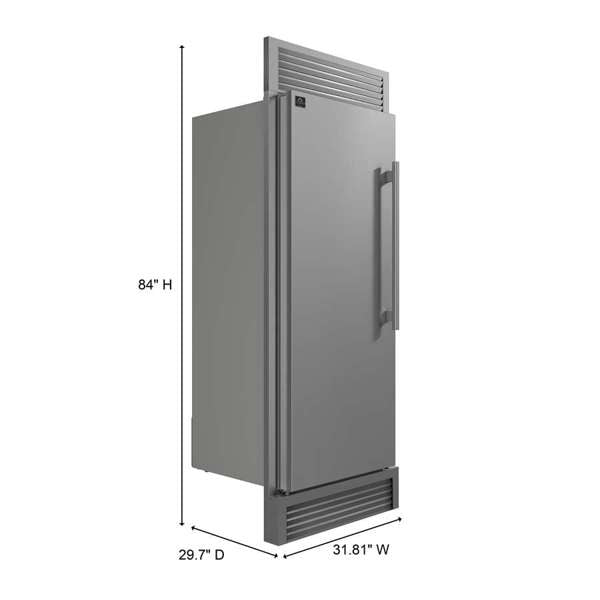

| Product Dimensions | 31.81" W X 29.7" D X 84" H |
| Cutout Dimensions | 28" W x 28.94" D x 69.1"H |
| Overall Capacity | 13.6 cu. ft. |
| Weight | 165 lbs |
| FEATURES | |
|---|---|
| Installation Type | Built-In (base platform required) |
| Counter Depth | Yes |
| Color | Stainless Steel |
| Number of Adjustable Shelves | 3 |
| Number of drawers | 3 |
| Control Type | Electronic Touch Control |
| Control Location | Internal |
| Temperature Range Refrigerator | 36°F to 46°F |
| Temperature Range Freezer | - 11°F to 7°F |
| Cooling System | Multi Air Flow |
| Compressor Type | Inverter Compressor |
| Defrost Type | Automatic |
| Ice Maker | No |
| Water Dispenser | No |
| Water Pipe Included | No - not required |
| Sabbath Mode | No |
| Door Ajar Sound Alarm | Yes |
| ELECTRICAL REQUIREMENTS | |
|---|---|
| Volts | 115 V |
| Frequency | 60 Hz |
| Running Amperage | 3.8 A |
| Circuit Breaker Amperage | 15 A |
| Plug Type | NEMA 5-15P |
| Power Cord Included | Yes |

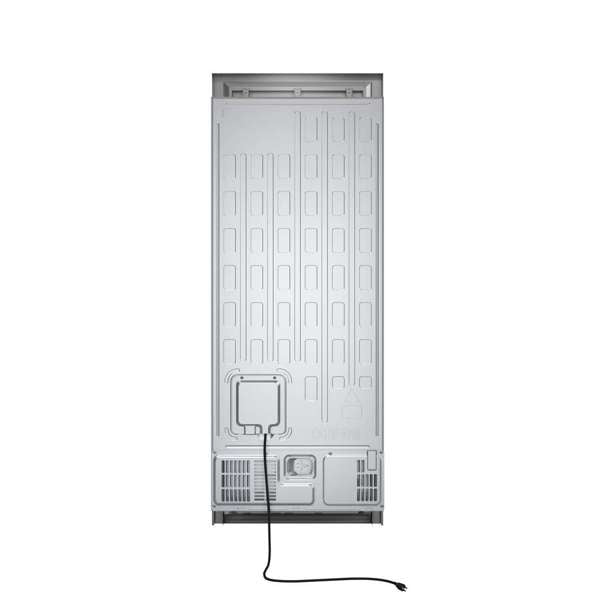

| Power Cord Location | Lower Back |
| Power Cord Length | 5.57 ft. |
| Estimated Annual Operating Cost | $55 USD |
| WARRANTY & CERTIFICATIONS | |
|---|---|
| Warranty | 2 Year Parts & Labor |
| Certifications | Energy Star, UL Listed |
| Commercial Use | No (Warranty will be void if used in a commercial setting) |
| ASSEMBLY | |
|---|---|
| Installation Disclaimer | Built-in unit includes left swing-door refrigerator and trim kit. Requires a 15A dedicated circuit and a full platform base extending past the cabinet opening for proper trim installation. |
