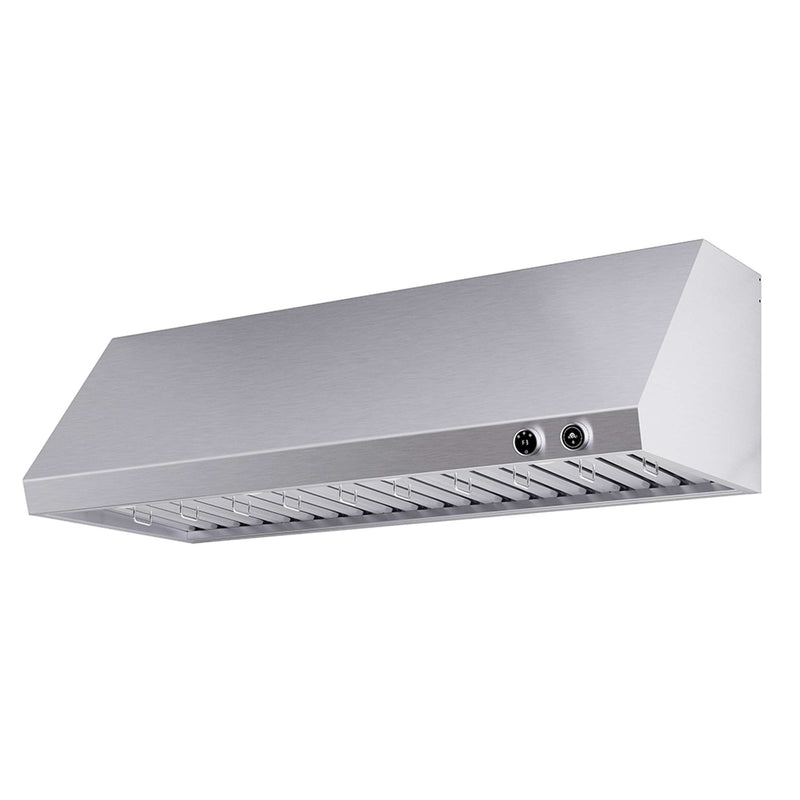

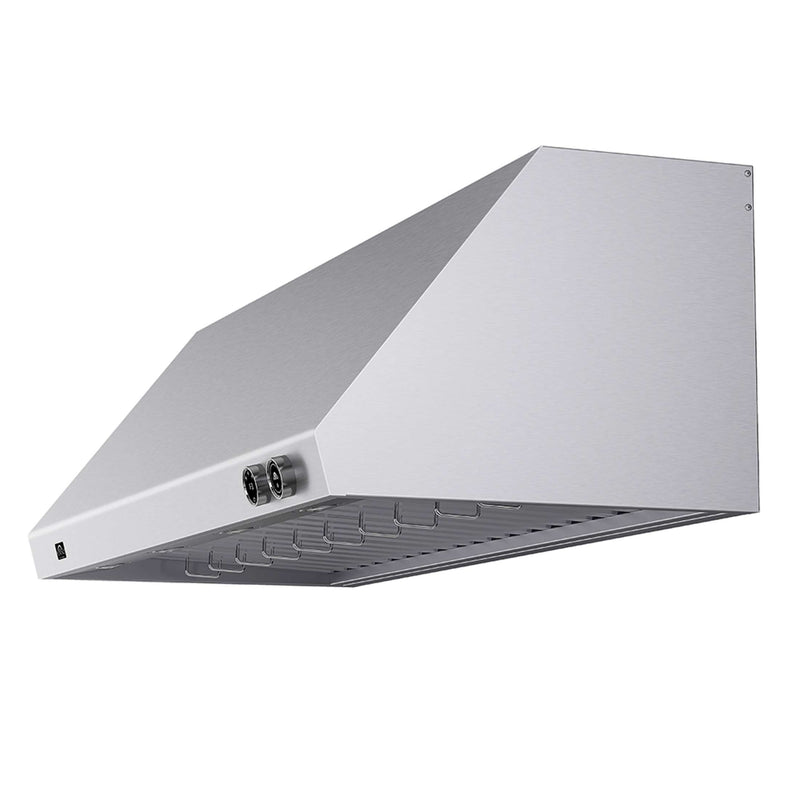

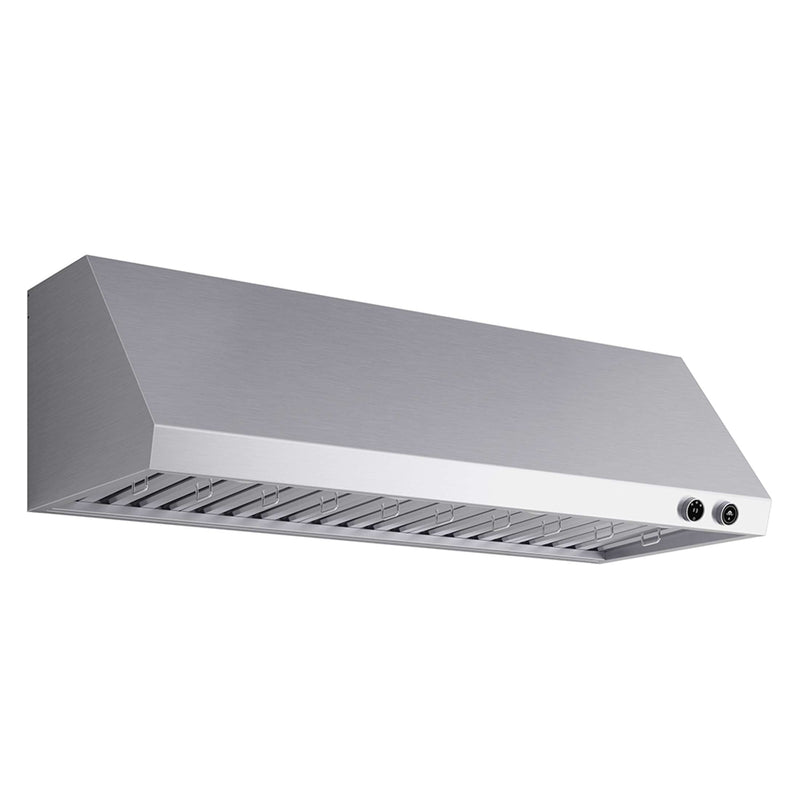

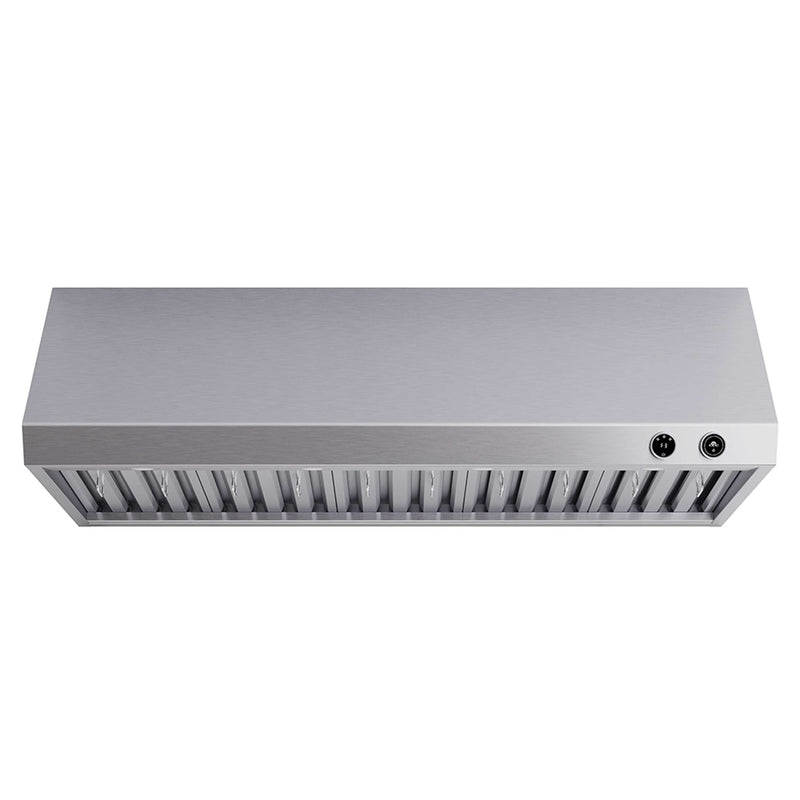

FORNO Biagio 60" Wall Mounted Range Hood, FRHWM5009-60
Product Overview:
The Forno Biagio 60" Wall Mounted Range Hood is the ultimate choice for expansive kitchens, featuring a high-capacity 1200 CFM motor for exceptional ventilation. Its Stainless Steel construction offers durability and style, while the knob control ensures precise airflow settings. The included baffle filter maximizes grease trapping efficiency, making it a perfect addition for high-performance kitchens.
Features:
- Powerful Dual Motor (1200 CFM) - Eliminates smoke, odors, and grease for heavy-duty cooking.

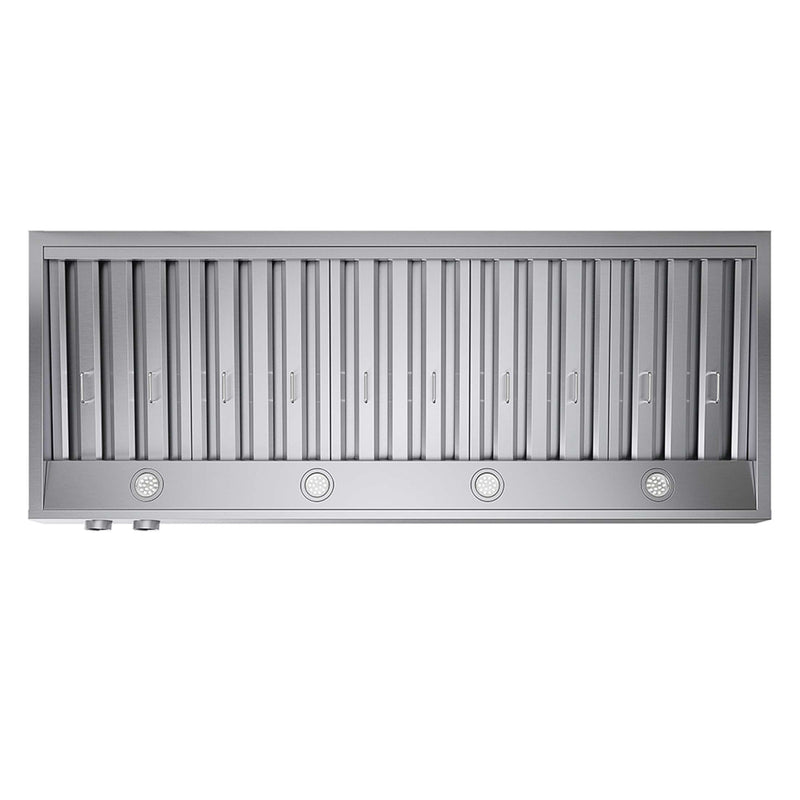

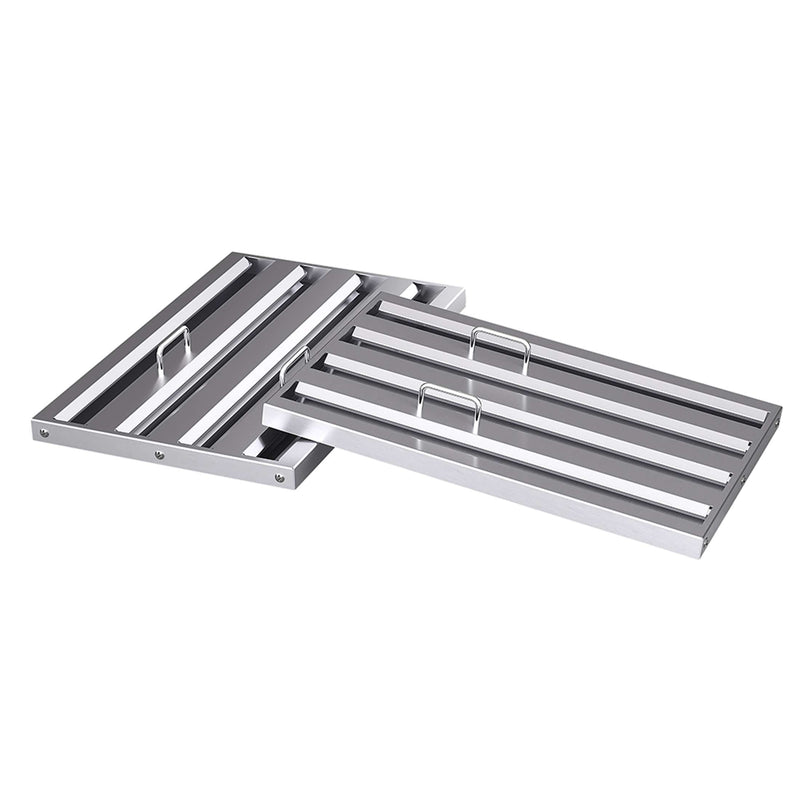

- Heavy-Duty Baffle Filters - Traps grease, easy to clean, and durable.
- Quiet Performance - Operates at lower noise levels.
- Bright, dimmable LED lights provide clear, customizable visibility for a well-lit cooking experience.
- Ducted Ventilation - Ensures efficient air expulsion during heavy cooking.
- Wide Coverage - Ideal for 48" cooktops, capturing steam, grease, and odors.
- 3-Speed Fan Control - Versatile settings for different cooking needs.

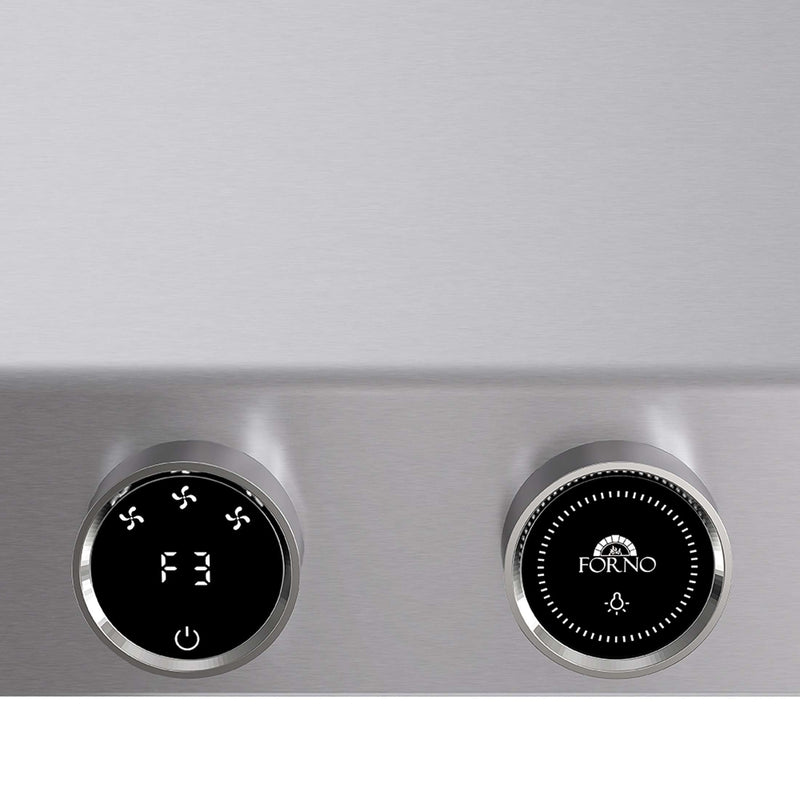

- Effortlessly adjust fan speed and lighting with intuitive knob controls for precise cooking.
- Durable Stainless Steel - Resists heat, stains, and rust for long-lasting beauty.
- Power-Off Delay (5 min) - Touch the power button once to activate a 5-minute delay; touch it again to turn off the range hood.Touch the power button once to activate a 5-minute delay; touch it again to turn off the range hood.
Specs
|
Weight and Dimensions |
|

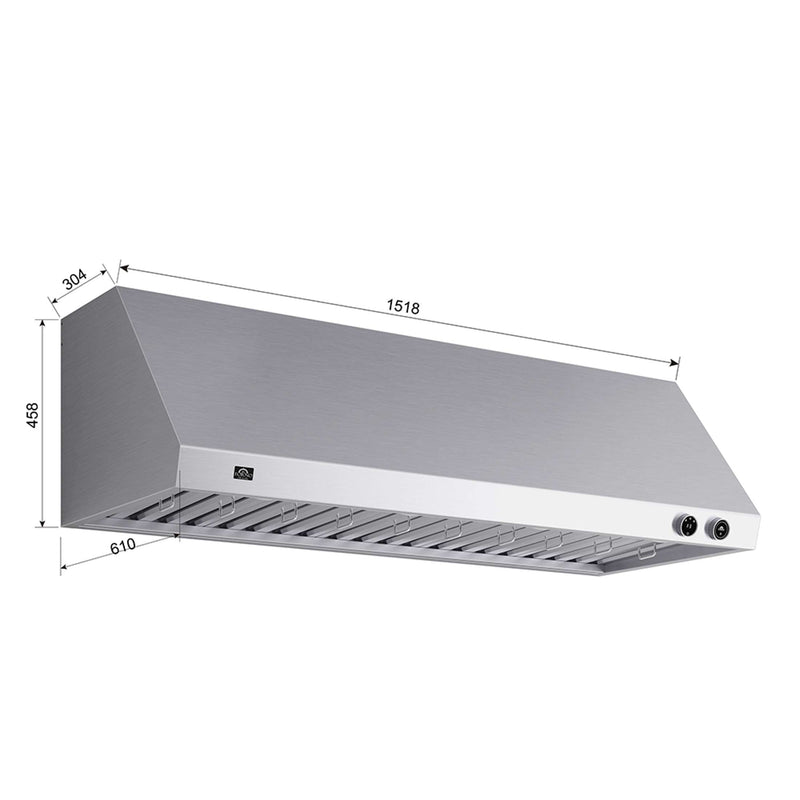

| Product Dimensions W x D x H (inches) |
59.8” x 24” x 18” |
| Packaging Dimensions (WxDxH)(in) |
34” x 24” x 33 |
| Net Weight (lbs & kg) | 60lbs | 27 kg |
| Shipping Weight (lbs) | Yes |
|
Capacity
|
|
|
# Speed levels
|
3 |
|
CFM
(cubic feet per minute) |
Level 1 700 CFM Level 2 900 CFM Level 3 1,200CFM |
|
Air flow
|
Level 1 1,190 m3/hr Level 2 1,530 m3/hr Level 3 2,040 m3/hr |
|
RPM
(Revolutions Per Minute |
Level 1 500 Level 2 630 Level 3 800 |
|
Noise Level at each speed
|
Level 1 56 dB Level 2 61 dB Level 3 67 dB |
|
Appearance
|
|
|
Size
|
60" |
|
Unit Color
|
Stainless steel |
|
Ventilation Type
|
Ducted |
|
Technical Specifications
|
|
|
Running Amperage
|
4 Amps |
|
Circuit Breaker Amperage
|
15 Amps |
|
Volts
|
120V |
|
Motor Power
|
80 Watts |
|
Frequency
|
60 |
|
Receptacle Type
|
Nema 5-15P |
|
Power Cord Length (ft)
|
4 |
|
Features
|
|
|
Control type
|
Knob Control |
|
Number of Hood filters
|
5 |
|
Hood Filter Type
|
Baffle |
|

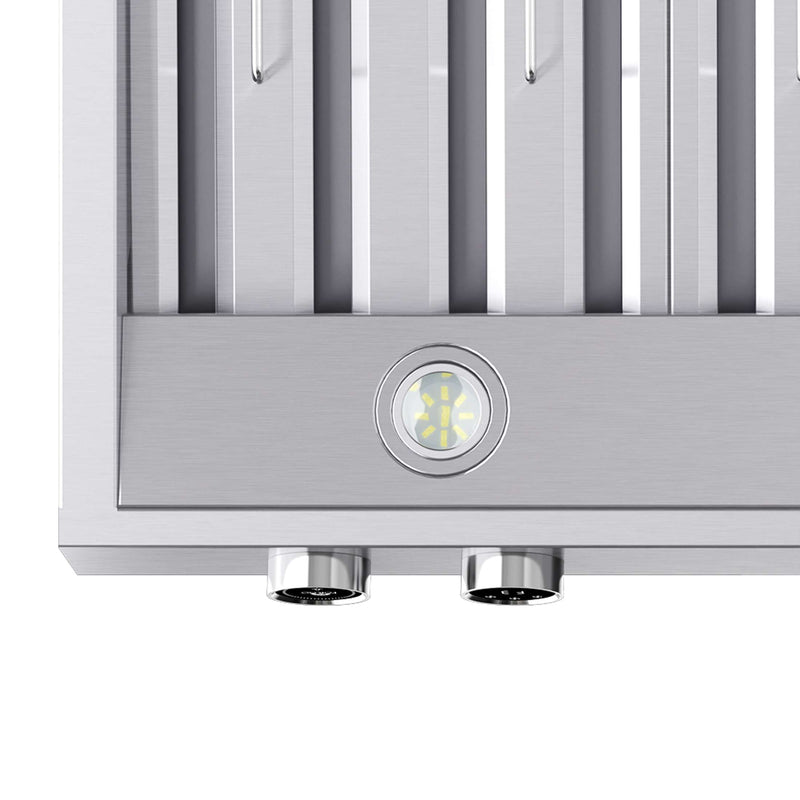

Light Type
|
LED Bulb (gu10) |
|
Number of Lights
|
4 |
|
Dimmable Lighting
|
Yes |
|
Automatic Shut-Off Timer
|
Yes |
|
Auto. Shut-off Timer Duration
|
5 min. |
|
Number of Motors
|
2 |
|

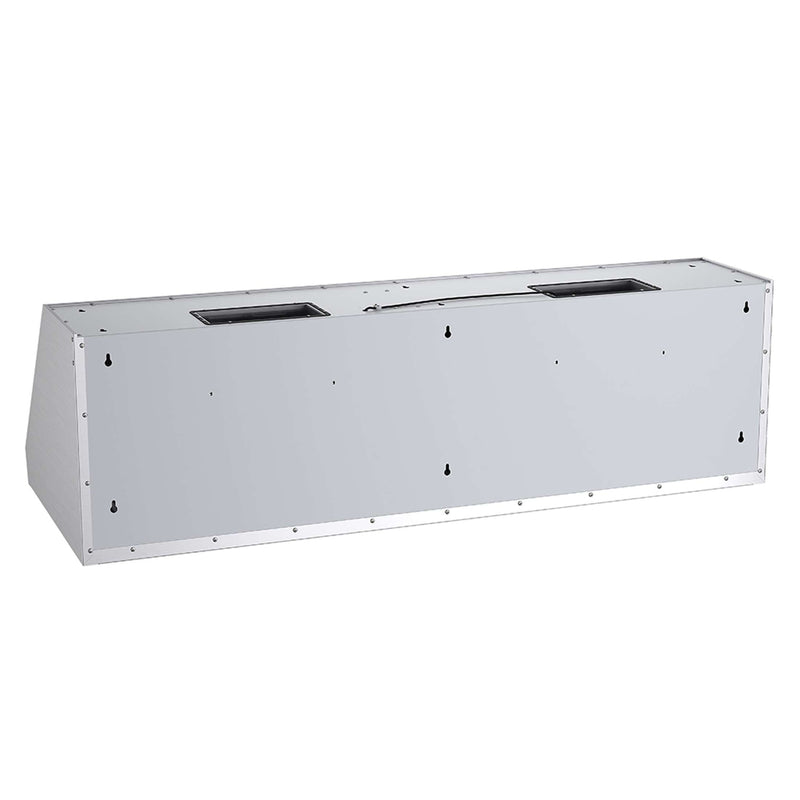

Duct Shape
|
Circular |
|
Number of Ducts
|
2 |
|
Duct Size
|
8" |
|
Warranty
|
|
|
Commercial Warranty
|
No |
|
Warranty on Parts
|
2 Years |
|
Warranty Type
|
Limited |
|
Warranty on Labor
|
2 Years |
