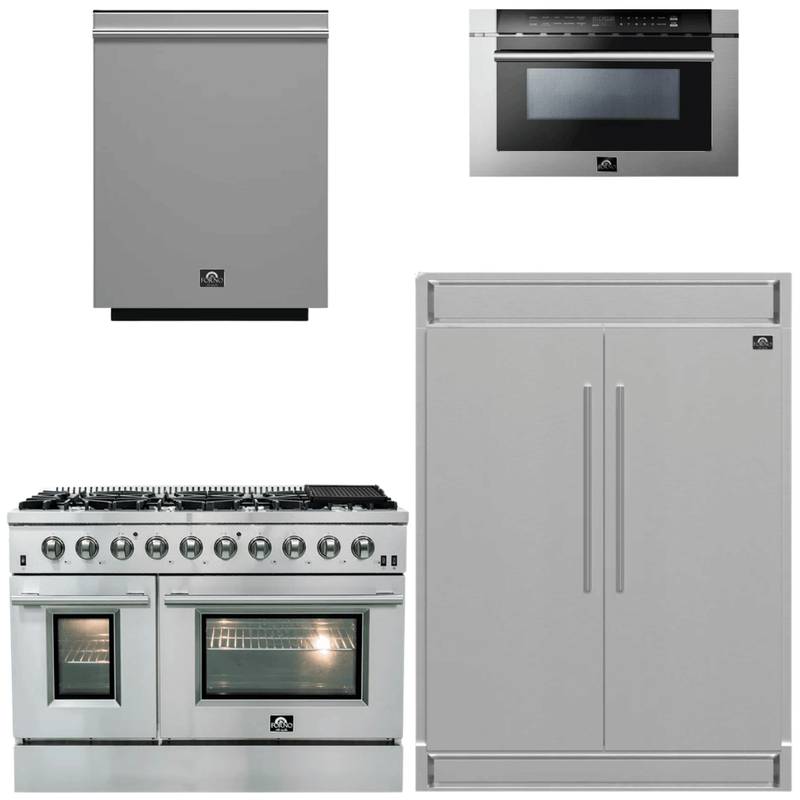

Bring a coordinated professional look to your kitchen with this FORNO four-piece stainless steel appliance package. The bundle pairs a 48-inch Galiano gas range with a spacious 60-inch refrigerator and freezer, a quiet 24-inch built-in dishwasher, and a space-saving 24-inch microwave drawer.
What's Included
- FORNO Galiano 48-inch gas range with 8 sealed Italian burners — FFSGS6244-48
- FORNO Maderno 60-inch convertible refrigerator and freezer with modern trim kit, 27.2 cu. ft. — FFFFD1722-60S
- FORNO Pozzo 24-inch built-in tall-tub dishwasher — FDWBI8067-24S
- FORNO Capoliveri 24-inch built-in microwave drawer — FMWDR3000-24
Key Features

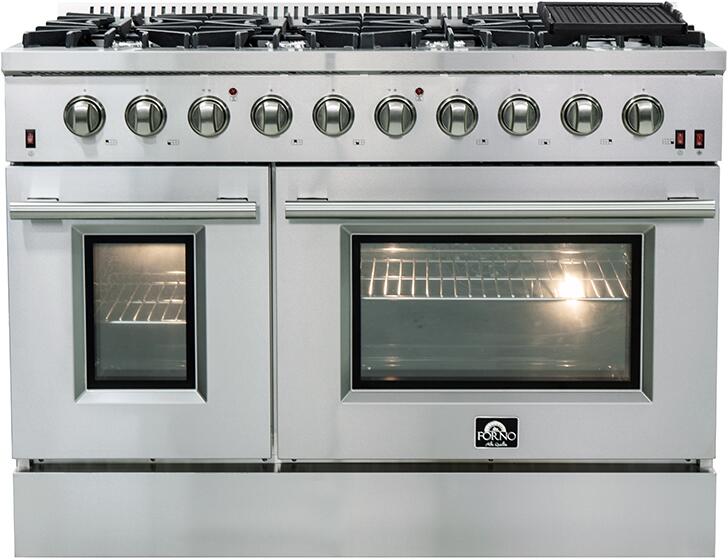

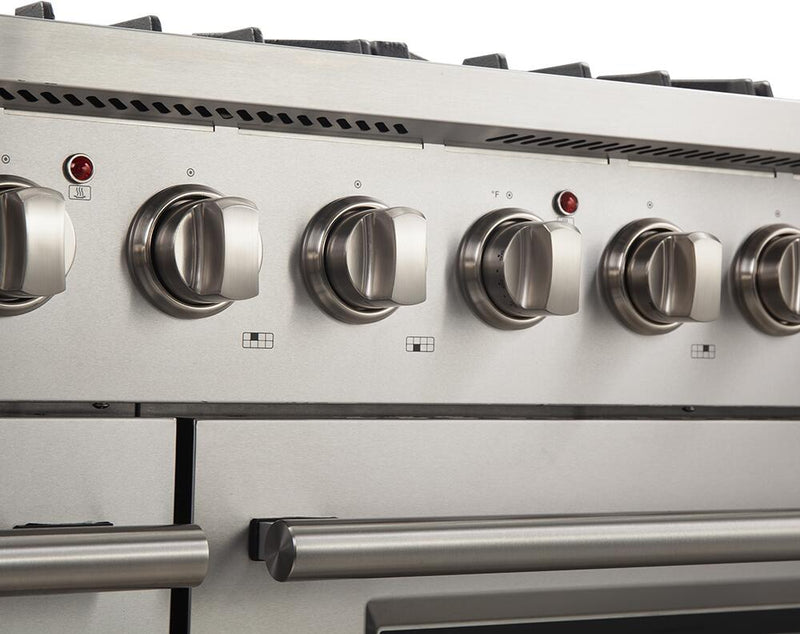

48-Inch Gas Range
- Eight sealed Italian burners provide flexible heat for everyday cooking and larger meals.

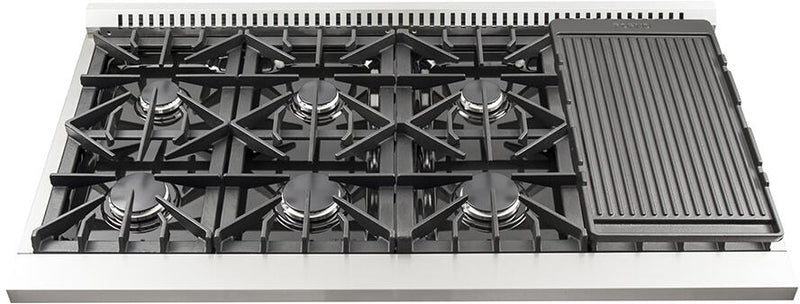

- Continuous heavy-duty cast-iron grates make it easier to move cookware across the cooktop.

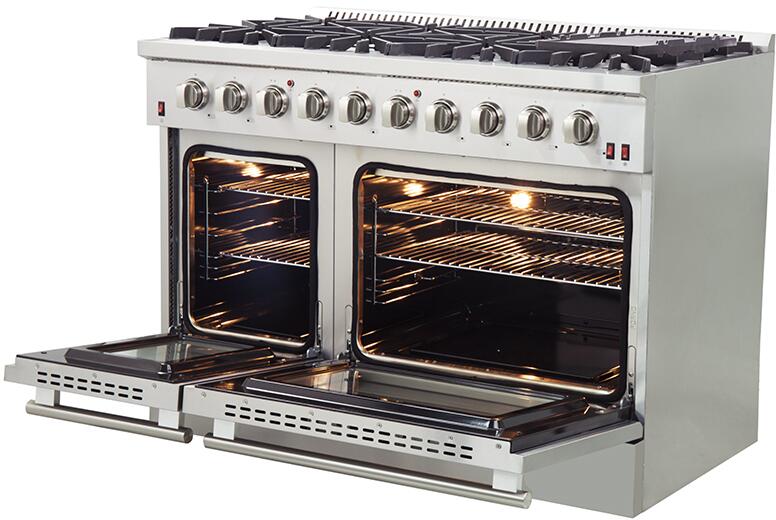

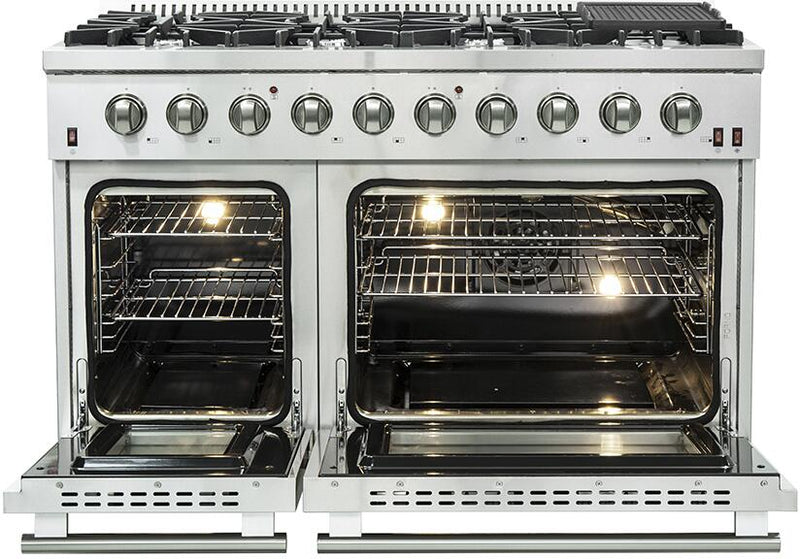

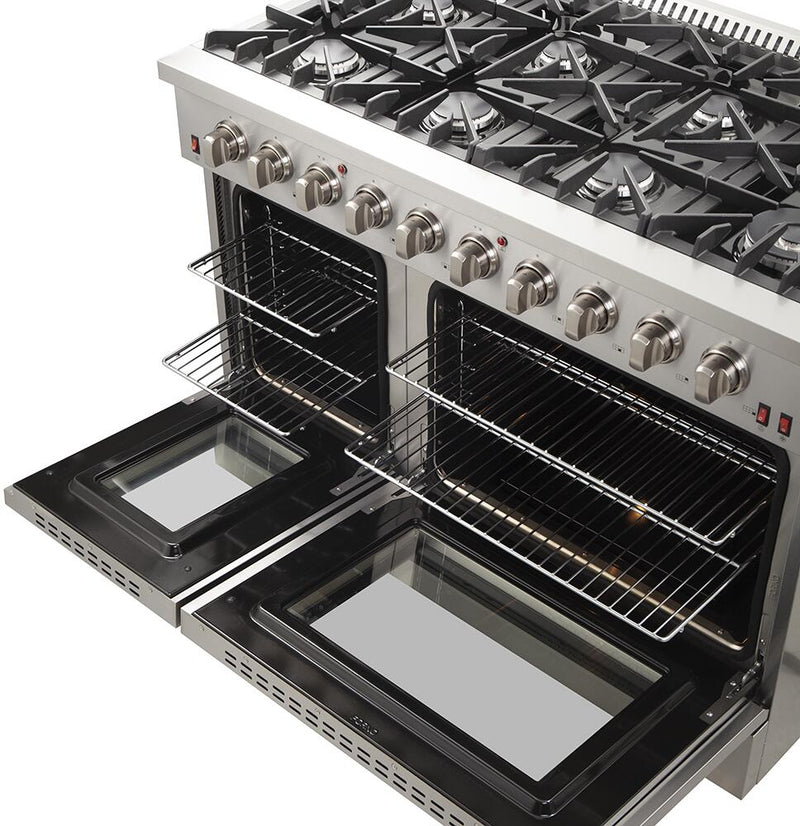

- Dual gas ovens provide 4.32 cu. ft. and 2.26 cu. ft. of cooking capacity.
- Convection cooking circulates hot air for faster, more even results.
- Interior halogen lighting lets you monitor food without opening the oven door.

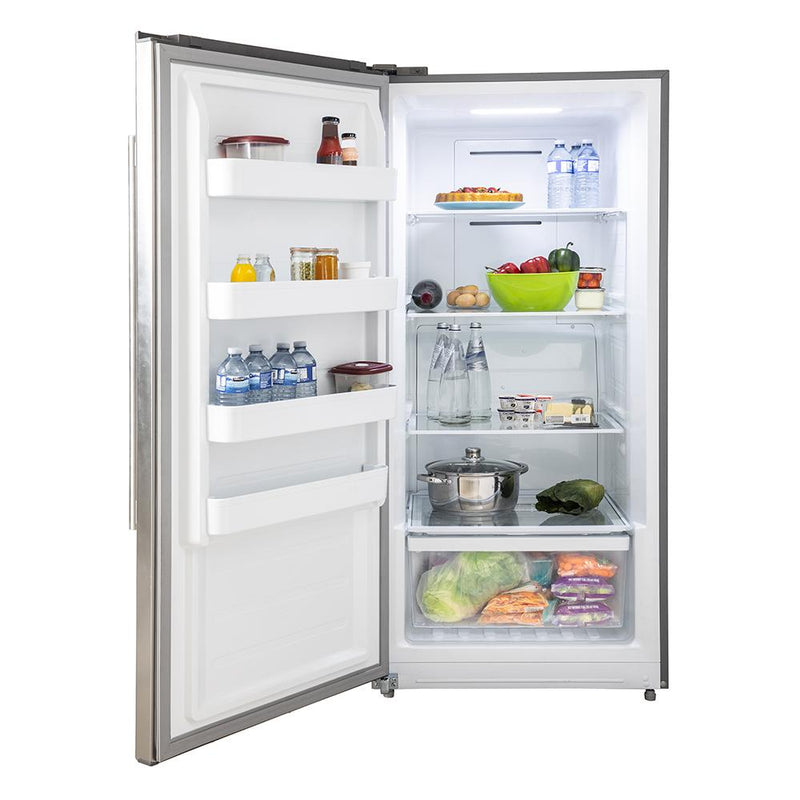

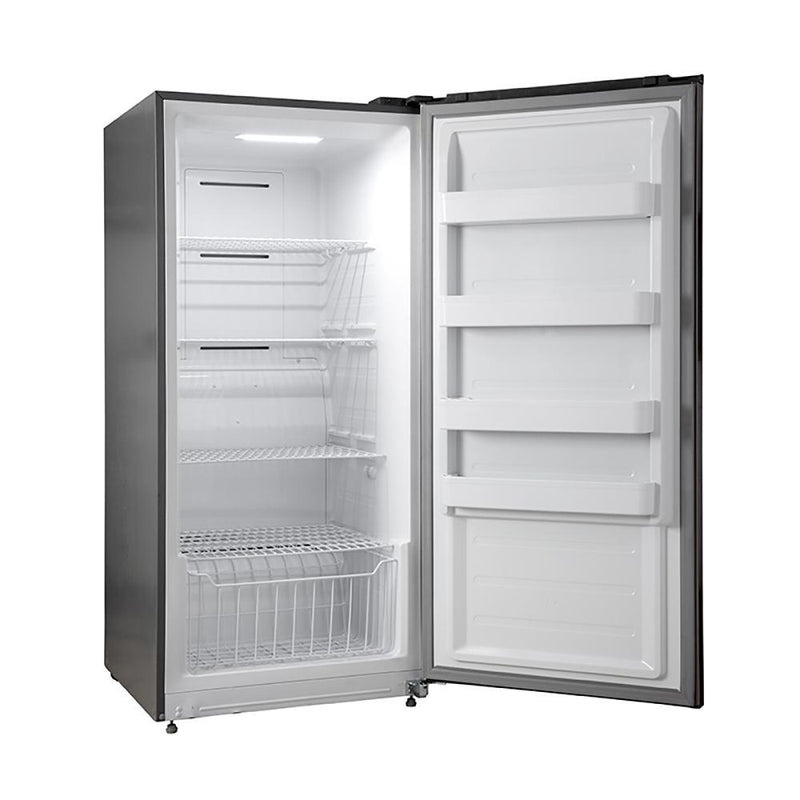

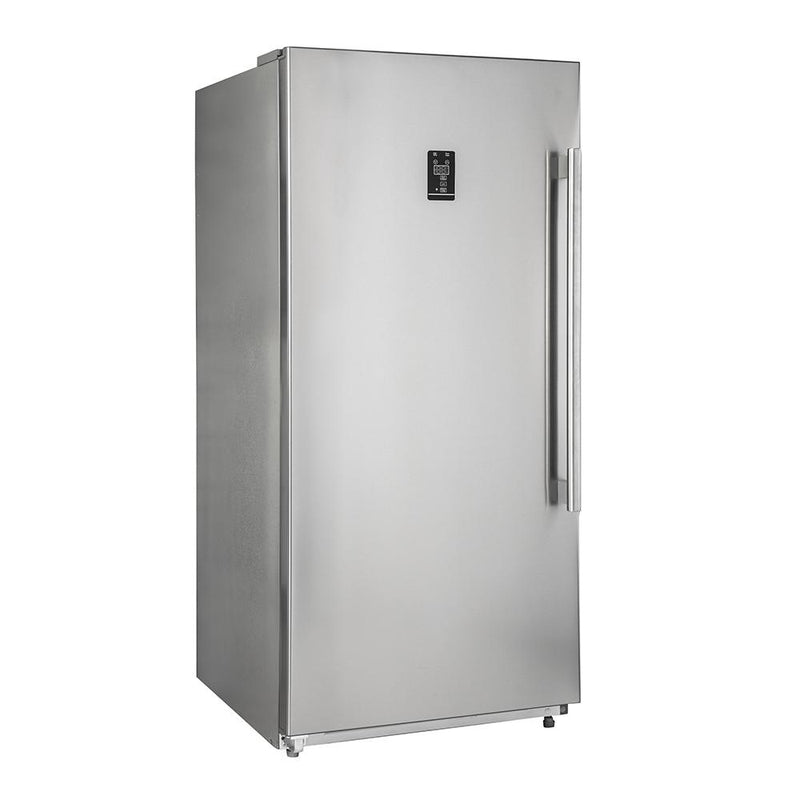

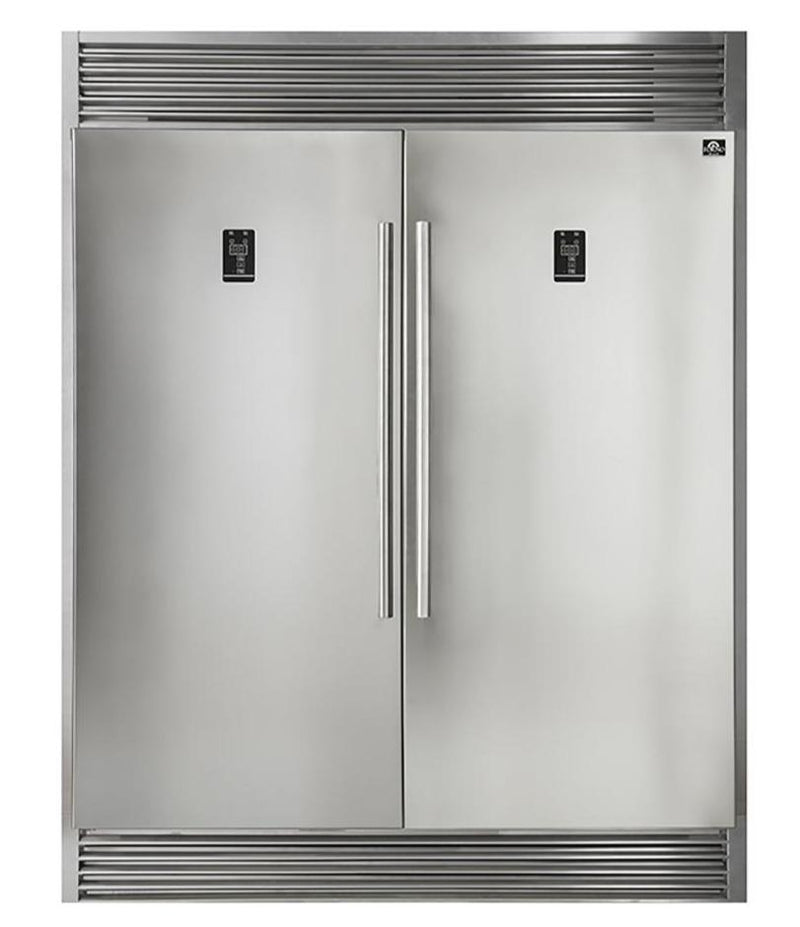

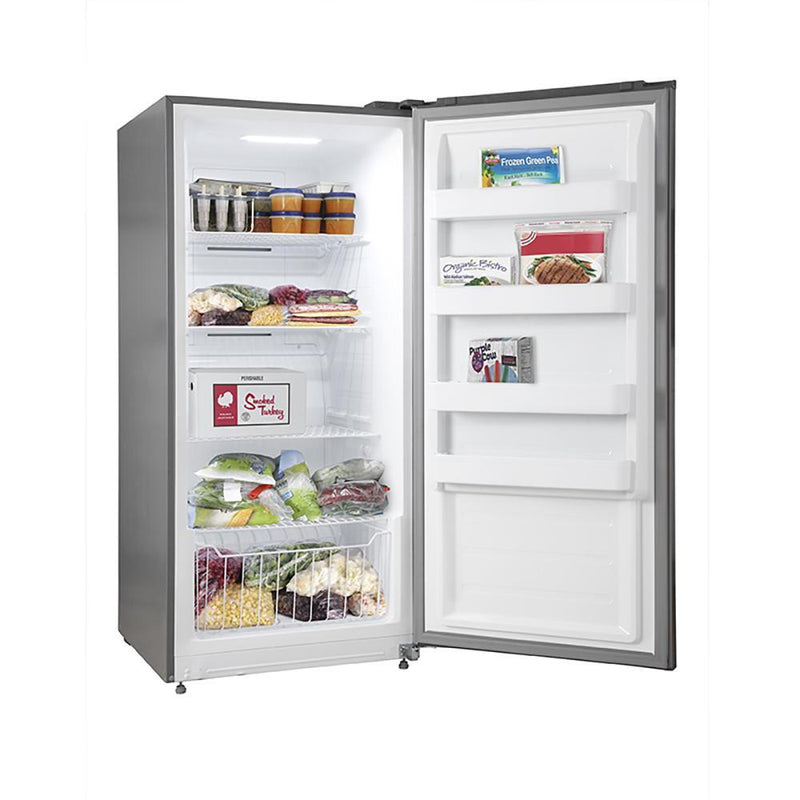

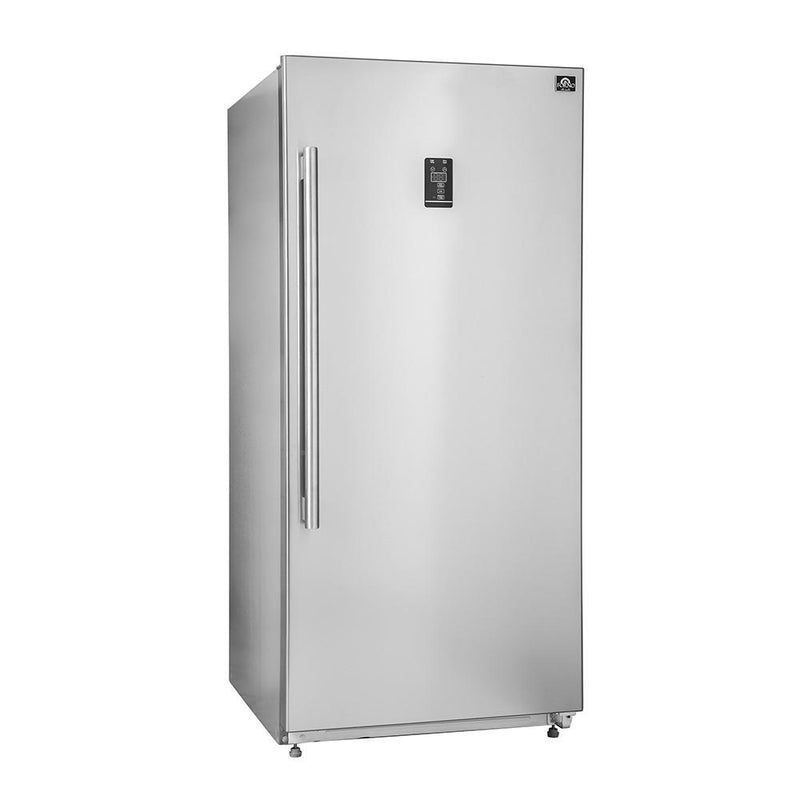

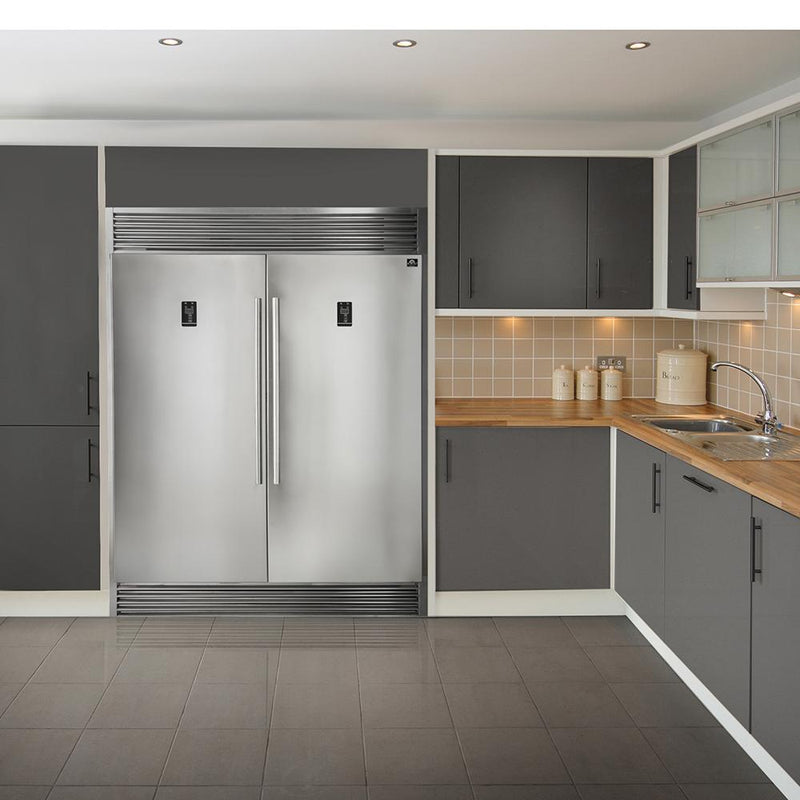

60-Inch Refrigerator and Freezer
- 27.2 cu. ft. total capacity across two independently controlled 13.6 cu. ft. compartments.
- Each compartment converts between refrigerator and freezer operation as storage needs change.
- Dual inverter compressors, multi-air-flow cooling, and automatic defrost support precise, efficient temperature control.
- Six glass shelves, six door bins, and six removable drawers provide flexible organization.
- The stainless steel VCM door finish resists fingerprints, stains, dents, and scratches.
- ENERGY STAR certified with Super Cool and Super Freeze functions.

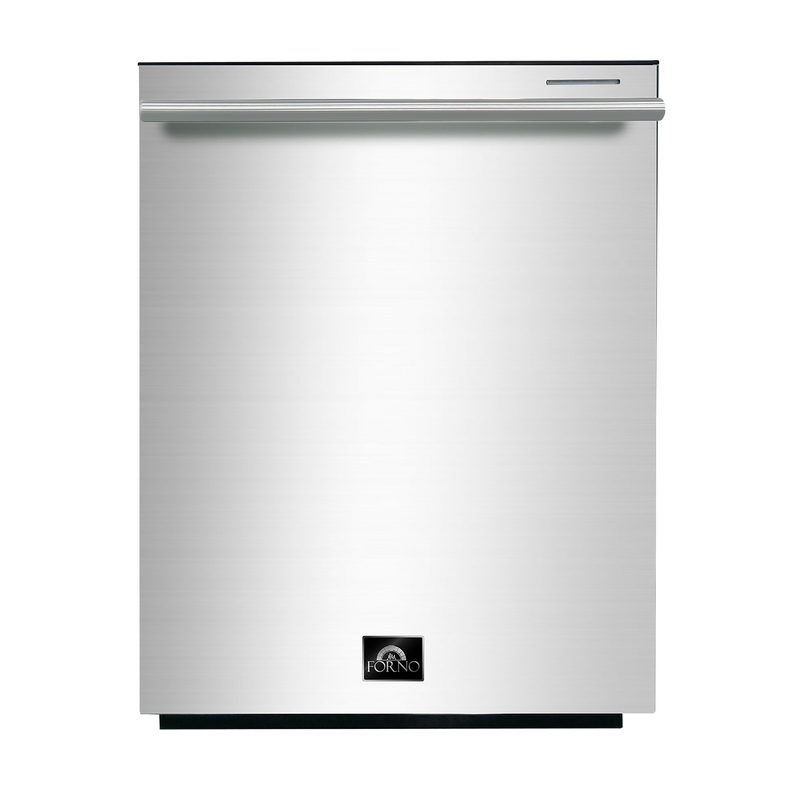

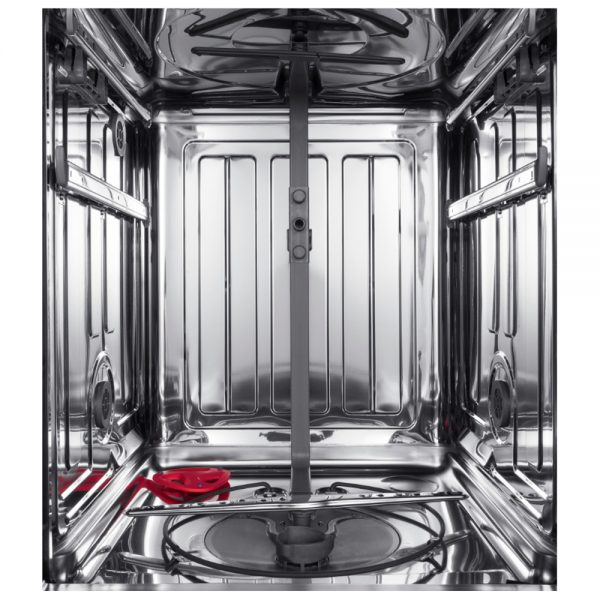

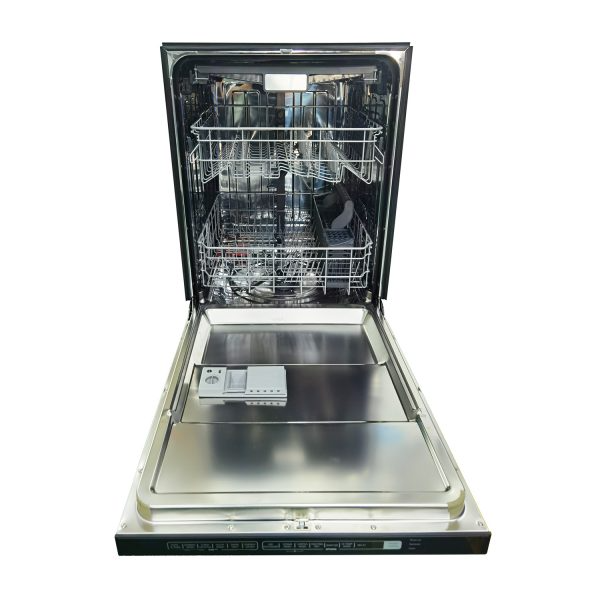

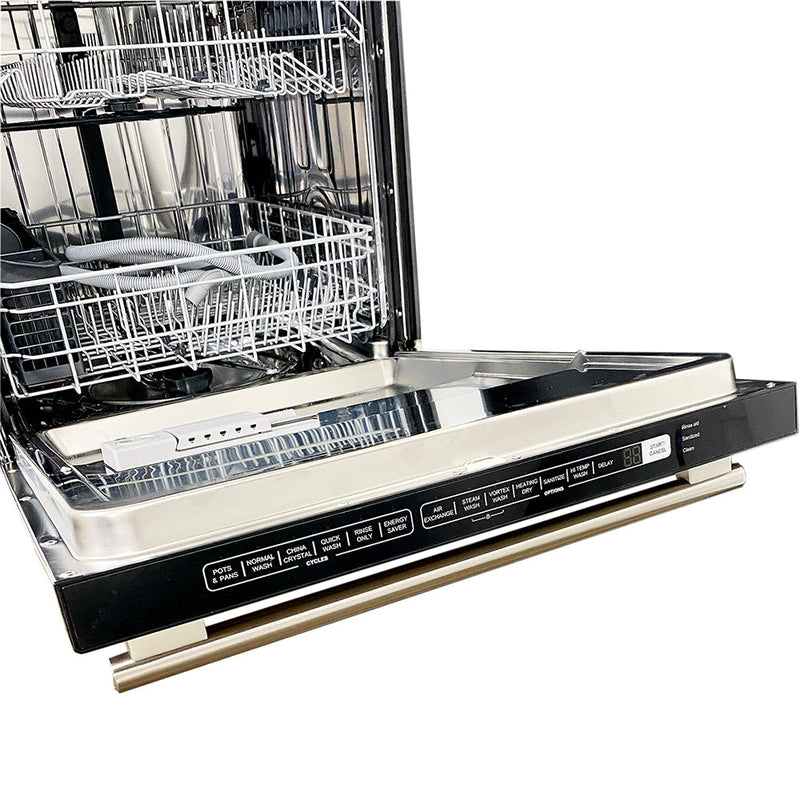

24-Inch Dishwasher
- Accommodates up to 14 place settings.
- Six wash programs: Heavy, Normal, Light, Glass, Quick, and Rinse.
- Quiet 49 dBA operation.
- Dual drying combines heated drying and fan drying.
- Top-mounted controls maintain a clean, streamlined appearance.

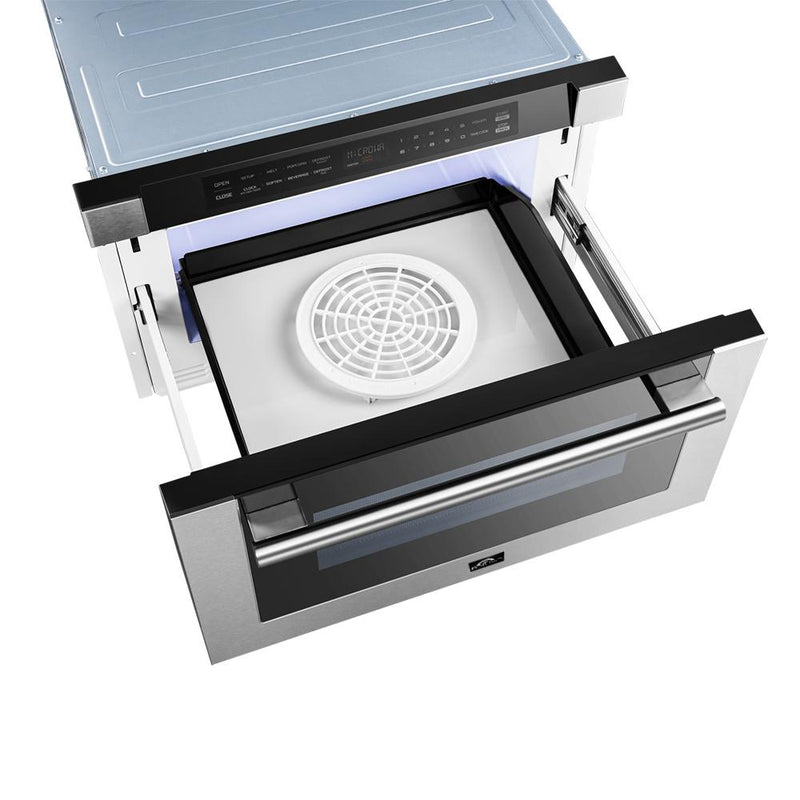

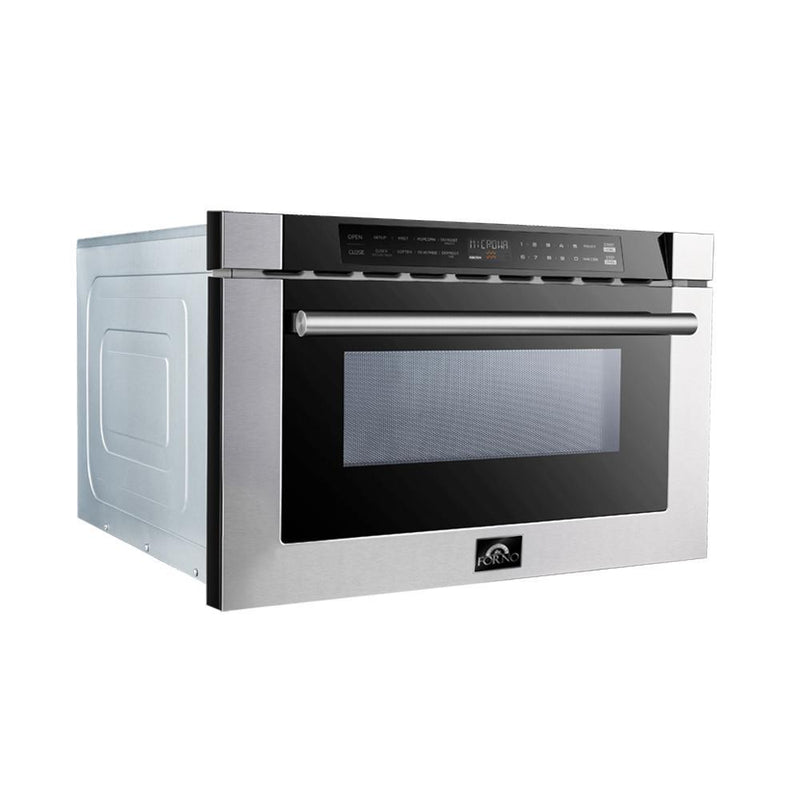

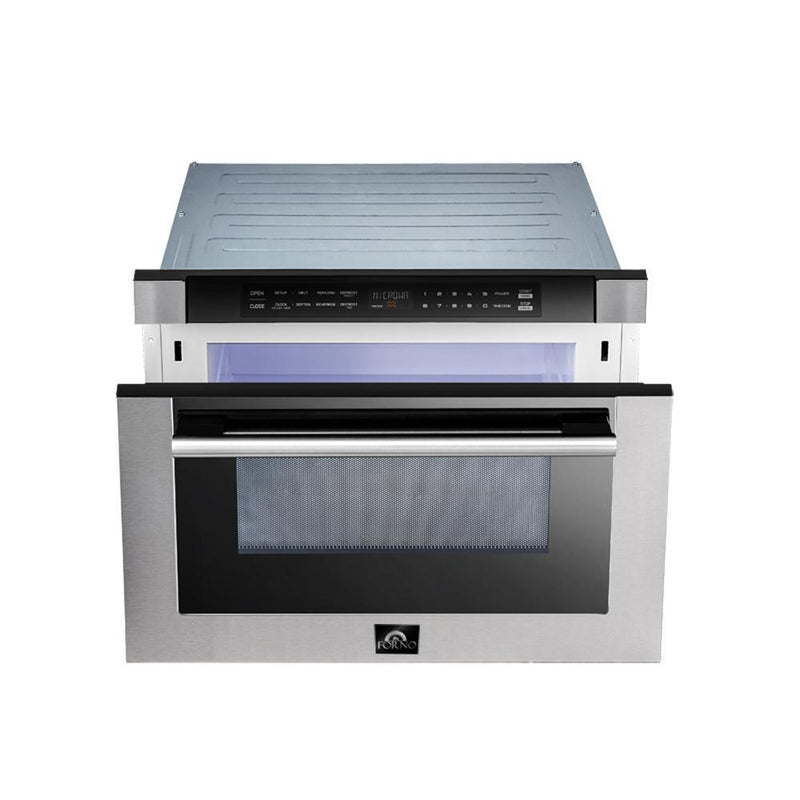

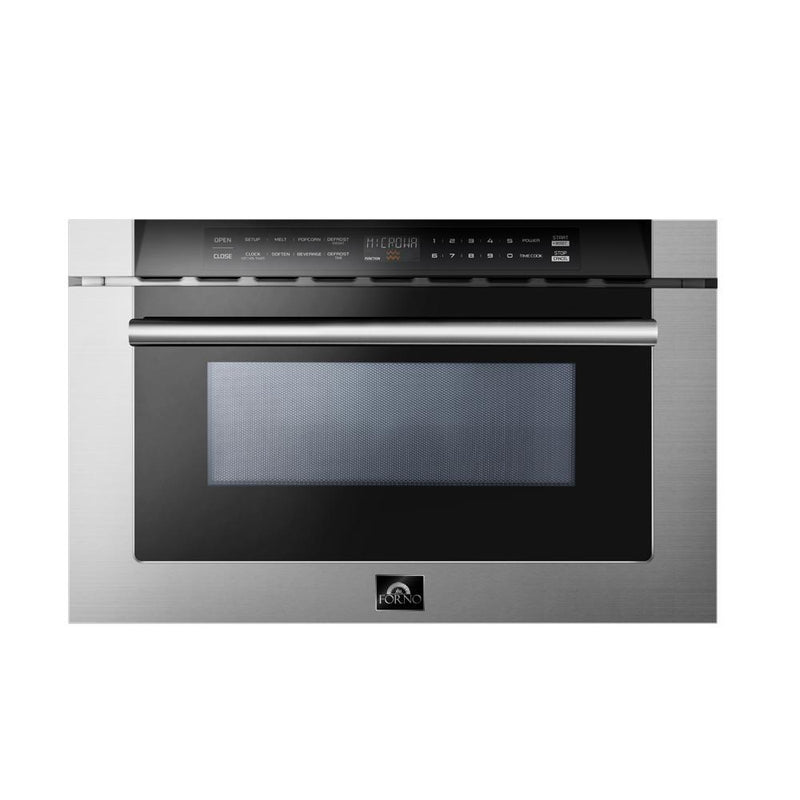

24-Inch Microwave Drawer
- 1.2 cu. ft. interior accommodates mugs up to 7 inches tall and dishes up to 16 by 16 inches.
- 1,000 watts of cooking power with 11 power levels.

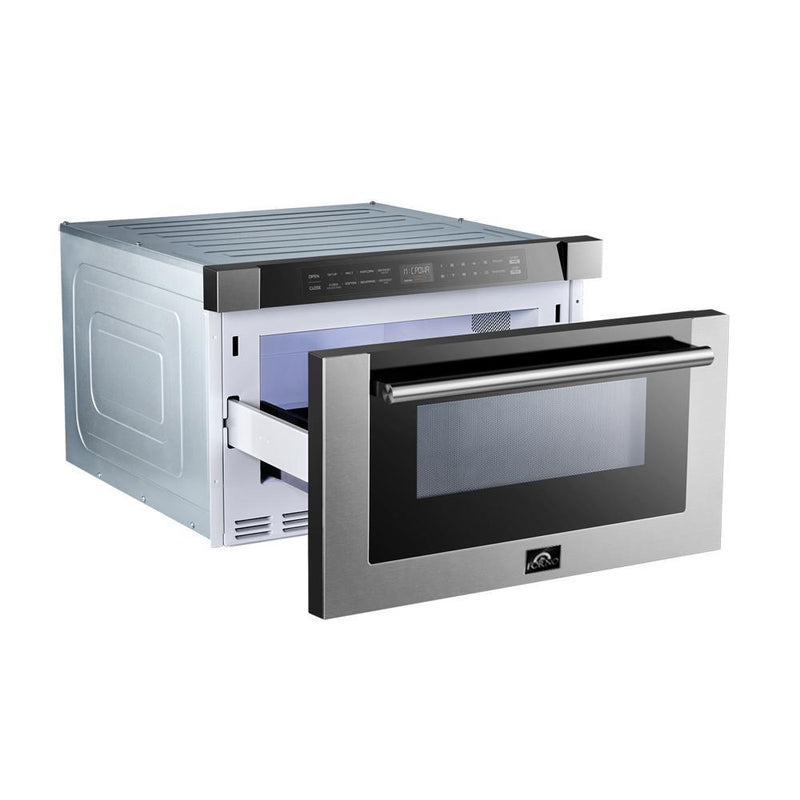

- Touch-button opening and closing provides convenient access.
- Built-in drawer design saves counter space and integrates beneath a counter or into a wall.
Specifications
Range — FFSGS6244-48
| Dimensions | 48 in. W x 28 in. D x 38 in. H |
| Cooktop/Oven Fuel | Natural gas |
| Electrical Requirement | 120 V / 15 A |
| Oven Capacity | 4.32 cu. ft. large oven; 2.26 cu. ft. small oven |
| Burners | 8 |

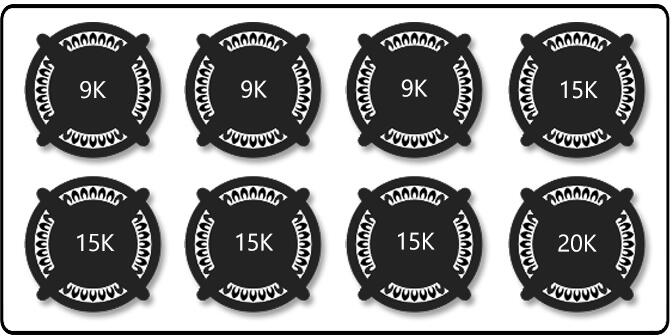

| Burner Outputs | 20,000 BTU (1); 15,000 BTU (4); 9,000 BTU (3) |
| Oven Output | 22,000 BTU |
| Convection | Yes |
| Finish | Stainless steel |
| Product Weight | 413.36 lb. |
Refrigerator and Freezer — FFFFD1722-60S
| Overall Dimensions | 59.76 in. W x 29.7 in. D x 84 in. H with trim; 55.2 in. W x 29.7 in. D x 67.7 in. H without trim |
| Cutout Dimensions | 55.9 in. W x 28.94 in. D x 69.06 in. H |
| Total Capacity | 27.2 cu. ft. |
| Compartment Capacity | 13.6 cu. ft. each |
| Installation | Built-in side-by-side system with decorative trim kit and required platform base |
| Style | Side-by-side |
| Ice Maker | No |
| Electrical Requirement | 120 V / 60 Hz; two dedicated 15 A circuits required |
| Plug Type | Two elbow NEMA 5-15 plugs |
| Temperature Range | Refrigerator: 36°F to 46°F; freezer: -11°F to 7°F |
| Finish | Fingerprint-resistant stainless steel VCM |
| Product Weight | 330 lb. |
Installation requirement: This refrigerator system includes left-swing unit FFFFD1722-28LS, right-swing unit FFFFD1722-28RS, and trim kit F1722-60MTK. It requires two dedicated 15-amp circuits and a full platform base extending beyond the cabinet opening so the lower trim can be installed correctly.
Dishwasher — FDWBI8067-24S
| Dimensions | 23.85 in. W x 26 in. D x 35 in. H |
| Cutout Dimensions | 24 in. W x 24 in. D x 34–35 in. H |
| Capacity | 14 place settings |
| Racks | 3 |
| Noise Level | 49 dBA |
| Annual Energy Use | 240 kWh/year |
| Electrical Requirement | 120 V / 60 Hz |
| Control Location | Top |
| Finish | Stainless steel |
| Product Weight | 102 lb. |
Microwave Drawer — FMWDR3000-24
| Dimensions | 23.6 in. W x 25.2 in. D x 15 in. H |
| Cutout Dimensions | 22.13 in. W x 23.5 in. D x 14.81 in. H |
| Capacity | 1.2 cu. ft. |
| Cooking Power | 1,000 W |
| Power Levels | 11 |
| Electrical Requirement | 120 V / 60 Hz / 20 A |
| Mount Type | Built-in drawer |
| Plug Type | NEMA 5-15P; power cord included |
Shipping & Returns
This oversized appliance package ships by freight. Inspect every carton and appliance at delivery and note any visible damage on the delivery receipt before signing. Keep all packaging until the products have been inspected and tested. Contact CulinaryProfis promptly if you discover shipping damage or missing components. Returns are subject to the CulinaryProfis return policy and may require prior authorization.
Warranty
Each included FORNO appliance is covered by a two-year parts-and-labor warranty, subject to the manufacturer's terms and conditions.
Manuals & Documents
- Range Installation Instructions — FFSGS6244-48 (PDF)
- Refrigerator and Freezer Instruction Manual — FFFFD1722-60S (PDF)
- Refrigerator Cutout Dimensions — FFFFD1722-60S (PDF)
- Dishwasher Installation Instructions — FDWBI8067-24S (PDF)
- Microwave Drawer Instruction Manual — FMWDR3000-24 (PDF)
Product Videos
FORNO Galiano FFSGS6244-48 Gas Range Overview
FORNO Maderno FFFFD1722-60S Overview
FORNO Maderno FFFFD1722-60S Trim Kit Installation
FORNO Pozzo FDWBI8067-24S Dishwasher Overview
FORNO FMWDR3000-24 Microwave Drawer Overview
FORNO FMWDR3000-24 Installation
Professional installation is recommended. Confirm cabinet openings, utility connections, clearances, and local code requirements before ordering or installation.
