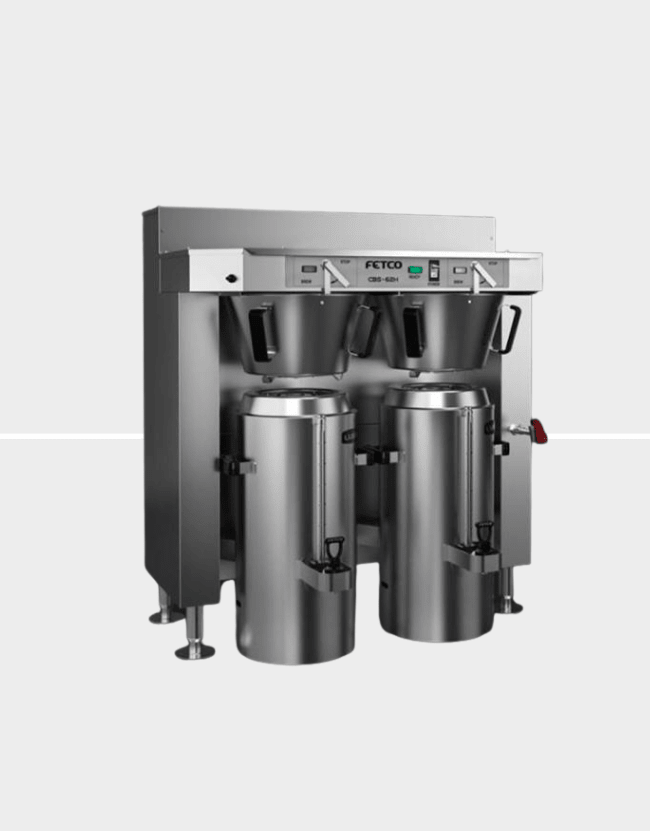

FETCO IP44 CBS-62H-30 Maritime Coffee Brewer – 6 Gal, 3-Phase
Brew Excellence on Board – Built for Harsh Maritime Environments
The FETCO IP44 CBS-62H-30 Maritime Coffee Brewer is the ultimate high-volume brewing solution for cruise ships, ferries, and outdoor beverage service operations. Designed with IP44 ingress protection, this rugged twin 3.0-gallon brewer withstands the demanding conditions of marine environments while delivering consistent, barista-quality results.
Equipped with advanced features including spray-over technology for precise water contact time, a patented gravity-fed tube to reduce lime scale, and a brew basket lock with integrated start switch, the CBS-62H-30 ensures safe, consistent, and flavorful brewing every time.
Whether you're fueling a fleet or serving premium coffee outdoors, this FETCO brewer is engineered for performance, safety, and long-term reliability.
Key Features:
-
Marine-Rated IP44 Construction – Built to perform in protected outdoor and marine environments
-
Twin 3.0-Gallon Brewing Tanks – Ideal for high-volume operations
-
Spray-Over Technology – Enhanced extraction with adjustable water contact time
-
Brew Basket Lock Safety – Prevents accidental brewing without basket in place
-
Half-Batch Function – Brew smaller quantities with full flavor control
-
Patented Gravity-Fed Tube System – Minimizes lime build-up
-
Stainless Steel Construction (304 Grade) – Corrosion-resistant and easy to clean
-
Terminal Block Electrical Connection – Compatible with multiple three-phase voltages
- TPD30 Dispenser Compatible
What’s Included:
- FETCO IP44 CBS-62H-30 Twin 3.0 Gallon Coffee Brewer
- Integrated Brew Basket Locks
- Maritime Package Hardware
- Step-down Transformer
- Operation & Installation Manual
Product Specifications:
| Category |
Details |
| Model |
CBS-62H-30 (Maritime IP44 Rated) |
| Tank Capacity |
6 Gallons / 22.8 Liters |
| Construction |
304 Stainless Steel |
| Height |
40.6 in / 103.2 cm |
| Width |
35.5 in / 90.2 cm |
| Depth |
22.375 in / 56.8 cm |
| Empty Weight |
197 lbs / 89.4 kg |
| Shipping Dimensions |
43″ x 37″ x 24″ (109.2 x 94 x 61 cm) |
| Shipping Weight |
199 lbs / 90.3 kg |
| Electrical Connection |
Terminal Block |
| Voltage Options |
220–240V / 380–400V / 440–480V (3-Phase) |
| Max Amp Draw |
13.6–29.2 Amps (Depending on config) |
| KW Output |
7.8 – 24.1 kW (Multiple options) |
| Cup Output |
8 oz – 864/hr, 12 oz – 576/hr |
|
16 oz – 432/hr, 20 oz – 346/hr |
| Water Inlet Size |
3/8" Male Flare Fitting |
| Min. Flow Rate |
2.0 GPM [7.6 LPM] |
| Water Pressure |
20–75 psig [138–517 kPa] |
Electrical Configuration – FETCO Maritime Coffee
FETCO IP44-62H-30
| Configuration Code |
Heater Configuration |
Voltage (V) |
Phase |
Wires |
KW |
Electrical Connection |
Max Amp Draw (A) |
Brew Rate (Gal/L per Hour) |
| C62206MIP |
3 × 3.0 kW |
220–240 |
3 |
3 + G |
7.8–9.1 |
Terminal Block |
20.5–22.4 |
9.0–12.0 gal (34.1–45.4 L) |
| C62196MIP |
3 × 4.0 kW |
440–480 |
3 |
3 + G |
10.3–12.1 |
Terminal Block |
13.6–14.8 |
13.5–15.0 gal (51.1–56.8 L) |
| C62216MIP |
3 × 4.0 kW |
380–400 |
3 |
3 + G |
7.7–8.5 |
Terminal Block |
11.7–12.3 |
22.5–24.0 gal (85.2–90.8 L) |
| C62186MIP |
6 × 4.0 kW |
440–480 |
3 |
3 + G |
20.1–24.1 |
Terminal Block |
26.8–29.2 |
25.5–27.0 gal (96.5–102.2 L) |
Notes:
- All models use Terminal Block connections for secure installation.
- Phase and voltage configurations accommodate diverse electrical systems across vessels.
- KW range reflects different heater load requirements per configuration.
- Brewing output varies based on voltage, water pressure, and temperature rise.
