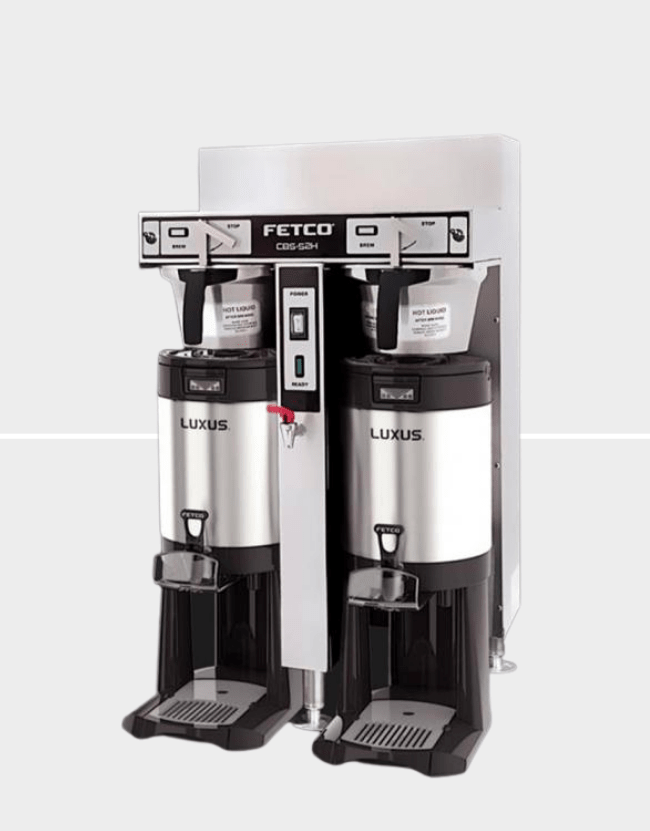

FETCO IP44 CBS-52H-15 Maritime Coffee Brewer – 1.5 Gal, 3-Phase Purpose-built for maritime service, the FETCO CBS-52H-15 combines dual 1.5-gallon capacity with IP44-rated corrosion resistance to withstand salt spray, humidity, and demanding galley environments. Constructed from 304 stainless steel, this high-output brewer delivers up to 475 cups per hour while supporting flexible electrical configurations—including three-phase power—for seamless integration into vessel infrastructure. The half-batch function minimizes waste during variable service periods, while secure brew basket clips and terminal block connections streamline operation and installation. Pair with FETCO LUXUS® Thermal Dispensers (sold separately) to maintain beverage temperature throughout service. Engineered for cruise ships, ferries, and outdoor bar operations where reliability and durability are non-negotiable.
What’s Included:
- (1) FETCO IP44 CBS-52H-15 Maritime Coffee Brewer
- (1) Built-in Stepdown Transformer
- (1) Integrated Brew Basket with Clips
- Maritime Package Pre-Installed
- Operator’s Manual
-
Note: Thermal dispensers/servers (L3D-15, L3S-15, TPD-15) sold separately.
Product Specifications:
| Category |
Details |
| Model |
IP44 CBS-52H-15 |
| Brew Capacity |
Twin 1.5 Gallons (5.7 L) |
| Output (8 oz / hr) |
Up to 475 cups/hour |
| Output (12 oz / hr) |
Up to 317 cups/hour |
| Output (16 oz / hr) |
Up to 238 cups/hour |
| Output (20 oz / hr) |
Up to 190 cups/hour |
| Dimensions (H x W x D) |
35.75" x 21" x 19.5" (90.8 x 53.3 x 49.5 cm) |
| Empty Weight |
82 lbs (37.2 kg) |
| Shipping Weight |
97 lbs (44 kg) |
| Electrical Configurations |
220–240V, 380–400V, 440–480V; Single or 3-Phase |
| Max Amp Draw |
Up to 23.8 Amps (Depending on Voltage) |
| Heater Configuration |
2–3 x 4kW depending on model |
| KW Rating |
4.8–12.1 KW (varies by model) |
| Electrical Connection |
Terminal Block |
| Water Inlet |
3/8" Male Flare Fitting |
| Min Flow Rate |
1.5 GPM (5.7 LPM) |
| Water Pressure Requirement |
20–75 psig (138–517 kPa) |
| Construction |
304 Stainless Steel |
| Certifications |
IP44 Maritime Rated |
Electrical Configuration – FETCO Maritime Coffee
Model: IP44-52H-15
| Configuration Code |
Heater Configuration |
Voltage (V) |
Phase |
Wires |
KW |
Electrical Connection |
Max Amp Draw (A) |
Brew Rate (Gal/L per Hour) |
| C52246MIP |
2 × 2.8 kW |
220–240 |
1 |
2 + G |
4.8–5.7 |
Terminal Block |
21.8–23.8 |
10.5–13.5 gal (39.7–51.1 L) |
| C52206MIP |
3 × 4.0 kW |
380–400 |
3 |
3 + G |
7.7–8.5 |
Terminal Block |
11.7–12.3 |
15.0 gal (56.8 L) |
| C52196MIP |
3 × 4.0 kW |
440–480 |
3 |
3 + G |
10.3–12.1 |
Terminal Block |
13.6–14.8 |
19.5–22.5 gal (73.8–85.2 L) |
Compatible Accessories (Sold Separately):
- FETCO LUXUS® 1.5 Gal Thermal Dispenser (L3D-15)
- FETCO LUXUS® Thermal Server (L3S-15)
- FETCO LUXUS® 1.5 Gal Thermal Dispenser (TPD-15)
Notes:
- All models use Terminal Block connections for secure installation.
- Phase and voltage configurations accommodate diverse electrical systems across vessels.
- KW range reflects different heater load requirements per configuration.
- Brewing output varies based on voltage, water pressure, and temperature rise.
About – FETCO
FETCO is committed to brewing innovation. For over 30 years, the brand has been a leading manufacturer of premium coffee and tea brewing equipment, hot water dispensers, and grinders—trusted by foodservice professionals worldwide.
Founded in 1987 by Zbigniew Lassota and Christopher Nowak, FETCO was established to meet the industry’s demand for high-quality, dependable brewing solutions. All products are manufactured at the company’s headquarters in Lake Zurich, Illinois, continuing a legacy of engineering excellence.
What sets FETCO apart is a strong focus on innovation and customer experience. Each product is thoughtfully designed with performance, reliability, and specific business needs in mind. From independent cafés to global chains, FETCO equipment supports coffee and tea professionals in delivering exceptional service and consistency.
Driven by progress and powered by trust, FETCO remains a dedicated partner in every brewing journey.
