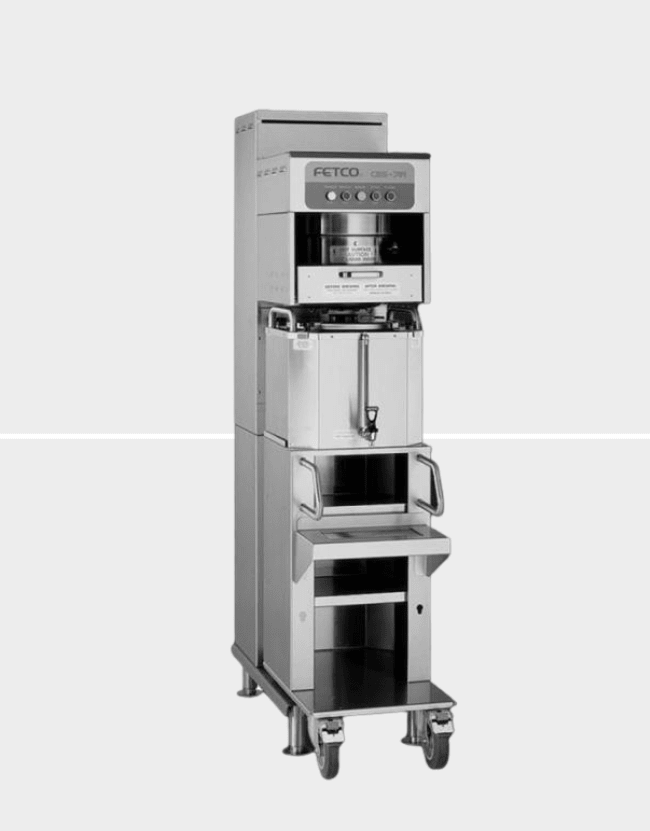

The FETCO CBS-71AC delivers industrial-scale coffee production with precision engineering built for high-volume venues. This commercial brewer produces up to 6 gallons per batch—480 cups hourly—making it ideal for hotels, stadiums, and convention centers demanding consistent output. Programmable recipes and controlled extraction eliminate guesswork, while the steam-contained design reduces ventilation requirements. The large spray pan ensures uniform saturation, and adjustable brew parameters let operators fine-tune each batch. Mobile cart-ready with stainless steel construction and made in the USA, it pairs seamlessly with multiple thermal dispensers for flexible service configurations. Purpose-built for relentless demand.
What’s Included:
- 1 × FETCO CBS-71AC High Volume Coffee Brewer
- Electrical terminal block
- User manual and installation guide
- Manufacturer’s warranty (per FETCO terms)
Product Specifications:
| Category |
Specification |
| Brew Capacity |
6 gallons (22.8 L) |
| Cups per Hour |
480 (8 oz), 320 (12 oz), 240 (16 oz), 192 (20 oz) |
| Height |
78.5 in (199.5 cm) |
| Width |
18 in (45.7 cm) |
| Depth |
32.75 in (83.2 cm) |
| Empty Weight |
261 lbs (118.4 kg) |
| Filled Weight |
412 lbs (186.9 kg) |
| Shipping Weight |
313 lbs (142 kg) |
| Shipping Dimensions |
55" x 48" x 42" (137.2 x 121.9 x 106.7 cm) |
| Tank Capacity |
6 gallons (22.8 L) |
| Water Inlet |
3/8" male flare fitting |
| Minimum Water Flow |
2 GPM (7.61 LPM) |
| Water Pressure Range |
20–75 PSIG (138–517 kPa) |
| Electrical Options |
3 x 5.0 kW – 120/208-240V, 3Ph, 4+G |
|
3 x 10.0 kW – 120/208-240V, 3Ph, 4+G |
|
3 x 10.0 kW – 440-480V, 3Ph, 3+G |
| Max Amp Draw |
31.9–72.9 Amps |
| Gallons per Hour Output |
18–36 gallons/hour (68.1–136.3 L/hr) |
| Electrical Connection |
Terminal Block |
Available Electrical Configurations
| Configuration Code |
Heater Setup |
Voltage |
Phase |
Wires |
Power (kW) |
Max Amp Draw |
Brew Rate (Gal/L per Hour) |
| C71018 |
3 × 5.0 kW Heaters |
120/208-240 V |
3 |
4 + G |
11.5–15.1 kW |
31.9–36.8 A |
18.0–24.0 Gal (68.1–90.8 L) |
| C71028 |
3 × 10.0 kW Heaters |
120/208-240 V |
3 |
4 + G |
22.8–30.1 kW |
63.2–72.9 A |
36.0 Gal (136.3 L) |
| C71038 |
3 × 10.0 kW Heaters |
440–480 V |
3 |
3 + G² |
20.8–30.0 kW |
30.1–36.1 A |
36.0 Gal (136.3 L) |
- Electrical Connection Type: Terminal Block
- Ground (G) Required
- ²Configuration C71038 uses a 3-wire + ground connection (3+G)
About – FETCO
FETCO is committed to brewing innovation. For over 30 years, the brand has been a leading manufacturer of premium coffee and tea brewing equipment, hot water dispensers, and grinders—trusted by foodservice professionals worldwide.
Founded in 1987 by Zbigniew Lassota and Christopher Nowak, FETCO was established to meet the industry’s demand for high-quality, dependable brewing solutions. All products are manufactured at the company’s headquarters in Lake Zurich, Illinois, continuing a legacy of engineering excellence.
What sets FETCO apart is a strong focus on innovation and customer experience. Each product is thoughtfully designed with performance, reliability, and specific business needs in mind. From independent cafés to global chains, FETCO equipment supports coffee and tea professionals in delivering exceptional service and consistency.
Driven by progress and powered by trust, FETCO remains a dedicated partner in every brewing journey.
