Dukers Freezer Merchandiser

The Dukers DSM series freezer merchandiser is designed to meet the needs of restaurants, cafes, and foodservice operations in need of reliable frozen storage and display. Featuring high-capacity options, an energy-efficient design, and eco-friendly R290 refrigerant, these units offer consistent performance and clear product visibility in demanding commercial environments.

 Specifications

• LED Lighting: Bright, energy-efficient illumination for optimal product display.
• Digital Temperature Control: LED display for precise temperature management.
• Auto Defrost: Minimizes maintenance while maintaining performance.
• Bottom-Mounted Compressor: Simplifies servicing and enhances heat dissipation.
• Eco-Friendly Refrigerant: R290 with low global warming potential.
• Anti-Fog Tempered Glass Doors: Ensures clear visibility in humid conditions.
• Adjustable Wire Shelves: Customizable storage for various product sizes.
• Locking Casters: Provides mobility and secure placement.
• Certifications: ETL and NSF/ANSI 7 compliant for safety and sanitation.

Model Breakdown

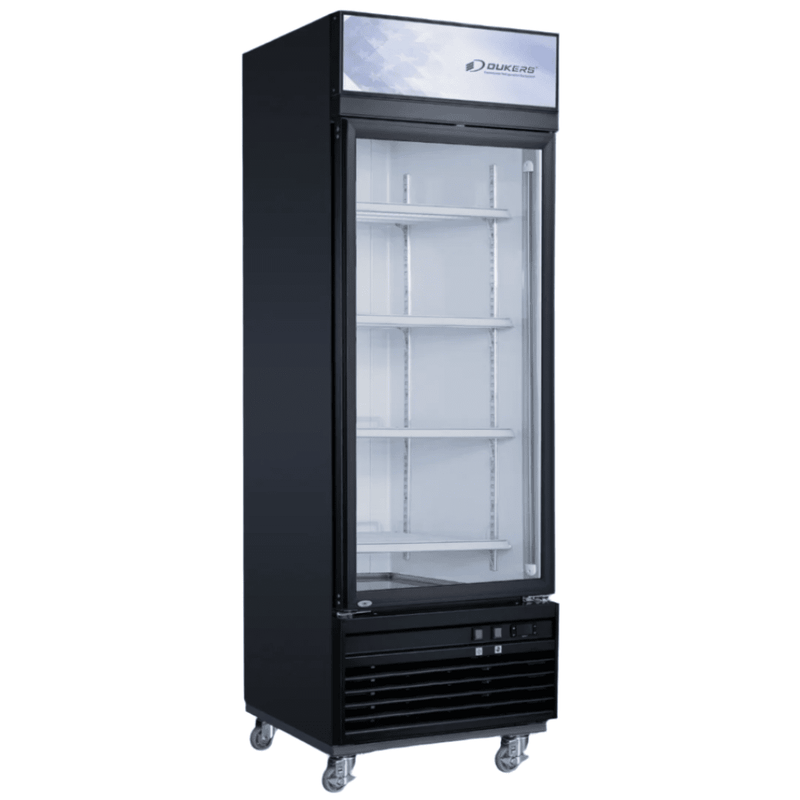

DSM-15F (Single Door - 14.9 cu. ft.)

• Capacity: 14.9 cu. ft.
• Temperature Range: -10°F to 0°F
• Dimensions: 27.56" W x 31.89" D x 84.65" H
• Weight: 308 lbs (net), 352 lbs (gross)
• Electrical: 115V/60Hz, 7.5A, 260W
• Compressor: 3/4 HP
• Refrigerant: R290 (4.23 oz)
• Shelves: 4 adjustable wire shelves
• Spec Sheet: Download Spec Sheet
• User Manual: Download User Manual

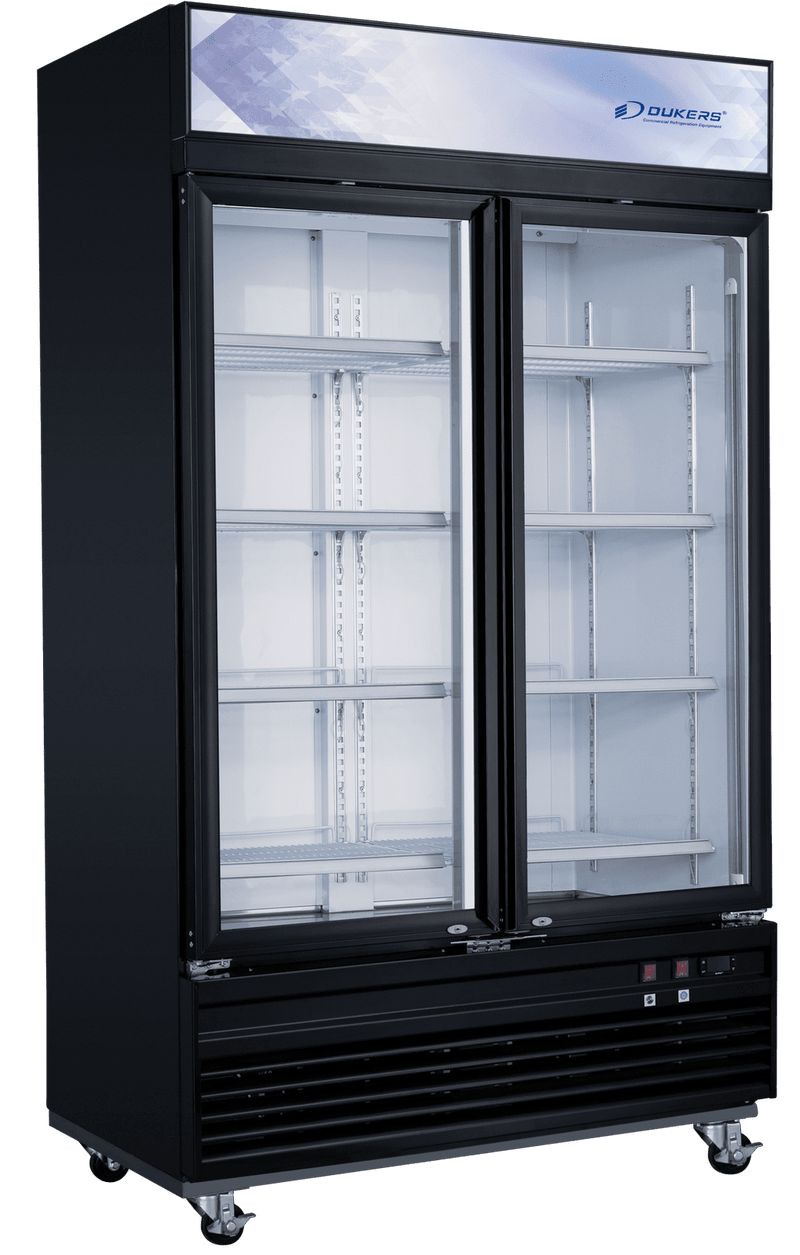

DSM-41F (Double Door - 41.2 cu. ft.)

• Capacity: 41.2 cu. ft.
• Temperature Range: -10°F to 0°F
• Dimensions: 54.33" W x 31.89" D x 84.65" H
• Weight: 507 lbs (net), 562 lbs (gross)
• Electrical: 115V/60Hz, 12.5A, 690W
• Compressor: 1 HP
• Refrigerant: R290 (5.29 oz)
• Shelves: 8 adjustable wire shelves (4 per door)
• Spec Sheet: Download Spec Sheet
• User Manual: Download User Manual

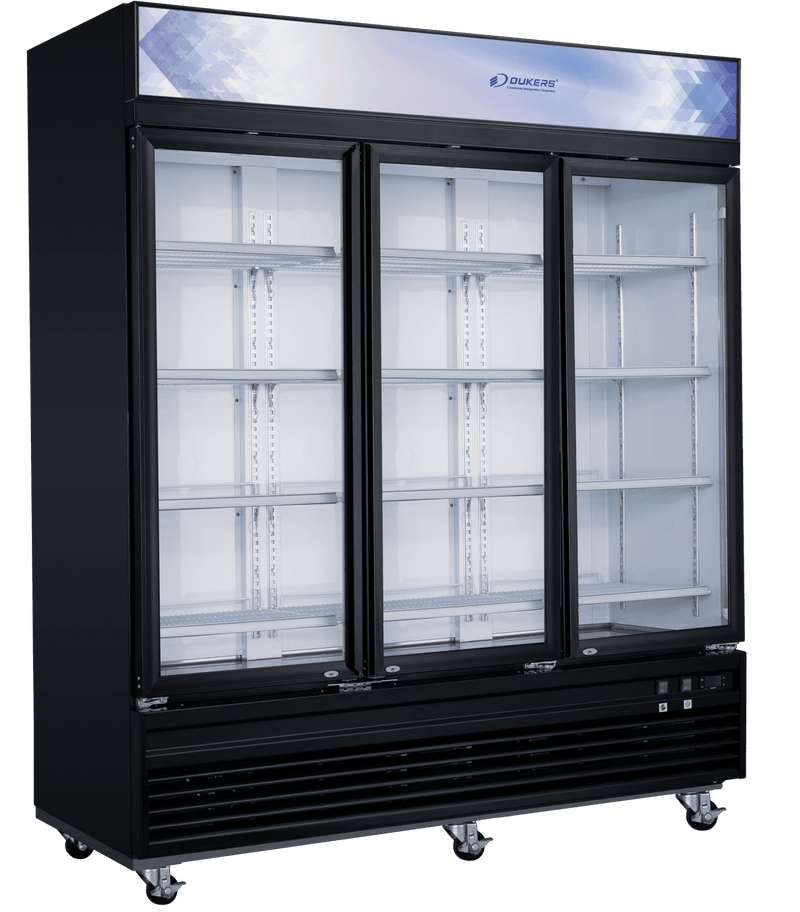

DSM-69F (Triple Door - 69.4 cu. ft.)

• Capacity: 69.4 cu. ft.
• Temperature Range: -10°F to 0°F
• Dimensions: 78.74" W x 31.89" D x 84.65" H
• Weight: 705 lbs (net), 772 lbs (gross)
• Electrical: 115V/60Hz, 15.5A, 850W
• Compressor: 1.5 HP
• Refrigerant: R290 (7.05 oz)
• Shelves: 12 adjustable wire shelves (4 per door)
• Spec Sheet: Download Spec Sheet
• User Manual: Download User Manual

Comparison Table

Warranty

Each DSM series freezer merchandiser includes a 2-year warranty on parts and labor, plus a 5-year warranty on the compressor, offering long-term reliability for your operation.

Installation

Professional installation is advised. Ensure the unit is level and has sufficient ventilation, as outlined in the user manual.

Maintenance

Clean the condenser coil every 3 months to maintain efficiency and extend unit lifespan.
