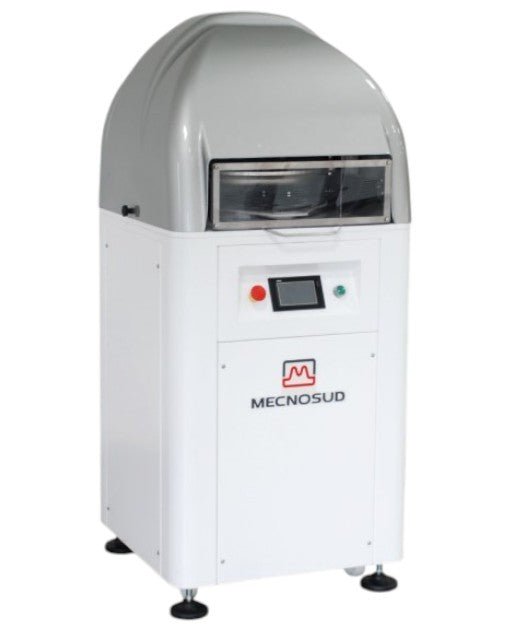

Revolutionize your bakery production with this state-of-the-art automated dough processing system that combines dividing and rounding in one efficient operation. The DR15AK delivers exceptional consistency and speed, making it the ultimate solution for high-volume commercial bakeries requiring precise portion control and uniform product quality.
Key Features
Mecnosud® Dough Rounder/Divider, automatic, 1500 pieces/hr, Maximum capacity 5kg (176oz) per load, 330gr (11.64oz) x15 ball portions section. Minimum capacity 2,25Kg (79.36oz) load, 150gr (5.29 oz) x15 ball portions section. Touchscreen control, (10) customizable programs. Settings like pressing, open height camera and rounding are a customizable parameter, adjustable feet, (2) casters beneath front end to aid displacement, painted steel, 1 HP, 208-220v/60/3-ph, 7 amps.
Technical Specifications
• Production Rate: 1,500 pieces per hour• Portion Count: 15 uniform portions per cycle• Maximum Load: 5kg (176oz) - 330g (11.64oz) per portion• Minimum Load: 2.25kg (79.36oz) - 150g (5.29oz) per portion• Control System: Advanced touchscreen interface• Programs: 10 customizable production programs• Adjustable Parameters: Pressing, open height, camera, rounding• Motor: 1 HP for reliable operation• Power: 208-220v/60/3-ph, 7 amps• Mobility: Adjustable feet with (2) front casters• Construction: Durable painted steel frame
Advanced Production Benefits
• Touchscreen control simplifies operation and reduces training time• 10 programmable settings accommodate diverse product requirements• Automated dividing and rounding eliminates manual labor• Consistent portion weights ensure product standardization• High-speed production increases daily output capacity• Customizable parameters optimize results for different dough types
AR800_User Manual.pdf
