Dukers Merchandiser Refrigerator

The Dukers Merchandiser Refrigerator is expertly crafted for the rigorous requirements of commercial settings like restaurants, cafes, and retail shops. Its top priorities are dependability, energy efficiency, and superior product showcasing, guaranteeing that all your cold drinks and perishable items are maintained at the ideal temperature while remaining easily reachable to patrons. Boasting a streamlined design, environmentally-friendly refrigerant, and state-of-the-art cooling features, it's the perfect answer for enterprises seeking to elevate their product presentation and overall productivity.

Specifications

• Temperature Range: 33°F to 41°F (0°C to 5°C) – Ideal for preserving beverages, dairy, and other perishables.
• Refrigerant: R290 – A natural, eco-friendly refrigerant that minimizes environmental impact.
• Digital Controls: Easy-to-use digital temperature controls with an LED display for precise monitoring.
• LED Lighting: Bright interior LED lighting to enhance product visibility and attract customer attention.
• Adjustable Shelves: Heavy-duty, adjustable wire shelves to accommodate various product sizes and maximize storage space.
• Bottom-Mounted Compressor: Ensures efficient cooling and easy access for maintenance.
• Tempered Glass Doors: Anti-fog, double-pane glass doors for clear visibility and reduced condensation.
• Certifications: ETL certified for safety and sanitation, meeting the highest industry standards.
• Power Requirements: 115V/60Hz – Standard electrical configuration for easy installation.
• Fan-Assisted Cooling: Ensures even temperature distribution throughout the unit.
• Automatic Defrost: Simplifies maintenance by preventing frost build-up.
• Mobility: Equipped with casters (front-locking) for easy movement and positioning.

Model Breakdown

Choose the model that best fits your space and capacity needs. Each model is designed with the same core features but varies in size, door configuration, and storage capacity.

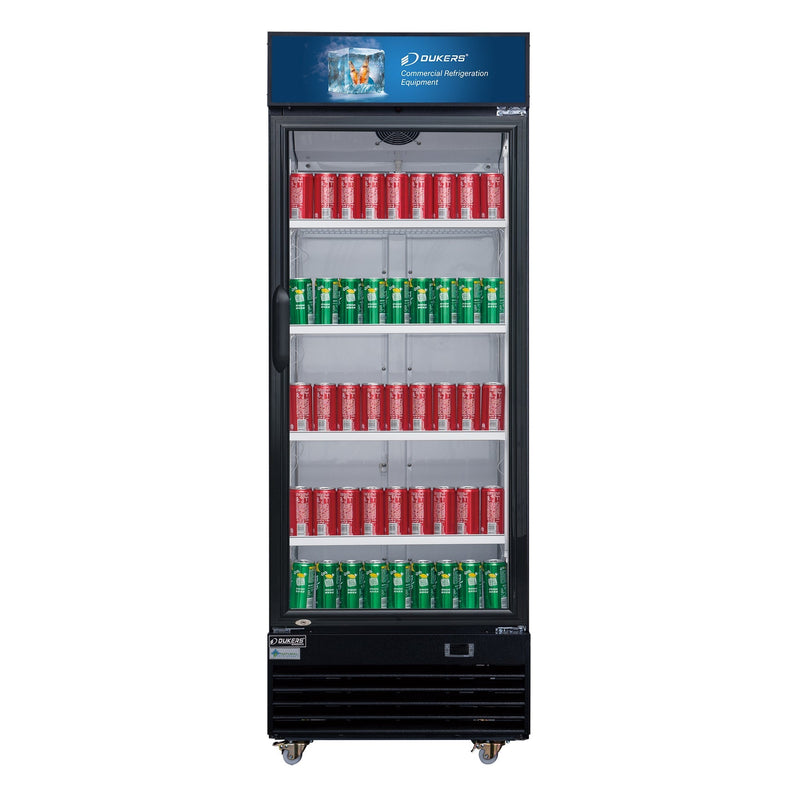

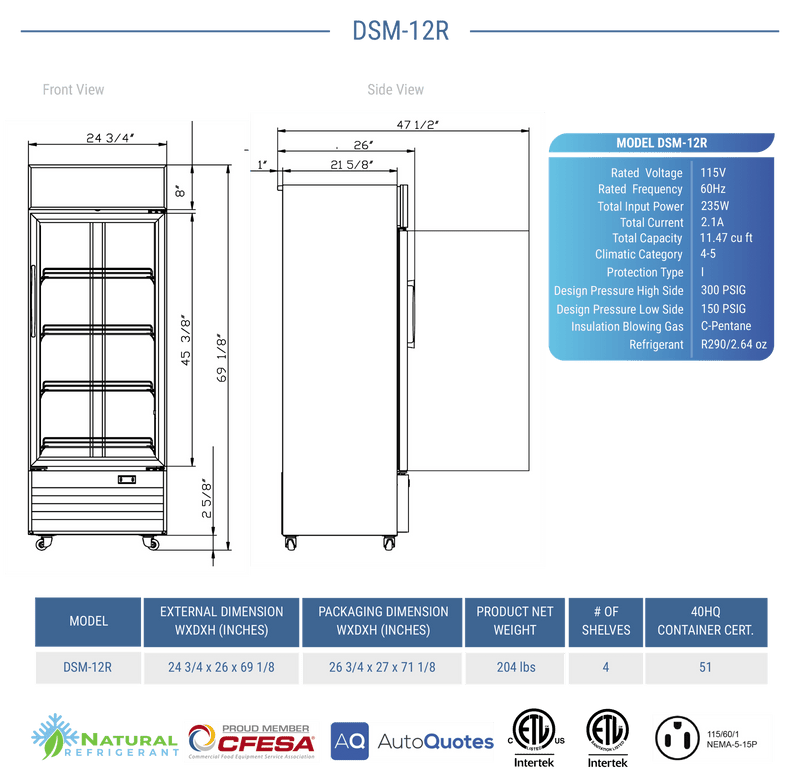

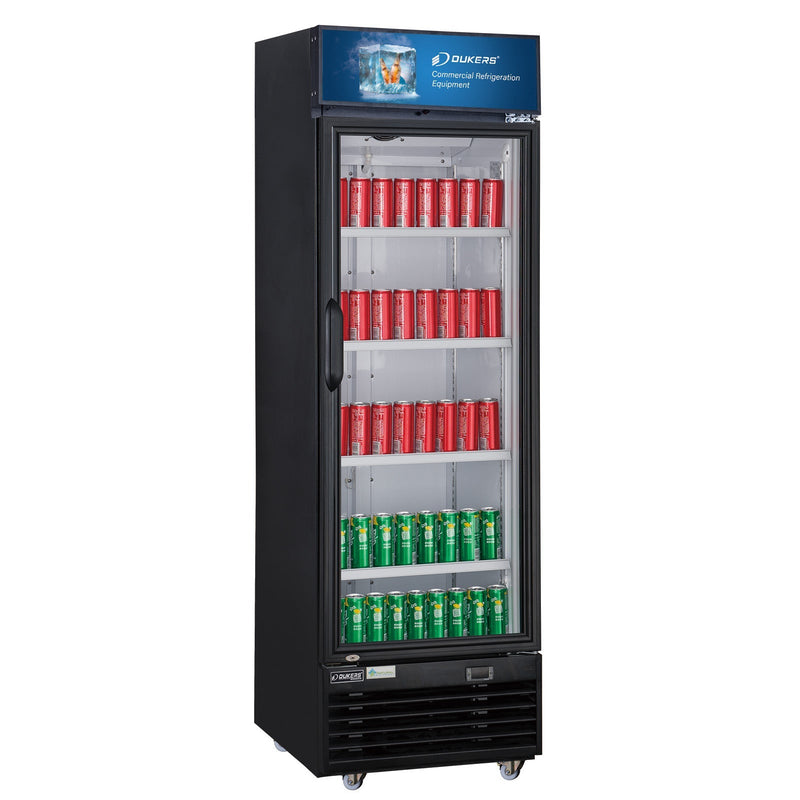

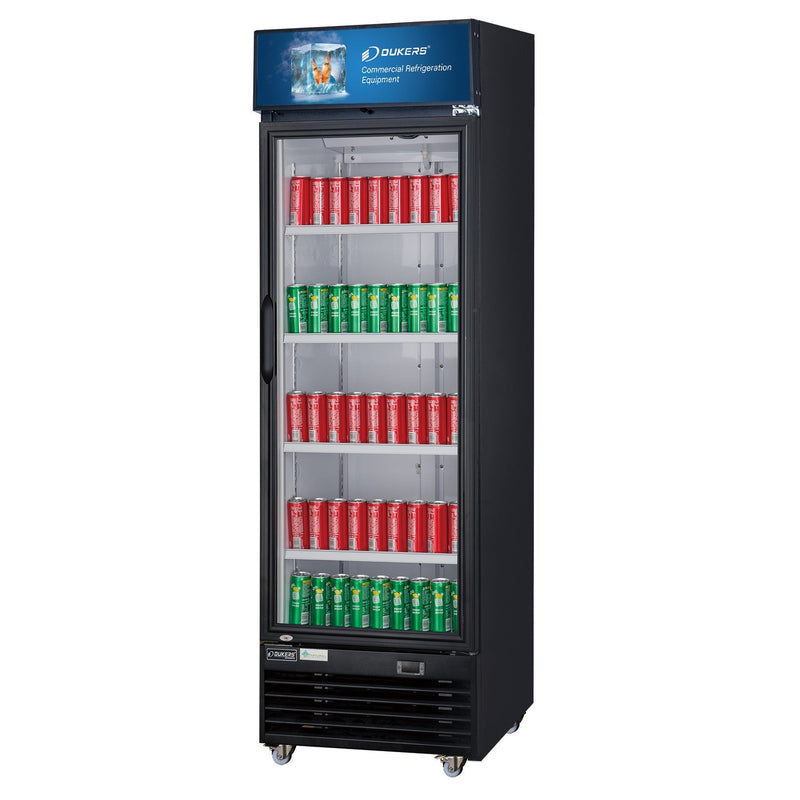

DSM-12R (Single Hinged Door – 25" W)

• Capacity: 11.4 cu.ft.
• Compressor: 1/4 HP
• Shelves: 4 adjustable wire shelves
• Dimensions: 25" W x 28" D x 79.5" H
• Power Consumption: 3.1A, 260W
• Unique Feature: Compact design with a self-closing door and stay-open feature for convenience.
• Spec Sheet | User Manual

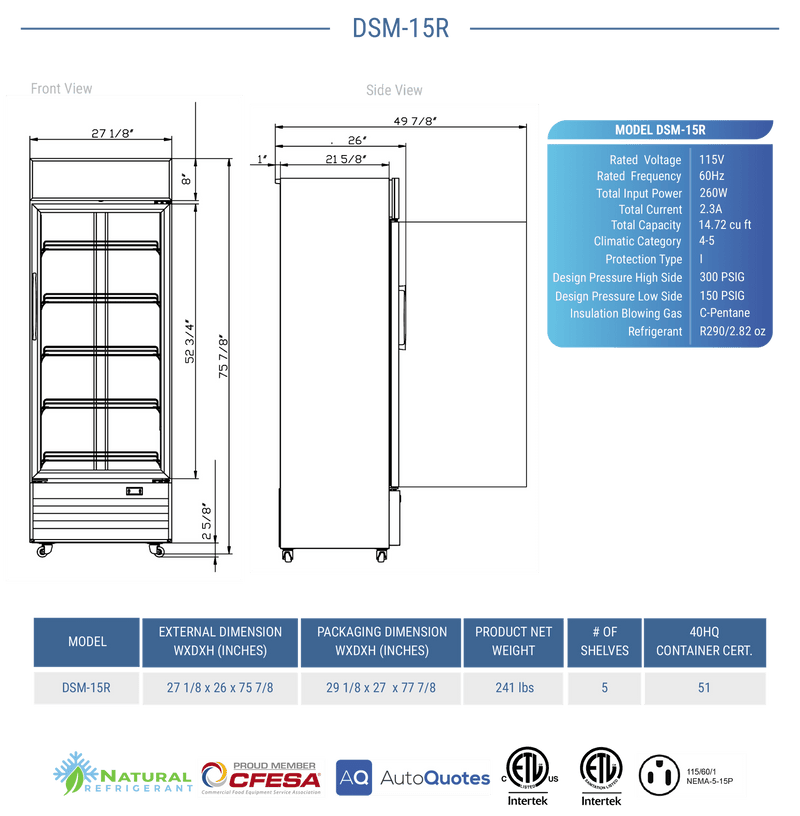

DSM-15R (Single Hinged Door – 27" W)

• Capacity: 14.7 cu.ft.
• Compressor: 1/4 HP
• Shelves: 5 adjustable wire shelves
• Dimensions: 27" W x 30" D x 79.5" H
• Power Consumption: 3.1A, 260W
• Unique Feature: Additional shelf compared to the DSM-12R for increased storage flexibility.
• Spec Sheet | User Manual

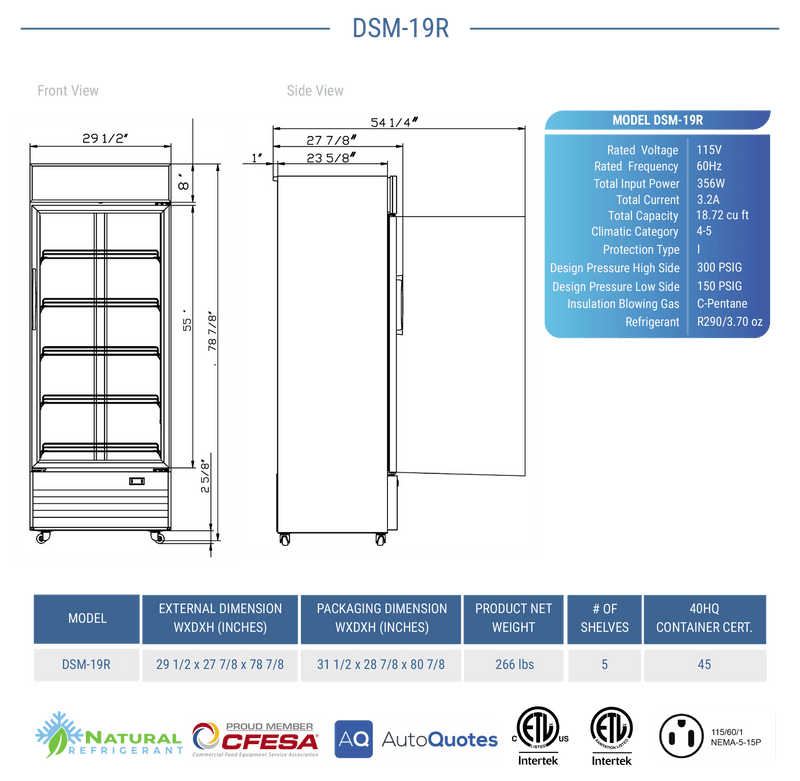

DSM-19R (Single Hinged Door – 30" W)

• Capacity: 18.7 cu.ft.
• Compressor: 1/4 HP
• Shelves: 5 adjustable wire shelves
• Dimensions: 30" W x 32" D x 79.5" H
• Power Consumption: 3.1A, 260W
• Unique Feature: Largest single-door model, offering maximum storage in a compact footprint.
• Spec Sheet | User Manual

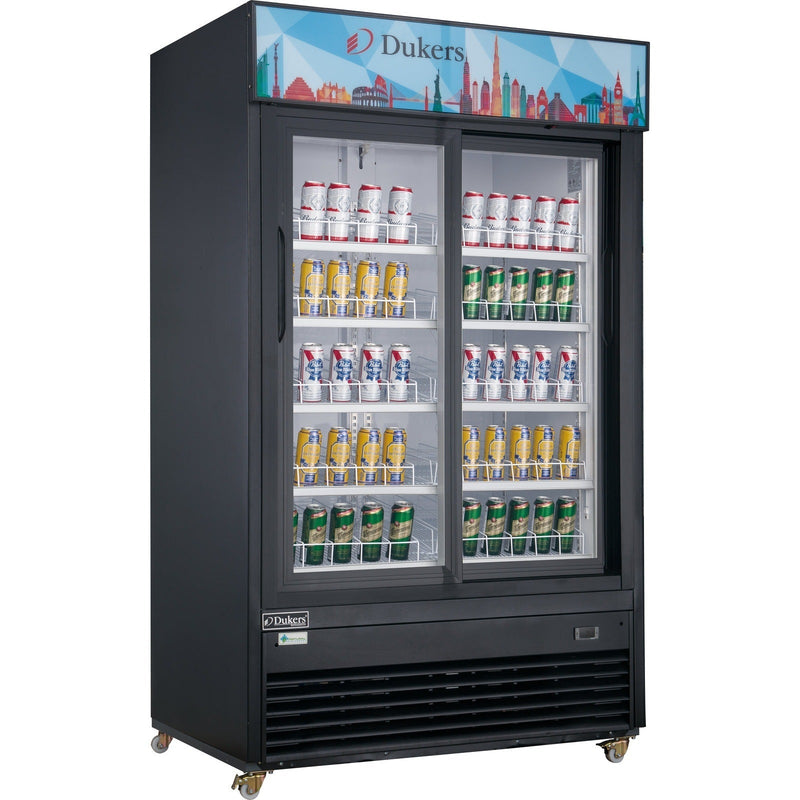

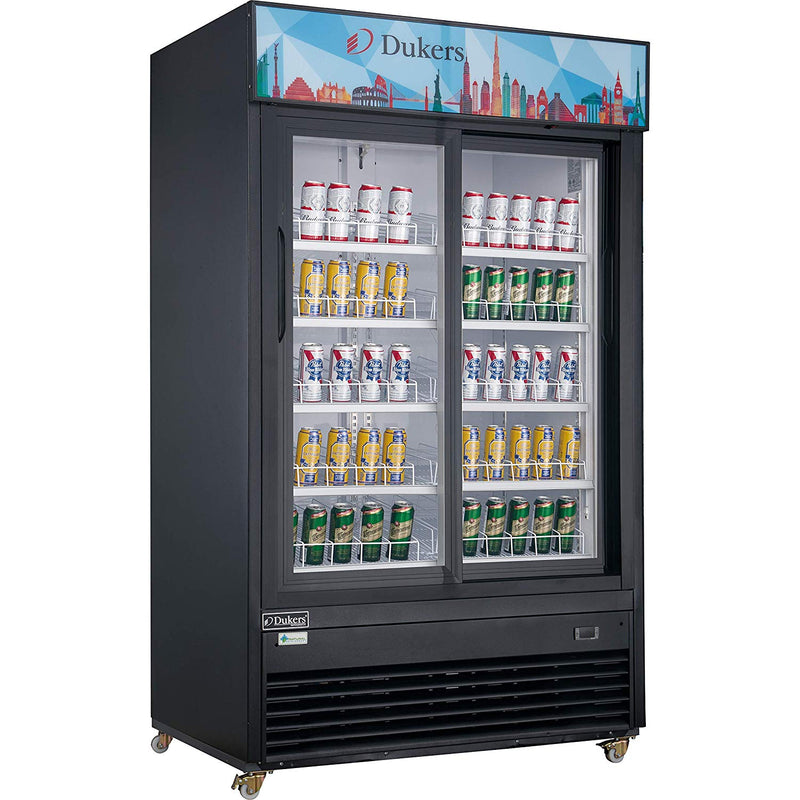

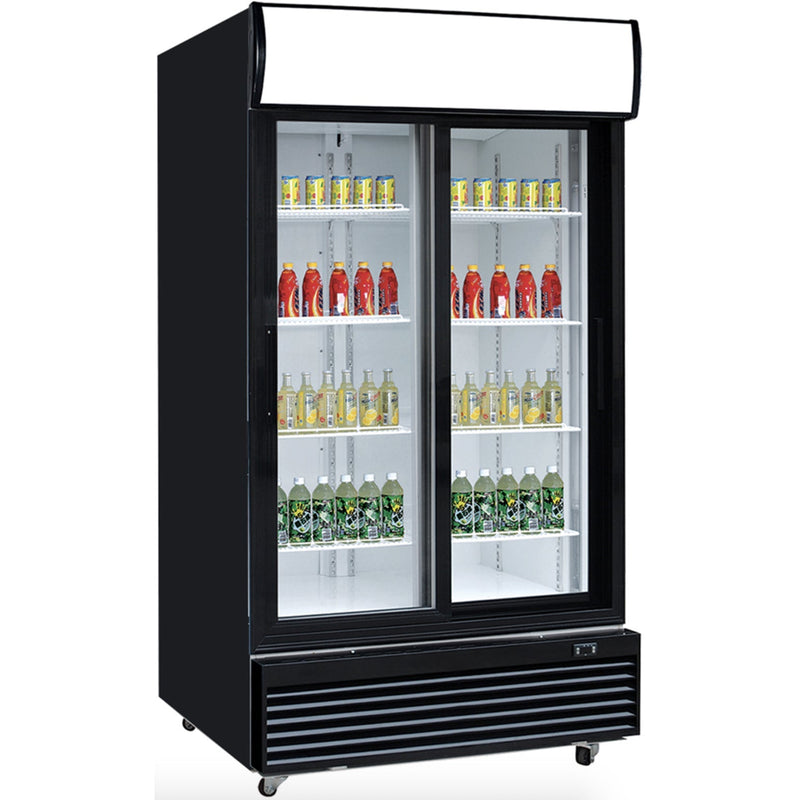

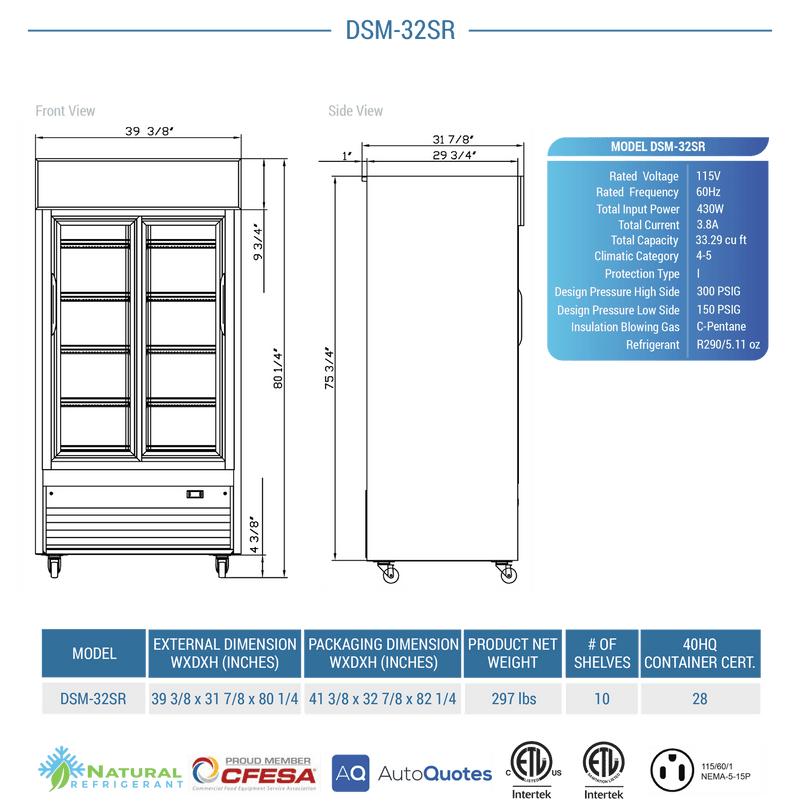

DSM-32SR (Double Sliding Door – 39.375" W)

• Capacity: 32.4 cu.ft.
• Compressor: 1/2 HP
• Shelves: 10 adjustable wire shelves
• Dimensions: 39.375" W x 32" D x 79.5" H
• Power Consumption: 5.2A, 450W
• Unique Feature: Sliding doors for easy access in tight spaces.
• Spec Sheet | User Manual

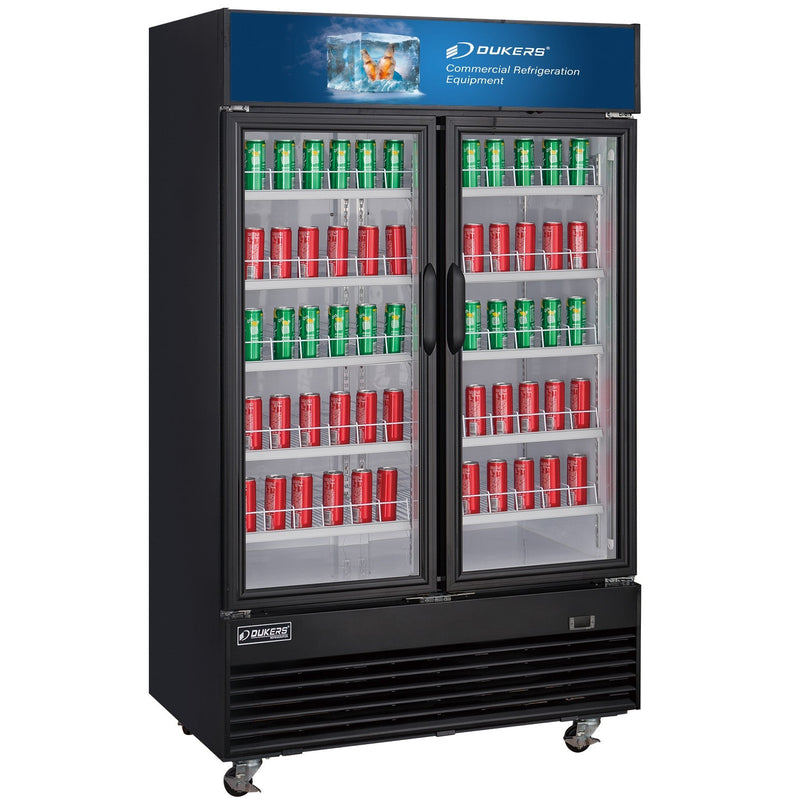

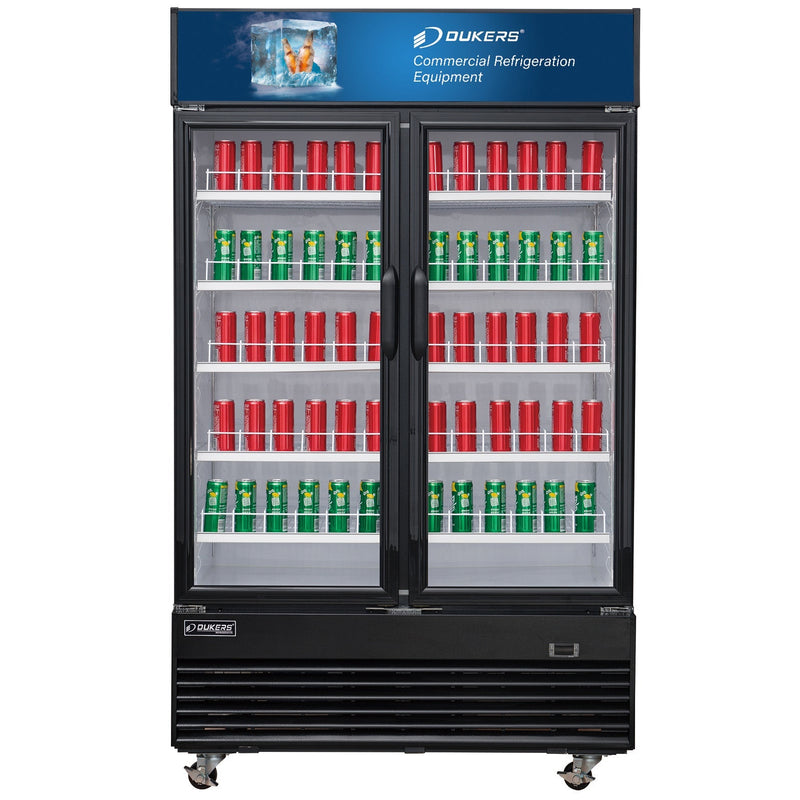

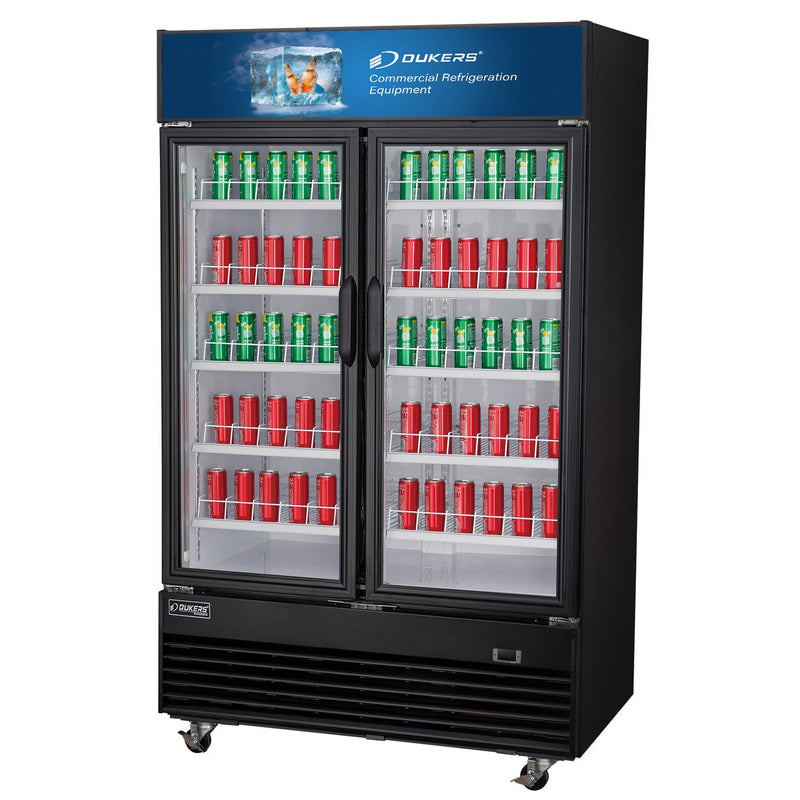

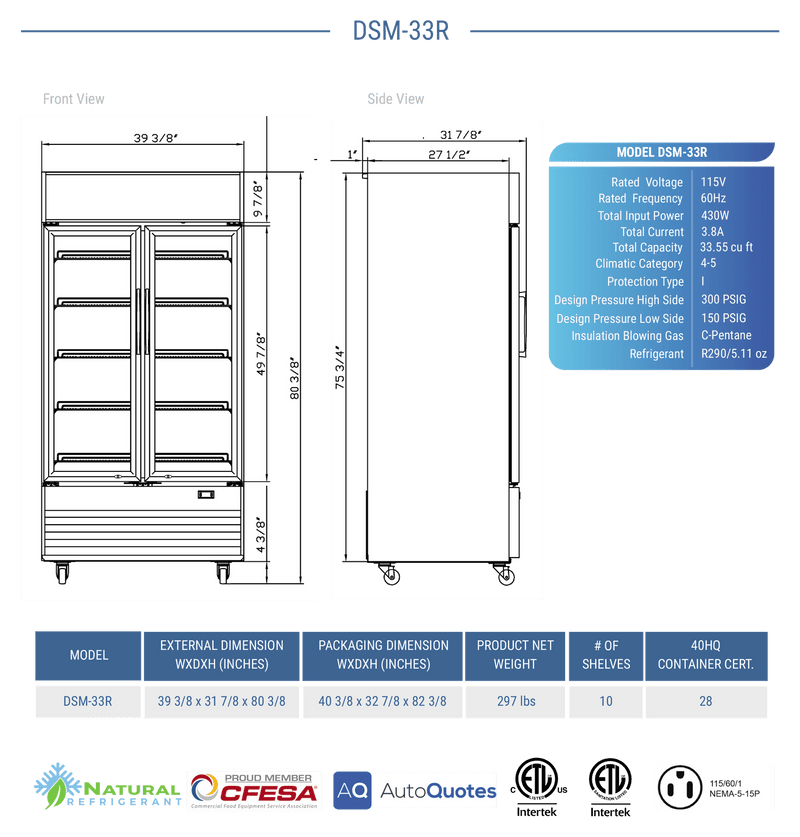

DSM-33R (Double Hinged Door – 39.375" W)

• Capacity: 32.4 cu.ft.
• Compressor: 1/2 HP
• Shelves: 10 adjustable wire shelves
• Dimensions: 39.375" W x 32" D x 79.5" H
• Power Consumption: 5.2A, 450W
• Unique Feature: Hinged doors for traditional access and ease of use.
• Spec Sheet | User Manual

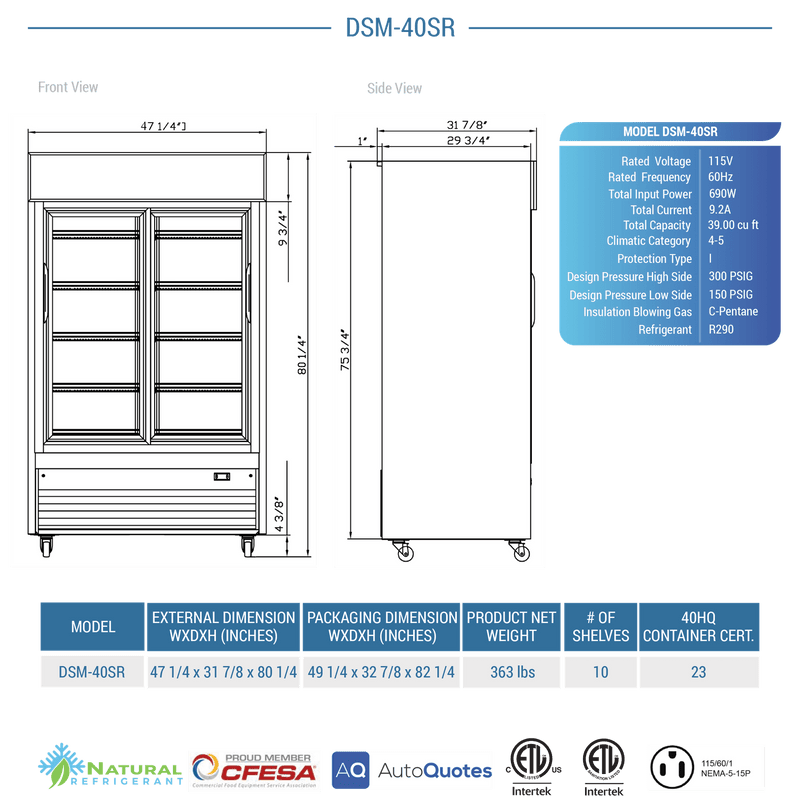

DSM-40SR (Double Sliding Door – 47" W)

• Capacity: 40.1 cu.ft.
• Compressor: 3/4 HP
• Shelves: 10 adjustable wire shelves
• Dimensions: 47" W x 32" D x 79.5" H
• Power Consumption: 6.5A, 550W
• Unique Feature: Available in a sleek black finish for a modern look.
• Spec Sheet | User Manual

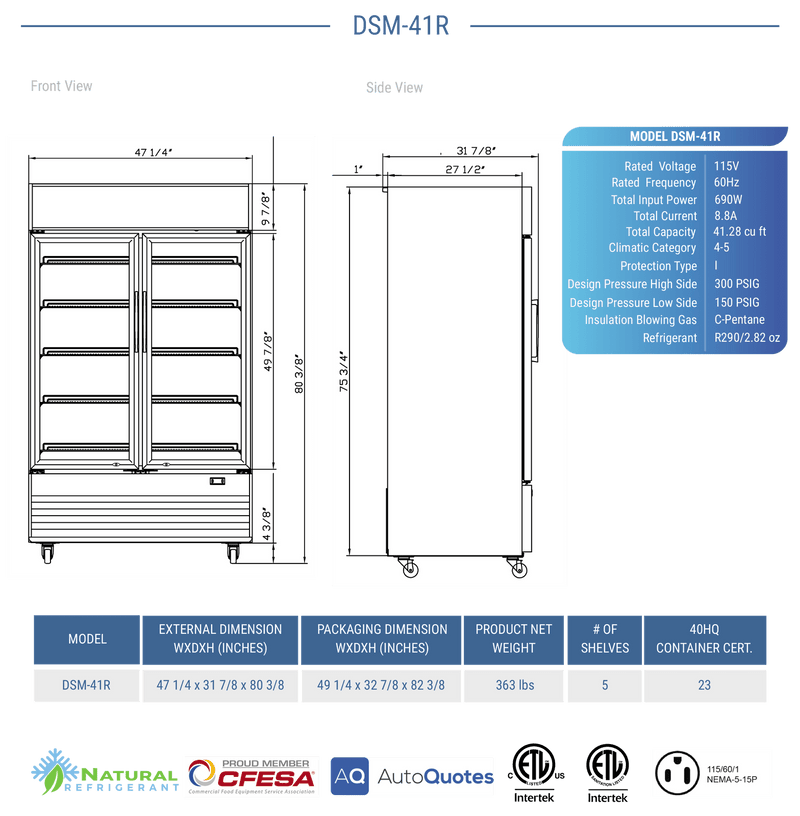

DSM-41R (Double Hinged Door – 47" W)

• Capacity: 40.1 cu.ft.
• Compressor: 3/4 HP
• Shelves: 10 adjustable wire shelves
• Dimensions: 47" W x 32" D x 79.5" H
• Power Consumption: 6.5A, 550W
• Unique Feature: Hinged door variant of the DSM-40SR, offering the same capacity with traditional door access.
• Spec Sheet | User Manual

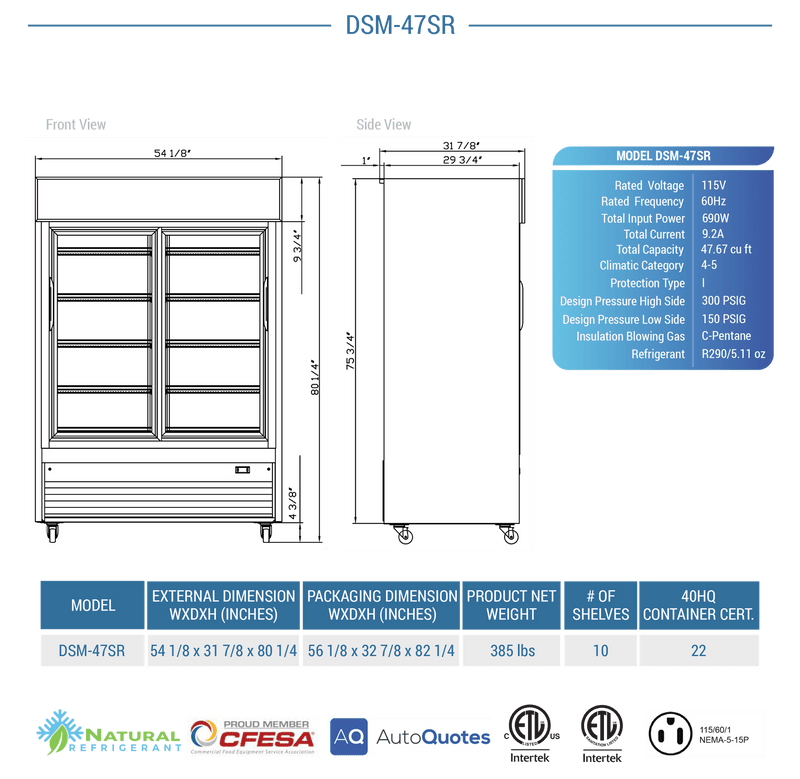

DSM-47SR (Double Sliding Door – 54.125" W)

• Capacity: 47.2 cu.ft.
• Compressor: 3/4 HP
• Shelves: 10 adjustable wire shelves
• Dimensions: 54.125" W x 32" D x 79.5" H
• Power Consumption: 6.5A, 550W
• Unique Feature: Wider design for increased display area and storage capacity.
• Spec Sheet | User Manual

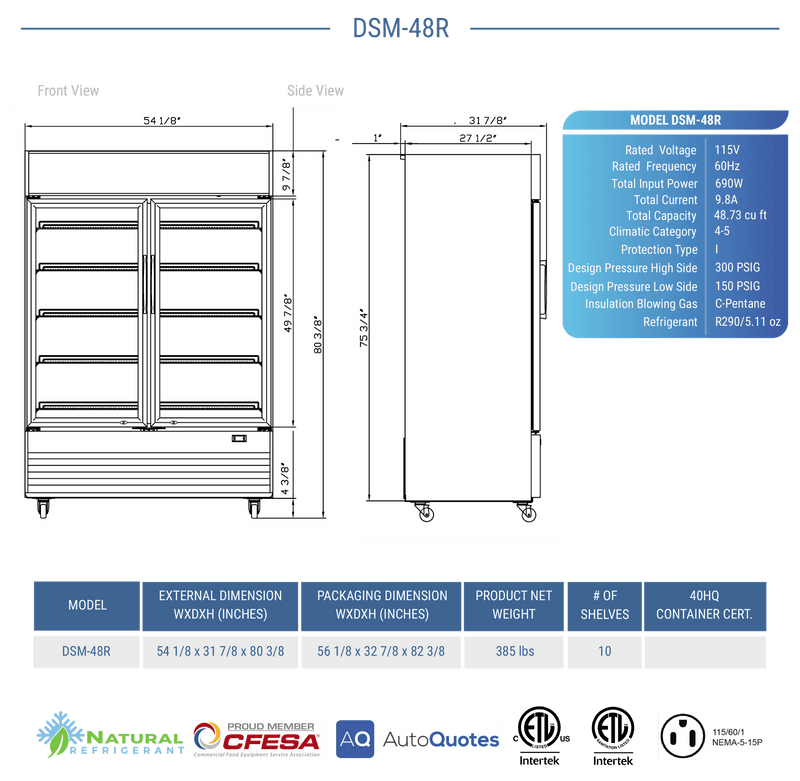

DSM-48R (Double Hinged Door – 54.125" W)

• Capacity: 47.2 cu.ft.
• Compressor: 3/4 HP
• Shelves: 10 adjustable wire shelves
• Dimensions: 54.125" W x 32" D x 79.5" H
• Power Consumption: 6.5A, 550W
• Unique Feature: Available in a black finish for a cohesive look in modern commercial spaces.
• Spec Sheet | User Manual

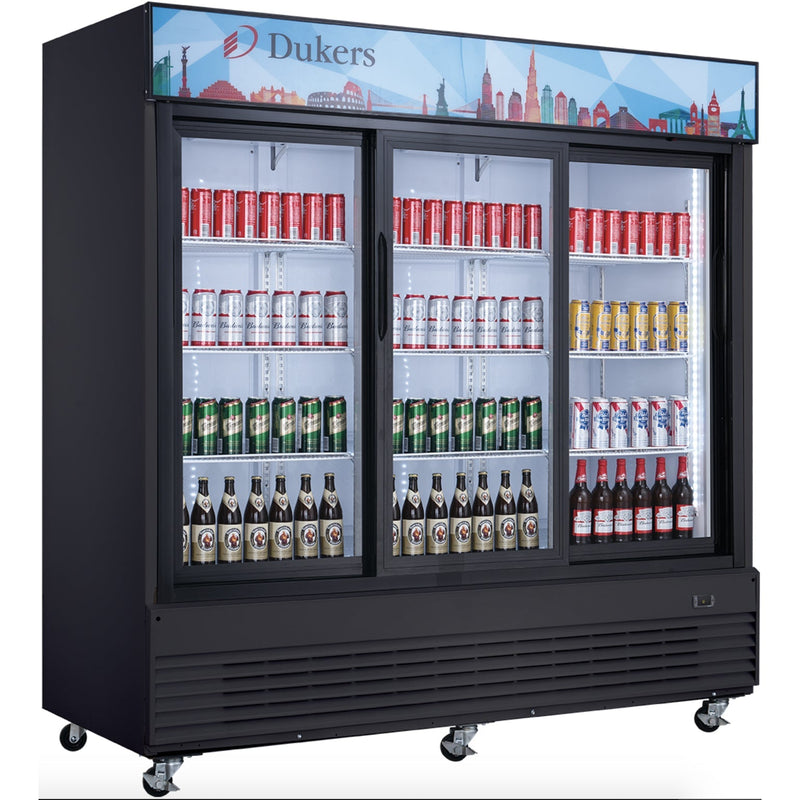

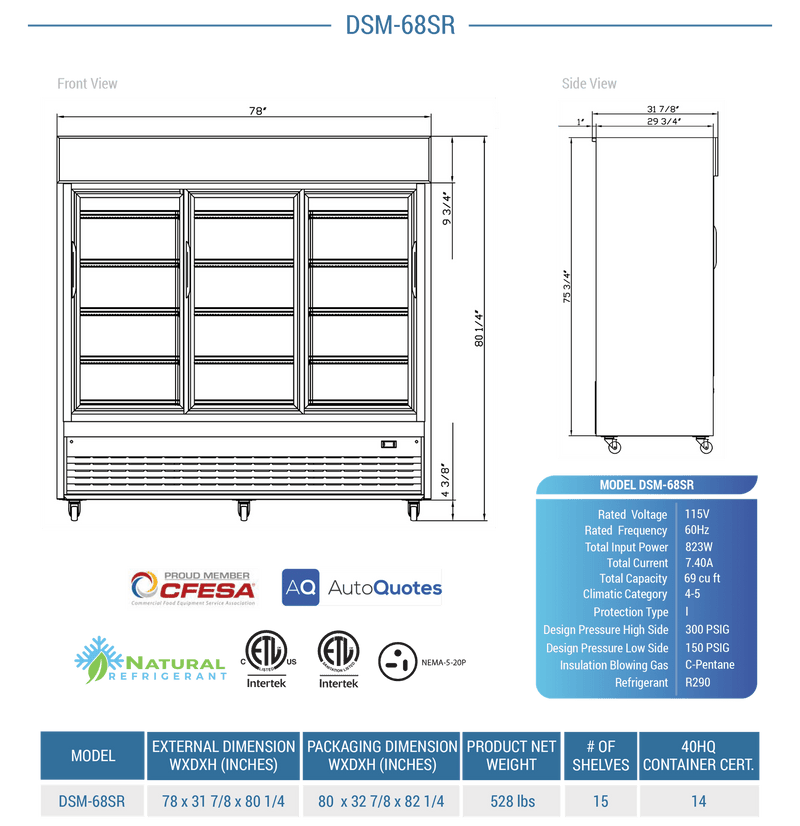

DSM-68SR (Three Sliding Door – 78" W)

• Capacity: 68.5 cu.ft.
• Compressor: 1 HP
• Shelves: 15 adjustable wire shelves
• Dimensions: 78" W x 32" D x 79.5" H
• Power Consumption: 7.4A, 823W
• Unique Feature: Largest sliding door model, perfect for high-volume storage and display.
• Spec Sheet | User Manual

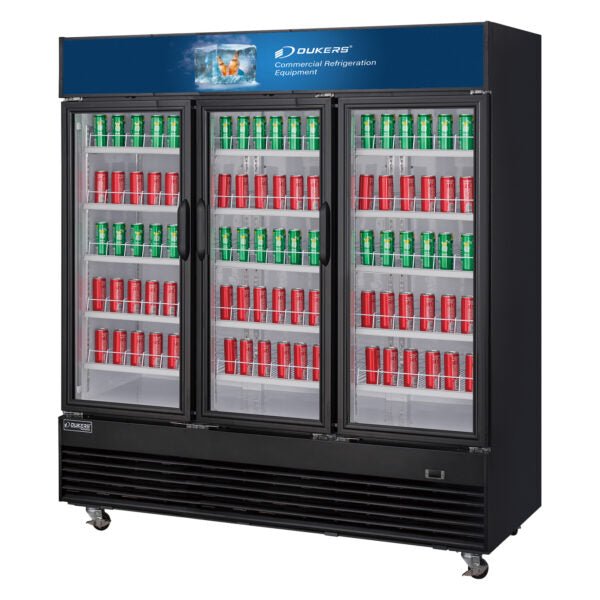

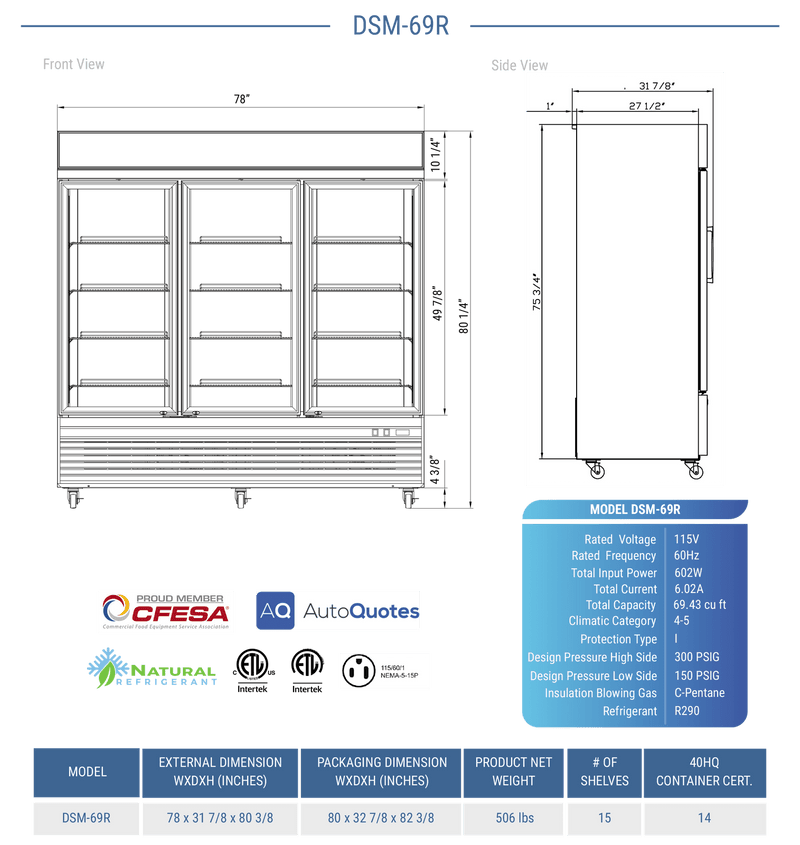

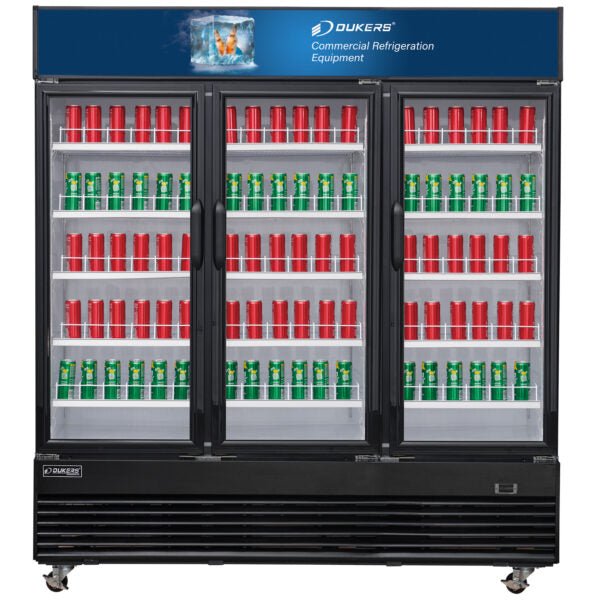

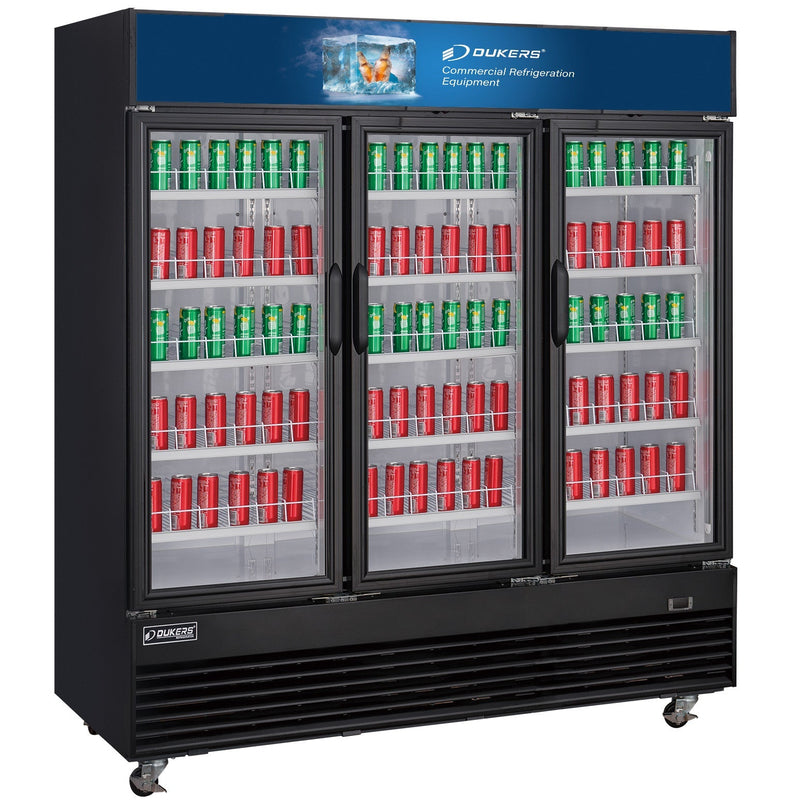

DSM-69R (Three Hinged Door – 78" W)

• Capacity: 68.5 cu.ft.
• Compressor: 1 HP
• Shelves: 15 adjustable wire shelves
• Dimensions: 78" W x 32" D x 79.5" H
• Power Consumption: 7.4A, 823W
• Unique Feature: Largest hinged door model, offering expansive storage with easy access.
• Spec Sheet | User Manual

LG-430 (Single Hinged Door – 24.5" W)

• Capacity: 15.1 cu.ft.
• Compressor: 1/4 HP
• Shelves: 4 adjustable wire shelves
• Dimensions: 24.5" W x 28" D x 79.5" H
• Power Consumption: 3.1A, 260W
• Unique Feature: Slightly narrower than the DSM-15R, ideal for spaces with limited width.
• Spec Sheet | User Manual

Model Comparison Table

Warranty & Support

Each Dukers Merchandiser Refrigerator comes with a comprehensive warranty to ensure peace of mind:

• 2-Year Parts and Labor Warranty
• 5-Year Compressor Warranty

For additional support, please refer to the User Manual or contact our customer service team.

Installation & Maintenance

• Ventilation: Ensure proper airflow around the unit; avoid placing in tight enclosures.
• Leveling: The refrigerator must be leveled for optimal performance. Use the adjustable casters to achieve this.
• Maintenance: Regularly clean the condenser coils to maintain efficiency. The automatic defrost feature simplifies upkeep by preventing frost build-up.
• Positioning: Use the casters for easy movement and lock the front wheels once the unit is in place.
