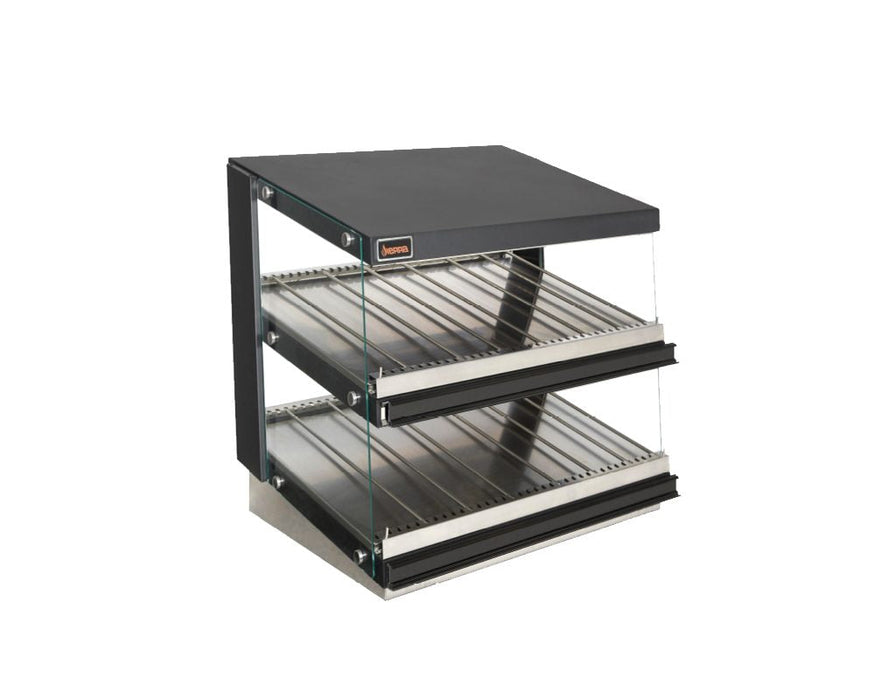

Sierra SHDM‑24PT 24″ Heated Display Merchandiser – Pass‑Through, Dual Heated Shelves
Turn impulse cravings into steady profits with the Sierra SHDM‑24PT Heated Display Merchandiser. Engineered for convenience stores, concession stands, cafés, and stadium kiosks, this compact 24‑inch model keeps wrapped sandwiches, pizza slices, burgers, and boxed entrées piping hot and perfectly visible from both sides.
Two slanted shelves feature independent heat and light controls, allowing you to dial‑in the ideal holding temperature and presentation for each menu item. Adjustable divider rods speed up loading, while a sleek black powder‑coated exterior blends into any décor. Tempered‑glass side panels deliver 360° product visibility and added safety, and the smart pass‑through design lets operators restock from the back while customers serve themselves from the front—no bottlenecks, no cold food.
Backed by more than 50 years of MVP Group dependability, the SHDM‑24PT delivers the durability, efficiency, and eye‑catching display you need to boost grab‑and‑go sales all day long.
Heat it. Show it. Sell it—Sierra hot and fresh.
Key Features:
- Dual Heated Shelves – Each shelf has independent heat & light switches for precise holding control.
- Adjustable Thermostats – Separate upper & lower shelf thermostats maintain foods at safe 140 °F+ serving temps.
- Pass‑Through Convenience – Open front and rear access keeps restocking fast and customers moving.
- High‑Visibility Display – Slanted shelves, bright illumination, and tempered‑glass sides showcase every item.
- Flexible Loading – Removable divider rods organize wrapped sandwiches, pizza boxes, or snack trays in seconds.
- Compact 24″ Footprint – Fits easily on counters, coffee bars, or checkout islands.
- Rugged Construction – Black powder‑coated steel exterior resists scratches; tempered glass increases safety.
- Plug‑&‑Play Power – Standard 120 V connection; no hard‑wiring required.
Product Specifications:
| Model |
SHDM‑24PT |
| Unit Type |
Heated Display Merchandiser (Pass‑Through) |
| Overall Length |
24″ (610 mm) |
| Shelves |
2, slanted, independently heated & lit |
| Shelf Controls |
Separate heat & light rocker switches |
| Temperature Range |
140 °F – 185 °F (adjustable)
|
| Thermostats |
2 (upper & lower shelves) |
| Exterior Finish |
Black powder‑coated steel |
| Side Panels |
Clear tempered glass |
| Divider Rods |
Adjustable / removable |
| Electrical |
120 V / 60 Hz / 1 Ph |
| Plug Type |
NEMA 5‑15P, 6 ft cord |
| Amperage / Wattage |
6.5 A / 780 W (per shelf 390 W)
|
| Dimensions (W × D × H) |
24″ × 18.5″ × 27″ (610 × 470 × 686 mm)
|
| Ship Weight |
95 lb (43 kg) |
| Agency Approvals |
ETL, NSF |
| Series Options |
SHDM‑32PT / 38PT / 44PT / 50PT |
