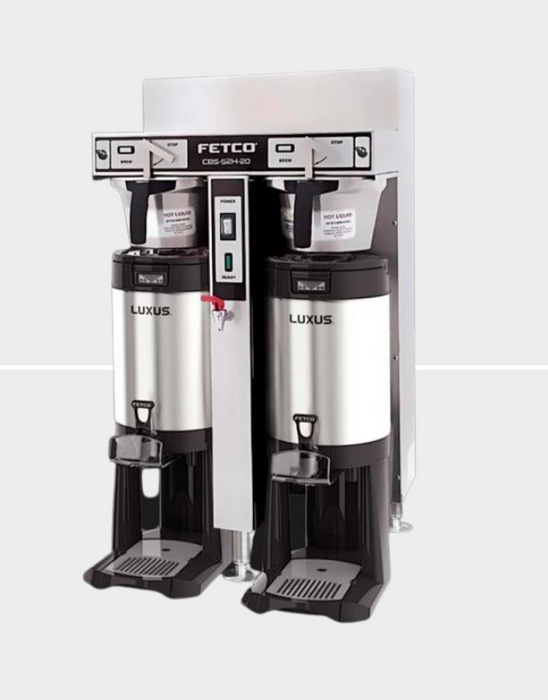

FETCO IP44 CBS-52H-20 Maritime Twin 2.0 Gallon Coffee Brewer – 304 Stainless Steel Purpose-built for demanding maritime and protected outdoor service, the FETCO IP44 CBS-52H-20 delivers professional-grade coffee production in corrosive environments. Its dual 2.0-gallon tanks and IP44-rated 304 stainless steel construction withstand salt spray, vibration, and humidity inherent to shipboard kitchens, ferries, and exposed service areas. Three-phase electrical compatibility and half-batch brewing flexibility accommodate varied operational demands, while the 475-cup-per-hour capacity ensures consistent output for high-volume operations. Engineered with brew basket clips and a compact footprint, this system integrates seamlessly into tight spaces without compromising durability or performance. FETCO's maritime expertise delivers the reliability your crew and guests depend on.
What’s Included:
- FETCO CBS-52H-20 Twin 2.0 Gallon Maritime Coffee Brewer
- IP44 Maritime Package
- Brew Basket Clips
- Built-in Stepdown Transformer
- 304 Stainless Steel Construction
- User Manual & Installation Guide
Product Specifications:
| Category |
Specification |
| Model |
IP44 CBS-52H-20 |
| Height |
35.75 in / 90.8 cm |
| Width |
21 in / 53.3 cm |
| Depth |
19.5 in / 49.5 cm |
| Shipping Weight |
97 lbs / 44 kg |
| Tank Capacity |
3 Gallons / 11.4 Liters |
| Output (8 oz cups/hr) |
475 cups |
| Output (12 oz cups/hr) |
317 cups |
| Output (16 oz cups/hr) |
238 cups |
| Output (20 oz cups/hr) |
190 cups |
| Electrical Options |
220–240V / 480V; Single or Three Phase |
| Amps |
11.6–23.5 |
| Electrical Connection |
Terminal Block |
| Water Inlet Size |
3/8" Male Flare |
| Min. Flow Rate |
1.5 GPM (5.7 LPM) |
| Water Pressure Range |
20–75 psig (138–517 kPa) |
| Material |
304 Stainless Steel |
| Certifications |
IP44 Ingress Protection Compliant |
Electrical Configuration – FETCO Maritime Coffee
Model: IP44-52H-20
| Configuration Code |
Heater Configuration |
Voltage (V) |
Phase |
Wires |
KW |
Electrical Connection |
Max Amp Draw (A) |
Brew Rate (Gal/L per Hour) |
| C53216MIP |
2 × 3.0 kW |
220–240 |
1 |
2 + G |
5.1–6.1 |
Terminal Block |
23.3–25.4 |
14.0 gal (53.0 L) |
| C53206MIP |
3 × 4.0 kW |
380–400 |
3 |
3 + G |
7.7–8.5 |
Terminal Block |
11.7–12.3 |
18.0 gal (68.1 L) |
| C53226MIP |
3 × 4.0 kW |
440–480 |
3 |
3 + G |
10.3–12.1 |
Terminal Block |
13.6–14.8 |
26.0 gal (98.4 L) |
| C53256MIP |
3 × 2.0 kW |
380–400 |
3 |
3 + G |
4.0–4.4 |
Terminal Block |
6.0–6.3 |
– |
| C53236MIP |
3 × 2.0 kW |
440–480 |
3 |
3 + G |
5.3–6.1 |
Terminal Block |
6.9–7.6 |
30.0 gal (113.6 L) |
Why Choose FETCO Maritime Series?
FETCO is the only manufacturer offering fully IP44-rated coffee brewing systems built specifically for maritime use. The CBS-52H-20 is built to perform in challenging environments like cruise ships, ferries, and protected outdoor areas, where resistance to moisture, vibration, and corrosion is essential. Experience unmatched reliability and performance at sea.
Notes:
- All models use Terminal Block connections for secure installation.
- Phase and voltage configurations accommodate diverse electrical systems across vessels.
- KW range reflects different heater load requirements per configuration.
- Brewing output varies based on voltage, water pressure, and temperature rise.
About – FETCO
FETCO is committed to brewing innovation. For over 30 years, the brand has been a leading manufacturer of premium coffee and tea brewing equipment, hot water dispensers, and grinders—trusted by foodservice professionals worldwide.
Founded in 1987 by Zbigniew Lassota and Christopher Nowak, FETCO was established to meet the industry’s demand for high-quality, dependable brewing solutions. All products are manufactured at the company’s headquarters in Lake Zurich, Illinois, continuing a legacy of engineering excellence.
What sets FETCO apart is a strong focus on innovation and customer experience. Each product is thoughtfully designed with performance, reliability, and specific business needs in mind. From independent cafés to global chains, FETCO equipment supports coffee and tea professionals in delivering exceptional service and consistency.
Driven by progress and powered by trust, FETCO remains a dedicated partner in every brewing journey.
Downloads:
