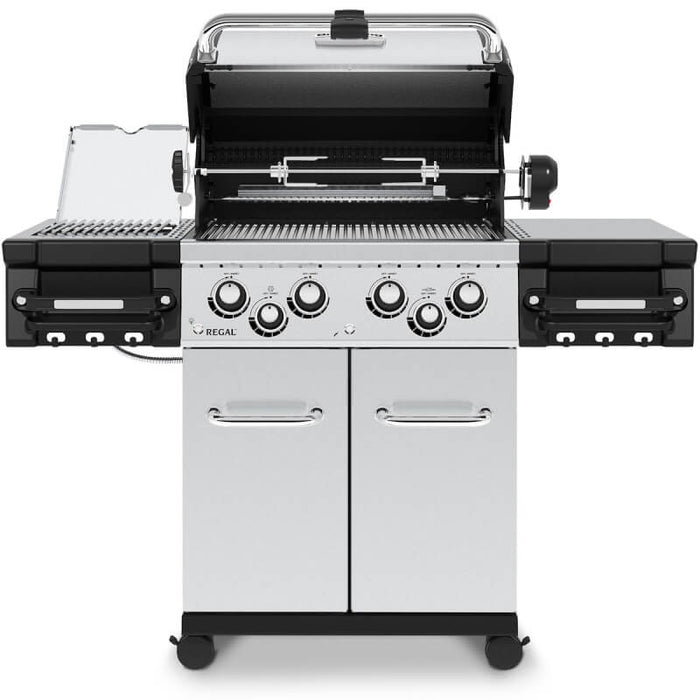

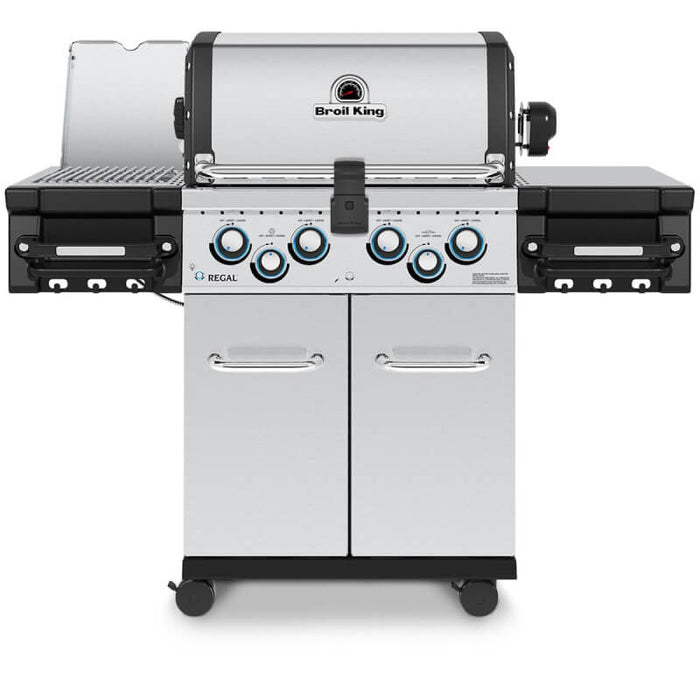

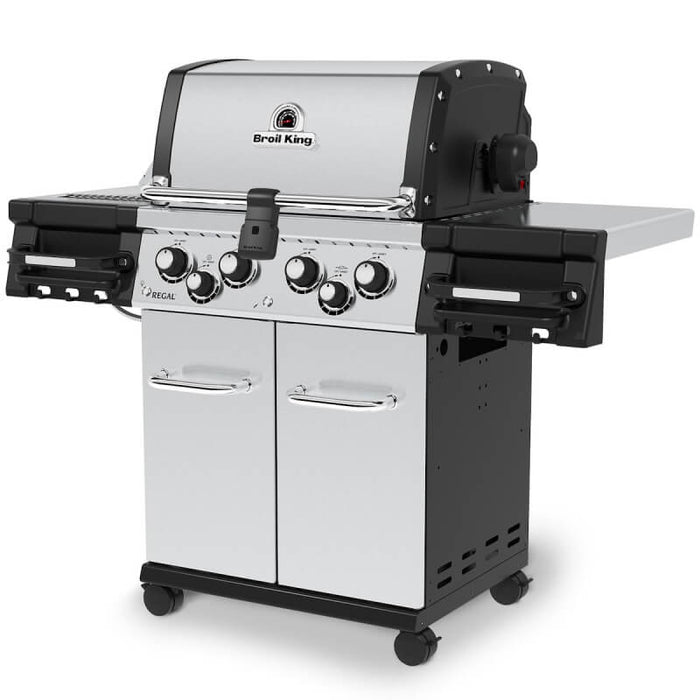

Broil King Regal S 490 Pro Infrared 4-Burner Gas Grill
The Broil King Regal S 490 Pro Infrared is a powerful outdoor cooking system built for chefs who want precision, versatility, and professional-grade performance. With 4 stainless steel Dual-Tube™ burners, an infrared searing side burner, and a premium rotisserie burner, this grill is designed to do it all—from high-heat steak searing to slow-roasted perfection.
Its rugged stainless steel and cast aluminum build offers superior durability, while thoughtful details like illuminated control knobs, a pull-out tank drawer, and integrated tool hooks make it ideal for everyday grilling and special occasions alike.
With 695 sq. in. of total cooking area, including heavy-duty 9mm stainless steel grates, the Regal S 490 Pro gives you the space and heat control needed to master every recipe. Whether you're using propane or natural gas, this grill delivers even heat, enhanced flavor, and exceptional performance every time.
Specifications
-
Brand: Broil King
-
Model: Regal S 490 Pro Infrared
-
Fuel Type: Propane (LP) or Natural Gas (NG)
-
Main Burners: 4 Dual-Tube™ stainless steel burners (50,000 BTUs total)
-
Side Burner: 10,000 BTU ceramic infrared
-
Rotisserie Burner: 15,000 BTU stainless steel + premium rotisserie kit
-
Primary Cooking Area: 500 sq. in.
-
Warming Rack: 195 sq. in.
-
Total Cooking Area: 695 sq. in.
-
Grates: 9mm stainless steel, reversible
-

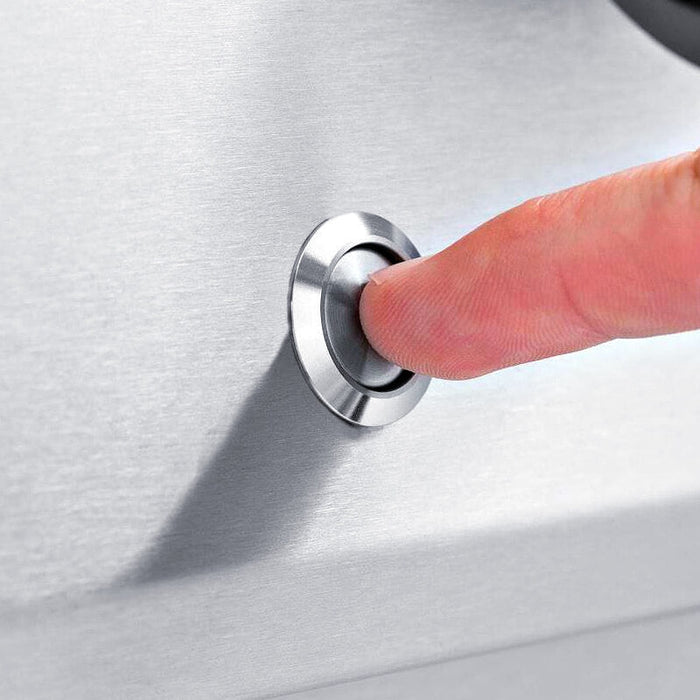

Ignition: Sure-lite™ electronic ignition
-
Temperature Gauge: Deluxe Accu-Temp™ built-in thermometer
-
Control System: Linear-Flow™ valves with 180° Sensi-Touch™ knobs
-
Construction: Stainless steel hood panel + cookbox with cast aluminum end caps
-

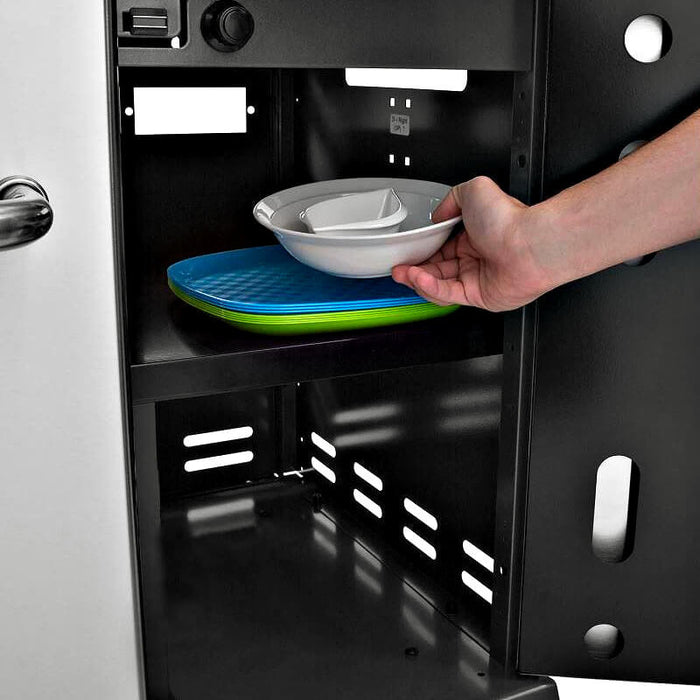

Cabinet: Enclosed with stainless steel doors + pull-out propane drawer (LP model)
-

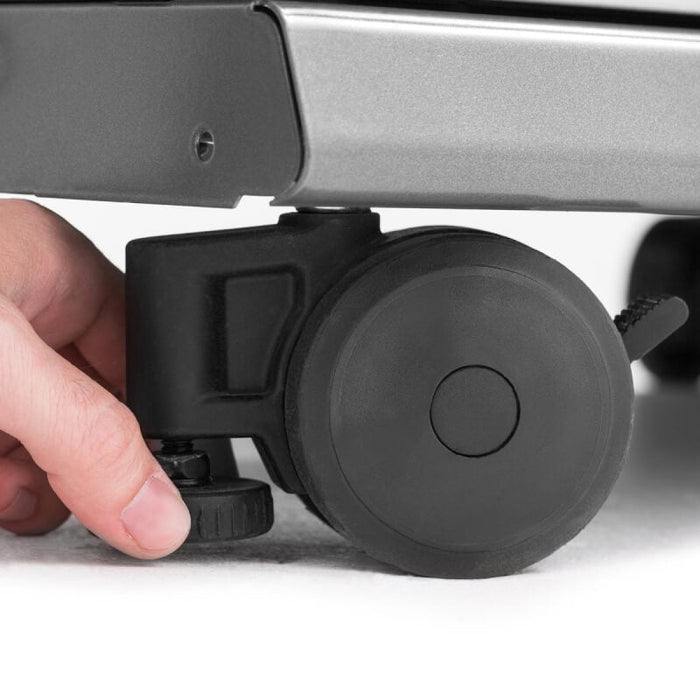

Mobility: 4 heavy-duty locking swivel casters
-
Lights: Built-in illuminated control knobs
-

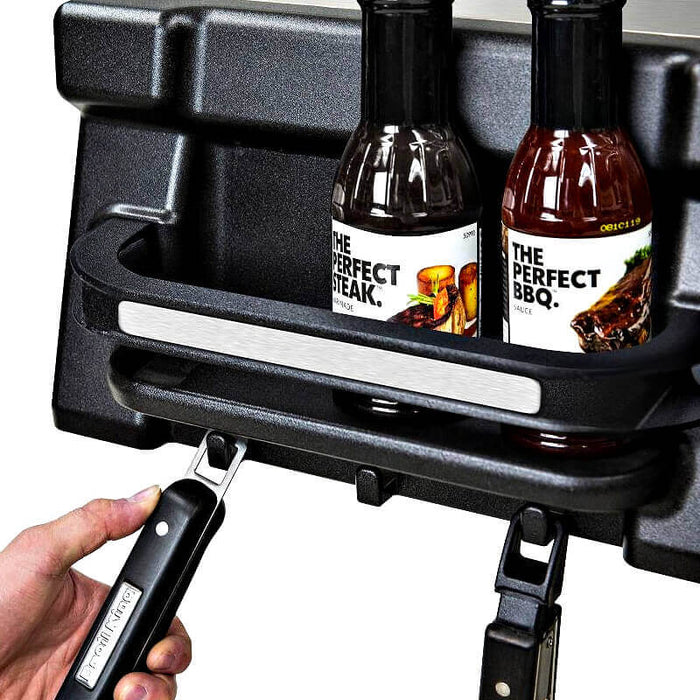

Includes: Rotisserie kit, integrated tool hooks, side shelves with condiment bins
-
NG Model: Includes 10 ft. natural gas hose
Key Features
-

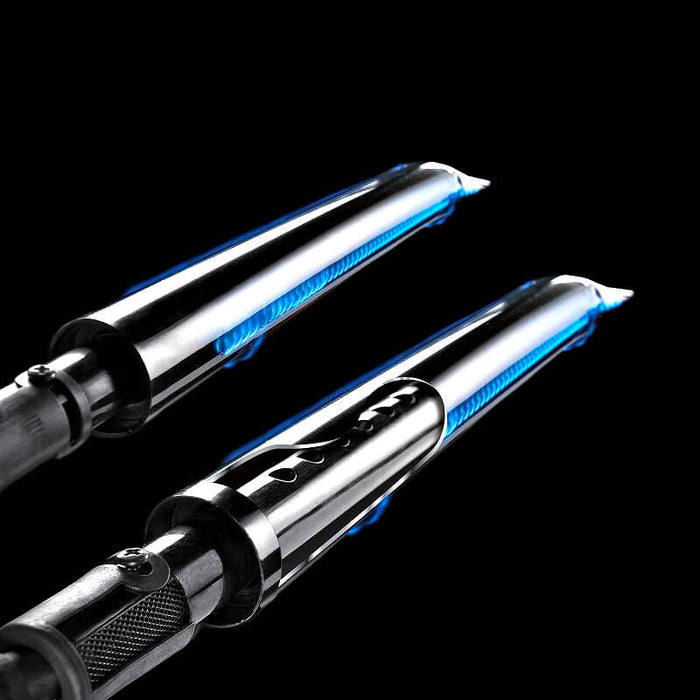

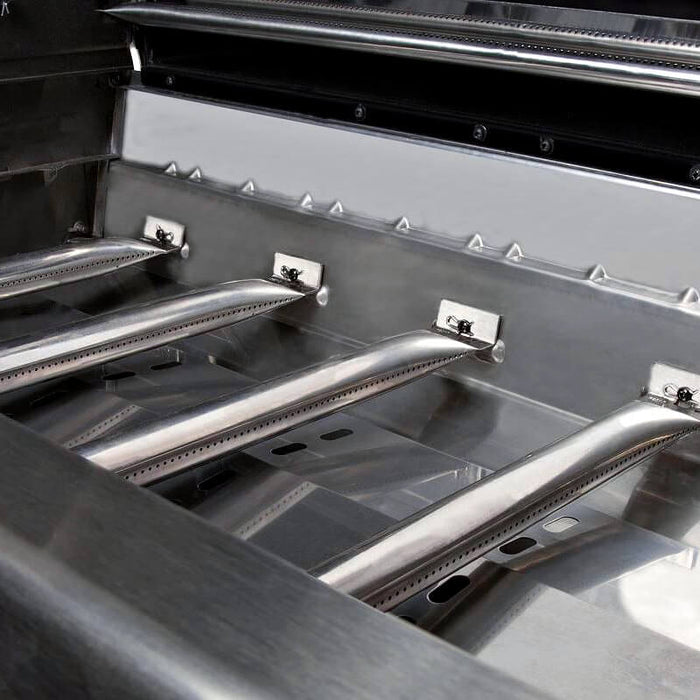

50,000 BTU Dual-Tube™ burners for even heat across the grill
-

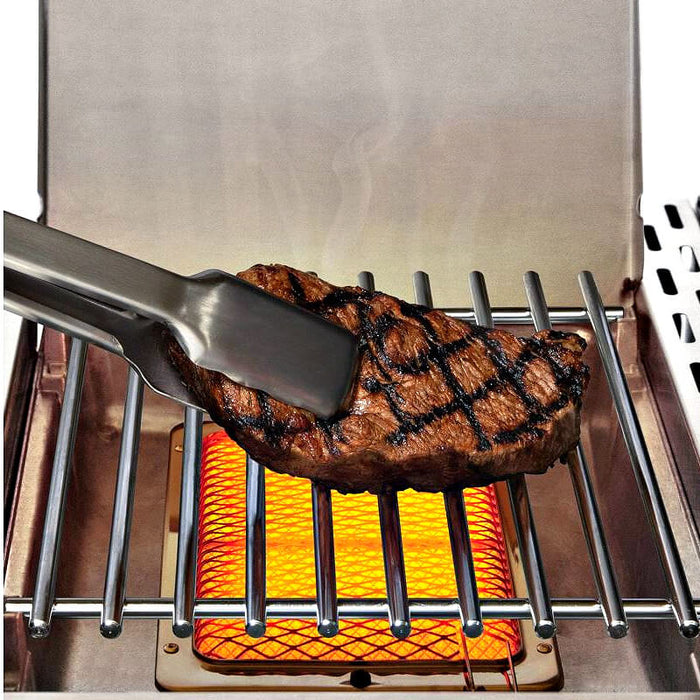

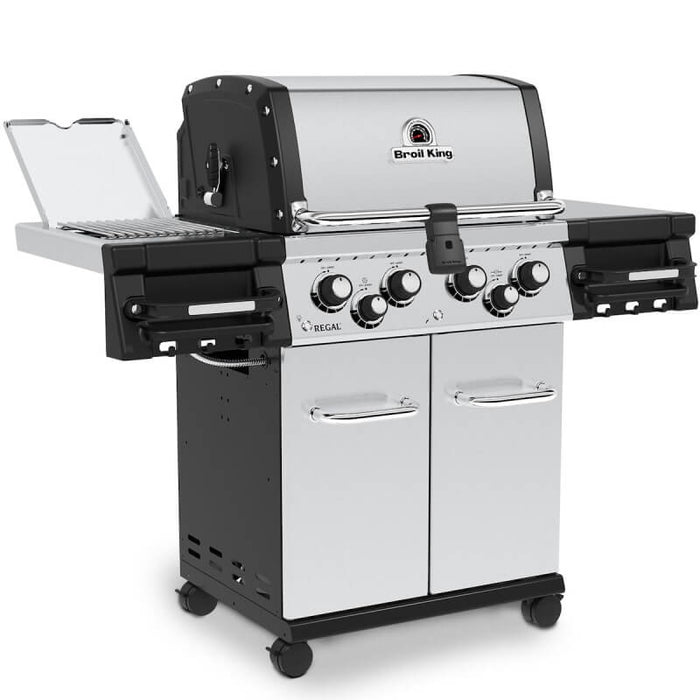

Infrared side burner delivers steakhouse-quality sears
-
Rotisserie burner with premium kit for juicy, slow-roasted meats
-
695 sq. in. total cooking space with warming rack
-

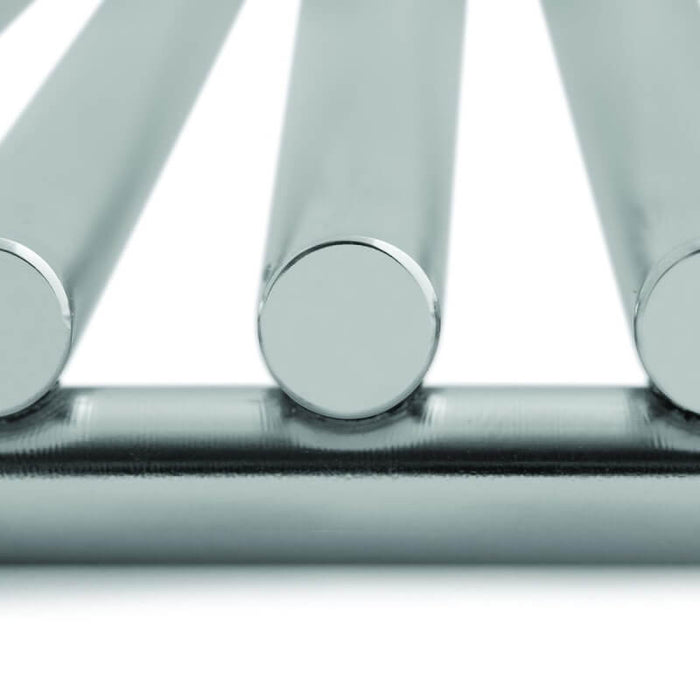

Reversible 9mm stainless steel grates for searing or moisture retention
-

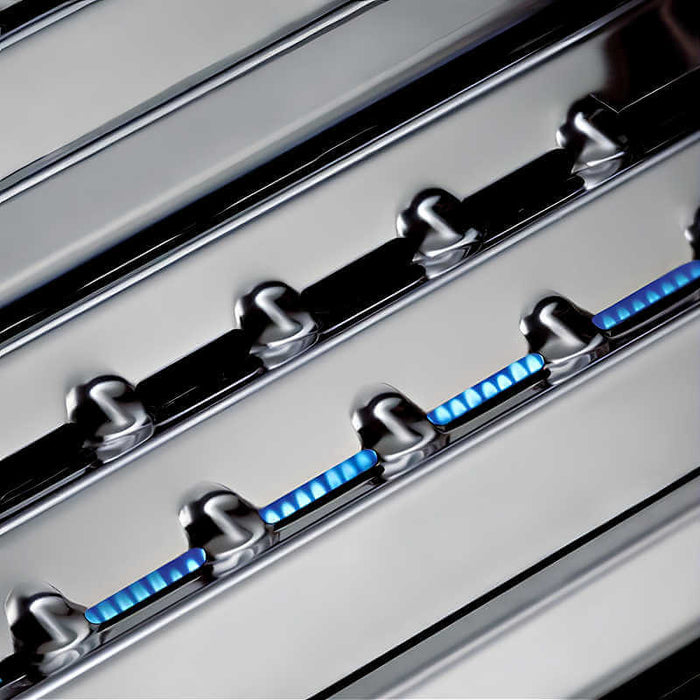

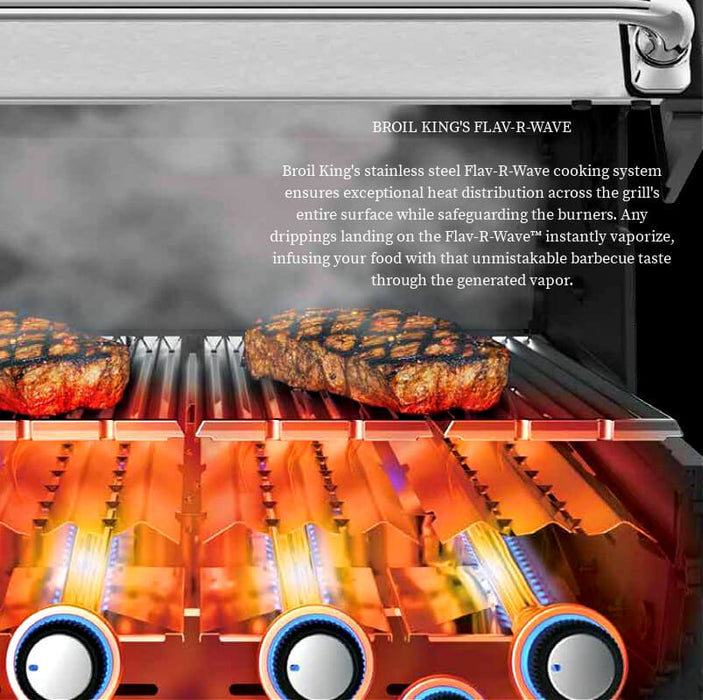

Flav-R-Wave™ vaporizes drippings for added BBQ flavor
-

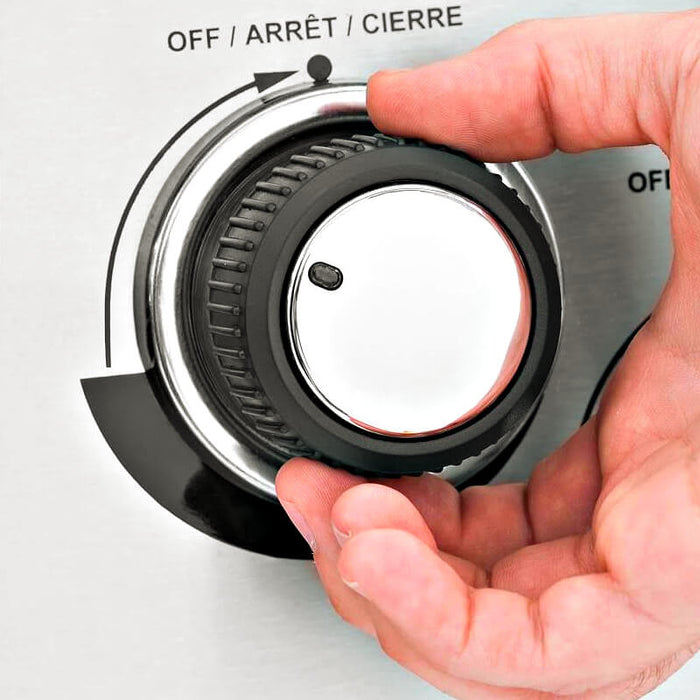

Sensi-Touch™ control knobs with precision 180° heat control
-

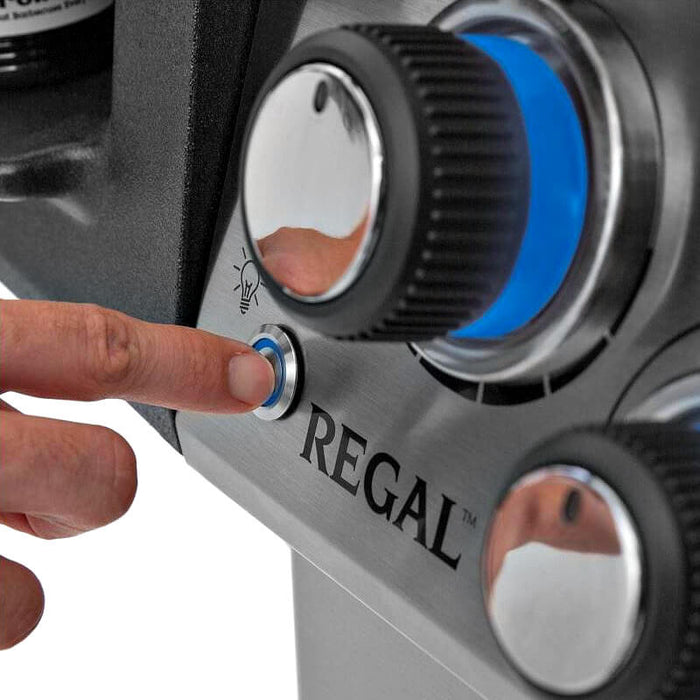

Built-in LED control lights for safe nighttime grilling
-
Deluxe Accu-Temp™ thermometer for accurate heat monitoring
-
Heavy-duty construction built to last in any climate
-
Versatile fuel options: available in LP or NG configuration
Warranty
Broil King offers a limited lifetime warranty on the cookbox, including the lid, control panel, and housing. The stainless steel Dual-Tube burners, Flav-R-Wave cooking system, and rear rotisserie burner come with a 15-year warranty against material and workmanship defects. All other parts and paint are covered for 2 years. Labor is not included.
Manufacturer Information
Click here for the Propane Gas Owner’s Manual
Click here for the Natural Gas Owner’s Manual
Click here for Assembly Instructions
Specs & Dimensions
Broil King Regal S 490 Pro Infrared Gas Grill
|
| Model |
956944 (Propane) / 956947 (Natural Gas) |
| Collection |
Regal |
| Fuel Type |
Propane (20 lb tank) / Natural Gas (10ft hose included) |
| Configuration |
Freestanding |
| Overall Width |
56.3” W |
| Overall Depth |
24.8” D |
| Overall Height |
49.2” H |
| Total BTU Output |
50,000 BTUs (Main Burners), 10,000 BTUs (Infrared Side Burner), 15,000 BTUs (Rotisserie Burner) |
| Number of Burners |
4 |
| Burner Type |
4 Stainless Steel Dual-Tube™ Burners |
| Flame Tamers |
Flav-R-Wave Stainless Steel Flame Tamers |
| Cooking Grid Dimensions |
25 1/2" X 19 1/4" |
| Burger Count |
20 |
| Primary Cooking Area |
500 sq. in. |
| Secondary Cooking Area |
195 sq. in. |
| Total Cooking Area |
695 sq. in. |
| Cooking Grates |
9mm Stainless Steel |
| Grill Lights |
Exterior / Interior |
| Ignition System |
Sure-Lite™ Electronic Dual-Electrode Ignition |
| Flash Tubes |
No |
| Temperature Gauge |
Deluxe Accu-Temp™ Thermometer |
| Control Panel Lights |
Yes |
| Weight |
189.5 lbs |
| Electrical Requirement |
120V Grounded Outlet |
